original.pdf docling.json layout_blocks.json layout_blocks.tsv layout_blocks.jsonl excluded_blocks.html excluded_blocks.tsv final_body_blocks.tsv visual_assets.tsv visual_assets.json
{
"blocks": 556,
"included_in_body": 105,
"gray_background_blocks": 1,
"framed_blocks": 19,
"by_role_guess": {

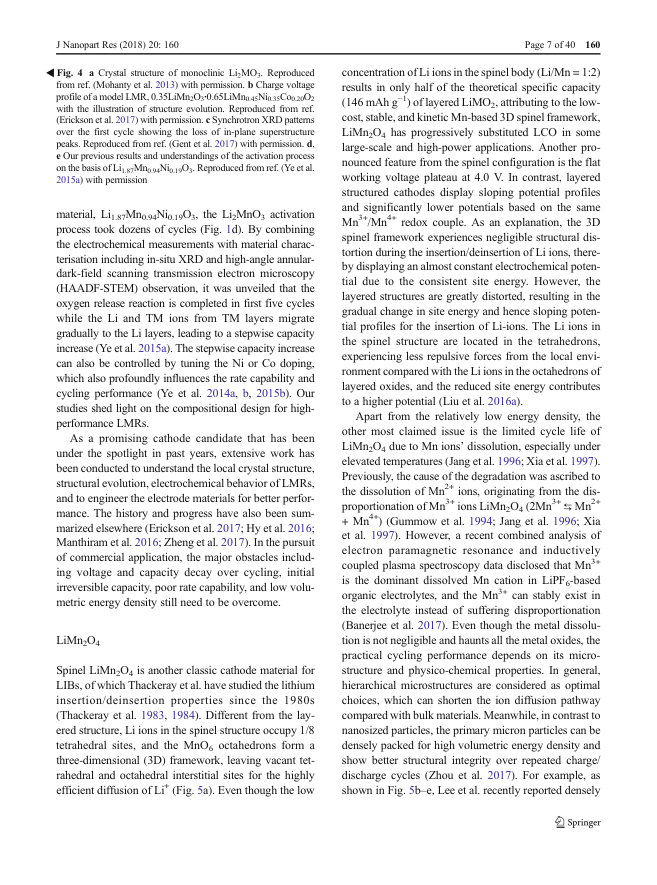

"page_header": 97,
"title_candidate": 2,
"front_matter_candidate": 1,
"metadata": 73,
"abstract_candidate": 2,
"front_matter_heading": 1,
"body_heading": 19,
"affiliation": 3,
"body": 105,
"unknown_text": 13,
"caption": 27,
"back_matter_heading": 3,
"reference": 173,
"body_candidate_excluded": 31,
"page_margin_header": 6
},
"by_docling_label": {
"page_header": 97,
"section_header": 22,
"text": 113,
"caption": 27,
"list_item": 297
},

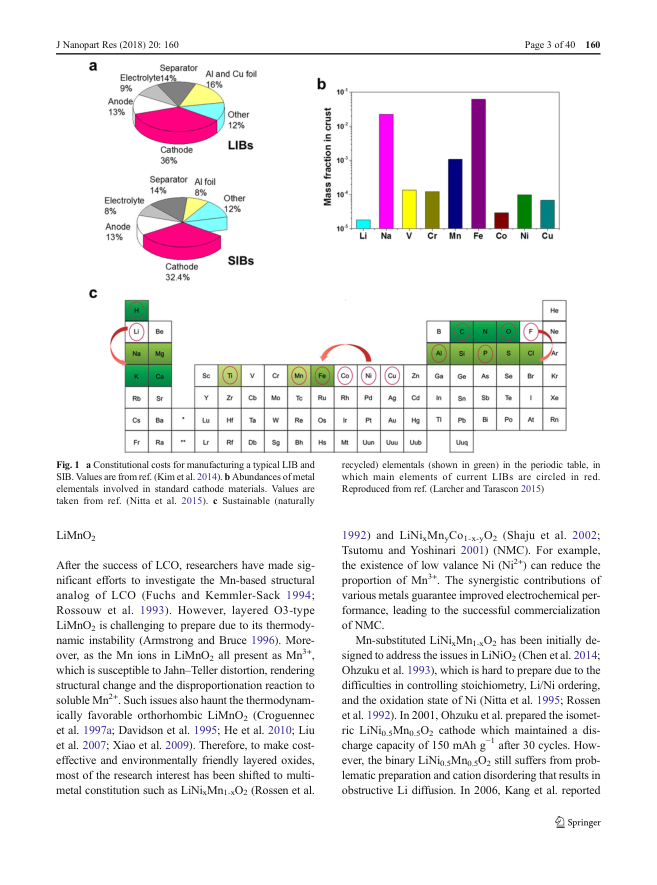

"by_body_decision_reason": {
"first_page_metadata": 3,
"first_page_front_matter_heading": 2,
"before_body_started": 1,
"implicit_abstract": 2,
"abstract_boundary_front_matter": 1,
"body_heading": 18,
"affiliation_block": 1,
"body": 102,
"outside_body_flow": 1,
"empty_after_cleaning": 1,
"docling_page_header": 69,
"outside_body_flow_caption": 23,
"docling_caption": 4,
"recovered_body_outside_flow": 3,
"back_matter_heading": 1,
"after_back_matter_stop": 324
},
"visual_assets": {
"count": 22,
"indexable_count": 22,
"suppressed_count": 0,
"by_type": {
"figure": 20,
"table": 2
},
"by_caption_source": {
"direct_caption_ref": 10,
"sequence_or_inferred_caption": 7,
"nearby_text_caption": 4,
"missing_caption": 1
},
"by_duplicate_reason": {
"": 22
},
"missing_caption_count": 1
}
}
{
"parsed_text_blocks": 556,
"final_body_blocks": 105,
"excluded_blocks": {
"count": 451,
"by_reason": {
"after_back_matter_stop": 324,
"docling_page_header": 69,
"outside_body_flow_caption": 23,
"body_heading": 18,
"docling_caption": 4,
"first_page_metadata": 3,
"first_page_front_matter_heading": 2,
"implicit_abstract": 2,
"abstract_boundary_front_matter": 1,
"affiliation_block": 1,
"back_matter_heading": 1,
"before_body_started": 1,
"empty_after_cleaning": 1,
"outside_body_flow": 1
},
"by_role_guess": {
"reference": 173,
"page_header": 97,
"metadata": 73,
"body_candidate_excluded": 31,
"caption": 27,
"body_heading": 19,
"unknown_text": 13,
"page_margin_header": 6,
"affiliation": 3,
"back_matter_heading": 3,
"abstract_candidate": 2,
"title_candidate": 2,
"front_matter_candidate": 1,
"front_matter_heading": 1
},
"by_risk_level": {
"low": 415,
"medium": 36
},
"high_risk_count": 0,
"medium_risk_count": 36
},
"char_counts": {
"parsed_text_chars": 145657,
"final_body_chars": 74251,
"excluded_chars": 71406
}
}
{
"truncated": true,
"message": "Body extraction stopped at page 30 block #/texts/206: Acknowledgments Funding support from ARC through its LP and DP programs is acknowledged.. 324 following text blocks were excluded as after_back_matter_stop.",
"stop_trigger": {
"ref": "#/texts/206",
"page": 30,
"layout_order": 231,
"role_guess": "back_matter_heading",
"body_decision_reason": "back_matter_heading",
"text_preview": "Acknowledgments Funding support from ARC through its LP and DP programs is acknowledged."
},
"first_truncated_block": {
"ref": "#/texts/207",
"page": 30,
"layout_order": 232,
"role_guess": "unknown_text",
"body_decision_reason": "after_back_matter_stop",
"text_preview": "Compliance with ethical standards"
},
"truncated_block_count": 324,
"truncated_pages": [
30,
31,
32,
33,
34,
35,
36,
37,
38,
39,
40
],
"by_role_guess": {
"reference": 173,
"metadata": 71,
"body_candidate_excluded": 31,
"page_header": 27,
"unknown_text": 11,
"page_margin_header": 6,
"affiliation": 2,
"back_matter_heading": 2,
"body_heading": 1
}
}
Green = final body chunks. Orange/purple asset boxes = actual figure/table assets used by ingestion. Cyan dashed text boxes = text blocks consumed by those assets as caption continuations. Red STOP = truncation trigger. Red boxes = blocks after truncation.
这里对齐真实图表资产提取链路。caption_source=embedded_table_cell 表示表注来自 Docling table cell，不会出现在 text block 审计差集里；caption_continuation_used_by_asset 表示某个 text block 已被图表 caption 吸收，不应按普通 metadata 解读。
| # | type | label | page | caption source | suppressed | duplicate reason | rescue reason | group | confidence | bbox | caption |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | figure | Fig. 1 | 3 | direct_caption_ref | 0.82 | [71.63, 50.19, 401.32, 327.63] | Fig. 1 a Constitutional costs for manufacturing a typical LIB and SIB. Values are from ref. (Kim et al. 2014). b Abundances of metal elementals involved in standard cathode materials. Values are taken from ref. (Nitta et al. 2015). c Sustainable (naturally | ||||
| 2 | figure | Fig. 2 | 4 | sequence_or_inferred_caption | 0.82 | [46.13, 49.06, 455.09, 126.05] | Fig. 2 a Crystal structure of layered LiMO2. Reproduced from ref. (Chen et al. 2016) with permission. b Cycling profile of layered LiMnO2. Reproduced from ref. (Armstrong and Bruce 1996) with permission. c Structural illustration and voltage profiles of orthorhombic LiMnO2. Reproduced from ref. (Croguennec et al. 1997b) and ref. (He et al. 2010) with permissions | ||||
| 3 | figure | Fig. 3 | 5 | direct_caption_ref | 0.82 | [73.3, 51.24, 400.1, 219.97] | Fig. 3 a , b Charge/discharge curves of LiFeO2 ( a ) and oxygen-deficient LiFeO2-x ( b ). c XRD pattern of cycled O3-type LiFeO2. Reproduced from ref. (Hirayama et al. 2011) with permission | ||||
| 4 | figure | Docling Figure 4 | 6 | missing_caption | 0.55 | [79.6, 48.36, 382.72, 590.51] | |||||
| 5 | figure | Fig. 5 | 8 | direct_caption_ref | 0.82 | [71.07, 49.41, 400.28, 297.97] | Fig. 5 a Crystal structure of spinel LiMn2O4. Reproduced from ref. (Chen et al. 2016) with permission. b -e Schematic diagram of the composites and the corresponding electrochemical performance. Reproduced from ref. (Lee et al. 2017) with permission | ||||
| 6 | figure | Fig. 6 | 10 | sequence_or_inferred_caption | 0.82 | [48.04, 47.24, 452.62, 326.96] | Fig. 6 a Comparison of the two structural configurations in LNMO. Reproduced from ref. (Liu et al. 2012a) with permission. b Typical charge/discharge curves of LNMO with the two phases. Reproduced from ref. (Wang et al. 2011b) with permission. c , d Structural characteristics and electrochemical properties on the basis of our prepared samples. e , f Outstanding capacity retention achieved by using lithium phosphorus oxynitride solid electrolyte. Reproduced from ref. (Li et al. 2015b) with permission | ||||
| 7 | figure | Fig. 7 | 11 | direct_caption_ref | 0.82 | [253.86, 48.01, 243.63, 593.54] | Fig. 7 a Crystal structure of spinel LiMn2O4. Reproduced from ref. (Chen et al. 2016) with permission. b High-rate discharge capability of LiFe 0.9P0.95O4δ . Reproduced from ref. (Kang and Ceder 2009) with permission. c Structural and electrochemical properties of a core-shell LFP nanocomposites. Reproduced from ref. (Naoi et al. 2016) with permission. d Morphology and discharge curves of LMO nanoparticles. Reproduced with permission (Hong et al. 2015). e Phase transformation diagram of LiMn0.6Fe0.4PO4 over the extraction/insertion of Li ions. Reproduced from ref. (Ravnsbæk et al. 2014) with permission. f Phase transformation strain as a function of the Mn content in LFMP, and a special case of LiMn0.2Fe0.8PO4 with no misfit strain. Reproduced from ref. (Ravnsbæk et al. 2016) with permission. g LiMn0.5Fe0.5PO4 nanocrystals with different Fe-Li antisite defects showing distinct rate performance. Reproduced from ref. (Hu et al. 2017) with permission | ||||
| 8 | figure | Fig. 8 | 14 | sequence_or_inferred_caption | 0.82 | [45.97, 48.86, 456.28, 254.24] | Fig. 8 a , b Crystal structures of P 21/ n Li2FeSiO4 ( a ), which transforms into Pmn 21 Li2FeSiO4 ( b ). c Typical charge/discharge curves of Li2FeSiO4. Reproduced from ref. (Armstrong et al. 2011) with permission. d Structural transformation routes of LiFeBO3 during delithiation and degradation. Reproduced from ref. (Bo et al. 2014) with permission. e Charge/discharge profiles of mesoporous LiFeBO3/C hollow spheres. Reproduced from ref. (Chen et al. 2015) with permission | ||||
| 9 | figure | Fig. 9 | 15 | direct_caption_ref | 0.82 | [216.6, 48.7, 283.67, 313.54] | Fig. 9 a Structural comparison of P2-type and O3-type NaxMO2. Reproduced from ref. (Yabuuchi et al. 2012a) with permission. b Synthesis phase diagram of NaxCoO2 as a function of the Na/ Co ratio from precursors and heating temperature. Reproduced from ref. (Lei et al. 2014) with permission | ||||
| 10 | figure | Fig. 10 | 16 | sequence_or_inferred_caption | 0.82 | [46.31, 50.07, 454.85, 145.54] | Fig. 10 a Initial charge/discharge curves of NaFeO2 on the dependence of different cut-off potentials. Reprinted from ref. (Okada et al. 2006) with permission. b Voltage profiles along cycling. c A diagram illustrating the electrochemical active Fe 3+ / Fe 4+ redox couple. Reproduced from ref. (Lee et al. 2015) with permission | ||||
| 11 | figure | Fig. 11 | 16 | nearby_text_caption | 0.82 | [216.45, 275.4, 284.78, 387.31] | Fig. 11 a Stability domain of the different structural types observed for as-synthesized NaxMnO2 compounds. Reproduced from ref. (Clément et al. 2015) with permission. b Schematic representations of β -NaMnO2 and an intergrowth model between α - and β -NaMnO2. Reproduced from ref. (Billaud et al. 2014a) with permission. c , d Voltage profiles of α -NaMnO2 and the complex structure. Reproduced from ref. (Ma et al. 2011), (Billaud et al. 2014a) with permissions | ||||
| 12 | figure | Fig. 12 | 17 | nearby_text_caption | 0.82 | [285.05, 50.31, 216.58, 543.75] | Fig. 12 a , b Charge-discharge curves of o -NMO ( a ) and h -NMO ( b ). c , d Operando XRD patterns of o -NMO ( c ) and h -NMO ( d ) over initial charge/discharge curves. Reproduced from ref. (Kumakura et al. 2016) with permission | ||||
| 13 | figure | Fig. 13 | 18 | direct_caption_ref | 0.82 | [215.94, 49.21, 284.82, 231.46] | Fig. 13 a Schematic representation of the tunnel Na0.44MnO2. b Voltage profiles of the monocrystal Na0.44MnO2 nanoplates. c Cyclic voltammograms (CVs) of the Na0.44MnO2 electrode between 2.0 and 4.0 Vat a scanning rate of 0.1 mV s -1 . d Corresponding insitu XRD patterns over the voltage scanning. Reproduced from ref. (He et al. 2016) with permission | ||||

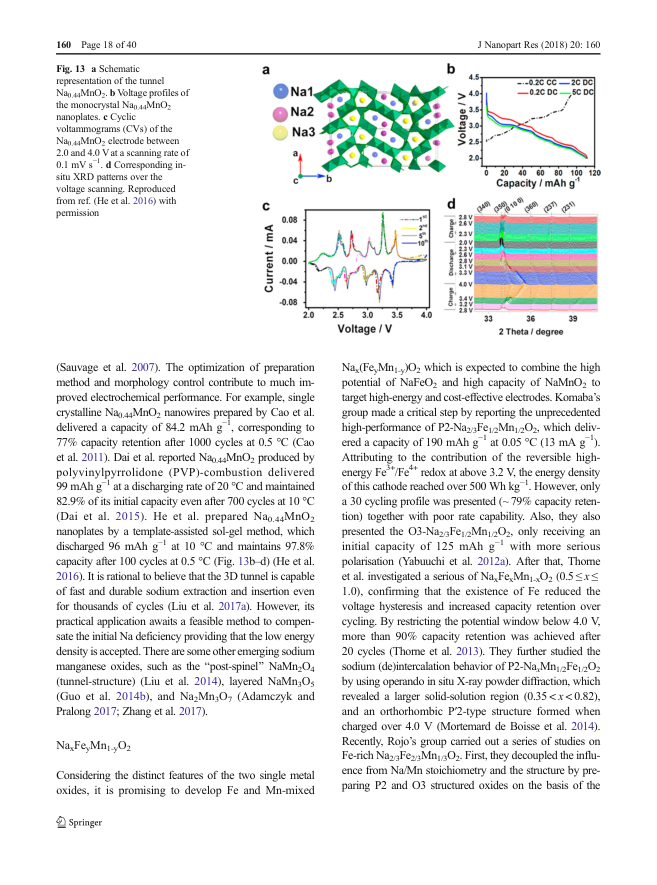

| 14 | figure | Fig. 14 | 19 | nearby_text_caption | 0.82 | [217.41, 540.48, 283.48, 120.53] | Fig. 14 Phase evolution in Na0.67Mn0.5Fe0.5O2 and Nisubstituted Na0.67Mn0.65Ni0.15Fe0.2O2 over the first cycle, and schematic illustration of Mn/Fe migration into tetrahedral sites in the Na space at high potential. Reproduced from ref. (Talaie et al. 2015) with permission | ||||

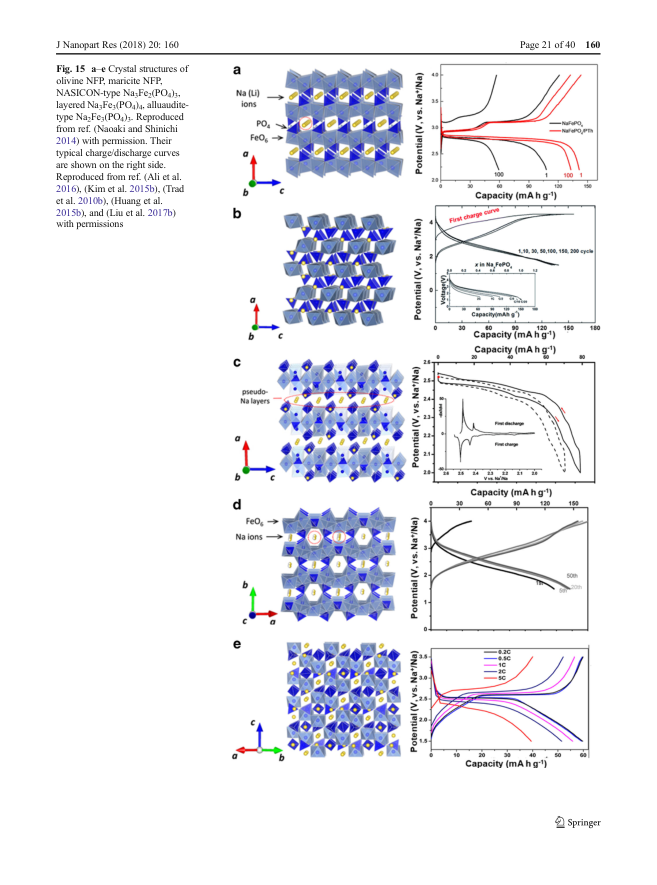

| 15 | figure | Fig. 15 | 21 | direct_caption_ref | 0.82 | [191.23, 48.89, 308.11, 592.98] | Fig. 15 a -e Crystal structures of olivine NFP, maricite NFP, NASICON-type Na3Fe2(PO4)3, layered Na3Fe3(PO4)4, alluauditetype Na2Fe3(PO4)3. Reproduced from ref. (Naoaki and Shinichi 2014) with permission. Their typical charge/discharge curves are shown on the right side. Reproduced from ref. (Ali et al. 2016), (Kim et al. 2015b), (Trad et al. 2010b), (Huang et al. 2015b), and (Liu et al. 2017b) with permissions | ||||
| 16 | figure | Fig. 16 | 22 | sequence_or_inferred_caption | 0.82 | [46.05, 395.76, 454.95, 224.11] | Fig. 16 a -c Triclinic structure ( P -1) of Na2FeP2O7 and corresponding electrochemical properties. Reproduced from ref. (Barpanda et al. 2012) with permission. d Voltage profiles of P -1 Na2MnP2O7. Reproduced from ref. (Park et al. 2013) with permission. e , f Crystal structure of β -Na2MnP2O7 (triclinic P 1) and its voltage profiles. Reproduced from ref. (Barpanda et al. 2013b) with permission | ||||
| 17 | figure | Fig. 17 | 23 | sequence_or_inferred_caption | 0.82 | [88.4, 48.39, 367.79, 575.2] | Fig. 17 Crystal structures of alluaudite-type Na2Fe2(SO4)3 ( a ), eldfellite NaFe(SO4)2 ( b ), Na2Fe2(C2O4)3·2H2O ( c ), and Na2Fe(C2O4)F2 with their voltage profiles are shown on the right side. Reproduced from ref. (Barpanda et al. 2014b), (Singh et al. 2015), (Yao et al. 2017b), and (Yao et al. 2017a) with permissions | ||||
| 18 | figure | Fig. 18 | 24 | direct_caption_ref | 0.82 | [240.07, 50.23, 258.44, 590.88] | Fig. 18 a -d Crystal structures of Na2FePO4F ( a ), Na2MnPO4F ( b ), Na4Fe3(PO4)2(P2O7) ( c ), and Na3MnPO4CO3 ( d ). Reproduced from ref. (Naoaki and Shinichi 2014) with permission. Their representative voltage profiles are shown on the right side. Reproduced from ref. (Law et al. 2015), (Lin et al. 2014), (Wu et al. 2016), and (Huang et al. 2014) with permissions. e Highperformance Na4Mn3(PO4)2(P2O7), which was ascribed to the cooperative JahnTeller effect of Mn 3+ . Reproduced from ref. (Kim et al. 2015a) with permission | ||||
| 19 | figure | Fig. 19 | 25 | sequence_or_inferred_caption | 0.82 | [46.6, 48.59, 454.1, 330.48] | Fig. 19 a Crystal structure of PBAs with a face-centered cubic phase. b Charge and discharge curves of Na2MnMn(CN)6. c , d The schematic illustrations of the step-wise structural evolution over the extraction/insertion of Na + ions. Reproduced from ref. (Lee et al. 2014) with permission. e , f Voltage profile and cycling performance of a Prussian blue@C composite. Reproduced from ref. (Jiang et al. 2016) with permission | ||||
| 20 | figure | Fig. 20 | 29 | direct_caption_ref | 0.82 | [74.14, 49.44, 399.05, 159.38] | Fig. 20 Illustration of the energy densities of those Fe- and Mn-based cathode materials for LIBs ( a ) and SIBs ( b ) | ||||
| 21 | table | Table 1 | 27 | direct_caption_ref | 0.82 | [293.62, 47.52, 205.35, 614.55] | Table 1 Electrochemical properties of representative Fe- and Mn-based cathode materials for LIBs | ||||

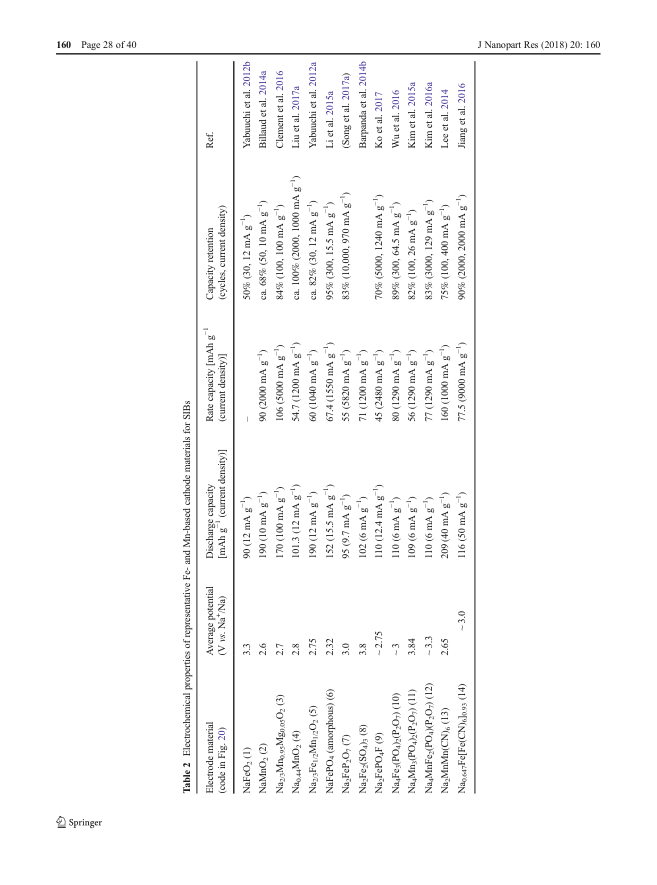

| 22 | table | Table 2 | 28 | nearby_text_caption | 0.82 | [160.73, 48.41, 234.47, 613.54] | Table 2 Electrochemical properties of representative Fe- and Mn-based cathode materials for SIBs |
| page | order | label | role | included | risk | reason | parser reason | production usage | trunc | body region | region | bg | frame | bbox | raw text | cleaned text |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 0 | page_header | page_header | False | low | first_page_metadata | first_page_metadata | p1:body_region:0 | p1:top_margin:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 34.19, 141.55, 18.69] | J Nanopart Res (2018) 20: 160 https://doi.org/10.1007/s11051-018-4235-1 | J Nanopart Res (2018) 20: 160 | ||
| 1 | 1 | section_header | title_candidate | False | low | first_page_front_matter_heading | first_page_front_matter_heading | p1:body_region:0 | p1:front_matter:front_panel:gray | [195, 196, 196] gray | False | [52.44, 65.76, 39.87, 9.08] | REVIEW | REVIEW | ||
| 1 | 2 | section_header | title_candidate | False | low | first_page_front_matter_heading | first_page_front_matter_heading | p1:body_region:0 | p1:front_matter:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 107.14, 380.39, 30.94] | Recent advances on Fe- and Mn-based cathode materials for lithium and sodium ion batteries | Recent advances on Fe- and Mn-based cathode materials for lithium and sodium ion batteries | ||
| 1 | 3 | text | front_matter_candidate | False | low | before_body_started | before_body_started | p1:body_region:0 | p1:front_matter:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 157.49, 192.35, 33.85] | Xiaobo Zhu & Tongen Lin & Eric Manning & Yuancheng Zhang & Mengmeng Yu & Bin Zuo & Lianzhou Wang | Xiaobo Zhu & Tongen Lin & Eric Manning & Yuancheng Zhang & Mengmeng Yu & Bin Zuo & Lianzhou Wang | ||
| 1 | 4 | text | metadata | False | low | first_page_metadata | first_page_metadata | p1:body_region:0 | p1:front_matter:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 225.19, 285.74, 17.6] | Received: 18 January 2018 /Accepted: 23 April 2018 /Published online: 11 June 2018 # Springer Science+Business Media B.V ., part of Springer Nature 2018 | Received: 18 January 2018 /Accepted: 23 April 2018 /Published online: 11 June 2018 # Springer Science+Business Media B.V ., part of Springer Nature 2018 | ||
| 1 | 5 | text | abstract_candidate | False | medium | implicit_abstract | implicit_abstract | p1:body_region:0 | p1:front_matter:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 262.24, 215.51, 195.45] | Abstract The ever-growing market of electrochemical energy storage impels the advances on cost-effective and environmentally friendly battery chemistries. Lithiumion batteries (LIBs) are currently the most critical ener… | Abstract The ever-growing market of electrochemical energy storage impels the advances on cost-effective and environmentally friendly battery chemistries. Lithiumion batteries (LIBs) are currently the most critical ener… | ||
| 1 | 6 | text | front_matter_heading | False | low | abstract_boundary_front_matter | abstract_boundary_front_matter | p1:front_matter:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 346.38, 215.5, 33.53] | Keywords Cathodematerials . Iron-based . Manganesebased . Lithium ion batteries . Sodium ion batteries . Energy storage | Keywords Cathodematerials . Iron-based . Manganesebased . Lithium ion batteries . Sodium ion batteries . Energy storage | |||
| 1 | 7 | text | abstract_candidate | False | medium | implicit_abstract | implicit_abstract | p1:front_matter:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 262.24, 215.53, 58.48] | NaxFeyMn1-yO2, Na4MnFe2(PO4)(P2O7), and Prussian blue analogs. Also, challenges and prospects are discussed to direct the possible development of costeffective and high-performance cathode materials for future rechargea… | NaxFeyMn1-yO2, Na4MnFe2(PO4)(P2O7), and Prussian blue analogs. Also, challenges and prospects are discussed to direct the possible development of costeffective and high-performance cathode materials for future rechargea… | |||
| 1 | 8 | section_header | body_heading | False | low | body_heading | body_heading | p1:body_zone:column_2_of_2:white | [255, 255, 255] white | False | [284.89, 418.09, 52.55, 8.75] | Introduction | Introduction | |||
| 1 | 9 | text | metadata | False | medium | first_page_metadata | first_page_metadata | p1:body_region:0 | p1:body_zone:column_1_of_2:white | [255, 255, 255] white | False | [46.76, 529.39, 214.35, 52.83] | X. Zhu : T. Lin : E. Manning : L. Wang ( * ) Nanomaterials Centre, School of Chemical Engineering and Australian Institute for Bioengineering and Nanotechnology, The University of Queensland, QLD, Brisbane 4072, Austral… | X. Zhu : T. Lin : E. Manning : L. Wang ( * ) Nanomaterials Centre, School of Chemical Engineering and Australian Institute for Bioengineering and Nanotechnology, The University of Queensland, QLD, Brisbane 4072, Austral… | ||
| 1 | 10 | text | affiliation | False | low | affiliation_block | affiliation_block | p1:body_region:0 | p1:body_zone:column_1_of_2:white | [255, 255, 255] white | False | [46.76, 594.77, 204.74, 17.33] | E. Manning Faculty of Engineering, University of Alberta, Edmonton, AB | E. Manning Faculty of Engineering, University of Alberta, Edmonton, AB | ||
| 1 | 11 | text | body | True | body | body | p1:body_region:0 | p1:body_zone:column_1_of_2:white | [255, 255, 255] white | False | [46.76, 614.72, 60.37, 7.35] | T6G 2R3, Canada | T6G 2R3, Canada | |||
| 1 | 12 | text | body | True | body | body | p1:body_region:0 | p1:body_zone:column_1_of_2:white | [255, 255, 255] white | False | [46.76, 634.62, 208.73, 27.41] | Y. Zhang M. Yu B. Zuo Shandong Baoli Biomass Energy Corporate, Changan Group, Huanghe Road, Dongying 257067, People ' s Republic of China | Y. Zhang M. Yu B. Zuo Shandong Baoli Biomass Energy Corporate, Changan Group, Huanghe Road, Dongying 257067, People ' s Republic of China | |||
| 1 | 13 | text | body | True | body | body | p1:body_region:0 | p1:body_zone:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 485.98, 141.51, 7.35] | This article is part of the topical collection: | This article is part of the topical collection: | |||
| 1 | 14 | text | unknown_text | False | medium | outside_body_flow | outside_body_flow | p1:body_region:0 | p1:body_zone:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 495.95, 135.17, 7.35] | 20th Anniversary Issue: From the editors | 20th Anniversary Issue: From the editors | ||
| 1 | 15 | text | body | True | body | body | p1:body_region:0 | p1:body_zone:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 513.47, 197.71, 7.35] | Nicola Pinna, Executive Editor, Mike Roco, Editor-in-Chief | Nicola Pinna, Executive Editor, Mike Roco, Editor-in-Chief | |||
| 1 | 16 | text | unknown_text | False | medium | empty_after_cleaning | empty_after_cleaning | p1:body_region:0 | p1:body_zone:column_1_of_2:white | [255, 255, 255] white | False | [80.84, 629.05, 32.89, 11.68] | : : | |||
| 1 | 17 | text | body | True | body | body | p1:body_zone:column_2_of_2:white | [255, 255, 255] white | False | [284.89, 442.97, 215.47, 220.33] | The demand for electrical energy storage is increasing exponentially along with the advancement of technologies and our ambition for clean and sustainable development. As a state-of-the-art energy storage system, lithiu… | The demand for electrical energy storage is increasing exponentially along with the advancement of technologies and our ambition for clean and sustainable development. As a state-of-the-art energy storage system, lithiu… | ||||
| 2 | 18 | page_header | page_header | False | low | docling_page_header | docling_page_header | p2:top_margin:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 34.25, 63.0, 7.44] | 160 Page 2 of 40 | 160 Page 2 of 40 | |||
| 2 | 19 | text | body | True | body | body | p2:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.76, 56.9, 215.51, 270.17] | A typical LIB is an enclosed device consisting of a cathode, an anode, a separator, and an electrolyte. In respect to the manufacturing cost of a LIB (Fig. 1a), the cathode part accounts for the most significant share, … | A typical LIB is an enclosed device consisting of a cathode, an anode, a separator, and an electrolyte. In respect to the manufacturing cost of a LIB (Fig. 1a), the cathode part accounts for the most significant share, … | ||||
| 2 | 20 | text | body | True | body | body | p2:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.76, 330.89, 215.54, 270.18] | Although both LIBs and SIBs should be directed to lower cost and higher performance, given the different application scenarios and development phases of LIBs and SIBs, the challenges existing in them still varies. In LI… | Although both LIBs and SIBs should be directed to lower cost and higher performance, given the different application scenarios and development phases of LIBs and SIBs, the challenges existing in them still varies. In LI… | ||||
| 2 | 21 | text | body | True | body | body | p2:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 604.84, 215.55, 58.48] | Taking advantage of abundant Na sources, SIBs hold the promise to support large-scale energy storage applications, which is critical in harnessing intermittent renewable energies such as solar and wind power. An essenti… | Taking advantage of abundant Na sources, SIBs hold the promise to support large-scale energy storage applications, which is critical in harnessing intermittent renewable energies such as solar and wind power. An essenti… | ||||
| 2 | 22 | page_header | page_header | False | low | docling_page_header | docling_page_header | p2:body_region:0 | p2:top_margin:column_2_of_2:white | [255, 255, 255] white | False | [398.16, 34.25, 102.12, 7.35] | J Nanopart Res (2018) 20: 160 | J Nanopart Res (2018) 20: 160 | ||
| 2 | 23 | text | body | True | body | body | p2:body_region:0 | p2:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 56.9, 215.5, 183.03] | of suitable electrode materials that meet the long-term stability requirement and can deliver and accept large amounts of energy quickly. However, the radii of Na + (0.102 nm) is much larger compared to that of Li + (0.… | of suitable electrode materials that meet the long-term stability requirement and can deliver and accept large amounts of energy quickly. However, the radii of Na + (0.102 nm) is much larger compared to that of Li + (0.… | |||
| 2 | 24 | text | body | True | body | body | p2:body_region:0 | p2:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.89, 243.7, 215.49, 170.56] | Herein, this review summarizes the research advances on Fe- and Mn-based cathode materials for LIBs and SIBs, respectively, which are categorized into oxides, polyanion compounds, and hexacyanometalates (for SIBs). With… | Herein, this review summarizes the research advances on Fe- and Mn-based cathode materials for LIBs and SIBs, respectively, which are categorized into oxides, polyanion compounds, and hexacyanometalates (for SIBs). With… | |||
| 2 | 25 | section_header | body_heading | False | low | body_heading | body_heading | p2:body_region:0 | p2:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.89, 442.97, 174.19, 8.75] | Fe- and Mn-based oxides as LIB cathodes | Fe- and Mn-based oxides as LIB cathodes | ||
| 2 | 26 | text | body | True | body | body | p2:body_region:0 | p2:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 467.86, 215.53, 195.46] | The introduction of LCO cathode has empowered the commercialization of the first LIB. LCO also guides the investigation of a family of α -NaFeO2-type layered oxides LiMO2, where M can be a TM or a mixture of several (Ch… | The introduction of LCO cathode has empowered the commercialization of the first LIB. LCO also guides the investigation of a family of α -NaFeO2-type layered oxides LiMO2, where M can be a TM or a mixture of several (Ch… | |||
| 3 | 27 | page_header | page_header | False | low | docling_page_header | docling_page_header | p3:top_margin:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 34.25, 102.17, 7.35] | J Nanopart Res (2018) 20: 160 | J Nanopart Res (2018) 20: 160 | |||
| 3 | 28 | caption | caption | False | low | outside_body_flow_caption | outside_body_flow_caption | p3:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 384.38, 215.5, 37.31] | Fig. 1 a Constitutional costs for manufacturing a typical LIB and SIB. Values are from ref. (Kim et al. 2014). b Abundances of metal elementals involved in standard cathode materials. Values are taken from ref. (Nitta e… | Fig. 1 a Constitutional costs for manufacturing a typical LIB and SIB. Values are from ref. (Kim et al. 2014). b Abundances of metal elementals involved in standard cathode materials. Values are taken from ref. (Nitta e… | |||
| 3 | 29 | section_header | body_heading | False | low | body_heading | body_heading | p3:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 442.98, 32.99, 9.61] | LiMnO2 | LiMnO2 | |||
| 3 | 30 | text | body | True | body | body | p3:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.76, 467.87, 215.51, 196.41] | After the success of LCO, researchers have made significant efforts to investigate the Mn-based structural analog of LCO (Fuchs and Kemmler-Sack 1994; Rossouw et al. 1993). However, layered O3-type LiMnO2 is challenging… | After the success of LCO, researchers have made significant efforts to investigate the Mn-based structural analog of LCO (Fuchs and Kemmler-Sack 1994; Rossouw et al. 1993). However, layered O3-type LiMnO2 is challenging… | ||||
| 3 | 31 | page_header | page_header | False | low | docling_page_header | docling_page_header | p3:top_margin:column_2_of_2:white | [255, 255, 255] white | True | [437.38, 34.25, 62.91, 7.44] | Page 3 of 40 160 | Page 3 of 40 160 | |||
| 3 | 32 | text | body | True | body | body | p3:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.89, 384.38, 215.4, 27.25] | recycled) elementals (shown in green) in the periodic table, in which main elements of current LIBs are circled in red. Reproduced from ref. (Larcher and Tarascon 2015) | recycled) elementals (shown in green) in the periodic table, in which main elements of current LIBs are circled in red. Reproduced from ref. (Larcher and Tarascon 2015) | ||||
| 3 | 33 | text | body | True | body | body | p3:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 442.98, 215.47, 83.37] | 1992) and LiNixMnyCo1-x-yO2 (Shaju et al. 2002; Tsutomu and Yoshinari 2001) (NMC). For example, the existence of low valance Ni (Ni 2+ ) can reduce the proportion of Mn 3+ . The synergistic contributions of various meta… | 1992) and LiNixMnyCo1-x-yO2 (Shaju et al. 2002; Tsutomu and Yoshinari 2001) (NMC). For example, the existence of low valance Ni (Ni 2+ ) can reduce the proportion of Mn 3+ . The synergistic contributions of various meta… | ||||
| 3 | 34 | text | body | True | body | body | p3:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 530.11, 215.52, 133.2] | Mn-substituted LiNixMn1-xO2 has been initially designed to address the issues in LiNiO 2 (Chen et al. 2014; Ohzuku et al. 1993), which is hard to prepare due to the difficulties in controlling stoichiometry, Li/Ni order… | Mn-substituted LiNixMn1-xO2 has been initially designed to address the issues in LiNiO 2 (Chen et al. 2014; Ohzuku et al. 1993), which is hard to prepare due to the difficulties in controlling stoichiometry, Li/Ni order… | ||||
| 4 | 35 | page_header | page_header | False | low | docling_page_header | docling_page_header | p4:top_margin:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 34.25, 12.51, 7.44] | 160 | 160 | |||
| 4 | 36 | page_header | page_header | False | low | docling_page_header | docling_page_header | p4:top_margin:column_1_of_2:white | [255, 255, 255] white | False | [67.64, 34.25, 42.14, 7.35] | Page 4 of 40 | Page 4 of 40 | |||
| 4 | 37 | caption | caption | False | low | outside_body_flow_caption | outside_body_flow_caption | p4:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 182.33, 215.42, 27.25] | Fig. 2 a Crystal structure of layered LiMO2. Reproduced from ref. (Chen et al. 2016) with permission. b Cycling profile of layered LiMnO2. Reproduced from ref. (Armstrong and Bruce | Fig. 2 a Crystal structure of layered LiMO2. Reproduced from ref. (Chen et al. 2016) with permission. b Cycling profile of layered LiMnO2. Reproduced from ref. (Armstrong and Bruce | |||
| 4 | 38 | text | body | True | body | body | p4:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 231.0, 215.5, 70.9] | the use of an ion-exchange process to prepare highquality LiNi0.5Mn0.5O2 with very low little intralayer disordering, which could maintain a capacity of ∼ 180 mAh g -1 even at a high rate of 6 °C (Kang et al. 2006). How… | the use of an ion-exchange process to prepare highquality LiNi0.5Mn0.5O2 with very low little intralayer disordering, which could maintain a capacity of ∼ 180 mAh g -1 even at a high rate of 6 °C (Kang et al. 2006). How… | ||||
| 4 | 39 | text | body | True | body | body | p4:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 305.73, 215.48, 207.86] | Meanwhile, researchers investigated the cosubstitution of Co and Mn for better structural stability. In 2001, Ohzuku et al. reported the isometric LiNi1/3Mn1/3Co1/3O2 (NMC111) cathode, which demonstrated a rechargeable … | Meanwhile, researchers investigated the cosubstitution of Co and Mn for better structural stability. In 2001, Ohzuku et al. reported the isometric LiNi1/3Mn1/3Co1/3O2 (NMC111) cathode, which demonstrated a rechargeable … | ||||
| 4 | 40 | section_header | body_heading | False | low | body_heading | body_heading | p4:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.78, 530.12, 29.02, 9.66] | LiFeO2 | LiFeO2 | |||
| 4 | 41 | text | body | True | body | body | p4:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 555.06, 215.53, 108.26] | In principle, the structure of LiMO 2 is dependent on the size of the M cation (Shirane et al. 1995). When Co is substituted by similarly smaller M cations, such as V 3+ , Cr 3+ , Ni 3+ , the layered rock-salt structure… | In principle, the structure of LiMO 2 is dependent on the size of the M cation (Shirane et al. 1995). When Co is substituted by similarly smaller M cations, such as V 3+ , Cr 3+ , Ni 3+ , the layered rock-salt structure… | ||||
| 4 | 42 | page_header | page_header | False | low | docling_page_header | docling_page_header | p4:body_region:0 | p4:top_margin:column_2_of_2:white | [255, 255, 255] white | False | [398.16, 34.25, 102.12, 7.35] | J Nanopart Res (2018) 20: 160 | J Nanopart Res (2018) 20: 160 | ||
| 4 | 43 | caption | caption | False | low | outside_body_flow_caption | outside_body_flow_caption | p4:body_region:0 | p4:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 182.33, 215.53, 27.25] | 1996) with permission. c Structural illustration and voltage profiles of orthorhombic LiMnO2. Reproduced from ref. (Croguennec et al. 1997b) and ref. (He et al. 2010) with permissions | 1996) with permission. c Structural illustration and voltage profiles of orthorhombic LiMnO2. Reproduced from ref. (Croguennec et al. 1997b) and ref. (He et al. 2010) with permissions | ||
| 4 | 44 | text | body | True | body | body | p4:body_region:0 | p4:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.87, 231.0, 215.44, 95.79] | conditions (Catti and Montero-Campillo 2011). Those include disordered rock salt α phase and its derivate (Tabuchi et al. 1995), layered O3 phase (Shirane et al. 1995), corrugated layered phase (orthorhombic), goethite-… | conditions (Catti and Montero-Campillo 2011). Those include disordered rock salt α phase and its derivate (Tabuchi et al. 1995), layered O3 phase (Shirane et al. 1995), corrugated layered phase (orthorhombic), goethite-… | |||
| 4 | 45 | text | body | True | body | body | p4:body_region:0 | p4:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.87, 330.61, 215.52, 195.45] | The electrochemical performance of LiFeO2 is strongly related to the crystal structure, which decides the Li + pathway during the reaction. For example, bulk α -LiFeO2 obtained by solid state reaction is found to be ele… | The electrochemical performance of LiFeO2 is strongly related to the crystal structure, which decides the Li + pathway during the reaction. For example, bulk α -LiFeO2 obtained by solid state reaction is found to be ele… | |||
| 4 | 46 | text | body | True | body | body | p4:body_region:0 | p4:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.87, 529.89, 215.54, 134.16] | Though electrochemical activities have repeatedly been demonstrated for LiFeO2 with different phases, a critical issue is the abnormal redox reaction. Different from the reversible Li + intercalation/deintercalation in … | Though electrochemical activities have repeatedly been demonstrated for LiFeO2 with different phases, a critical issue is the abnormal redox reaction. Different from the reversible Li + intercalation/deintercalation in … | |||
| 5 | 47 | page_header | page_header | False | low | docling_page_header | docling_page_header | p5:top_margin:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 34.25, 102.17, 7.35] | J Nanopart Res (2018) 20: 160 | J Nanopart Res (2018) 20: 160 | |||
| 5 | 48 | page_header | page_header | False | low | docling_page_header | docling_page_header | p5:top_margin:column_2_of_2:white | [255, 255, 255] white | True | [437.38, 34.25, 62.91, 7.44] | Page 5 of 40 160 | Page 5 of 40 160 | |||
| 5 | 49 | caption | caption | False | low | outside_body_flow_caption | outside_body_flow_caption | p5:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 277.12, 453.51, 17.33] | Fig. 3 a , b Charge/discharge curves of LiFeO2 ( a ) and oxygen-deficient LiFeO2-x ( b ). c XRD pattern of cycled O3-type LiFeO2. Reproduced from ref. (Hirayama et al. 2011) with permission | Fig. 3 a , b Charge/discharge curves of LiFeO2 ( a ) and oxygen-deficient LiFeO2-x ( b ). c XRD pattern of cycled O3-type LiFeO2. Reproduced from ref. (Hirayama et al. 2011) with permission | |||
| 5 | 50 | text | body | True | body | body | p5:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 318.31, 215.44, 158.09] | (Hirayama et al. 2011). As shown in Fig. 3, large voltage hysteresis is identified in the first cycle of LiFeO2, and the following profiles are similar with initially reduced LiFeO2-x. X-ray diffraction (XRD) patterns a… | (Hirayama et al. 2011). As shown in Fig. 3, large voltage hysteresis is identified in the first cycle of LiFeO2, and the following profiles are similar with initially reduced LiFeO2-x. X-ray diffraction (XRD) patterns a… | ||||
| 5 | 51 | section_header | body_heading | False | low | body_heading | body_heading | p5:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 492.76, 89.77, 8.65] | Li2MnO3-based oxides | Li2MnO3-based oxides | |||
| 5 | 52 | text | body | True | body | body | p5:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 517.7, 215.49, 146.58] | With the low-cost constitution and very high deliverable capacities exceeding 250 mAh g -1 , Li2MnO3-based layered oxides are considered as one of the most promising cathode candidates for next-generation LIBs (Thackera… | With the low-cost constitution and very high deliverable capacities exceeding 250 mAh g -1 , Li2MnO3-based layered oxides are considered as one of the most promising cathode candidates for next-generation LIBs (Thackera… | ||||
| 5 | 53 | text | body | True | body | body | p5:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 318.31, 215.51, 158.09] | class of Li- and Mn-rich layered oxides (LMRs), which is deemed as either a single-phase solid solution (Jarvis et al. 2012; Koga et al. 2012; Shukla et al. 2015) expressed as Li(Li 1/3-2x/3MxMn2/3-x/3)O2 or a structura… | class of Li- and Mn-rich layered oxides (LMRs), which is deemed as either a single-phase solid solution (Jarvis et al. 2012; Koga et al. 2012; Shukla et al. 2015) expressed as Li(Li 1/3-2x/3MxMn2/3-x/3)O2 or a structura… | ||||
| 5 | 54 | text | body | True | body | body | p5:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 480.17, 215.54, 183.04] | The electrochemical properties of LMRs are highly associated with a unique activation behavior. The typical first charge profile involves several steps (Erickson et al. 2017). Below 4.4 V is a Li extraction from the Li-… | The electrochemical properties of LMRs are highly associated with a unique activation behavior. The typical first charge profile involves several steps (Erickson et al. 2017). Below 4.4 V is a Li extraction from the Li-… | ||||
| 6 | 55 | page_header | page_header | False | low | docling_page_header | docling_page_header | p6:top_margin:left:white | [255, 255, 255] white | False | [46.77, 34.25, 12.51, 7.44] | 160 | 160 | |||
| 6 | 56 | page_header | page_header | False | low | docling_page_header | docling_page_header | p6:top_margin:left:white | [255, 255, 255] white | False | [67.64, 34.25, 42.14, 7.35] | Page 6 of 40 | Page 6 of 40 | |||
| 6 | 57 | page_header | page_header | False | low | docling_page_header | docling_page_header | p6:top_margin:right:white | [255, 255, 255] white | False | [398.16, 34.25, 102.12, 7.35] | J Nanopart Res (2018) 20: 160 | J Nanopart Res (2018) 20: 160 | |||
| 7 | 58 | page_header | page_header | False | low | docling_page_header | docling_page_header | p7:body_region:0 | p7:top_margin:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 34.25, 102.17, 7.35] | J Nanopart Res (2018) 20: 160 | J Nanopart Res (2018) 20: 160 | ||
| 7 | 59 | text | body | True | body | body | p7:body_region:0 | p7:top_margin:column_1_of_2:white | [255, 255, 255] white | False | [36.79, 53.66, 225.45, 100.76] | Fig. 4 a Crystal structure of monoclinic Li2MO3. Reproduced from ref. (Mohanty et al. 2013) with permission. b Charge voltage profile of a model LMR, 0.35LiMn2O3 · 0.65LiMn0.45Ni0.35Co0.20O2 with the illustration of s… | Fig. 4 a Crystal structure of monoclinic Li2MO3. Reproduced from ref. (Mohanty et al. 2013) with permission. b Charge voltage profile of a model LMR, 0.35LiMn2O3 · 0.65LiMn0.45Ni0.35Co0.20O2 with the illustration of s… | |||
| 7 | 60 | text | body | True | body | body | p7:body_region:0 | p7:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 174.82, 215.51, 182.97] | material, Li1.87Mn0.94Ni0.19O3, the Li2MnO3 activation process took dozens of cycles (Fig. 1d). By combining the electrochemical measurements with material characterisation including in-situ XRD and high-angle annularda… | material, Li1.87Mn0.94Ni0.19O3, the Li2MnO3 activation process took dozens of cycles (Fig. 1d). By combining the electrochemical measurements with material characterisation including in-situ XRD and high-angle annularda… | |||
| 7 | 61 | text | body | True | body | body | p7:body_region:0 | p7:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.78, 361.62, 215.56, 145.61] | As a promising cathode candidate that has been under the spotlight in past years, extensive work has been conducted to understand the local crystal structure, structural evolution, electrochemical behavior of LMRs, and … | As a promising cathode candidate that has been under the spotlight in past years, extensive work has been conducted to understand the local crystal structure, structural evolution, electrochemical behavior of LMRs, and … | |||
| 7 | 62 | section_header | body_heading | False | low | body_heading | body_heading | p7:body_region:0 | p7:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.78, 530.11, 36.61, 9.67] | LiMn2O4 | LiMn2O4 | ||
| 7 | 63 | text | body | True | body | body | p7:body_region:0 | p7:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 555.06, 215.52, 108.26] | Spinel LiMn2O4 is another classic cathode material for LIBs, of which Thackeray et al. have studied the lithium insertion/deinsertion properties since the 1980s (Thackeray et al. 1983, 1984). Different from the layered … | Spinel LiMn2O4 is another classic cathode material for LIBs, of which Thackeray et al. have studied the lithium insertion/deinsertion properties since the 1980s (Thackeray et al. 1983, 1984). Different from the layered … | |||
| 7 | 64 | page_header | page_header | False | low | docling_page_header | docling_page_header | p7:body_region:1 | p7:top_margin:column_2_of_2:white | [255, 255, 255] white | True | [437.38, 34.25, 62.91, 7.44] | Page 7 of 40 160 | Page 7 of 40 160 | ||
| 7 | 65 | text | body | True | body | body | p7:body_region:1 | p7:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 56.91, 215.54, 282.64] | concentration of Li ions in the spinel body (Li/Mn = 1:2) results in only half of the theoretical specific capacity (146 mAh g -1 ) of layered LiMO2, attributing to the lowcost, stable, and kinetic Mn-based 3D spinel fr… | concentration of Li ions in the spinel body (Li/Mn = 1:2) results in only half of the theoretical specific capacity (146 mAh g -1 ) of layered LiMO2, attributing to the lowcost, stable, and kinetic Mn-based 3D spinel fr… | |||
| 7 | 66 | text | body | True | body | body | p7:body_region:1 | p7:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 343.31, 215.55, 320.13] | Apart from the relatively low energy density, the other most claimed issue is the limited cycle life of LiMn2O4 due to Mn ions ' dissolution, especially under elevated temperatures (Jang et al. 1996; Xia et al. 1997). P… | Apart from the relatively low energy density, the other most claimed issue is the limited cycle life of LiMn2O4 due to Mn ions ' dissolution, especially under elevated temperatures (Jang et al. 1996; Xia et al. 1997). P… | |||
| 8 | 67 | page_header | page_header | False | low | docling_page_header | docling_page_header | p8:top_margin:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 34.25, 12.51, 7.44] | 160 | 160 | |||
| 8 | 68 | page_header | page_header | False | low | docling_page_header | docling_page_header | p8:top_margin:column_1_of_2:white | [255, 255, 255] white | False | [67.64, 34.25, 42.14, 7.35] | Page 8 of 40 | Page 8 of 40 | |||
| 8 | 69 | page_header | page_header | False | low | docling_page_header | docling_page_header | p8:top_margin:column_2_of_2:white | [255, 255, 255] white | False | [398.16, 34.25, 102.12, 7.35] | J Nanopart Res (2018) 20: 160 | J Nanopart Res (2018) 20: 160 | |||
| 8 | 70 | caption | caption | False | low | outside_body_flow_caption | outside_body_flow_caption | p8:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.76, 351.44, 453.57, 18.81] | Fig. 5 a Crystal structure of spinel LiMn2O4. Reproduced from ref. (Chen et al. 2016) with permission. b -e Schematic diagram of the composites and the corresponding electrochemical performance. Reproduced from ref. (Le… | Fig. 5 a Crystal structure of spinel LiMn2O4. Reproduced from ref. (Chen et al. 2016) with permission. b -e Schematic diagram of the composites and the corresponding electrochemical performance. Reproduced from ref. (Le… | |||
| 8 | 71 | text | body | True | body | body | p8:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 393.15, 215.51, 33.59] | packed composites composed of carbon coated nanosized Li1.015Al0.06Mn1.925O4, maintained 84.5% of the initial capacity over 5000 cycles (Lee et al. 2017). | packed composites composed of carbon coated nanosized Li1.015Al0.06Mn1.925O4, maintained 84.5% of the initial capacity over 5000 cycles (Lee et al. 2017). | ||||
| 8 | 72 | section_header | body_heading | False | low | body_heading | body_heading | p8:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.76, 442.98, 60.78, 9.61] | LiNi0.5Mn1.5O4 | LiNi0.5Mn1.5O4 | |||
| 8 | 73 | text | body | True | body | body | p8:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 467.87, 215.55, 195.45] | Substitution of Mn in LiMn2O4 by low-valance metal ions (Co 3+ (Kawai et al. 1998), Cr 3+ (Sigala et al. 1995), Ni 2+ (Zhong et al. 1997), Fe 3+ (Amine et al. 1997), Cu 2+ (Ein-Eli et al. 1998), etc.) was initially desi… | Substitution of Mn in LiMn2O4 by low-valance metal ions (Co 3+ (Kawai et al. 1998), Cr 3+ (Sigala et al. 1995), Ni 2+ (Zhong et al. 1997), Fe 3+ (Amine et al. 1997), Cu 2+ (Ein-Eli et al. 1998), etc.) was initially desi… | ||||
| 8 | 74 | text | body | True | body | body | p8:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.87, 393.15, 215.53, 220.33] | 12d sites to accommodate Ni and Mn ions, known as an ordered phase (Kim et al. 2004; Liu et al. 2012a). It is accepted that oxygen stoichiometry plays a leading role to determine the phase. In an oxygen-stoichiometric L… | 12d sites to accommodate Ni and Mn ions, known as an ordered phase (Kim et al. 2004; Liu et al. 2012a). It is accepted that oxygen stoichiometry plays a leading role to determine the phase. In an oxygen-stoichiometric L… | ||||
| 8 | 75 | text | body | True | body | body | p8:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 617.31, 215.53, 46.01] | Previously, with the aid of high-resolution transmission electron microscope (HR-TEM) imaging and energy-dispersive X-ray spectroscopy (EDS) elemental scanning, we observed minor P4332 phase on the edge | Previously, with the aid of high-resolution transmission electron microscope (HR-TEM) imaging and energy-dispersive X-ray spectroscopy (EDS) elemental scanning, we observed minor P4332 phase on the edge | ||||
| 9 | 76 | page_header | page_header | False | low | docling_page_header | docling_page_header | p9:top_margin:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 34.25, 102.17, 7.35] | J Nanopart Res (2018) 20: 160 | J Nanopart Res (2018) 20: 160 | |||
| 9 | 77 | text | body | True | body | body | p9:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.76, 56.9, 215.55, 195.45] | of Fd-3m body coupled with the different Mn/Ni ratio in the naturally cooled sample (Fig. 6c). As shown in Fig. 6d, both the samples delivered favorable rate and cycling performances. The role of the crystal phase may b… | of Fd-3m body coupled with the different Mn/Ni ratio in the naturally cooled sample (Fig. 6c). As shown in Fig. 6d, both the samples delivered favorable rate and cycling performances. The role of the crystal phase may b… | ||||
| 9 | 78 | text | body | True | body | body | p9:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 256.18, 215.55, 407.14] | Perhaps the biggest barrier preventing LNMO from the practical application is the lack of long-cycling reliability. LNMO was initially introduced to prolong the cyclability of primary LiMn2O4 spinel. However, the exploi… | Perhaps the biggest barrier preventing LNMO from the practical application is the lack of long-cycling reliability. LNMO was initially introduced to prolong the cyclability of primary LiMn2O4 spinel. However, the exploi… | ||||
| 9 | 79 | page_header | page_header | False | low | docling_page_header | docling_page_header | p9:top_margin:column_2_of_2:white | [255, 255, 255] white | True | [437.38, 34.25, 62.91, 7.44] | Page 9 of 40 160 | Page 9 of 40 160 | |||
| 9 | 80 | text | body | True | body | body | p9:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.87, 56.9, 215.53, 295.05] | coating is to reduce the side reactions by creating artificial electrode/electrolyte interfaces. A wide variety of doping elementals (e.g., Na + , Mg 2+ , Cu 2+ , Zn 2+ , Al 3+ , Cr 3+ , Co 3+ , Ti 4+ , F -) and coating… | coating is to reduce the side reactions by creating artificial electrode/electrolyte interfaces. A wide variety of doping elementals (e.g., Na + , Mg 2+ , Cu 2+ , Zn 2+ , Al 3+ , Cr 3+ , Co 3+ , Ti 4+ , F -) and coating… | ||||
| 9 | 81 | section_header | body_heading | False | low | body_heading | body_heading | p9:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.87, 380.67, 200.92, 21.22] | Fe- and Mn-based polyanion compounds as LIB cathodes | Fe- and Mn-based polyanion compounds as LIB cathodes | |||
| 9 | 82 | text | body | True | body | body | p9:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.87, 418.02, 215.53, 158.1] | Represented by LiFePO4, polyanion cathode materials are typically 3D structured compounds constructed by corner- and/or edge-shared M-O and X-O (X = P, S, As, Mo, or W) polyhedrons. These frameworks afford much better s… | Represented by LiFePO4, polyanion cathode materials are typically 3D structured compounds constructed by corner- and/or edge-shared M-O and X-O (X = P, S, As, Mo, or W) polyhedrons. These frameworks afford much better s… | ||||
| 9 | 83 | section_header | body_heading | False | low | body_heading | body_heading | p9:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 592.42, 116.98, 8.65] | Fe- and Mn-based phosphates | Fe- and Mn-based phosphates | |||
| 9 | 84 | text | body | True | body | body | p9:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 617.31, 215.47, 46.01] | Olivine LiFePO4 (LFP) is the most successful polyanion cathode material, attributing to its lowcost and non-toxic constitution, appreciable capacity ( ca . 170 mAh g -1 ) and excellent thermal and | Olivine LiFePO4 (LFP) is the most successful polyanion cathode material, attributing to its lowcost and non-toxic constitution, appreciable capacity ( ca . 170 mAh g -1 ) and excellent thermal and | ||||
| 10 | 85 | page_header | page_header | False | low | docling_page_header | docling_page_header | p10:top_margin:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 34.25, 12.51, 7.44] | 160 | 160 | |||
| 10 | 86 | page_header | page_header | False | low | docling_page_header | docling_page_header | p10:top_margin:column_1_of_2:white | [255, 255, 255] white | False | [67.64, 34.25, 46.28, 7.35] | Page 10 of 40 | Page 10 of 40 | |||
| 10 | 87 | caption | caption | False | low | outside_body_flow_caption | outside_body_flow_caption | p10:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 380.87, 215.56, 37.31] | Fig. 6 a Comparison of the two structural configurations in LNMO. Reproduced from ref. (Liu et al. 2012a) with permission. b Typical charge/discharge curves of LNMO with the two phases. Reproduced from ref. (Wang et al.… | Fig. 6 a Comparison of the two structural configurations in LNMO. Reproduced from ref. (Liu et al. 2012a) with permission. b Typical charge/discharge curves of LNMO with the two phases. Reproduced from ref. (Wang et al.… | |||
| 10 | 88 | text | body | True | body | body | p10:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.76, 442.98, 215.48, 220.33] | structural stability. The key drawbacks of LiFePO4 are inferior electric conductivity ( ca . 10 -9 S cm -1 ), the selective one-dimensional (1D) lithium pathway (Fig. 7a), and low gravimetric and volumetric energy densi… | structural stability. The key drawbacks of LiFePO4 are inferior electric conductivity ( ca . 10 -9 S cm -1 ), the selective one-dimensional (1D) lithium pathway (Fig. 7a), and low gravimetric and volumetric energy densi… | ||||
| 10 | 89 | page_header | page_header | False | low | docling_page_header | docling_page_header | p10:top_margin:column_2_of_2:white | [255, 255, 255] white | False | [398.16, 34.25, 102.12, 7.35] | J Nanopart Res (2018) 20: 160 | J Nanopart Res (2018) 20: 160 | |||
| 10 | 90 | caption | caption | False | low | outside_body_flow_caption | outside_body_flow_caption | p10:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.9, 380.87, 215.49, 37.23] | Structural characteristics and electrochemical properties on the basis of our prepared samples. e , f Outstanding capacity retention achieved by using lithium phosphorus oxynitride solid electrolyte. Reproduced from ref… | Structural characteristics and electrochemical properties on the basis of our prepared samples. e , f Outstanding capacity retention achieved by using lithium phosphorus oxynitride solid electrolyte. Reproduced from ref… | |||
| 10 | 91 | text | body | True | body | body | p10:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 442.98, 215.47, 220.34] | new feasible strategies. For example, Paolella et al. reported the use of LiPF6 treatment to make LFP nanocrystals hydrophilic, thereby enabling carbon coating uniformly (Paolella et al. 2014). Compared with surface mod… | new feasible strategies. For example, Paolella et al. reported the use of LiPF6 treatment to make LFP nanocrystals hydrophilic, thereby enabling carbon coating uniformly (Paolella et al. 2014). Compared with surface mod… | ||||
| 11 | 92 | page_header | page_header | False | low | docling_page_header | docling_page_header | p11:top_margin:left:white | [255, 255, 255] white | False | [46.77, 34.25, 102.17, 7.35] | J Nanopart Res (2018) 20: 160 | J Nanopart Res (2018) 20: 160 | |||
| 11 | 93 | page_header | page_header | False | low | docling_page_header | docling_page_header | p11:top_margin:right:white | [255, 255, 255] white | True | [433.53, 34.25, 66.76, 7.44] | Page 11 of 40 160 | Page 11 of 40 160 | |||
| 11 | 94 | caption | caption | False | low | outside_body_flow_caption | outside_body_flow_caption | p11:top_margin:left:white | [255, 255, 255] white | False | [46.77, 54.43, 110.66, 316.15] | Fig. 7 a Crystal structure of spinel LiMn2O4. Reproduced from ref. (Chen et al. 2016) with permission. b High-rate discharge capability of LiFe 0.9P0.95O4δ . Reproduced from ref. (Kang and Ceder 2009) with permission. c… | Fig. 7 a Crystal structure of spinel LiMn2O4. Reproduced from ref. (Chen et al. 2016) with permission. b High-rate discharge capability of LiFe 0.9P0.95O4δ . Reproduced from ref. (Kang and Ceder 2009) with permission. c… | |||
| 12 | 95 | page_header | page_header | False | low | docling_page_header | docling_page_header | p12:top_margin:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 34.25, 12.51, 7.44] | 160 | 160 | |||
| 12 | 96 | page_header | page_header | False | low | docling_page_header | docling_page_header | p12:top_margin:column_1_of_2:white | [255, 255, 255] white | False | [67.64, 34.25, 46.28, 7.35] | Page 12 of 40 | Page 12 of 40 | |||

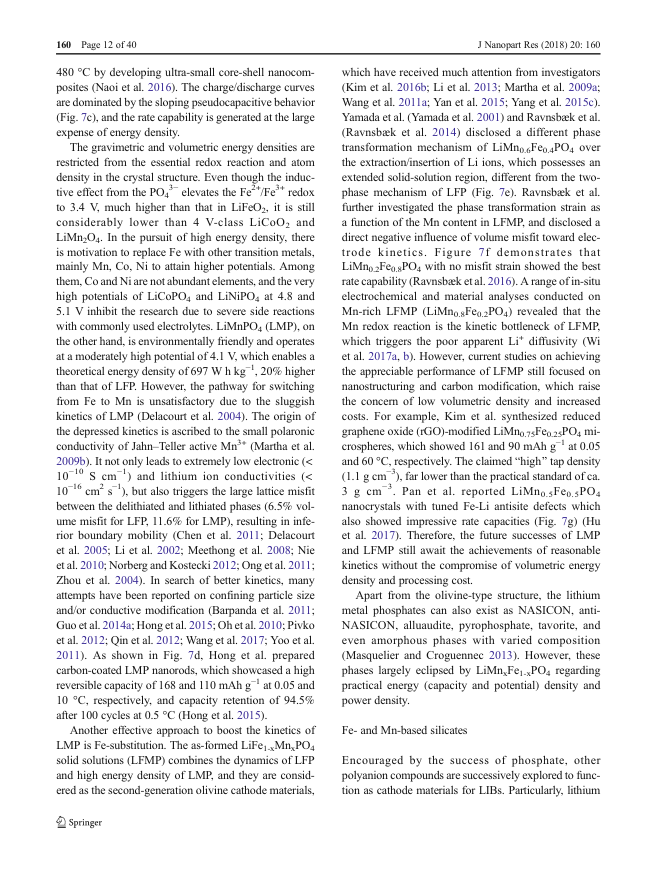

| 12 | 97 | text | body | True | body | body | p12:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 56.9, 215.51, 58.48] | 480 °C by developing ultra-small core-shell nanocomposites (Naoi et al. 2016). The charge/discharge curves are dominated by the sloping pseudocapacitive behavior (Fig. 7c), and the rate capability is generated at the la… | 480 °C by developing ultra-small core-shell nanocomposites (Naoi et al. 2016). The charge/discharge curves are dominated by the sloping pseudocapacitive behavior (Fig. 7c), and the rate capability is generated at the la… | ||||
| 12 | 98 | text | body | True | body | body | p12:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 119.21, 215.54, 481.86] | The gravimetric and volumetric energy densities are restricted from the essential redox reaction and atom density in the crystal structure. Even though the inductive effect from the PO4 3 -elevates the Fe 2+ /Fe 3+ redo… | The gravimetric and volumetric energy densities are restricted from the essential redox reaction and atom density in the crystal structure. Even though the inductive effect from the PO4 3 -elevates the Fe 2+ /Fe 3+ redo… | ||||
| 12 | 99 | text | body | True | body | body | p12:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 604.84, 215.51, 58.48] | Another effective approach to boost the kinetics of LMP is Fe-substitution. The as-formed LiFe1-xMnxPO4 solid solutions (LFMP) combines the dynamics of LFP and high energy density of LMP, and they are considered as the … | Another effective approach to boost the kinetics of LMP is Fe-substitution. The as-formed LiFe1-xMnxPO4 solid solutions (LFMP) combines the dynamics of LFP and high energy density of LMP, and they are considered as the … | ||||
| 12 | 100 | page_header | page_header | False | low | docling_page_header | docling_page_header | p12:top_margin:column_2_of_2:white | [255, 255, 255] white | False | [398.16, 34.25, 102.12, 7.35] | J Nanopart Res (2018) 20: 160 | J Nanopart Res (2018) 20: 160 | |||
| 12 | 101 | text | body | True | body | body | p12:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 56.9, 215.54, 432.09] | which have received much attention from investigators (Kim et al. 2016b; Li et al. 2013; Martha et al. 2009a; Wang et al. 2011a; Yan et al. 2015; Yang et al. 2015c). Yamada et al. (Yamada et al. 2001) and Ravnsbæk et al… | which have received much attention from investigators (Kim et al. 2016b; Li et al. 2013; Martha et al. 2009a; Wang et al. 2011a; Yan et al. 2015; Yang et al. 2015c). Yamada et al. (Yamada et al. 2001) and Ravnsbæk et al… | ||||
| 12 | 102 | text | body | True | body | body | p12:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 492.75, 215.5, 95.84] | Apart from the olivine-type structure, the lithium metal phosphates can also exist as NASICON, antiNASICON, alluaudite, pyrophosphate, tavorite, and even amorphous phases with varied composition (Masquelier and Croguenn… | Apart from the olivine-type structure, the lithium metal phosphates can also exist as NASICON, antiNASICON, alluaudite, pyrophosphate, tavorite, and even amorphous phases with varied composition (Masquelier and Croguenn… | ||||
| 12 | 103 | section_header | body_heading | False | low | body_heading | body_heading | p12:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 604.83, 104.52, 8.65] | Fe- and Mn-based silicates | Fe- and Mn-based silicates | |||
| 12 | 104 | text | body | True | body | body | p12:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 629.78, 215.45, 33.53] | Encouraged by the success of phosphate, other polyanion compounds are successively explored to function as cathode materials for LIBs. Particularly, lithium | Encouraged by the success of phosphate, other polyanion compounds are successively explored to function as cathode materials for LIBs. Particularly, lithium | ||||
| 13 | 105 | page_header | page_header | False | low | docling_page_header | docling_page_header | p13:top_margin:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 34.25, 102.17, 7.35] | J Nanopart Res (2018) 20: 160 | J Nanopart Res (2018) 20: 160 | |||
| 13 | 106 | text | body | True | body | body | p13:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.76, 56.9, 215.47, 183.04] | silicates Li 2 MSiO4 are very attractive as they potentially afford a two-electron reaction with a theoretical capacity of 332 mAh g -1 . The structures are composed of tetragonally packed oxygen ions (a distorted form … | silicates Li 2 MSiO4 are very attractive as they potentially afford a two-electron reaction with a theoretical capacity of 332 mAh g -1 . The structures are composed of tetragonally packed oxygen ions (a distorted form … | ||||
| 13 | 107 | text | body | True | body | body | p13:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 243.7, 215.52, 344.89] | The slow Li reaction kinetics are due to the frustrated ion migration in the complex lattices as well as the separated M redox centers, resulting in extremely low electronic conductivity ( ∼ 5 × 10 -16 S cm -1 for Li2Mn… | The slow Li reaction kinetics are due to the frustrated ion migration in the complex lattices as well as the separated M redox centers, resulting in extremely low electronic conductivity ( ∼ 5 × 10 -16 S cm -1 for Li2Mn… | ||||
| 13 | 108 | section_header | body_heading | False | low | body_heading | body_heading | p13:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.78, 604.84, 101.63, 8.65] | Fe- and Mn-based borates | Fe- and Mn-based borates | |||
| 13 | 109 | text | body | True | body | body | p13:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.78, 627.98, 215.51, 35.34] | Lithium metal borates entered into researchers ' sight in 2001, because the polyanion group BO3 3 -is the lightest one, ensuring a high theoretical capacity of ~ | Lithium metal borates entered into researchers ' sight in 2001, because the polyanion group BO3 3 -is the lightest one, ensuring a high theoretical capacity of ~ | ||||
| 13 | 110 | page_header | page_header | False | low | docling_page_header | docling_page_header | p13:top_margin:column_2_of_2:white | [255, 255, 255] white | True | [433.24, 34.25, 67.04, 7.44] | Page 13 of 40 160 | Page 13 of 40 160 | |||
| 13 | 111 | text | body | True | body | body | p13:top_margin:column_2_of_2:white | [255, 255, 255] white | False | [284.87, 52.3, 215.53, 361.97] | 220 mAh g -1 (Legagneur et al. 2001). However, the early practice only realized the reversible capacity of ~ 8 mAh g -1 at C/250, suggesting deficient electrochemical activity. Until 2010, Yamada et al. obtained an attr… | 220 mAh g -1 (Legagneur et al. 2001). However, the early practice only realized the reversible capacity of ~ 8 mAh g -1 at C/250, suggesting deficient electrochemical activity. Until 2010, Yamada et al. obtained an attr… | ||||
| 13 | 112 | section_header | body_heading | False | low | body_heading | body_heading | p13:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.86, 442.98, 173.06, 8.75] | Fe- and Mn-based oxides as SIB cathodes | Fe- and Mn-based oxides as SIB cathodes | |||
| 13 | 113 | text | body | True | body | body | p13:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.86, 467.87, 215.53, 195.45] | Sodium metal oxides have been intensively studied as SIB cathodes, which mimic the lithium metal oxides, but the considerably different physico-chemical properties (e.g., ionic size, electron configuration) renders some… | Sodium metal oxides have been intensively studied as SIB cathodes, which mimic the lithium metal oxides, but the considerably different physico-chemical properties (e.g., ionic size, electron configuration) renders some… | ||||
| 14 | 114 | page_header | page_header | False | low | docling_page_header | docling_page_header | p14:top_margin:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 34.25, 67.14, 7.44] | 160 Page 14 of 40 | 160 Page 14 of 40 | |||

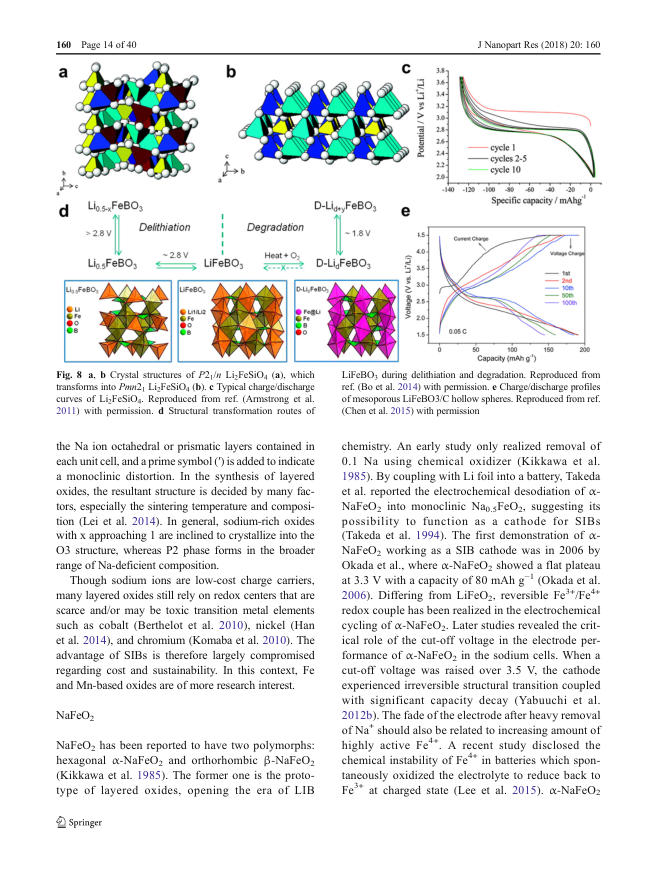

| 14 | 115 | caption | caption | False | low | outside_body_flow_caption | outside_body_flow_caption | p14:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 309.11, 215.54, 37.58] | Fig. 8 a , b Crystal structures of P 21/ n Li2FeSiO4 ( a ), which transforms into Pmn 21 Li2FeSiO4 ( b ). c Typical charge/discharge curves of Li2FeSiO4. Reproduced from ref. (Armstrong et al. 2011) with permission. d S… | Fig. 8 a , b Crystal structures of P 21/ n Li2FeSiO4 ( a ), which transforms into Pmn 21 Li2FeSiO4 ( b ). c Typical charge/discharge curves of Li2FeSiO4. Reproduced from ref. (Armstrong et al. 2011) with permission. d S… | |||
| 14 | 116 | text | body | True | body | body | p14:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.76, 368.26, 215.52, 108.25] | the Na ion octahedral or prismatic layers contained in each unit cell, and a prime symbol ( ′ ) is added to indicate a monoclinic distortion. In the synthesis of layered oxides, the resultant structure is decided by man… | the Na ion octahedral or prismatic layers contained in each unit cell, and a prime symbol ( ′ ) is added to indicate a monoclinic distortion. In the synthesis of layered oxides, the resultant structure is decided by man… | ||||
| 14 | 117 | text | body | True | body | body | p14:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.76, 480.34, 215.5, 95.78] | Though sodium ions are low-cost charge carriers, many layered oxides still rely on redox centers that are scarce and/or may be toxic transition metal elements such as cobalt (Berthelot et al. 2010), nickel (Han et al. 2… | Though sodium ions are low-cost charge carriers, many layered oxides still rely on redox centers that are scarce and/or may be toxic transition metal elements such as cobalt (Berthelot et al. 2010), nickel (Han et al. 2… | ||||
| 14 | 118 | section_header | body_heading | False | low | body_heading | body_heading | p14:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.76, 592.42, 31.87, 9.61] | NaFeO2 | NaFeO2 | |||
| 14 | 119 | text | body | True | body | body | p14:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 617.31, 215.43, 46.01] | NaFeO2 has been reported to have two polymorphs: hexagonal α -NaFeO2 and orthorhombic β -NaFeO2 (Kikkawa et al. 1985). The former one is the prototype of layered oxides, opening the era of LIB | NaFeO2 has been reported to have two polymorphs: hexagonal α -NaFeO2 and orthorhombic β -NaFeO2 (Kikkawa et al. 1985). The former one is the prototype of layered oxides, opening the era of LIB | ||||
| 14 | 120 | page_header | page_header | False | low | docling_page_header | docling_page_header | p14:top_margin:column_2_of_2:white | [255, 255, 255] white | False | [398.16, 34.25, 102.12, 7.35] | J Nanopart Res (2018) 20: 160 | J Nanopart Res (2018) 20: 160 | |||
| 14 | 121 | caption | caption | False | low | outside_body_flow_caption | outside_body_flow_caption | p14:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 309.38, 215.56, 37.23] | LiFeBO3 during delithiation and degradation. Reproduced from ref. (Bo et al. 2014) with permission. e Charge/discharge profiles of mesoporous LiFeBO3/C hollow spheres. Reproduced from ref. (Chen et al. 2015) with permis… | LiFeBO3 during delithiation and degradation. Reproduced from ref. (Bo et al. 2014) with permission. e Charge/discharge profiles of mesoporous LiFeBO3/C hollow spheres. Reproduced from ref. (Chen et al. 2015) with permis… | |||
| 14 | 122 | text | body | True | body | body | p14:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 368.26, 215.46, 296.02] | chemistry. An early study only realized removal of 0.1 Na using chemical oxidizer (Kikkawa et al. 1985). By coupling with Li foil into a battery, Takeda et al. reported the electrochemical desodiation of α -NaFeO2 into … | chemistry. An early study only realized removal of 0.1 Na using chemical oxidizer (Kikkawa et al. 1985). By coupling with Li foil into a battery, Takeda et al. reported the electrochemical desodiation of α -NaFeO2 into … | ||||
| 15 | 123 | page_header | page_header | False | low | docling_page_header | docling_page_header | p15:body_region:0 | p15:top_margin:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 34.25, 102.17, 7.35] | J Nanopart Res (2018) 20: 160 | J Nanopart Res (2018) 20: 160 | ||

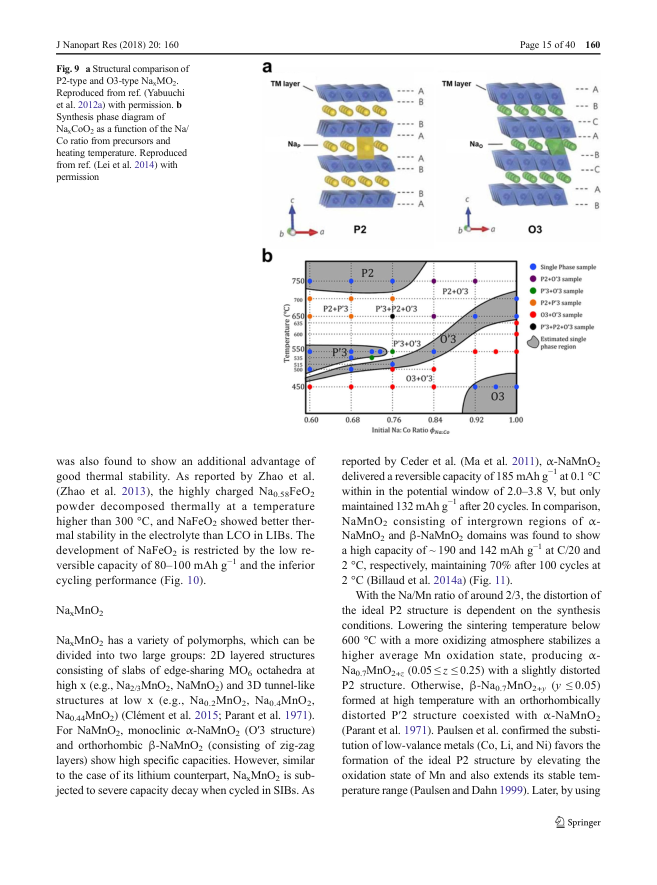

| 15 | 124 | caption | caption | False | low | outside_body_flow_caption | outside_body_flow_caption | p15:body_region:0 | p15:top_margin:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 54.43, 110.64, 96.98] | Fig. 9 a Structural comparison of P2-type and O3-type NaxMO2. Reproduced from ref. (Yabuuchi et al. 2012a) with permission. b Synthesis phase diagram of NaxCoO2 as a function of the Na/ Co ratio from precursors and heat… | Fig. 9 a Structural comparison of P2-type and O3-type NaxMO2. Reproduced from ref. (Yabuuchi et al. 2012a) with permission. b Synthesis phase diagram of NaxCoO2 as a function of the Na/ Co ratio from precursors and heat… | ||
| 15 | 125 | text | body | True | body | body | p15:body_region:0 | p15:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 380.67, 215.47, 108.31] | was also found to show an additional advantage of good thermal stability. As reported by Zhao et al. (Zhao et al. 2013), the highly charged Na0.58FeO2 powder decomposed thermally at a temperature higher than 300 °C, and… | was also found to show an additional advantage of good thermal stability. As reported by Zhao et al. (Zhao et al. 2013), the highly charged Na0.58FeO2 powder decomposed thermally at a temperature higher than 300 °C, and… | |||
| 15 | 126 | text | body | True | body | body | p15:body_region:0 | p15:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 505.23, 39.4, 9.61] | NaxMnO2 | NaxMnO2 | |||
| 15 | 127 | text | body | True | body | body | p15:body_region:0 | p15:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 530.12, 215.54, 133.2] | NaxMnO2 has a variety of polymorphs, which can be divided into two large groups: 2D layered structures consisting of slabs of edge-sharing MO6 octahedra at high x (e.g., Na2/3MnO2, NaMnO2) and 3D tunnel-like structures … | NaxMnO2 has a variety of polymorphs, which can be divided into two large groups: 2D layered structures consisting of slabs of edge-sharing MO6 octahedra at high x (e.g., Na2/3MnO2, NaMnO2) and 3D tunnel-like structures … | |||
| 15 | 128 | page_header | page_header | False | low | docling_page_header | docling_page_header | p15:top_margin:column_2_of_2:white | [255, 255, 255] white | True | [433.24, 34.25, 67.04, 7.44] | Page 15 of 40 160 | Page 15 of 40 160 | |||
| 15 | 129 | text | body | True | body | body | p15:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 378.46, 215.52, 110.53] | reported by Ceder et al. (Ma et al. 2011), α -NaMnO2 delivered a reversible capacity of 185 mAh g -1 at 0.1 °C within in the potential window of 2.0 -3.8 V, but only maintained 132 mAh g -1 after 20 cycles. In compariso… | reported by Ceder et al. (Ma et al. 2011), α -NaMnO2 delivered a reversible capacity of 185 mAh g -1 at 0.1 °C within in the potential window of 2.0 -3.8 V, but only maintained 132 mAh g -1 after 20 cycles. In compariso… | ||||
| 15 | 130 | text | body | True | body | body | p15:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 492.76, 215.49, 170.56] | With the Na/Mn ratio of around 2/3, the distortion of the ideal P2 structure is dependent on the synthesis conditions. Lowering the sintering temperature below 600 °C with a more oxidizing atmosphere stabilizes a higher… | With the Na/Mn ratio of around 2/3, the distortion of the ideal P2 structure is dependent on the synthesis conditions. Lowering the sintering temperature below 600 °C with a more oxidizing atmosphere stabilizes a higher… | ||||
| 16 | 131 | page_header | page_header | False | low | docling_page_header | docling_page_header | p16:top_margin:left:white | [255, 255, 255] white | False | [46.77, 34.25, 12.51, 7.44] | 160 | 160 | |||
| 16 | 132 | page_header | page_header | False | low | docling_page_header | docling_page_header | p16:top_margin:left:white | [255, 255, 255] white | False | [67.64, 34.25, 46.28, 7.35] | Page 16 of 40 | Page 16 of 40 | |||
| 16 | 133 | page_header | page_header | False | low | docling_page_header | docling_page_header | p16:top_margin:right:white | [255, 255, 255] white | False | [398.16, 34.25, 102.12, 7.35] | J Nanopart Res (2018) 20: 160 | J Nanopart Res (2018) 20: 160 | |||

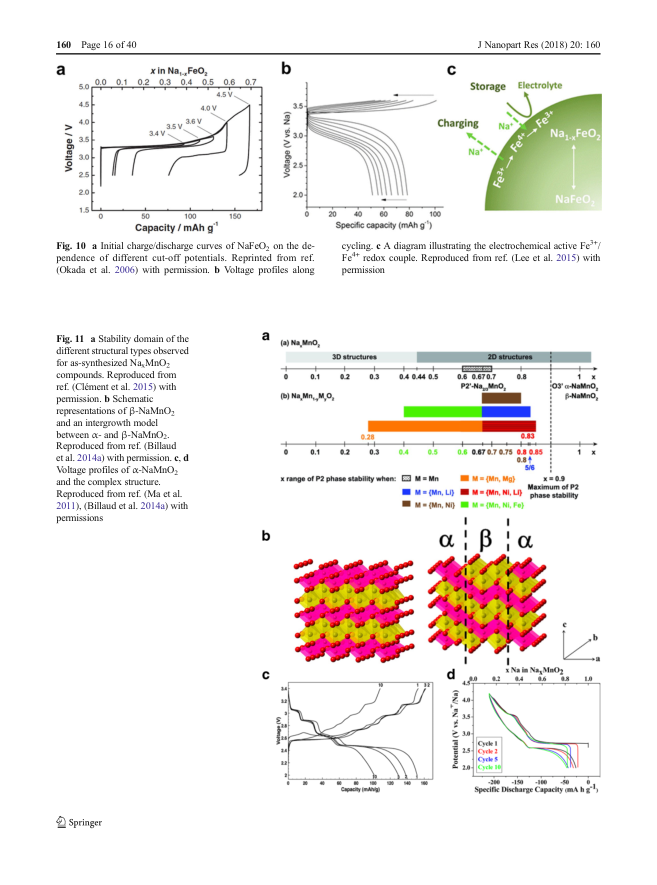

| 16 | 134 | caption | caption | False | low | outside_body_flow_caption | outside_body_flow_caption | p16:page_body:left:white | [255, 255, 255] white | False | [46.77, 202.0, 215.43, 27.39] | Fig. 10 a Initial charge/discharge curves of NaFeO2 on the dependence of different cut-off potentials. Reprinted from ref. (Okada et al. 2006) with permission. b Voltage profiles along | Fig. 10 a Initial charge/discharge curves of NaFeO2 on the dependence of different cut-off potentials. Reprinted from ref. (Okada et al. 2006) with permission. b Voltage profiles along | |||
| 16 | 135 | text | body | True | body | body | caption_continuation_used_by_asset Fig. 10 | p16:page_body:right:white | [255, 255, 255] white | False | [284.88, 200.13, 215.46, 29.18] | cycling. c A diagram illustrating the electrochemical active Fe 3+ / Fe 4+ redox couple. Reproduced from ref. (Lee et al. 2015) with permission | cycling. c A diagram illustrating the electrochemical active Fe 3+ / Fe 4+ redox couple. Reproduced from ref. (Lee et al. 2015) with permission | |||

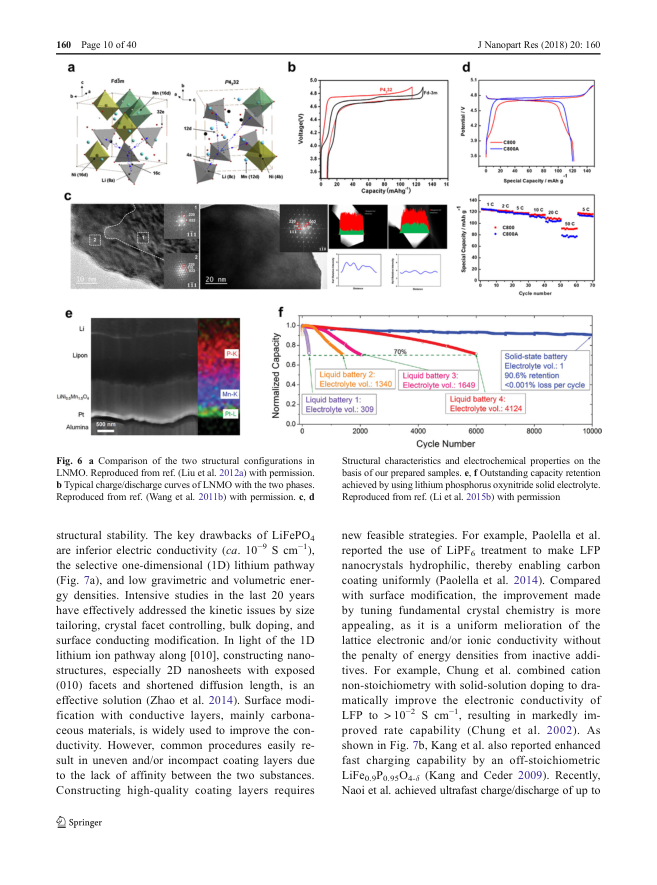

| 16 | 136 | caption | caption | False | low | outside_body_flow_caption | outside_body_flow_caption | p16:page_body:left:white | [255, 255, 255] white | False | [46.77, 279.28, 110.59, 156.79] | Fig. 11 a Stability domain of the different structural types observed for as-synthesized NaxMnO2 compounds. Reproduced from ref. (Clément et al. 2015) with permission. b Schematic representations of β -NaMnO2 and an int… | Fig. 11 a Stability domain of the different structural types observed for as-synthesized NaxMnO2 compounds. Reproduced from ref. (Clément et al. 2015) with permission. b Schematic representations of β -NaMnO2 and an int… | |||
| 17 | 137 | page_header | page_header | False | low | docling_page_header | docling_page_header | p17:top_margin:left:white | [255, 255, 255] white | False | [46.77, 34.25, 102.17, 7.35] | J Nanopart Res (2018) 20: 160 | J Nanopart Res (2018) 20: 160 | |||
| 17 | 138 | page_header | page_header | False | low | docling_page_header | docling_page_header | p17:top_margin:right:white | [255, 255, 255] white | True | [433.24, 34.25, 67.04, 7.44] | Page 17 of 40 160 | Page 17 of 40 160 | |||
| 17 | 139 | text | body | True | body | body | p17:page_body:left:white | [255, 255, 255] white | False | [46.74, 56.9, 215.56, 419.61] | a sol-gel method, Caballero et al. reported the synthesis of an undistorted P2-Na0.6MnO2 phase at a high temperature of 800 °C. They further tested the material in SIBs, which delivered ca. 140 mAh g -1 , but only withs… | a sol-gel method, Caballero et al. reported the synthesis of an undistorted P2-Na0.6MnO2 phase at a high temperature of 800 °C. They further tested the material in SIBs, which delivered ca. 140 mAh g -1 , but only withs… | ||||
| 17 | 140 | text | body | True | body | body | p17:page_body:left:white | [255, 255, 255] white | False | [46.77, 480.34, 215.54, 182.98] | Tunnel Na0.44MnO2 with an orthorhombic structure is another widely studied cathode material for SIBs. As shown in Fig. 13a (He et al. 2016), an open 3D framework is constructed by sheets of edge-sharing MnO6 and columns… | Tunnel Na0.44MnO2 with an orthorhombic structure is another widely studied cathode material for SIBs. As shown in Fig. 13a (He et al. 2016), an open 3D framework is constructed by sheets of edge-sharing MnO6 and columns… | ||||
| 17 | 141 | caption | caption | False | low | docling_caption | docling_caption | p17:page_body:right:white | [255, 255, 255] white | False | [284.88, 601.25, 215.47, 37.5] | Fig. 12 a , b Charge-discharge curves of o -NMO ( a ) and h -NMO ( b ). c , d Operando XRD patterns of o -NMO ( c ) and h -NMO ( d ) over initial charge/discharge curves. Reproduced from ref. (Kumakura et al. 2016) with… | Fig. 12 a , b Charge-discharge curves of o -NMO ( a ) and h -NMO ( b ). c , d Operando XRD patterns of o -NMO ( c ) and h -NMO ( d ) over initial charge/discharge curves. Reproduced from ref. (Kumakura et al. 2016) with… | |||
| 18 | 142 | page_header | page_header | False | low | docling_page_header | docling_page_header | p18:top_margin:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 34.25, 12.51, 7.44] | 160 | 160 | |||
| 18 | 143 | page_header | page_header | False | low | docling_page_header | docling_page_header | p18:top_margin:column_1_of_2:white | [255, 255, 255] white | False | [67.64, 34.25, 46.28, 7.35] | Page 18 of 40 | Page 18 of 40 | |||

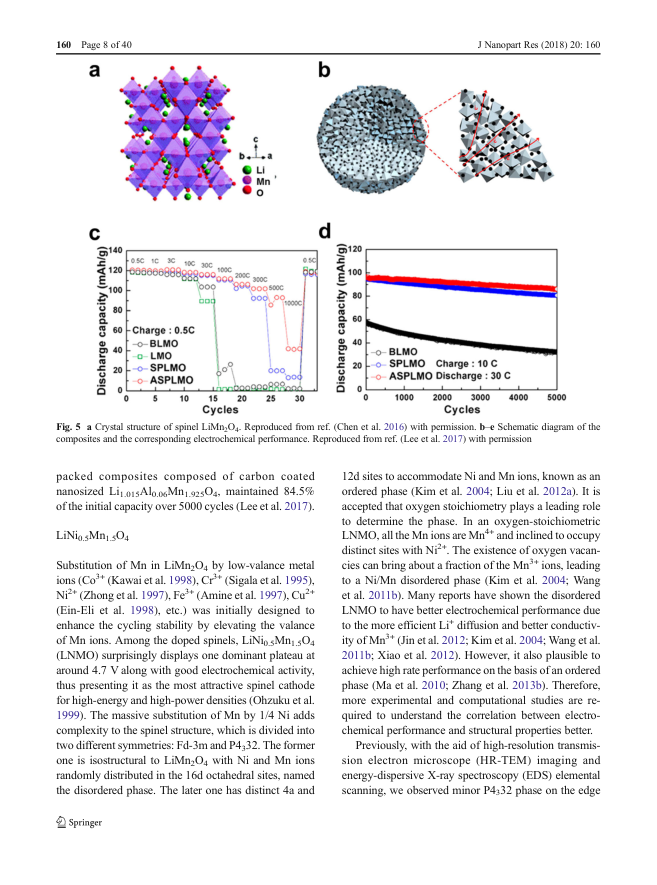

| 18 | 144 | caption | caption | False | low | outside_body_flow_caption | outside_body_flow_caption | p18:top_margin:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 54.43, 110.65, 126.91] | Fig. 13 a Schematic representation of the tunnel Na0.44MnO2. b Voltage profiles of the monocrystal Na0.44MnO2 nanoplates. c Cyclic voltammograms (CVs) of the Na0.44MnO2 electrode between 2.0 and 4.0 Vat a scanning rate … | Fig. 13 a Schematic representation of the tunnel Na0.44MnO2. b Voltage profiles of the monocrystal Na0.44MnO2 nanoplates. c Cyclic voltammograms (CVs) of the Na0.44MnO2 electrode between 2.0 and 4.0 Vat a scanning rate … | |||
| 18 | 145 | text | body | True | body | body | p18:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 302.49, 215.52, 295.06] | (Sauvage et al. 2007). The optimization of preparation method and morphology control contribute to much improved electrochemical performance. For example, single crystalline Na0.44MnO2 nanowires prepared by Cao et al. d… | (Sauvage et al. 2007). The optimization of preparation method and morphology control contribute to much improved electrochemical performance. For example, single crystalline Na0.44MnO2 nanowires prepared by Cao et al. d… | ||||
| 18 | 146 | text | body | True | body | body | p18:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 642.2, 215.43, 21.12] | Considering the distinct features of the two single metal oxides, it is promising to develop Fe and Mn-mixed | Considering the distinct features of the two single metal oxides, it is promising to develop Fe and Mn-mixed | ||||
| 18 | 147 | page_header | page_header | False | low | docling_page_header | docling_page_header | p18:top_margin:column_2_of_2:white | [255, 255, 255] white | False | [398.16, 34.25, 102.12, 7.35] | J Nanopart Res (2018) 20: 160 | J Nanopart Res (2018) 20: 160 | |||
| 18 | 148 | text | body | True | body | body | p18:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 302.49, 215.51, 357.31] | Nax(FeyMn1-y)O2 which is expected to combine the high potential of NaFeO2 and high capacity of NaMnO2 to target high-energy and cost-effective electrodes. Komaba ' s group made a critical step by reporting the unprecede… | Nax(FeyMn1-y)O2 which is expected to combine the high potential of NaFeO2 and high capacity of NaMnO2 to target high-energy and cost-effective electrodes. Komaba ' s group made a critical step by reporting the unprecede… | ||||
| 19 | 149 | page_header | page_header | False | low | docling_page_header | docling_page_header | p19:top_margin:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 34.25, 102.17, 7.35] | J Nanopart Res (2018) 20: 160 | J Nanopart Res (2018) 20: 160 | |||
| 19 | 150 | text | body | True | body | body | p19:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 56.9, 215.51, 170.56] | same formula of Na2/3Fe2/3Mn1/3O2. As a result, the O3 structure demonstrated similar electrochemical performance (Gonzalo et al. 2014) or even slightly higher reversible capacity (Han et al. 2015) compared with its P2 … | same formula of Na2/3Fe2/3Mn1/3O2. As a result, the O3 structure demonstrated similar electrochemical performance (Gonzalo et al. 2014) or even slightly higher reversible capacity (Han et al. 2015) compared with its P2 … | ||||
| 19 | 151 | text | body | True | body | body | p19:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 231.29, 215.5, 182.98] | As the Fe- and Mn-based oxides suffer from the significant capacity drop as well as unsatisfactory rate capability, continuous efforts have been made to mitigate the issues. Low-valance metal substitution is still deeme… | As the Fe- and Mn-based oxides suffer from the significant capacity drop as well as unsatisfactory rate capability, continuous efforts have been made to mitigate the issues. Low-valance metal substitution is still deeme… | ||||
| 19 | 152 | section_header | body_heading | False | low | body_heading | body_heading | p19:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.78, 446.44, 199.79, 21.16] | Fe- and Mn-based polyanion compounds as SIB cathodes | Fe- and Mn-based polyanion compounds as SIB cathodes | |||
| 19 | 153 | text | body | True | body | body | p19:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.78, 483.8, 215.46, 46.01] | As discussed above, polyanion compounds feature robust crystal framework with the oxygen atoms covalently bonded by counterions (S, P, Si, etc.), affording favorable structural stability toward lithium | As discussed above, polyanion compounds feature robust crystal framework with the oxygen atoms covalently bonded by counterions (S, P, Si, etc.), affording favorable structural stability toward lithium | ||||
| 19 | 154 | caption | caption | False | low | docling_caption | docling_caption | p19:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 543.58, 110.57, 96.98] | Fig. 14 Phase evolution in Na0.67Mn0.5Fe0.5O2 and Nisubstituted Na0.67Mn0.65Ni0.15Fe0.2O2 over the first cycle, and schematic illustration of Mn/Fe migration into tetrahedral sites in the Na space at high potential. Rep… | Fig. 14 Phase evolution in Na0.67Mn0.5Fe0.5O2 and Nisubstituted Na0.67Mn0.65Ni0.15Fe0.2O2 over the first cycle, and schematic illustration of Mn/Fe migration into tetrahedral sites in the Na space at high potential. Rep… | |||
| 19 | 155 | page_header | page_header | False | low | docling_page_header | docling_page_header | p19:top_margin:column_2_of_2:white | [255, 255, 255] white | True | [433.24, 34.25, 67.04, 7.44] | Page 19 of 40 160 | Page 19 of 40 160 | |||
| 19 | 156 | text | body | True | body | body | p19:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 56.9, 215.49, 70.95] | (de)insertion. Such merit is more demanded in SIB chemistry, as the movement of the larger Na ions puts forward higher requirement for structural stability. Given the poor cycling stability haunting most of the layered … | (de)insertion. Such merit is more demanded in SIB chemistry, as the movement of the larger Na ions puts forward higher requirement for structural stability. Given the poor cycling stability haunting most of the layered … | ||||
| 19 | 157 | section_header | body_heading | False | low | body_heading | body_heading | p19:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 147.55, 114.29, 8.65] | Fe-and Mn-based phosphates | Fe-and Mn-based phosphates | |||
| 19 | 158 | text | body | True | body | body | p19:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.87, 172.44, 215.5, 357.6] | Olivine LFP is the most successful polyanion cathode for LIBs. Unfortunately, its sodium counterpart NaFePO4 (NFP) simply cannot duplicate its success, as the thermodynamically stable phase of NFP is a maricite structur… | Olivine LFP is the most successful polyanion cathode for LIBs. Unfortunately, its sodium counterpart NaFePO4 (NFP) simply cannot duplicate its success, as the thermodynamically stable phase of NFP is a maricite structur… | ||||
| 20 | 159 | page_header | page_header | False | low | docling_page_header | docling_page_header | p20:body_region:0 | p20:top_margin:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 34.25, 12.51, 7.44] | 160 | 160 | ||
| 20 | 160 | page_header | page_header | False | low | docling_page_header | docling_page_header | p20:body_region:0 | p20:top_margin:column_1_of_2:white | [255, 255, 255] white | False | [67.64, 34.25, 46.28, 7.35] | Page 20 of 40 | Page 20 of 40 | ||
| 20 | 161 | text | body | True | body | body | p20:body_region:0 | p20:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 56.9, 215.54, 195.45] | which is electrochemically active for (de)lithiation, is reinvestigated as a cathode material for SIBs (Fang et al. 2014; Liu et al. 2015b; Liu et al. 2012b). With the nanosized particle and high content of conductive c… | which is electrochemically active for (de)lithiation, is reinvestigated as a cathode material for SIBs (Fang et al. 2014; Liu et al. 2015b; Liu et al. 2012b). With the nanosized particle and high content of conductive c… | |||
| 20 | 162 | text | body | True | body | body | p20:body_region:0 | p20:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 256.18, 215.54, 232.81] | Also, Fe-based phosphates crystalized in other structures have also been investigated as SIB cathodes. Trad et al. reported the electrochemical performance of a B layered ^ Na3Fe3(PO4)4, where only ~ 80 mAh g -1 was dis… | Also, Fe-based phosphates crystalized in other structures have also been investigated as SIB cathodes. Trad et al. reported the electrochemical performance of a B layered ^ Na3Fe3(PO4)4, where only ~ 80 mAh g -1 was dis… | |||
| 20 | 163 | text | body | True | body | body | p20:body_region:0 | p20:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 492.75, 215.53, 170.57] | Like NFP, NaMnPO4 (NMP) also crystalized favorably in the maricite phase. However, the olivine phase of NMP is still more stable than olivine NFP. Lee et al. (Lee et al. 2011) and Boyadzhieva et al. (Boyadzhieva et al. … | Like NFP, NaMnPO4 (NMP) also crystalized favorably in the maricite phase. However, the olivine phase of NMP is still more stable than olivine NFP. Lee et al. (Lee et al. 2011) and Boyadzhieva et al. (Boyadzhieva et al. … | |||
| 20 | 164 | page_header | page_header | False | low | docling_page_header | docling_page_header | p20:top_margin:column_2_of_2:white | [255, 255, 255] white | False | [398.16, 34.25, 102.12, 7.35] | J Nanopart Res (2018) 20: 160 | J Nanopart Res (2018) 20: 160 | |||
| 20 | 165 | text | body | True | body | body | p20:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 56.91, 215.53, 58.48] | obtained (Lee et al. 2011). Besides, Fe- and Mn-mixed alluaudite-type phosphates have been investigated as SIB cathodes (Huang et al. 2015a; Trad et al. 2010a), where the existence of Mn further lowers the limited speci… | obtained (Lee et al. 2011). Besides, Fe- and Mn-mixed alluaudite-type phosphates have been investigated as SIB cathodes (Huang et al. 2015a; Trad et al. 2010a), where the existence of Mn further lowers the limited speci… | ||||
| 20 | 166 | section_header | body_heading | False | low | body_heading | body_heading | p20:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 131.62, 134.79, 8.65] | Fe- and Mn-based pyrophosphates | Fe- and Mn-based pyrophosphates | |||
| 20 | 167 | text | body | True | body | body | p20:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.87, 156.57, 215.53, 344.83] | Though pyrophosphates have been eclipsed by LFP in the LIB system due to the large gap of capacities, the pyrophosphates show intrinsically better kinetics when compared to other polyanion materials, including LFP (Furu… | Though pyrophosphates have been eclipsed by LFP in the LIB system due to the large gap of capacities, the pyrophosphates show intrinsically better kinetics when compared to other polyanion materials, including LFP (Furu… | ||||
| 20 | 168 | text | body | True | body | body | p20:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 505.23, 215.52, 158.09] | Along with the success of Na2FeP2O7, its Mn analog Na2MnP2O7 has also been investigated. Unlike most Mn-based cathode materials suffering from sluggish kinetics, Park et al. found the unexpected high activity of micron-… | Along with the success of Na2FeP2O7, its Mn analog Na2MnP2O7 has also been investigated. Unlike most Mn-based cathode materials suffering from sluggish kinetics, Park et al. found the unexpected high activity of micron-… | ||||
| 21 | 169 | page_header | page_header | False | low | docling_page_header | docling_page_header | p21:top_margin:left:white | [255, 255, 255] white | False | [46.77, 34.25, 102.17, 7.35] | J Nanopart Res (2018) 20: 160 | J Nanopart Res (2018) 20: 160 | |||
| 21 | 170 | page_header | page_header | False | low | docling_page_header | docling_page_header | p21:top_margin:right:white | [255, 255, 255] white | True | [433.24, 34.25, 67.04, 7.44] | Page 21 of 40 160 | Page 21 of 40 160 | |||
| 21 | 171 | caption | caption | False | low | outside_body_flow_caption | outside_body_flow_caption | p21:top_margin:left:white | [255, 255, 255] white | False | [46.77, 52.9, 110.62, 138.37] | Fig. 15 a -e Crystal structures of olivine NFP, maricite NFP, NASICON-type Na3Fe2(PO4)3, layered Na3Fe3(PO4)4, alluauditetype Na2Fe3(PO4)3. Reproduced from ref. (Naoaki and Shinichi 2014) with permission. Their typical … | Fig. 15 a -e Crystal structures of olivine NFP, maricite NFP, NASICON-type Na3Fe2(PO4)3, layered Na3Fe3(PO4)4, alluauditetype Na2Fe3(PO4)3. Reproduced from ref. (Naoaki and Shinichi 2014) with permission. Their typical … | |||
| 22 | 172 | page_header | page_header | False | low | docling_page_header | docling_page_header | p22:top_margin:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 34.25, 12.51, 7.44] | 160 | 160 | |||
| 22 | 173 | page_header | page_header | False | low | docling_page_header | docling_page_header | p22:top_margin:column_1_of_2:white | [255, 255, 255] white | False | [67.64, 34.25, 46.28, 7.35] | Page 22 of 40 | Page 22 of 40 | |||
| 22 | 174 | text | body | True | body | body | p22:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 56.9, 215.51, 58.48] | and thermodynamically feasible (Barpanda et al. 2013b). Their further atomistic simulations disclosed low barriers for long-range Na + diffusion in all directions in Na2(Fe, Mn)P2O7, theoretically proving the 3D Na + pa… | and thermodynamically feasible (Barpanda et al. 2013b). Their further atomistic simulations disclosed low barriers for long-range Na + diffusion in all directions in Na2(Fe, Mn)P2O7, theoretically proving the 3D Na + pa… | ||||
| 22 | 175 | text | body | True | body | body | p22:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.76, 144.09, 154.12, 8.65] | Fe- and Mn-based sulfates and oxalates | Fe- and Mn-based sulfates and oxalates | ||||
| 22 | 176 | text | body | True | body | body | p22:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.76, 166.76, 215.55, 210.14] | The stronger inductive effect of the SO4 2group can elevate the redox potential when compared with common PO4 3 . In 2014, Barpanda et al. reported the use of a new Na2Fe2(SO4)3 with the alluaudite-type as a cathode mat… | The stronger inductive effect of the SO4 2group can elevate the redox potential when compared with common PO4 3 . In 2014, Barpanda et al. reported the use of a new Na2Fe2(SO4)3 with the alluaudite-type as a cathode mat… | ||||
| 22 | 177 | caption | caption | False | low | outside_body_flow_caption | outside_body_flow_caption | p22:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 624.25, 215.51, 38.76] | Fig. 16 a -c Triclinic structure ( P -1) of Na2FeP2O7 and corresponding electrochemical properties. Reproduced from ref. (Barpanda et al. 2012) with permission. d Voltage profiles of P -1 Na2MnP2O7. Reproduced from ref.… | Fig. 16 a -c Triclinic structure ( P -1) of Na2FeP2O7 and corresponding electrochemical properties. Reproduced from ref. (Barpanda et al. 2012) with permission. d Voltage profiles of P -1 Na2MnP2O7. Reproduced from ref.… | |||
| 22 | 178 | page_header | page_header | False | low | docling_page_header | docling_page_header | p22:top_margin:column_2_of_2:white | [255, 255, 255] white | False | [398.16, 34.25, 102.12, 7.35] | J Nanopart Res (2018) 20: 160 | J Nanopart Res (2018) 20: 160 | |||
| 22 | 179 | text | body | True | body | body | p22:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 56.9, 215.53, 133.21] | Apart from alluaudite-type sulfates, Kröhnkite-type Na2Fe(SO4)2·2H2O was also explored as a 3.25 V insertion compound for SIBs, showing a reversible capacity of around 70 mAh g -1 (Barpanda et al. 2014a). Besides, eldfe… | Apart from alluaudite-type sulfates, Kröhnkite-type Na2Fe(SO4)2·2H2O was also explored as a 3.25 V insertion compound for SIBs, showing a reversible capacity of around 70 mAh g -1 (Barpanda et al. 2014a). Besides, eldfe… | ||||
| 22 | 180 | text | body | True | body | body | p22:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 193.93, 215.54, 158.03] | Mn-based sulfates progressed much slower. Barpanda et al. continued to explore the sulfate-based cathode family by reporting the isostructural alluauditetype Na2+2 x Mn2 -x (SO4)3, but no electrochemical data was presen… | Mn-based sulfates progressed much slower. Barpanda et al. continued to explore the sulfate-based cathode family by reporting the isostructural alluauditetype Na2+2 x Mn2 -x (SO4)3, but no electrochemical data was presen… | ||||
| 22 | 181 | text | body | True | body | body | p22:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 353.56, 215.49, 23.34] | Oxalates have also been investigated as Na + host materials. According to the electronegativity order of | Oxalates have also been investigated as Na + host materials. According to the electronegativity order of | ||||
| 22 | 182 | caption | caption | False | low | outside_body_flow_caption | outside_body_flow_caption | p22:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 623.9, 215.53, 29.14] | permission. e , f Crystal structure of β -Na2MnP2O7 (triclinic P 1) and its voltage profiles. Reproduced from ref. (Barpanda et al. 2013b) with permission | permission. e , f Crystal structure of β -Na2MnP2O7 (triclinic P 1) and its voltage profiles. Reproduced from ref. (Barpanda et al. 2013b) with permission | |||
| 23 | 183 | page_header | page_header | False | low | docling_page_header | docling_page_header | p23:top_margin:left:white | [255, 255, 255] white | False | [46.77, 34.25, 102.17, 7.35] | J Nanopart Res (2018) 20: 160 | J Nanopart Res (2018) 20: 160 | |||
| 23 | 184 | page_header | page_header | False | low | docling_page_header | docling_page_header | p23:top_margin:right:white | [255, 255, 255] white | True | [433.24, 34.25, 67.04, 7.44] | Page 23 of 40 160 | Page 23 of 40 160 | |||

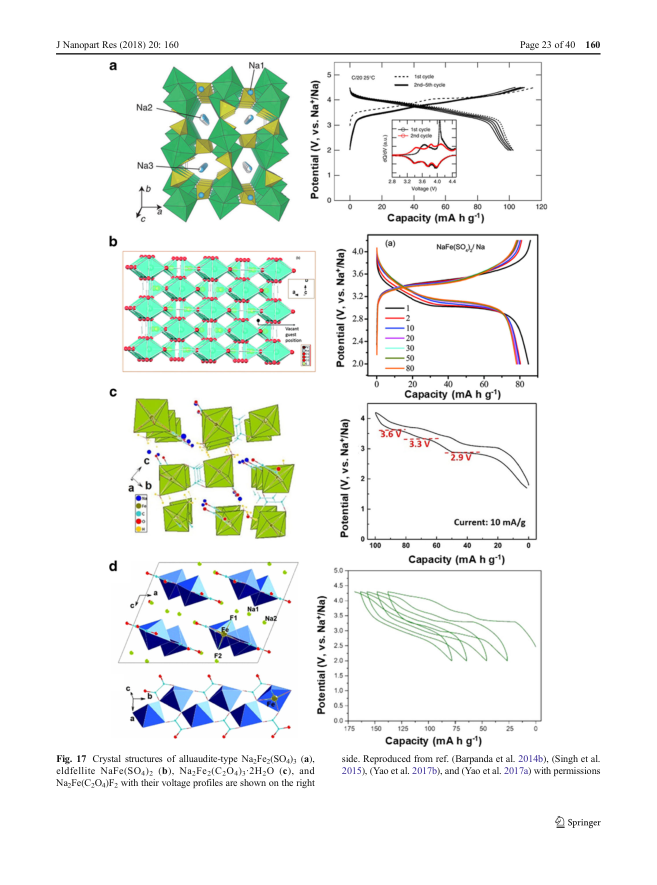

| 23 | 185 | caption | caption | False | low | outside_body_flow_caption | outside_body_flow_caption | p23:page_body:left:white | [255, 255, 255] white | False | [46.77, 629.3, 215.52, 27.31] | Fig. 17 Crystal structures of alluaudite-type Na2Fe2(SO4)3 ( a ), eldfellite NaFe(SO4)2 ( b ), Na2Fe2(C2O4)3·2H2O ( c ), and Na2Fe(C2O4)F2 with their voltage profiles are shown on the right | Fig. 17 Crystal structures of alluaudite-type Na2Fe2(SO4)3 ( a ), eldfellite NaFe(SO4)2 ( b ), Na2Fe2(C2O4)3·2H2O ( c ), and Na2Fe(C2O4)F2 with their voltage profiles are shown on the right | |||
| 23 | 186 | caption | caption | False | low | outside_body_flow_caption | outside_body_flow_caption | p23:page_body:right:white | [255, 255, 255] white | False | [284.88, 629.29, 215.45, 17.33] | side. Reproduced from ref. (Barpanda et al. 2014b), (Singh et al. 2015), (Yao et al. 2017b), and (Yao et al. 2017a) with permissions | side. Reproduced from ref. (Barpanda et al. 2014b), (Singh et al. 2015), (Yao et al. 2017b), and (Yao et al. 2017a) with permissions | |||
| 24 | 187 | page_header | page_header | False | low | docling_page_header | docling_page_header | p24:top_margin:left:white | [255, 255, 255] white | False | [46.77, 34.25, 67.14, 7.44] | 160 Page 24 of 40 | 160 Page 24 of 40 | |||
| 24 | 188 | page_header | page_header | False | low | docling_page_header | docling_page_header | p24:top_margin:right:white | [255, 255, 255] white | False | [398.16, 34.25, 102.12, 7.35] | J Nanopart Res (2018) 20: 160 | J Nanopart Res (2018) 20: 160 | |||

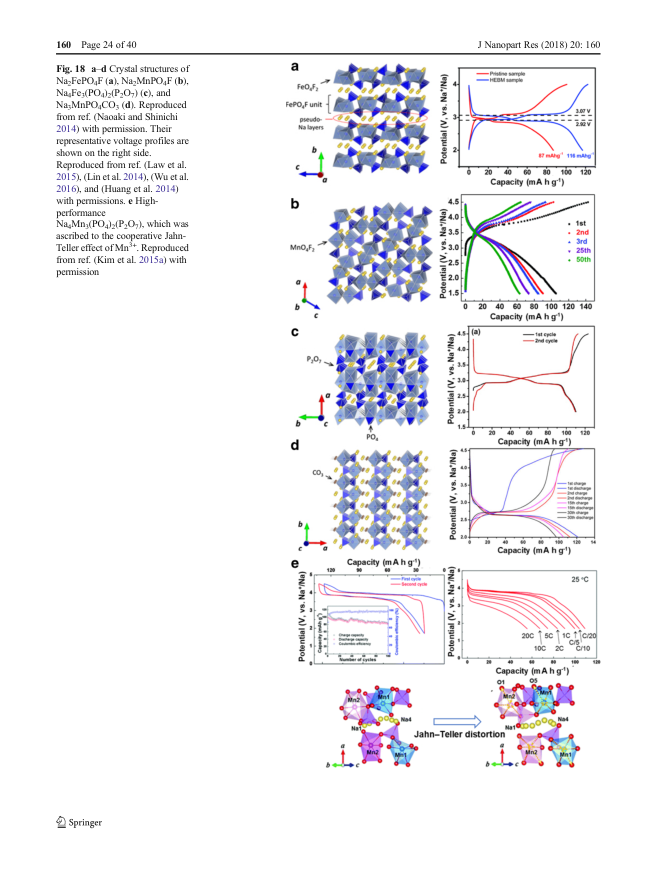

| 24 | 189 | caption | caption | False | low | outside_body_flow_caption | outside_body_flow_caption | p24:top_margin:left:white | [255, 255, 255] white | False | [46.77, 52.9, 110.66, 178.23] | Fig. 18 a -d Crystal structures of Na2FePO4F ( a ), Na2MnPO4F ( b ), Na4Fe3(PO4)2(P2O7) ( c ), and Na3MnPO4CO3 ( d ). Reproduced from ref. (Naoaki and Shinichi 2014) with permission. Their representative voltage profile… | Fig. 18 a -d Crystal structures of Na2FePO4F ( a ), Na2MnPO4F ( b ), Na4Fe3(PO4)2(P2O7) ( c ), and Na3MnPO4CO3 ( d ). Reproduced from ref. (Naoaki and Shinichi 2014) with permission. Their representative voltage profile… | |||
| 25 | 190 | page_header | page_header | False | low | docling_page_header | docling_page_header | p25:top_margin:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 34.25, 102.17, 7.35] | J Nanopart Res (2018) 20: 160 | J Nanopart Res (2018) 20: 160 | |||
| 25 | 191 | caption | caption | False | low | outside_body_flow_caption | outside_body_flow_caption | p25:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 387.39, 215.52, 37.23] | Fig. 19 a Crystal structure of PBAs with a face-centered cubic phase. b Charge and discharge curves of Na2MnMn(CN)6. c , d The schematic illustrations of the step-wise structural evolution over the extraction/insertion … | Fig. 19 a Crystal structure of PBAs with a face-centered cubic phase. b Charge and discharge curves of Na2MnMn(CN)6. c , d The schematic illustrations of the step-wise structural evolution over the extraction/insertion … | |||
| 25 | 192 | text | body | True | body | body | p25:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 439.44, 215.53, 223.76] | SO4 2 -> C2O4 2 -> PO4 3 -, metal oxalates can display competitive redox potentials. In 2014, Yamada ' s group prepared K4Na2[Fe(C2O4)2]3·2 H2O and studied its Na storage capability (Wang et al. 2015b). The material ini… | SO4 2 -> C2O4 2 -> PO4 3 -, metal oxalates can display competitive redox potentials. In 2014, Yamada ' s group prepared K4Na2[Fe(C2O4)2]3·2 H2O and studied its Na storage capability (Wang et al. 2015b). The material ini… | ||||
| 25 | 193 | page_header | page_header | False | low | docling_page_header | docling_page_header | p25:top_margin:column_2_of_2:white | [255, 255, 255] white | True | [433.24, 34.25, 67.04, 7.44] | Page 25 of 40 160 | Page 25 of 40 160 | |||
| 25 | 194 | caption | caption | False | low | docling_caption | docling_caption | p25:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 387.39, 215.51, 27.25] | (Lee et al. 2014) with permission. e , f Voltage profile and cycling performance of a Prussian blue@C composite. Reproduced from ref. (Jiang et al. 2016) with permission | (Lee et al. 2014) with permission. e , f Voltage profile and cycling performance of a Prussian blue@C composite. Reproduced from ref. (Jiang et al. 2016) with permission | |||
| 25 | 195 | text | body | True | body | body | p25:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 442.87, 215.38, 33.53] | critical issues should be addressed before their practical application, including the air (water, oxygen) sensitivity and thermal instability (decomposition) (Fig. 17). | critical issues should be addressed before their practical application, including the air (water, oxygen) sensitivity and thermal instability (decomposition) (Fig. 17). | ||||
| 25 | 196 | text | body | True | body | body | p25:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 492.76, 169.93, 21.12] | Fe- and Mn-based mixed anion compounds (fluorophosphates and mixed polyanions) | Fe- and Mn-based mixed anion compounds (fluorophosphates and mixed polyanions) | ||||
| 25 | 197 | text | body | True | body | body | p25:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 525.52, 215.5, 137.8] | The combination of different anion groups (F -, PO4 3 -, P2O7 4 -, CO3 2 -, etc.) offers new opportunities toward desirable electrode materials. The induction of highly electronegative F -ions enables higher redox poten… | The combination of different anion groups (F -, PO4 3 -, P2O7 4 -, CO3 2 -, etc.) offers new opportunities toward desirable electrode materials. The induction of highly electronegative F -ions enables higher redox poten… | ||||
| 26 | 198 | page_header | page_header | False | low | docling_page_header | docling_page_header | p26:body_region:0 | p26:top_margin:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 34.25, 12.51, 7.44] | 160 | 160 | ||
| 26 | 199 | page_header | page_header | False | low | docling_page_header | docling_page_header | p26:body_region:0 | p26:top_margin:column_1_of_2:white | [255, 255, 255] white | False | [67.64, 34.25, 46.28, 7.35] | Page 26 of 40 | Page 26 of 40 | ||
| 26 | 200 | text | body | True | body | body | p26:body_region:0 | p26:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 56.9, 215.54, 158.09] | Na ions can transport between the layers. The structure also favors a small volume change (3.7%) after extraction of one Na + ion, corresponding to a theoretical capacity of around 124 mAh g -1 as a cathode for SIBs. Th… | Na ions can transport between the layers. The structure also favors a small volume change (3.7%) after extraction of one Na + ion, corresponding to a theoretical capacity of around 124 mAh g -1 as a cathode for SIBs. Th… | |||
| 26 | 201 | text | body | True | body | body | p26:body_region:0 | p26:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.76, 218.81, 215.52, 282.59] | Different from the 2D-layered Na2FePO4F, Na2MnPO4F adopts a 3D tunnel structure (space group: P 21/ n ) (Fig. 19b) (Yakubovich et al. 1997). By investigating the Mn-substituted Na2Fe1 -x Mn x PO4F, the presence of 0.25 … | Different from the 2D-layered Na2FePO4F, Na2MnPO4F adopts a 3D tunnel structure (space group: P 21/ n ) (Fig. 19b) (Yakubovich et al. 1997). By investigating the Mn-substituted Na2Fe1 -x Mn x PO4F, the presence of 0.25 … | |||
| 26 | 202 | text | body | True | body | body | p26:body_region:0 | p26:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 505.23, 215.53, 158.09] | Kim et al. first introduced the Fe-based mixed phosphate compound Na4Fe3(PO4)2(P2O7) to SIBs. As shown in Fig. 18c, the structure belongs to the orthorhombic Pbcn space group, which is constructed by [Fe3P2O13] layers a… | Kim et al. first introduced the Fe-based mixed phosphate compound Na4Fe3(PO4)2(P2O7) to SIBs. As shown in Fig. 18c, the structure belongs to the orthorhombic Pbcn space group, which is constructed by [Fe3P2O13] layers a… | |||
| 26 | 203 | page_header | page_header | False | low | docling_page_header | docling_page_header | p26:top_margin:column_2_of_2:white | [255, 255, 255] white | False | [398.16, 34.25, 102.12, 7.35] | J Nanopart Res (2018) 20: 160 | J Nanopart Res (2018) 20: 160 | |||
| 26 | 204 | text | body | True | body | body | p26:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 56.9, 215.54, 220.34] | Na x Fe3(PO4)2(P2O7) (Kim et al. 2013a). Wood et al. simulated molecular dynamics for Na4M3(PO4)2P2O7 (M = Fe, Mn, Co, Ni), with the results showed a small activation barrier of 0.20 -0.24 eV for 3D Na + migration and d… | Na x Fe3(PO4)2(P2O7) (Kim et al. 2013a). Wood et al. simulated molecular dynamics for Na4M3(PO4)2P2O7 (M = Fe, Mn, Co, Ni), with the results showed a small activation barrier of 0.20 -0.24 eV for 3D Na + migration and d… | ||||
| 26 | 205 | text | body | True | body | body | p26:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.87, 281.06, 215.56, 270.17] | Carbonophosphates are an emerging class of mixed polyanion compounds in SIB system. The idea of engaging carbonophosphates was proposed by Ceder ' s group using ab initio computations (Hautier et al. 2011). They success… | Carbonophosphates are an emerging class of mixed polyanion compounds in SIB system. The idea of engaging carbonophosphates was proposed by Ceder ' s group using ab initio computations (Hautier et al. 2011). They success… | ||||
| 26 | 206 | section_header | body_heading | False | low | body_heading | body_heading | p26:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 579.95, 161.55, 8.75] | Fe- and Mn-based hexacyanometalates | Fe- and Mn-based hexacyanometalates | |||
| 26 | 207 | text | body | True | body | body | p26:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 604.83, 215.45, 59.44] | Metal hexacyanometalates, also known as Prussian blue analogs (PBAs), have a general formula of AxP[R(CN)6]1-y □ y·nH2O (A: removable cations, P: N-coordinated metal ion; R: C-coordinated metal ion; □ : [R(CN)6] vacancy… | Metal hexacyanometalates, also known as Prussian blue analogs (PBAs), have a general formula of AxP[R(CN)6]1-y □ y·nH2O (A: removable cations, P: N-coordinated metal ion; R: C-coordinated metal ion; □ : [R(CN)6] vacancy… | ||||
| 27 | 208 | page_header | page_header | False | low | docling_page_header | docling_page_header | p27:top_margin:left:white | [255, 255, 255] white | False | [46.77, 34.25, 102.17, 7.35] | J Nanopart Res (2018) 20: 160 | J Nanopart Res (2018) 20: 160 | |||
| 27 | 209 | page_header | page_header | False | low | docling_page_header | docling_page_header | p27:top_margin:right:white | [255, 255, 255] white | True | [433.24, 34.25, 67.04, 7.44] | Page 27 of 40 160 | Page 27 of 40 160 | |||
| 27 | 210 | text | body | True | body | body | p27:page_body:left:white | [255, 255, 255] white | False | [46.77, 56.9, 215.5, 606.42] | They are crystallized into a cubic structure with the space group of Fm -3m . The cyanide ligands link the coordinated metal ions together to form elementary cubes that can host various cations due to the large channels… | They are crystallized into a cubic structure with the space group of Fm -3m . The cyanide ligands link the coordinated metal ions together to form elementary cubes that can host various cations due to the large channels… | ||||
| 27 | 211 | caption | caption | False | low | outside_body_flow_caption | outside_body_flow_caption | p27:page_body:right:white | [255, 255, 255] white | False | [287.89, 333.72, 7.44, 327.83] | Table 1 Electrochemical properties of representative Fe- and Mn-based cathode materials for LIBs | Table 1 Electrochemical properties of representative Fe- and Mn-based cathode materials for LIBs | |||
| 28 | 212 | page_header | page_header | False | low | docling_page_header | docling_page_header | p28:top_margin:left:white | [255, 255, 255] white | False | [46.77, 34.25, 12.51, 7.44] | 160 | 160 | |||
| 28 | 213 | page_header | page_header | False | low | docling_page_header | docling_page_header | p28:top_margin:left:white | [255, 255, 255] white | False | [67.64, 34.25, 46.28, 7.35] | Page 28 of 40 | Page 28 of 40 | |||
| 28 | 214 | page_header | page_header | False | low | docling_page_header | docling_page_header | p28:top_margin:right:white | [255, 255, 255] white | False | [398.16, 34.25, 102.12, 7.35] | J Nanopart Res (2018) 20: 160 | J Nanopart Res (2018) 20: 160 | |||
| 28 | 215 | caption | caption | False | low | docling_caption | docling_caption | p28:page_body:left:white | [255, 255, 255] white | False | [152.79, 333.85, 7.44, 327.41] | Table 2 Electrochemical properties of representative Fe- and Mn-based cathode materials for SIBs | Table 2 Electrochemical properties of representative Fe- and Mn-based cathode materials for SIBs | |||
| 29 | 216 | page_header | page_header | False | low | docling_page_header | docling_page_header | p29:body_region:0 | p29:top_margin:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 34.25, 102.17, 7.35] | J Nanopart Res (2018) 20: 160 | J Nanopart Res (2018) 20: 160 | ||
| 29 | 217 | caption | caption | False | low | outside_body_flow_caption | outside_body_flow_caption | p29:body_region:0 | p29:front_matter:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 213.91, 378.27, 7.44] | Fig. 20 Illustration of the energy densities of those Fe- and Mn-based cathode materials for LIBs ( a ) and SIBs ( b ) | Fig. 20 Illustration of the energy densities of those Fe- and Mn-based cathode materials for LIBs ( a ) and SIBs ( b ) | ||
| 29 | 218 | text | body | True | body | body | p29:body_region:0 | p29:front_matter:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 243.7, 215.49, 21.12] | Therefore, the practical difficulties regarding sulfates also exist here. | Therefore, the practical difficulties regarding sulfates also exist here. | |||
| 29 | 219 | section_header | body_heading | False | low | body_heading | body_heading | p29:body_region:0 | p29:body_zone:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 293.54, 93.5, 8.75] | Summary and outlook | Summary and outlook | ||
| 29 | 220 | text | body | True | body | body | p29:body_region:0 | p29:body_zone:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 318.42, 215.53, 207.92] | Considering the technology advances achieved on energy conversion and storage and the pressing concerns of carbon emission and environmental pollution, the transitions to clean, green, and sustainable development are pr… | Considering the technology advances achieved on energy conversion and storage and the pressing concerns of carbon emission and environmental pollution, the transitions to clean, green, and sustainable development are pr… | |||
| 29 | 221 | text | body | True | body | body | p29:body_region:0 | p29:body_zone:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 530.11, 215.47, 133.2] | This review involves the discussion of most of the Feand Mn-based cathode materials for LIBs and SIBs, including oxides, polyanion compounds, and hexacyanometalates (for SIBs). We especially emphasize their merits, draw… | This review involves the discussion of most of the Feand Mn-based cathode materials for LIBs and SIBs, including oxides, polyanion compounds, and hexacyanometalates (for SIBs). We especially emphasize their merits, draw… | |||
| 29 | 222 | page_header | page_header | False | low | docling_page_header | docling_page_header | p29:top_margin:column_2_of_2:white | [255, 255, 255] white | True | [433.24, 34.25, 67.04, 7.44] | Page 29 of 40 160 | Page 29 of 40 160 | |||
| 29 | 223 | text | body | True | body | body | p29:front_matter:column_2_of_2:white | [255, 255, 255] white | False | [284.89, 243.69, 215.51, 58.48] | straightforward comparison, it is easy to understand the different development phases and goals of cathode materials for LIBs and SIBs. To meet the requirement of practical applications, significant challenges in this f… | straightforward comparison, it is easy to understand the different development phases and goals of cathode materials for LIBs and SIBs. To meet the requirement of practical applications, significant challenges in this f… | ||||
| 29 | 224 | list_item | body | True | recovered_body_outside_flow | recovered_body_outside_flow | p29:body_zone:column_2_of_2:white | [255, 255, 255] white | False | [284.89, 318.41, 215.42, 58.48] | The extensively investigated strategies of constructing conductive composites and tailoring particle size easily cause insufficient gravimetric and volumetric energy densities as well as additional materials and process… | The extensively investigated strategies of constructing conductive composites and tailoring particle size easily cause insufficient gravimetric and volumetric energy densities as well as additional materials and process… | ||||
| 29 | 225 | list_item | body | True | recovered_body_outside_flow | recovered_body_outside_flow | p29:body_zone:column_2_of_2:white | [255, 255, 255] white | False | [284.89, 380.72, 215.5, 58.42] | Due to the large size of the Na ion, conventional host structures do not favor efficient and repeatable Na ion (de)intercalation. A critical step to realizing large-scale SIB applications is to search stable and kinetic… | Due to the large size of the Na ion, conventional host structures do not favor efficient and repeatable Na ion (de)intercalation. A critical step to realizing large-scale SIB applications is to search stable and kinetic… | ||||
| 29 | 226 | list_item | body | True | recovered_body_outside_flow | recovered_body_outside_flow | p29:body_zone:column_2_of_2:white | [255, 255, 255] white | False | [284.89, 442.97, 215.42, 70.89] | Instead of emphasizing the electrode performance of a cathode material in a half cell, the practical performance should be demonstrated in full battery level, which requires innovation in the design and optimization of … | Instead of emphasizing the electrode performance of a cathode material in a half cell, the practical performance should be demonstrated in full battery level, which requires innovation in the design and optimization of … | ||||
| 29 | 227 | text | body | True | body | body | p29:body_zone:column_2_of_2:white | [255, 255, 255] white | False | [284.89, 542.57, 215.52, 120.73] | As discussed above, nanostructuring is used to boost the reactivity for many electrode materials, given that it reduce the diffusion lengths of mobile ions and electrons, which also have been reviewed intensively (Armst… | As discussed above, nanostructuring is used to boost the reactivity for many electrode materials, given that it reduce the diffusion lengths of mobile ions and electrons, which also have been reviewed intensively (Armst… | ||||
| 30 | 228 | page_header | page_header | False | low | docling_page_header | docling_page_header | p30:body_region:0 | p30:top_margin:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 34.25, 12.51, 7.44] | 160 | 160 | ||
| 30 | 229 | page_header | page_header | False | low | docling_page_header | docling_page_header | p30:body_region:0 | p30:top_margin:column_1_of_2:white | [255, 255, 255] white | False | [67.64, 34.25, 46.28, 7.35] | Page 30 of 40 | Page 30 of 40 | ||
| 30 | 230 | text | body | True | body | body | p30:body_region:0 | p30:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 56.9, 215.51, 394.72] | However, to compete with the benchmark LCO and NMC, efforts should be made to improving the gravimetric and volumetric energy densities at reduced cost. In comparison to the B external ^ modifications, governing the cry… | However, to compete with the benchmark LCO and NMC, efforts should be made to improving the gravimetric and volumetric energy densities at reduced cost. In comparison to the B external ^ modifications, governing the cry… | |||
| 30 | 231 | text | back_matter_heading | False | low | back_matter_heading | back_matter_heading | stop_trigger | p30:body_region:0 | p30:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 468.74, 215.52, 17.28] | Acknowledgments Funding support from ARC through its LP and DP programs is acknowledged. | Acknowledgments Funding support from ARC through its LP and DP programs is acknowledged. | |
| 30 | 232 | section_header | unknown_text | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p30:body_region:0 | p30:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 501.12, 121.83, 7.44] | Compliance with ethical standards | Compliance with ethical standards | |
| 30 | 233 | text | back_matter_heading | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p30:body_region:0 | p30:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 523.51, 215.49, 17.33] | Conflict of interest The authors declare that they have no conflict of interest. | Conflict of interest The authors declare that they have no conflict of interest. | |
| 30 | 234 | section_header | back_matter_heading | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p30:body_region:0 | p30:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 564.25, 44.94, 8.75] | References | References | |
| 30 | 235 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p30:body_region:0 | p30:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 594.66, 215.52, 27.36] | Adamczyk E, Pralong V (2017) Na2Mn3O7: a suitable electrode material for Na-Ion batteries? Chem Mater 29:4645 -4648. https://doi.org/10.1021/acs.chemmater.7b01390 | Adamczyk E, Pralong V (2017) Na2Mn3O7: a suitable electrode material for Na-Ion batteries? Chem Mater 29:4645 -4648. | |
| 30 | 236 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p30:body_region:0 | p30:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 625.67, 215.52, 37.44] | Ali G, Lee J-H, Susanto D, Choi S-W, Cho BW, Nam K-W, Chung KY (2016) Polythiophene-wrapped olivine NaFePO4 as a cathode for Na-Ion batteries. ACS Appl Mater Interfaces 8: 15422 -15429. https://doi.org/10.1021/acsami.6b… | Ali G, Lee J-H, Susanto D, Choi S-W, Cho BW, Nam K-W, Chung KY (2016) Polythiophene-wrapped olivine NaFePO4 as a cathode for Na-Ion batteries. ACS Appl Mater Interfaces 8: 15422 -15429. | |
| 30 | 237 | page_header | page_header | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p30:top_margin:column_2_of_2:white | [255, 255, 255] white | False | [398.16, 34.25, 102.12, 7.35] | J Nanopart Res (2018) 20: 160 | J Nanopart Res (2018) 20: 160 | ||
| 30 | 238 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p30:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 55.45, 215.52, 47.37] | Amalraj F et al (2013) Study of the lithium-rich integrated compound xLi2MnO3·(1-x)LiMO2 (x around 0.5; M = Mn, Ni, Co; 2:2:1) and its electrochemical activity as positive electrode in lithium cells. J Electrochem Soc 1… | Amalraj F et al (2013) Study of the lithium-rich integrated compound xLi2MnO3·(1-x)LiMO2 (x around 0.5; M = Mn, Ni, Co; 2:2:1) and its electrochemical activity as positive electrode in lithium cells. J Electrochem Soc 1… | ||
| 30 | 239 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p30:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 105.44, 215.47, 47.37] | Amine K, Tukamoto H, Yasuda H, Fujita Y (1997) Preparation and electrochemical investigation of LiMn2 -xMexO4 (Me: Ni, Fe, and x = 0.5, 1) cathode materials for secondary lithium batteries. J Power Sources 68:604 -608. … | Amine K, Tukamoto H, Yasuda H, Fujita Y (1997) Preparation and electrochemical investigation of LiMn2 -xMexO4 (Me: Ni, Fe, and x = 0.5, 1) cathode materials for secondary lithium batteries. J Power Sources 68:604 -608. … | ||
| 30 | 240 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p30:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 155.5, 215.52, 27.4] | Armstrong AR, Bruce PG (1996) Synthesis of layered LiMnO2 as an electrode for rechargeable lithium batteries. Nature 381: 499 -500. https://doi.org/10.1038/381499a0 | Armstrong AR, Bruce PG (1996) Synthesis of layered LiMnO2 as an electrode for rechargeable lithium batteries. Nature 381: 499 -500. | ||
| 30 | 241 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p30:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 185.48, 215.52, 47.47] | Armstrong AR, Holzapfel M, Novák P, Johnson CS, Kang S-H, Thackeray MM, Bruce PG (2006) Demonstrating oxygen loss and associated structural reorganization in the lithium battery cathode Li[Ni0.2Li0.2Mn0.6]O2. J Am Chem … | Armstrong AR, Holzapfel M, Novák P, Johnson CS, Kang S-H, Thackeray MM, Bruce PG (2006) Demonstrating oxygen loss and associated structural reorganization in the lithium battery cathode Li[Ni0.2Li0.2Mn0.6]O2. J Am Chem … | ||
| 30 | 242 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p30:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 235.48, 215.44, 37.34] | Armstrong AR, Tee DW, La Mantia F, Novák P, Bruce PG (2008) Synthesis of tetrahedral LiFeO2 and Its behavior as a cathode in rechargeable lithium batteries. J Am Chem Soc 130:3554 -3559. https://doi.org/10.1021/ja077651g | Armstrong AR, Tee DW, La Mantia F, Novák P, Bruce PG (2008) Synthesis of tetrahedral LiFeO2 and Its behavior as a cathode in rechargeable lithium batteries. J Am Chem Soc 130:3554 -3559. | ||
| 30 | 243 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p30:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 275.5, 215.43, 37.34] | Armstrong AR, Kuganathan N, Islam MS, Bruce PG (2011) Structure and lithium transport pathways in Li2FeSiO4 cathodes for lithium batteries. J Am Chem Soc 133:13031 -13035. https://doi.org/10.1021/ja2018543 | Armstrong AR, Kuganathan N, Islam MS, Bruce PG (2011) Structure and lithium transport pathways in Li2FeSiO4 cathodes for lithium batteries. J Am Chem Soc 133:13031 -13035. | ||
| 30 | 244 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p30:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.89, 313.99, 215.54, 38.87] | Armstrong MJ, O ' Dwyer C, Macklin WJ, Holmes JD (2014) Evaluating the performance of nanostructured materials as lithium-ion battery electrodes. Nano Res 7:1 -62. https://doi. org/10.1007/s12274-013-0375-x | Armstrong MJ, O ' Dwyer C, Macklin WJ, Holmes JD (2014) Evaluating the performance of nanostructured materials as lithium-ion battery electrodes. Nano Res 7:1 -62. org/10.1007/s12274-013-0375-x | ||
| 30 | 245 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p30:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.89, 355.54, 215.52, 57.35] | Arroyo-de Dompablo ME, Armand M, Tarascon JM, Amador U (2006) On-demand design of polyoxianionic cathode materials based on electronegativity correlations: an exploration of the Li2MSiO4 system (M=Fe, Mn, Co, Ni). Elect… | Arroyo-de Dompablo ME, Armand M, Tarascon JM, Amador U (2006) On-demand design of polyoxianionic cathode materials based on electronegativity correlations: an exploration of the Li2MSiO4 system (M=Fe, Mn, Co, Ni). Elect… | ||
| 30 | 246 | list_item | body_candidate_excluded | False | medium | after_back_matter_stop | after_back_matter_stop | after_stop | p30:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.89, 415.51, 215.49, 47.37] | Banerjee A, Araujo RB, Ahuja R (2016) Unveiling the thermodynamic and kinetic properties of NaxFe(SO4)2 (x = 0-2): toward a high-capacity and low-cost cathode material. J Mater Chem A 4:17960 -17969. https://doi.org/10.… | Banerjee A, Araujo RB, Ahuja R (2016) Unveiling the thermodynamic and kinetic properties of NaxFe(SO4)2 (x = 0-2): toward a high-capacity and low-cost cathode material. J Mater Chem A 4:17960 -17969. | ||

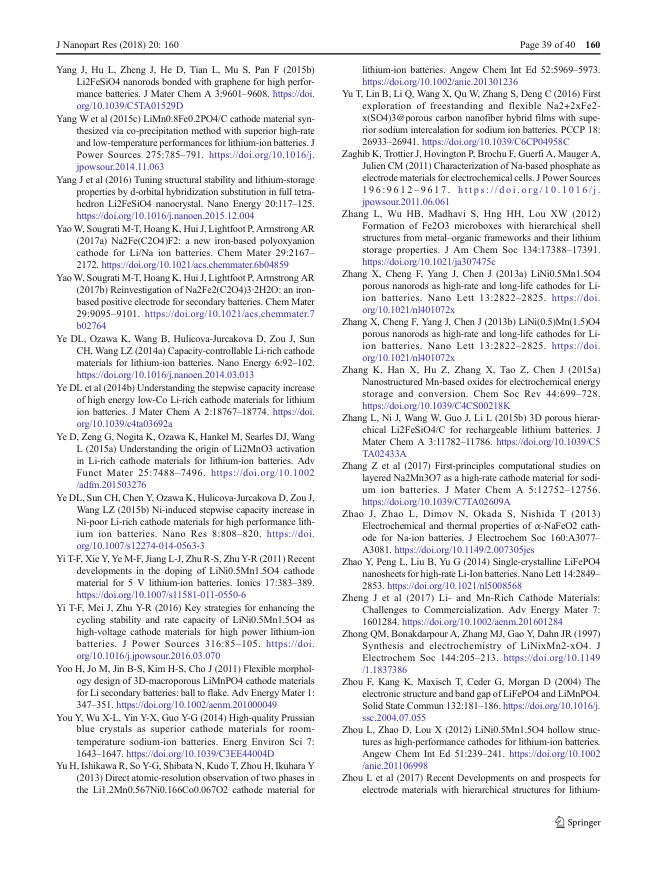

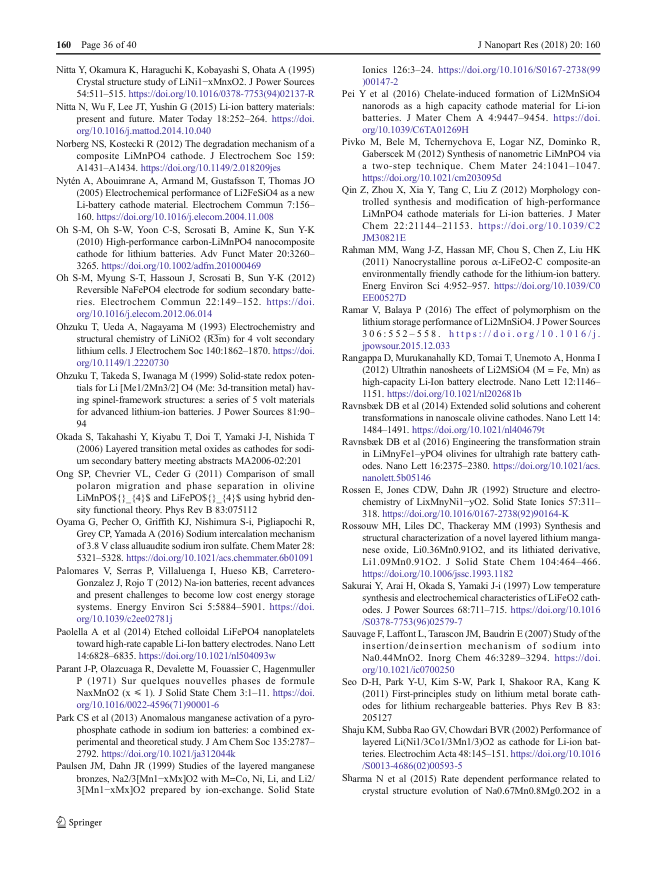

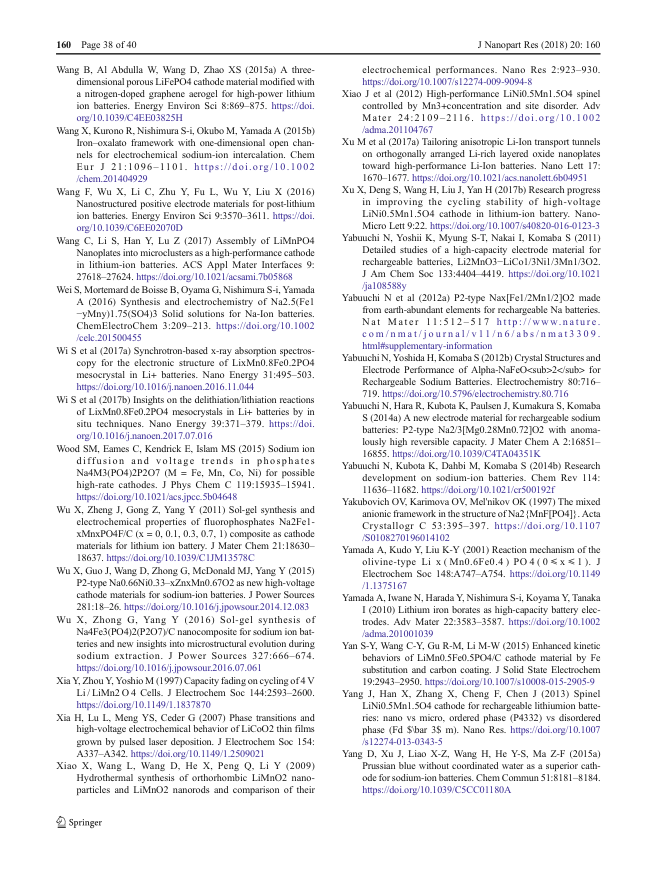

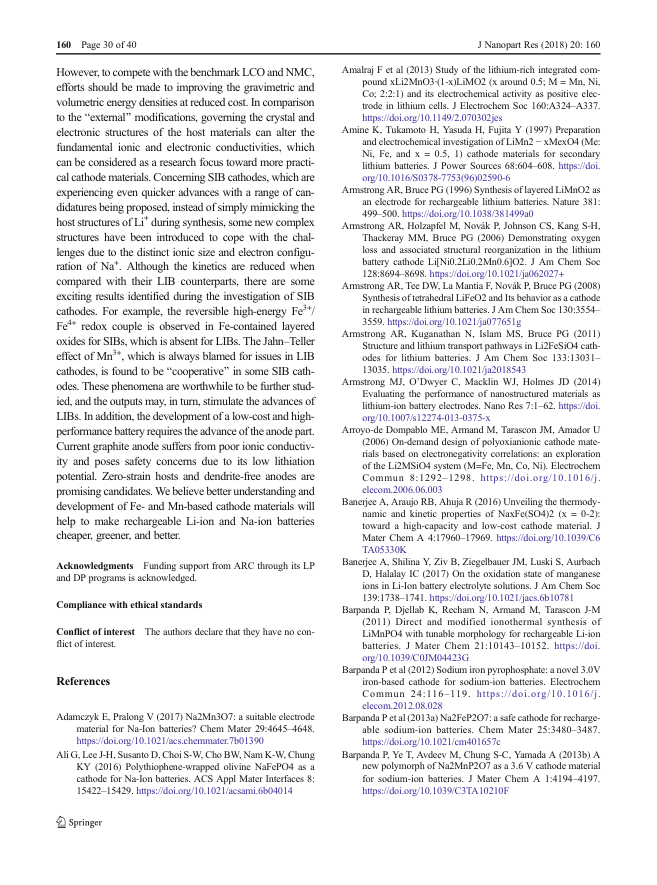

| 30 | 247 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p30:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.9, 465.57, 215.52, 37.44] | Banerjee A, Shilina Y, Ziv B, Ziegelbauer JM, Luski S, Aurbach D, Halalay IC (2017) On the oxidation state of manganese ions in Li-Ion battery electrolyte solutions. J Am Chem Soc 139:1738 -1741. https://doi.org/10.1021… | Banerjee A, Shilina Y, Ziv B, Ziegelbauer JM, Luski S, Aurbach D, Halalay IC (2017) On the oxidation state of manganese ions in Li-Ion battery electrolyte solutions. J Am Chem Soc 139:1738 -1741. | ||
| 30 | 248 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p30:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.9, 505.53, 215.5, 47.37] | Barpanda P, Djellab K, Recham N, Armand M, Tarascon J-M (2011) Direct and modified ionothermal synthesis of LiMnPO4 with tunable morphology for rechargeable Li-ion batteries. J Mater Chem 21:10143 -10152. https://doi. o… | Barpanda P, Djellab K, Recham N, Armand M, Tarascon J-M (2011) Direct and modified ionothermal synthesis of LiMnPO4 with tunable morphology for rechargeable Li-ion batteries. J Mater Chem 21:10143 -10152. org/10.1039/C0… | ||
| 30 | 249 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p30:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.9, 555.59, 215.51, 37.34] | Barpanda P et al (2012) Sodium iron pyrophosphate: a novel 3.0V iron-based cathode for sodium-ion batteries. Electrochem Commun 24:116 -119. https://doi.org/10.1016/j. elecom.2012.08.028 | Barpanda P et al (2012) Sodium iron pyrophosphate: a novel 3.0V iron-based cathode for sodium-ion batteries. Electrochem Commun 24:116 -119. | ||
| 30 | 250 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p30:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.9, 595.55, 215.4, 27.44] | Barpanda P et al (2013a) Na2FeP2O7: a safe cathode for rechargeable sodium-ion batteries. Chem Mater 25:3480 -3487. https://doi.org/10.1021/cm401657c | Barpanda P et al (2013a) Na2FeP2O7: a safe cathode for rechargeable sodium-ion batteries. Chem Mater 25:3480 -3487. | ||
| 30 | 251 | list_item | body_candidate_excluded | False | medium | after_back_matter_stop | after_back_matter_stop | after_stop | p30:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 625.67, 215.44, 37.34] | Barpanda P, Ye T, Avdeev M, Chung S-C, Yamada A (2013b) A new polymorph of Na2MnP2O7 as a 3.6 V cathode material for sodium-ion batteries. J Mater Chem A 1:4194 -4197. https://doi.org/10.1039/C3TA10210F | Barpanda P, Ye T, Avdeev M, Chung S-C, Yamada A (2013b) A new polymorph of Na2MnP2O7 as a 3.6 V cathode material for sodium-ion batteries. J Mater Chem A 1:4194 -4197. | ||
| 31 | 252 | page_header | page_header | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p31:top_margin:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 34.25, 102.17, 7.35] | J Nanopart Res (2018) 20: 160 | J Nanopart Res (2018) 20: 160 | ||
| 31 | 253 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p31:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 55.45, 215.45, 37.34] | Barpanda P, Oyama G, Ling CD, Yamada A (2014a) KröhnkiteType Na2Fe(SO4)2·2H2O as a novel 3.25 V insertion compound for Na-Ion batteries. Chem Mater 26:1297 -1299. https://doi.org/10.1021/cm4033226 | Barpanda P, Oyama G, Ling CD, Yamada A (2014a) KröhnkiteType Na2Fe(SO4)2·2H2O as a novel 3.25 V insertion compound for Na-Ion batteries. Chem Mater 26:1297 -1299. | ||
| 31 | 254 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p31:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 96.15, 215.52, 47.37] | Barpanda P, Oyama G, Nishimura S-i, Chung S-C, Yamada A (2014b) A 3.8-V earth-abundant sodium battery electrode. Nat Commun 5:4358. https://doi.org/10.1038/ncomms5358 https://www.nature.com/articles/ncomms5358 #suppleme… | Barpanda P, Oyama G, Nishimura S-i, Chung S-C, Yamada A (2014b) A 3.8-V earth-abundant sodium battery electrode. Nat Commun 5:4358. | ||
| 31 | 255 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p31:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 146.88, 215.54, 37.4] | Berthelot R, Carlier D, Delmas C (2010) Electrochemical investigation of the P2 -NaxCoO2 phase diagram. Nat Mater 10:74. https://doi.org/10.1038/nmat2920 https://www.nature. com/articles/nmat2920#supplementary-informati… | Berthelot R, Carlier D, Delmas C (2010) Electrochemical investigation of the P2 -NaxCoO2 phase diagram. Nat Mater 10:74. | ||
| 31 | 256 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p31:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 187.64, 215.5, 37.44] | Billaud J, Clément RJ, Armstrong AR, Canales-Vázquez J, Rozier P, Grey CP, Bruce PG (2014a) β -NaMnO2: a highperformance cathode for sodium-ion batteries. J Am Chem Soc 136:17243 -17248. https://doi.org/10.1021/ja509704t | Billaud J, Clément RJ, Armstrong AR, Canales-Vázquez J, Rozier P, Grey CP, Bruce PG (2014a) β -NaMnO2: a highperformance cathode for sodium-ion batteries. J Am Chem Soc 136:17243 -17248. | ||
| 31 | 257 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p31:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 228.34, 215.54, 37.34] | Billaud J et al (2014b) Na0.67Mn1-xMgxO2 (0 [less-than-orequal] x [less-than-or-equal] 0.2): a high capacity cathode for sodium-ion batteries. Energy Environ Sci 7:1387 -1391. https://doi.org/10.1039/C4EE00465E | Billaud J et al (2014b) Na0.67Mn1-xMgxO2 (0 [less-than-orequal] x [less-than-or-equal] 0.2): a high capacity cathode for sodium-ion batteries. Energy Environ Sci 7:1387 -1391. | ||
| 31 | 258 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p31:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 269.1, 215.5, 37.34] | Bo S-H et al (2014) Structures of delithiated and degraded LiFeBO3, and their distinct changes upon electrochemical cycling. Inorg Chem 53:6585 -6595. https://doi.org/10.1021 /ic500169g | Bo S-H et al (2014) Structures of delithiated and degraded LiFeBO3, and their distinct changes upon electrochemical cycling. Inorg Chem 53:6585 -6595. | ||
| 31 | 259 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p31:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.78, 309.79, 215.5, 47.37] | Boyadzhieva T, Koleva V, Zhecheva E, Nihtianova D, Mihaylov L, Stoyanova R (2015) Competitive lithium and sodium intercalation into sodium manganese phospho-olivine NaMnPO4 covered with carbon black. RSC Adv 5:87694 -87… | Boyadzhieva T, Koleva V, Zhecheva E, Nihtianova D, Mihaylov L, Stoyanova R (2015) Competitive lithium and sodium intercalation into sodium manganese phospho-olivine NaMnPO4 covered with carbon black. RSC Adv 5:87694 -87… | ||
| 31 | 260 | list_item | unknown_text | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p31:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.79, 360.53, 215.52, 37.34] | Bridson JN, Quinlan SE, Tremaine PR (1998) Synthesis and crystal structure of maricite and sodium iron(III) hydroxyphosphate. Chem Mater 10:763 -768. https://doi. org/10.1021/cm9704847 | Bridson JN, Quinlan SE, Tremaine PR (1998) Synthesis and crystal structure of maricite and sodium iron(III) hydroxyphosphate. Chem Mater 10:763 -768. org/10.1021/cm9704847 | ||
| 31 | 261 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p31:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.78, 401.23, 215.52, 37.34] | Cao Y et al (2011) Reversible sodium ion insertion in single crystalline manganese oxide nanowires with long cycle life. Adv Mater 23:3155 -3160. https://doi.org/10.1002 /adma.201100904 | Cao Y et al (2011) Reversible sodium ion insertion in single crystalline manganese oxide nanowires with long cycle life. Adv Mater 23:3155 -3160. | ||
| 31 | 262 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p31:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.78, 441.98, 215.5, 37.34] | Catti M, Montero-Campillo M (2011) First-principles modelling of lithium iron oxides as battery cathode materials. J Power Sources 196:3955 -3961. https://doi.org/10.1016/j. jpowsour.2010.11.062 | Catti M, Montero-Campillo M (2011) First-principles modelling of lithium iron oxides as battery cathode materials. J Power Sources 196:3955 -3961. | ||
| 31 | 263 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p31:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.79, 482.68, 215.45, 37.34] | Chen G, Shukla AK, Song X, Richardson TJ (2011) Improved kinetics and stabilities in Mg-substituted LiMnPO4. J Mater Chem 21:10126 -10133. https://doi.org/10.1039/C0 JM04230G | Chen G, Shukla AK, Song X, Richardson TJ (2011) Improved kinetics and stabilities in Mg-substituted LiMnPO4. J Mater Chem 21:10126 -10133. | ||
| 31 | 264 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p31:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.79, 523.38, 215.46, 37.4] | Chen H, Hautier G, Ceder G (2012) Synthesis, computed stability, and crystal structure of a new family of inorganic compounds: carbonophosphates. J Am Chem Soc 134:19619 -19627. https://doi.org/10.1021/ja3040834 | Chen H, Hautier G, Ceder G (2012) Synthesis, computed stability, and crystal structure of a new family of inorganic compounds: carbonophosphates. J Am Chem Soc 134:19619 -19627. | ||
| 31 | 265 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p31:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.8, 564.14, 215.43, 27.46] | Chen H et al (2013) Sidorenkite (Na3MnPO4CO3): a new intercalation cathode material for Na-Ion batteries. Chem Mater 25:2777 -2786. https://doi.org/10.1021/cm400805q | Chen H et al (2013) Sidorenkite (Na3MnPO4CO3): a new intercalation cathode material for Na-Ion batteries. Chem Mater 25:2777 -2786. | ||
| 31 | 266 | list_item | body_candidate_excluded | False | medium | after_back_matter_stop | after_back_matter_stop | after_stop | p31:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.81, 594.86, 215.4, 37.34] | Chen H, Dawson JA, Harding JH (2014) Effects of cationic substitution on structural defects in layered cathode materials LiNiO2. J Mater Chem A 2:7988 -7996. https://doi. org/10.1039/C4TA00637B | Chen H, Dawson JA, Harding JH (2014) Effects of cationic substitution on structural defects in layered cathode materials LiNiO2. J Mater Chem A 2:7988 -7996. org/10.1039/C4TA00637B | ||
| 31 | 267 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p31:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.81, 635.56, 215.46, 27.36] | Chen Z, Cao L, Chen L, Zhou H, Zheng C, Xie K, Kuang Y (2015) Mesoporous LiFeBO3/C hollow spheres for improved stability lithium-ion battery cathodes. J Power | Chen Z, Cao L, Chen L, Zhou H, Zheng C, Xie K, Kuang Y (2015) Mesoporous LiFeBO3/C hollow spheres for improved stability lithium-ion battery cathodes. J Power | ||
| 31 | 268 | page_header | page_header | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p31:top_margin:column_2_of_2:white | [255, 255, 255] white | True | [433.24, 34.25, 46.28, 7.35] | Page 31 of 40 | Page 31 of 40 | ||
| 31 | 269 | page_header | page_header | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p31:top_margin:column_2_of_2:white | [255, 255, 255] white | False | [487.78, 34.25, 12.51, 7.44] | 160 | 160 | ||
| 31 | 270 | list_item | page_margin_header | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p31:top_margin:column_2_of_2:white | [255, 255, 255] white | False | [301.86, 53.83, 198.54, 18.86] | Sources 298:355 -362. https://doi.org/10.1016/j. jpowsour.2015.08.073 | Sources 298:355 -362. jpowsour.2015.08.073 | ||
| 31 | 271 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p31:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.91, 76.33, 215.41, 37.5] | Chen R, Zhao T, Zhang X, Li L, Wu F (2016) Advanced cathode materials for lithium-ion batteries using nanoarchitectonics. Nanoscale Horiz 1:423 -444. https://doi.org/10.1039/C6 NH00016A | Chen R, Zhao T, Zhang X, Li L, Wu F (2016) Advanced cathode materials for lithium-ion batteries using nanoarchitectonics. Nanoscale Horiz 1:423 -444. | ||
| 31 | 272 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p31:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.87, 117.47, 215.5, 37.34] | Cheng Q, He W, Zhang X, Li M, Wang L (2017) Modification of Li2MnSiO4 cathode materials for lithium-ion batteries: a review. J Mater Chem A 5:10772 -10797. https://doi. org/10.1039/C7TA00034K | Cheng Q, He W, Zhang X, Li M, Wang L (2017) Modification of Li2MnSiO4 cathode materials for lithium-ion batteries: a review. J Mater Chem A 5:10772 -10797. org/10.1039/C7TA00034K | ||
| 31 | 273 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p31:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.87, 158.46, 215.48, 27.46] | Chung SY, Bloking JT, Chiang YM (2002) Electronically conductive phospho-olivines as lithium storage electrodes. Nat Mater 1:123 -128. https://doi.org/10.1038/nmat732 | Chung SY, Bloking JT, Chiang YM (2002) Electronically conductive phospho-olivines as lithium storage electrodes. Nat Mater 1:123 -128. | ||
| 31 | 274 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p31:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.87, 189.47, 215.53, 37.44] | Clark JM, Barpanda P, Yamada A, Islam MS (2014) Sodium-ion battery cathodes Na2FeP2O7 and Na2MnP2O7: diffusion behaviour for high rate performance. J Mater Chem A 2: 11807 -11812. https://doi.org/10.1039/C4TA02383H | Clark JM, Barpanda P, Yamada A, Islam MS (2014) Sodium-ion battery cathodes Na2FeP2O7 and Na2MnP2O7: diffusion behaviour for high rate performance. J Mater Chem A 2: 11807 -11812. | ||
| 31 | 275 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p31:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 228.92, 215.49, 38.93] | Clément RJ, Bruce PG, Grey CP (2015) Review -manganesebased P2-type transition metal oxides as sodium-ion battery cathode materials. J Electrochem Soc 162:A2589 -A2604. https://doi.org/10.1149/2.0201514jes | Clément RJ, Bruce PG, Grey CP (2015) Review -manganesebased P2-type transition metal oxides as sodium-ion battery cathode materials. J Electrochem Soc 162:A2589 -A2604. | ||
| 31 | 276 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p31:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 271.5, 215.51, 57.35] | Clement RJ, Billaud J, Robert Armstrong A, Singh G, Rojo T, Bruce PG, Grey CP (2016) Structurally stable Mg-doped P2Na2/3Mn1-yMgyO2 sodium-ion battery cathodes with high rate performance: insights from electrochemical, … | Clement RJ, Billaud J, Robert Armstrong A, Singh G, Rojo T, Bruce PG, Grey CP (2016) Structurally stable Mg-doped P2Na2/3Mn1-yMgyO2 sodium-ion battery cathodes with high rate performance: insights from electrochemical, … | ||
| 31 | 277 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p31:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 332.5, 215.47, 37.34] | Croguennec L, Deniard P, Brec R (1997a) Electrochemical cyclability of orthorhombic LiMnO2 : characterization of cycled materials. J Electrochem Soc 144:3323 -3330. https://doi.org/10.1149/1.1838013 | Croguennec L, Deniard P, Brec R (1997a) Electrochemical cyclability of orthorhombic LiMnO2 : characterization of cycled materials. J Electrochem Soc 144:3323 -3330. | ||
| 31 | 278 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p31:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 373.49, 215.52, 27.46] | Croguennec L, Deniard P, Brec R, Lecerf A (1997b) Nature of the stacking faults in orthorhombic LiMnO2. J Mater Chem 7: 511 -516. https://doi.org/10.1039/A604947H | Croguennec L, Deniard P, Brec R, Lecerf A (1997b) Nature of the stacking faults in orthorhombic LiMnO2. J Mater Chem 7: 511 -516. | ||
| 31 | 279 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p31:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.89, 404.5, 215.52, 47.37] | Dai K, Mao J, Song X, Battaglia V, Liu G (2015) Na0.44MnO2 with very fast sodium diffusion and stable cycling synthesized via polyvinylpyrrolidone-combustion method. J Power Sources 285:161 -168. https://doi.org/10.1016… | Dai K, Mao J, Song X, Battaglia V, Liu G (2015) Na0.44MnO2 with very fast sodium diffusion and stable cycling synthesized via polyvinylpyrrolidone-combustion method. J Power Sources 285:161 -168. | ||
| 31 | 280 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p31:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 455.52, 215.49, 37.34] | Dai Z, Mani U, Tan HT, Yan Q (2017) Advanced Cathode Materials for Sodium-Ion Batteries: What Determines Our Choices? Small Methods 1:1700098. https://doi.org/10.1002 /smtd.201700098 | Dai Z, Mani U, Tan HT, Yan Q (2017) Advanced Cathode Materials for Sodium-Ion Batteries: What Determines Our Choices? Small Methods 1:1700098. | ||
| 31 | 281 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p31:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 496.5, 215.51, 37.34] | Davidson IJ, McMillan RS, Murray JJ, Greedan JE (1995) Lithium-ion cell based on orthorhombic LiMnO2. J Power Sources 54:232 -235. https://doi.org/10.1016/0378-7753(94 )02074-D | Davidson IJ, McMillan RS, Murray JJ, Greedan JE (1995) Lithium-ion cell based on orthorhombic LiMnO2. J Power Sources 54:232 -235. | ||
| 31 | 282 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p31:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 537.49, 215.47, 37.4] | de la Llave E et al (2016) Improving energy density and structural stability of manganese oxide cathodes for Na-Ion batteries by structural lithium substitution. Chem Mater 28:9064 -9076. https://doi.org/10.1021/acs.che… | de la Llave E et al (2016) Improving energy density and structural stability of manganese oxide cathodes for Na-Ion batteries by structural lithium substitution. Chem Mater 28:9064 -9076. | ||
| 31 | 283 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p31:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 578.53, 215.52, 37.44] | Delacourt C, Poizot P, Morcrette M, Tarascon JM, Masquelier C (2004) One-step low-temperature route for the preparation of electrochemically active LiMnPO4 powders. Chem Mater 16:93 -99. https://doi.org/10.1021/cm030347b | Delacourt C, Poizot P, Morcrette M, Tarascon JM, Masquelier C (2004) One-step low-temperature route for the preparation of electrochemically active LiMnPO4 powders. Chem Mater 16:93 -99. | ||
| 31 | 284 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p31:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 619.52, 215.52, 37.34] | Delacourt C et al (2005) Toward understanding of electrical limitations (Electronic, Ionic) in LiMPO4 (M = Fe , Mn) electrode materials. J Electrochem Soc 152:A913 -A921. https://doi.org/10.1149/1.1884787 | Delacourt C et al (2005) Toward understanding of electrical limitations (Electronic, Ionic) in LiMPO4 (M = Fe , Mn) electrode materials. J Electrochem Soc 152:A913 -A921. | ||
| 32 | 285 | page_header | page_header | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p32:top_margin:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 34.25, 12.51, 7.44] | 160 | 160 | ||
| 32 | 286 | page_header | page_header | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p32:top_margin:column_1_of_2:white | [255, 255, 255] white | False | [67.64, 34.25, 46.28, 7.35] | Page 32 of 40 | Page 32 of 40 | ||
| 32 | 287 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p32:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 55.45, 215.49, 27.46] | Delmas C, Fouassier C, Hagenmuller P (1980) Structural classification and properties of the layered oxides. Physica B+C 99: 81 -85. https://doi.org/10.1016/0378-4363(80)90214-4 | Delmas C, Fouassier C, Hagenmuller P (1980) Structural classification and properties of the layered oxides. Physica B+C 99: 81 -85. | ||
| 32 | 288 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p32:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 86.18, 215.41, 37.34] | Ding Z et al (2016) Three-dimensionally ordered macroporous Li2FeSiO4/C composite as a high performance cathode for advanced lithium ion batteries. J Power Sources 329:297 -304. https://doi.org/10.1016/j.jpowsour.2016.0… | Ding Z et al (2016) Three-dimensionally ordered macroporous Li2FeSiO4/C composite as a high performance cathode for advanced lithium ion batteries. J Power Sources 329:297 -304. | ||
| 32 | 289 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p32:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 126.87, 215.5, 27.36] | Dominko R (2008) Li2MSiO4 (M=Fe and/or Mn) cathode materials. J Power Sources 184:462 -468. https://doi.org/10.1016 /j.jpowsour.2008.02.089 | Dominko R (2008) Li2MSiO4 (M=Fe and/or Mn) cathode materials. J Power Sources 184:462 -468. | ||
| 32 | 290 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p32:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.78, 157.6, 215.51, 37.4] | Dong XX, Huang CY, Jin Q, Zhou J, Feng P, Shi FY , Zhang DY (2017) Enhancing the rate performance of spherical LiFeBO3/C via Cr doping. RSC Adv 7:33745 -33750. https://doi.org/10.1039/C7RA03028B | Dong XX, Huang CY, Jin Q, Zhou J, Feng P, Shi FY , Zhang DY (2017) Enhancing the rate performance of spherical LiFeBO3/C via Cr doping. RSC Adv 7:33745 -33750. | ||
| 32 | 291 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p32:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 198.35, 215.54, 47.37] | Dwibedi D, Araujo RB, Chakraborty S, Shanbogh PP, Sundaram NG, Ahuja R, Barpanda P (2015) Na2.44Mn1.79(SO4)3: a new member of the alluaudite family of insertion compounds for sodium ion batteries. J Mater Chem A 3:18564… | Dwibedi D, Araujo RB, Chakraborty S, Shanbogh PP, Sundaram NG, Ahuja R, Barpanda P (2015) Na2.44Mn1.79(SO4)3: a new member of the alluaudite family of insertion compounds for sodium ion batteries. J Mater Chem A 3:18564… | ||
| 32 | 292 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p32:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 249.09, 215.52, 57.35] | Ein-Eli Y, Howard WF, Lu SH, Mukerjee S, McBreen J, Vaughey JT, Thackeray MM (1998) LiMn2 -x Cu x O 4 Spinels (0.1 ⩽ x ⩽ 0.5): a new class of 5 V cathode materials for Li batteries: I. Electrochemical, Structural, and S… | Ein-Eli Y, Howard WF, Lu SH, Mukerjee S, McBreen J, Vaughey JT, Thackeray MM (1998) LiMn2 -x Cu x O 4 Spinels (0.1 ⩽ x ⩽ 0.5): a new class of 5 V cathode materials for Li batteries: I. Electrochemical, Structural, and S… | ||
| 32 | 293 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p32:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 309.79, 215.52, 47.37] | Ellis BL, Makahnouk WRM, Makimura Y, Toghill K, Nazar LF (2007) A multifunctional 3.5 V iron-based phosphate cathode for rechargeable batteries. Nat Mater 6:749 -753 http://www. nature.com/nmat/journal/v6/n10/suppinfo/n… | Ellis BL, Makahnouk WRM, Makimura Y, Toghill K, Nazar LF (2007) A multifunctional 3.5 V iron-based phosphate cathode for rechargeable batteries. Nat Mater 6:749 -753 nature.com/nmat/journal/v6/n10/suppinfo/nmat2007_S1. … | ||
| 32 | 294 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p32:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.78, 359.0, 215.43, 38.97] | Erickson EM et al (2017) Review -recent advances and remaining challenges for lithium Ion battery cathodes: II. lithiumrich, xLi2MnO3·(1-x)LiNiaCobMncO2. J Electrochem Soc 164:A6341 -A6348. https://doi.org/10.1149/2.046… | Erickson EM et al (2017) Review -recent advances and remaining challenges for lithium Ion battery cathodes: II. lithiumrich, xLi2MnO3·(1-x)LiNiaCobMncO2. J Electrochem Soc 164:A6341 -A6348. | ||
| 32 | 295 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p32:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.78, 401.23, 215.53, 37.34] | Fang Y, Xiao L, Qian J, Ai X, Yang H, Cao Y (2014) Mesoporous amorphous FePO4 nanospheres as high-performance cathode material for sodium-ion batteries. Nano Lett 14:3539 -3543. https://doi.org/10.1021/nl501152f | Fang Y, Xiao L, Qian J, Ai X, Yang H, Cao Y (2014) Mesoporous amorphous FePO4 nanospheres as high-performance cathode material for sodium-ion batteries. Nano Lett 14:3539 -3543. | ||
| 32 | 296 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p32:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.78, 441.98, 215.52, 47.31] | Fang Y, Liu Q, Xiao L, Ai X, Yang H, Cao Y (2015) Highperformance olivine NaFePO4 microsphere cathode synthesized by aqueous electrochemical displacement method for sodium ion batteries. ACS Appl Mater Interfaces 7:1797… | Fang Y, Liu Q, Xiao L, Ai X, Yang H, Cao Y (2015) Highperformance olivine NaFePO4 microsphere cathode synthesized by aqueous electrochemical displacement method for sodium ion batteries. ACS Appl Mater Interfaces 7:1797… | ||
| 32 | 297 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p32:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.79, 492.66, 215.45, 37.4] | Fisher CAJ, Kuganathan N, Islam MS (2013) Defect chemistry and lithium-ion migration in polymorphs of the cathode material Li2MnSiO4. J Mater Chem A 1:4207 -4214. https://doi.org/10.1039/C3TA00111C | Fisher CAJ, Kuganathan N, Islam MS (2013) Defect chemistry and lithium-ion migration in polymorphs of the cathode material Li2MnSiO4. J Mater Chem A 1:4207 -4214. | ||
| 32 | 298 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p32:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.79, 533.41, 215.41, 27.36] | Fuchs B, Kemmler-Sack S (1994) Synthesis of LiMnO2 and LiFeO2 in molten Li halides. Solid State Ionics 68:279 -285. https://doi.org/10.1016/0167-2738(94)90186-4 | Fuchs B, Kemmler-Sack S (1994) Synthesis of LiMnO2 and LiFeO2 in molten Li halides. Solid State Ionics 68:279 -285. | ||
| 32 | 299 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p32:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.79, 564.14, 215.43, 37.44] | Furuta N, Nishimura S-i, Barpanda P, Yamada A (2012) Fe3+/ Fe2+ redox couple approaching 4 V in Li2 -x(Fe1 -yMny)P2O7 pyrophosphate cathodes. Chem Mater 24: 1055 -1061. https://doi.org/10.1021/cm2032465 | Furuta N, Nishimura S-i, Barpanda P, Yamada A (2012) Fe3+/ Fe2+ redox couple approaching 4 V in Li2 -x(Fe1 -yMny)P2O7 pyrophosphate cathodes. Chem Mater 24: 1055 -1061. | ||
| 32 | 300 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p32:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.8, 604.84, 215.49, 37.34] | Gent WE et al (2017) Coupling between oxygen redox and cation migration explains unusual electrochemistry in lithium-rich layered oxides. Nat Commun 8:2091. https://doi.org/10.1038 /s41467-017-02041-x | Gent WE et al (2017) Coupling between oxygen redox and cation migration explains unusual electrochemistry in lithium-rich layered oxides. Nat Commun 8:2091. | ||
| 32 | 301 | list_item | unknown_text | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p32:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.8, 645.59, 215.44, 17.33] | Gong Z, Yang Y (2011) Recent advances in the research of polyanion-type cathode materials for Li-ion batteries. | Gong Z, Yang Y (2011) Recent advances in the research of polyanion-type cathode materials for Li-ion batteries. | ||
| 32 | 302 | page_header | page_header | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p32:top_margin:column_2_of_2:white | [255, 255, 255] white | False | [398.16, 34.25, 102.12, 7.35] | J Nanopart Res (2018) 20: 160 | J Nanopart Res (2018) 20: 160 | ||
| 32 | 303 | list_item | page_margin_header | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p32:top_margin:column_2_of_2:white | [255, 255, 255] white | False | [301.83, 53.92, 198.46, 18.86] | Energy Environ Sci 4:3223 -3242. https://doi.org/10.1039 /C0EE00713G | Energy Environ Sci 4:3223 -3242. /C0EE00713G | ||
| 32 | 304 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p32:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 75.46, 215.52, 47.37] | Gonzalo E, Han MH, Lopez del Amo JM, Acebedo B, CasasCabanas M, Rojo T (2014) Synthesis and characterization of pure P2- and O3-Na2/3Fe2/3Mn1/3O2 as cathode materials for Na ion batteries. J Mater Chem A 2:18523 -18530.… | Gonzalo E, Han MH, Lopez del Amo JM, Acebedo B, CasasCabanas M, Rojo T (2014) Synthesis and characterization of pure P2- and O3-Na2/3Fe2/3Mn1/3O2 as cathode materials for Na ion batteries. J Mater Chem A 2:18523 -18530. | ||
| 32 | 305 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p32:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 125.46, 215.54, 27.46] | Gu M et al (2013) Formation of the spinel phase in the layered composite cathode used in Li-Ion batteries. ACS Nano 7: 760 -767. https://doi.org/10.1021/nn305065u | Gu M et al (2013) Formation of the spinel phase in the layered composite cathode used in Li-Ion batteries. ACS Nano 7: 760 -767. | ||
| 32 | 306 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p32:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 155.5, 215.51, 37.34] | Gummow RJ, Dekock A, Thackeray MM (1994) Improved capacity retention in rechargeable 4v lithium lithium manganese oxide (spinel) cells. Solid State Ionics 69:59 -67. https://doi.org/10.1016/0167-2738(94)90450-2 | Gummow RJ, Dekock A, Thackeray MM (1994) Improved capacity retention in rechargeable 4v lithium lithium manganese oxide (spinel) cells. Solid State Ionics 69:59 -67. | ||
| 32 | 307 | list_item | body_candidate_excluded | False | medium | after_back_matter_stop | after_back_matter_stop | after_stop | p32:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.87, 195.46, 215.49, 47.37] | Guo H, Wu C, Xie J, Zhang S, Cao G, Zhao X (2014a) Controllable synthesis of high-performance LiMnPO4 nanocrystals by a facile one-spot solvothermal process. J Mater Chem A 2:10581 -10588. https://doi.org/10.1039/C4 TA0… | Guo H, Wu C, Xie J, Zhang S, Cao G, Zhao X (2014a) Controllable synthesis of high-performance LiMnPO4 nanocrystals by a facile one-spot solvothermal process. J Mater Chem A 2:10581 -10588. | ||
| 32 | 308 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p32:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 245.52, 215.52, 37.34] | Guo S et al (2014b) A high-capacity, low-cost layered sodium manganese oxide material as cathode for sodium-ion batteries. ChemSusChem 7:2115 -2119. https://doi.org/10.1002 /cssc.201402138 | Guo S et al (2014b) A high-capacity, low-cost layered sodium manganese oxide material as cathode for sodium-ion batteries. ChemSusChem 7:2115 -2119. | ||
| 32 | 309 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p32:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.87, 285.48, 215.49, 37.4] | Han MH, Gonzalo E, Casas-Cabanas M, Rojo T (2014) Structural evolution and electrochemistry of monoclinic NaNiO2 upon the first cycling process. J Power Sources 258:266 -271. https://doi.org/10.1016/j.jpowsour.2014.02.0… | Han MH, Gonzalo E, Casas-Cabanas M, Rojo T (2014) Structural evolution and electrochemistry of monoclinic NaNiO2 upon the first cycling process. J Power Sources 258:266 -271. | ||
| 32 | 310 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p32:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.87, 325.5, 215.51, 47.37] | Han MH, Acebedo B, Gonzalo E, Fontecoba PS, Clarke S, Saurel D, Rojo T (2015) Synthesis and Electrochemistry Study of P2- and O3-phase Na2/3Fe1/2Mn1/2O2. Electrochim Acta 182:1029 -1036. h t t p s : / / d o i . o r g / … | Han MH, Acebedo B, Gonzalo E, Fontecoba PS, Clarke S, Saurel D, Rojo T (2015) Synthesis and Electrochemistry Study of P2- and O3-phase Na2/3Fe1/2Mn1/2O2. Electrochim Acta 182:1029 -1036. h t t p s : / / d o i . o r g / … | ||
| 32 | 311 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p32:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 375.5, 215.52, 37.4] | Hasa I, Buchholz D, Passerini S, Scrosati B, Hassoun J (2014) High Performance Na0.5[Ni0.23Fe0.13Mn0.63]O2 Cathode for Sodium-Ion Batteries. Adv Energy Mater 4:1400083. https://doi.org/10.1002/aenm.201400083 | Hasa I, Buchholz D, Passerini S, Scrosati B, Hassoun J (2014) High Performance Na0.5[Ni0.23Fe0.13Mn0.63]O2 Cathode for Sodium-Ion Batteries. Adv Energy Mater 4:1400083. | ||
| 32 | 312 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p32:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 415.52, 215.44, 47.37] | Hassanzadeh N, Sadrnezhaad SK, Chen G (2016a) Ball mill assisted synthesis of Na3MnCO3PO4 nanoparticles anchored on reduced graphene oxide for sodium ion battery cathodes. Electrochim Acta 220:683 -689. https://doi. org… | Hassanzadeh N, Sadrnezhaad SK, Chen G (2016a) Ball mill assisted synthesis of Na3MnCO3PO4 nanoparticles anchored on reduced graphene oxide for sodium ion battery cathodes. Electrochim Acta 220:683 -689. org/10.1016/j.el… | ||
| 32 | 313 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p32:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 465.57, 215.53, 37.34] | Hassanzadeh N, Sadrnezhaad SK, Chen G (2016b) In-situ hydrothermal synthesis of Na3MnCO3PO4/rGO hybrid as a cathode for Na-ion battery. Electrochim Acta 208:188 -194. https://doi.org/10.1016/j.electacta.2016.05.028 | Hassanzadeh N, Sadrnezhaad SK, Chen G (2016b) In-situ hydrothermal synthesis of Na3MnCO3PO4/rGO hybrid as a cathode for Na-ion battery. Electrochim Acta 208:188 -194. | ||
| 32 | 314 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p32:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 505.54, 215.54, 47.37] | Hautier G, Jain A, Chen H, Moore C, Ong SP, Ceder G (2011) Novel mixed polyanions lithium-ion battery cathode materials predicted by high-throughput ab initio computations. J Mater Chem 21:17147 -17153. https://doi.org/… | Hautier G, Jain A, Chen H, Moore C, Ong SP, Ceder G (2011) Novel mixed polyanions lithium-ion battery cathode materials predicted by high-throughput ab initio computations. J Mater Chem 21:17147 -17153. | ||
| 32 | 315 | list_item | affiliation | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p32:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.87, 555.59, 215.53, 37.34] | He G, Manthiram A (2014) Nanostructured Li2MnSiO4/C cathodes with hierarchical macro-/mesoporosity for lithium-ion batteries. Adv Funct Mater 24:5277 -5283. https://doi. org/10.1002/adfm.201400610 | He G, Manthiram A (2014) Nanostructured Li2MnSiO4/C cathodes with hierarchical macro-/mesoporosity for lithium-ion batteries. Adv Funct Mater 24:5277 -5283. org/10.1002/adfm.201400610 | ||
| 32 | 316 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p32:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.87, 595.55, 215.46, 37.4] | He Y, Li R, Ding X, Jiang L, Wei M (2010) Hydrothermal synthesis and electrochemical properties of orthorhombic LiMnO2 nanoplates. J Alloys Compd 492:601 -604. https://doi.org/10.1016/j.jallcom.2009.11.191 | He Y, Li R, Ding X, Jiang L, Wei M (2010) Hydrothermal synthesis and electrochemical properties of orthorhombic LiMnO2 nanoplates. J Alloys Compd 492:601 -604. | ||
| 32 | 317 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p32:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.87, 635.57, 215.44, 27.46] | He X et al (2016) Durable high-rate capability Na0.44MnO2 cathode material for sodium-ion batteries. Nano Energy 27: 602 -610. https://doi.org/10.1016/j.nanoen.2016.07.021 | He X et al (2016) Durable high-rate capability Na0.44MnO2 cathode material for sodium-ion batteries. Nano Energy 27: 602 -610. | ||
| 33 | 318 | page_header | page_header | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p33:top_margin:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 34.25, 102.17, 7.35] | J Nanopart Res (2018) 20: 160 | J Nanopart Res (2018) 20: 160 | ||
| 33 | 319 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p33:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 55.45, 215.47, 37.34] | Hirayama M, Tomita H, Kubota K, Kanno R (2011) Structure and electrode reactions of layered rocksalt LiFeO2 nanoparticles for lithium battery cathode. J Power Sources 196:6809 -6814. https://doi.org/10.1016/j.jpowsour.2… | Hirayama M, Tomita H, Kubota K, Kanno R (2011) Structure and electrode reactions of layered rocksalt LiFeO2 nanoparticles for lithium battery cathode. J Power Sources 196:6809 -6814. | ||
| 33 | 320 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p33:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 96.15, 215.46, 37.5] | Hong Y, Tang Z, Wang S, Quan W, Zhang Z (2015) Highperformance LiMnPO4 nanorods synthesized via a facile EG-assisted solvothermal approach. J Mater Chem A 3: 10267 -10274. https://doi.org/10.1039/C5TA01218J | Hong Y, Tang Z, Wang S, Quan W, Zhang Z (2015) Highperformance LiMnPO4 nanorods synthesized via a facile EG-assisted solvothermal approach. J Mater Chem A 3: 10267 -10274. | ||
| 33 | 321 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p33:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 135.02, 215.45, 39.23] | Hu J et al (2017) Tuning Li-Ion diffusion in α -LiMn1 -xFexPO4 nanocrystals by antisite defects and embedded β -phase for advanced Li-Ion batteries. Nano Lett 17:4934 -4940. https://doi.org/10.1021/acs.nanolett.7b01978 | Hu J et al (2017) Tuning Li-Ion diffusion in α -LiMn1 -xFexPO4 nanocrystals by antisite defects and embedded β -phase for advanced Li-Ion batteries. Nano Lett 17:4934 -4940. | ||
| 33 | 322 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p33:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 177.61, 215.47, 37.4] | Huang Wet al (2014) Detailed investigation of Na2.24FePO4CO3 as a cathode material for Na-ion batteries. Sci Rep 4:4188. https://doi.org/10.1038/srep04188 https://www.nature. com/articles/srep04188#supplementary-informa… | Huang Wet al (2014) Detailed investigation of Na2.24FePO4CO3 as a cathode material for Na-ion batteries. Sci Rep 4:4188. | ||
| 33 | 323 | list_item | body_candidate_excluded | False | medium | after_back_matter_stop | after_back_matter_stop | after_stop | p33:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 218.36, 215.51, 47.31] | Huang W et al (2015a) Self-assembled alluaudite Na2Fe3 -xMnx(PO4)3 micro/nanocompounds for sodium-ion battery electrodes: a new insight into their electronic and geometric structure. Chem Eur J 21:851 -860. https://doi.… | Huang W et al (2015a) Self-assembled alluaudite Na2Fe3 -xMnx(PO4)3 micro/nanocompounds for sodium-ion battery electrodes: a new insight into their electronic and geometric structure. Chem Eur J 21:851 -860. org/10.1002/… | ||
| 33 | 324 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p33:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 269.1, 215.49, 37.34] | Huang Wet al (2015b) A new route toward improved sodium ion batteries: a multifunctional fluffy Na0.67FePO4/CNT nanocactus. Small 11:2170 -2176. https://doi.org/10.1002 /smll.201402246 | Huang Wet al (2015b) A new route toward improved sodium ion batteries: a multifunctional fluffy Na0.67FePO4/CNT nanocactus. Small 11:2170 -2176. | ||
| 33 | 325 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p33:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 309.79, 215.52, 47.37] | Hy S, Liu H, Zhang M, Qian D, Hwang B-J, Meng YS (2016) Performance and design considerations for lithium excess layered oxide positive electrode materials for lithium ion batteries. Energy Environ Sci 9:1931 -1954. htt… | Hy S, Liu H, Zhang M, Qian D, Hwang B-J, Meng YS (2016) Performance and design considerations for lithium excess layered oxide positive electrode materials for lithium ion batteries. Energy Environ Sci 9:1931 -1954. org… | ||
| 33 | 326 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p33:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 360.53, 215.5, 37.44] | Islam MS, Dominko R, Masquelier C, Sirisopanaporn C, Armstrong AR, Bruce PG (2011) Silicate cathodes for lithium batteries: alternatives to phosphates? J Mater Chem 21: 9811 -9818. https://doi.org/10.1039/C1JM10312A | Islam MS, Dominko R, Masquelier C, Sirisopanaporn C, Armstrong AR, Bruce PG (2011) Silicate cathodes for lithium batteries: alternatives to phosphates? J Mater Chem 21: 9811 -9818. | ||
| 33 | 327 | list_item | body_candidate_excluded | False | medium | after_back_matter_stop | after_back_matter_stop | after_stop | p33:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 401.23, 215.42, 37.34] | Jang DH, Shin YJ, Oh SM (1996) Dissolution of Spinel Oxides and Capacity Losses in 4 V Li / Li x Mn2 O 4 Cells. J Electrochem Soc 143:2204 -2211. https://doi.org/10.1149 /1.1836981 | Jang DH, Shin YJ, Oh SM (1996) Dissolution of Spinel Oxides and Capacity Losses in 4 V Li / Li x Mn2 O 4 Cells. J Electrochem Soc 143:2204 -2211. | ||
| 33 | 328 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p33:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 441.98, 215.51, 37.34] | Jarry A et al (2015) The formation mechanism of fluorescent metal complexes at the LixNi0.5Mn1.5O4 -δ /carbonate ester electrolyte interface. J Am Chem Soc 137:3533 -3539. https://doi.org/10.1021/ja5116698 | Jarry A et al (2015) The formation mechanism of fluorescent metal complexes at the LixNi0.5Mn1.5O4 -δ /carbonate ester electrolyte interface. J Am Chem Soc 137:3533 -3539. | ||
| 33 | 329 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p33:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.78, 482.68, 215.52, 47.37] | Jarvis K, Deng Z, Manthiram A, Ferreira P (2012) Understanding the role of lithium content on the structure and capacity of lithium-rich layered oxides by aberration-corrected STEM, D-STEM, and EDS. Microsc Microanal 18… | Jarvis K, Deng Z, Manthiram A, Ferreira P (2012) Understanding the role of lithium content on the structure and capacity of lithium-rich layered oxides by aberration-corrected STEM, D-STEM, and EDS. Microsc Microanal 18… | ||
| 33 | 330 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p33:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.78, 533.41, 215.42, 37.34] | Jiang Y et al (2016) Prussian Blue@C composite as an ultrahighrate and long-life sodium-ion battery cathode. Adv Funct Mater 26:5315 -5321. https://doi.org/10.1002 /adfm.201600747 | Jiang Y et al (2016) Prussian Blue@C composite as an ultrahighrate and long-life sodium-ion battery cathode. Adv Funct Mater 26:5315 -5321. | ||
| 33 | 331 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p33:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.78, 574.11, 215.5, 37.5] | Jin Y-C, Lin C-Y, Duh J-G (2012) Improving rate capability of high potential LiNi0.5Mn1.5O4-x cathode materials via increasing oxygen non-stoichiometries. Electrochim Acta 69: 45 -50. https://doi.org/10.1016/j.electacta… | Jin Y-C, Lin C-Y, Duh J-G (2012) Improving rate capability of high potential LiNi0.5Mn1.5O4-x cathode materials via increasing oxygen non-stoichiometries. Electrochim Acta 69: 45 -50. | ||
| 33 | 332 | list_item | unknown_text | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p33:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.78, 614.87, 215.48, 27.39] | Kang B, Ceder G (2009) Battery materials for ultrafast charging and discharging. Nature 458:190 -193. https://doi. org/10.1038/nature07853 | Kang B, Ceder G (2009) Battery materials for ultrafast charging and discharging. Nature 458:190 -193. org/10.1038/nature07853 | ||
| 33 | 333 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p33:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 645.68, 215.51, 17.33] | Kang K, Meng YS, Bréger J, Grey CP, Ceder G (2006) Electrodes with high power and high capacity for rechargeable lithium | Kang K, Meng YS, Bréger J, Grey CP, Ceder G (2006) Electrodes with high power and high capacity for rechargeable lithium | ||
| 33 | 334 | page_header | page_header | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p33:top_margin:column_2_of_2:white | [255, 255, 255] white | True | [433.24, 34.25, 67.04, 7.44] | Page 33 of 40 160 | Page 33 of 40 160 | ||
| 33 | 335 | list_item | page_margin_header | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p33:top_margin:column_2_of_2:white | [255, 255, 255] white | False | [301.83, 53.91, 198.45, 18.86] | batteries. Science 311:977 -980. https://doi.org/10.1126 /science.1122152 | batteries. Science 311:977 -980. /science.1122152 | ||
| 33 | 336 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p33:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 75.46, 215.52, 37.34] | Kawabe Y et al (2011) Synthesis and electrode performance of carbon coated Na2FePO4F for rechargeable Na batteries. Electrochem Commun 13:1225 -1228. https://doi. org/10.1016/j.elecom.2011.08.038 | Kawabe Y et al (2011) Synthesis and electrode performance of carbon coated Na2FePO4F for rechargeable Na batteries. Electrochem Commun 13:1225 -1228. org/10.1016/j.elecom.2011.08.038 | ||
| 33 | 337 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p33:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 115.48, 215.47, 37.34] | Kawai H, Nagata M, Tukamoto H, Westa AR (1998) A new lithium cathode LiCoMnO4: toward practical 5 V lithium batteries. Electrochem Solid-State Lett 1:212 -214. https://doi.org/10.1149/1.1390688 | Kawai H, Nagata M, Tukamoto H, Westa AR (1998) A new lithium cathode LiCoMnO4: toward practical 5 V lithium batteries. Electrochem Solid-State Lett 1:212 -214. | ||
| 33 | 338 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p33:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 155.5, 215.42, 27.3] | Kikkawa S, Miyazaki S, Koizumi M (1985) Sodium deintercalation from α -NaFeO2. Mater Res Bull 20:373 -377. https://doi.org/10.1016/0025-5408(85)90003-0 | Kikkawa S, Miyazaki S, Koizumi M (1985) Sodium deintercalation from α -NaFeO2. Mater Res Bull 20:373 -377. | ||
| 33 | 339 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p33:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 185.48, 215.48, 47.47] | Kim JH, Myung ST, Yoon CS, Kang SG, Sun YK (2004) Comparative study of LiNi0.5Mn1.5O4-delta and LiNi0.5Mn1.5O4 cathodes having two crystallographic structures: Fd(3)over-barm and P4(3)32. Chem Mater 16: 906 -914. https:… | Kim JH, Myung ST, Yoon CS, Kang SG, Sun YK (2004) Comparative study of LiNi0.5Mn1.5O4-delta and LiNi0.5Mn1.5O4 cathodes having two crystallographic structures: Fd(3)over-barm and P4(3)32. Chem Mater 16: 906 -914. | ||
| 33 | 340 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p33:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 235.48, 215.52, 37.44] | Kim JC, Moore CJ, Kang B, Hautier G, Jain A, Ceder G (2011) Synthesis and electrochemical properties of monoclinic LiMnBO3 as a Li intercalation material. J Electrochem Soc 158:A309 -A315. https://doi.org/10.1149/1.3536… | Kim JC, Moore CJ, Kang B, Hautier G, Jain A, Ceder G (2011) Synthesis and electrochemical properties of monoclinic LiMnBO3 as a Li intercalation material. J Electrochem Soc 158:A309 -A315. | ||
| 33 | 341 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p33:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 275.5, 215.51, 37.34] | Kim D, Lee E, Slater M, Lu W, Rood S, Johnson CS (2012a) Layered Na[Ni1/3Fe1/3Mn1/3]O2 cathodes for Na-ion battery application. Electrochem Commun 18:66 -69. https://doi.org/10.1016/j.elecom.2012.02.020 | Kim D, Lee E, Slater M, Lu W, Rood S, Johnson CS (2012a) Layered Na[Ni1/3Fe1/3Mn1/3]O2 cathodes for Na-ion battery application. Electrochem Commun 18:66 -69. | ||
| 33 | 342 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p33:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 315.52, 215.5, 37.44] | Kim H et al (2012b) New iron-based mixed-polyanion cathodes for lithium and sodium rechargeable batteries: combined first principles calculations and experimental study. J Am Chem Soc 134:10369 -10372. https://doi.org/1… | Kim H et al (2012b) New iron-based mixed-polyanion cathodes for lithium and sodium rechargeable batteries: combined first principles calculations and experimental study. J Am Chem Soc 134:10369 -10372. | ||
| 33 | 343 | list_item | body_candidate_excluded | False | medium | after_back_matter_stop | after_back_matter_stop | after_stop | p33:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 355.54, 215.49, 37.44] | Kim H et al (2013a) Understanding the electrochemical mechanism of t h e new i r o n - b a s e d mixed-phosphate Na4Fe3(PO4)2(P2O7) in a Na rechargeable battery. Chem Mater 25:3614 -3622. https://doi.org/10.1021/cm40138… | Kim H et al (2013a) Understanding the electrochemical mechanism of t h e new i r o n - b a s e d mixed-phosphate Na4Fe3(PO4)2(P2O7) in a Na rechargeable battery. Chem Mater 25:3614 -3622. | ||
| 33 | 344 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p33:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.89, 395.5, 215.5, 47.37] | Kim H et al (2013b) Na2FeP2O7 as a promising iron-based pyrophosphate cathode for sodium rechargeable batteries: a combined experimental and theoretical study. Adv Funct Mater 23:1147 -1155. https://doi.org/10.1002 /adf… | Kim H et al (2013b) Na2FeP2O7 as a promising iron-based pyrophosphate cathode for sodium rechargeable batteries: a combined experimental and theoretical study. Adv Funct Mater 23:1147 -1155. | ||
| 33 | 345 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p33:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.89, 445.56, 215.46, 27.3] | Kim Y, Ha K-H, Oh SM, Lee KT (2014) High-capacity anode materials for sodium-ion batteries. Chem Eur J 20:11980 -11992. https://doi.org/10.1002/chem.201402511 | Kim Y, Ha K-H, Oh SM, Lee KT (2014) High-capacity anode materials for sodium-ion batteries. Chem Eur J 20:11980 -11992. | ||
| 33 | 346 | list_item | unknown_text | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p33:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.89, 475.55, 215.49, 37.34] | Kim H et al (2015a) Anomalous Jahn-Teller behavior in a manganese-based mixed-phosphate cathode for sodium ion batteries. Energy Environ Sci 8:3325 -3335. https://doi. org/10.1039/C5EE01876E | Kim H et al (2015a) Anomalous Jahn-Teller behavior in a manganese-based mixed-phosphate cathode for sodium ion batteries. Energy Environ Sci 8:3325 -3335. org/10.1039/C5EE01876E | ||
| 33 | 347 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p33:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.89, 515.57, 215.5, 37.34] | Kim J et al (2015b) Unexpected discovery of low-cost maricite NaFePO4 as a high-performance electrode for Na-ion batteries. Energy Environ Sci 8:540 -545. https://doi.org/10.1039 /C4EE03215B | Kim J et al (2015b) Unexpected discovery of low-cost maricite NaFePO4 as a high-performance electrode for Na-ion batteries. Energy Environ Sci 8:540 -545. | ||
| 33 | 348 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p33:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.89, 555.59, 215.49, 37.34] | Kim JC, Seo D-H, Chen H, Ceder G (2015c) The effect of antisite disorder and particle size on Li intercalation kinetics in monoclinic LiMnBO3. Adv Energy Mater 5:1401916. https://doi.org/10.1002/aenm.201401916 | Kim JC, Seo D-H, Chen H, Ceder G (2015c) The effect of antisite disorder and particle size on Li intercalation kinetics in monoclinic LiMnBO3. Adv Energy Mater 5:1401916. | ||
| 33 | 349 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p33:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.89, 595.55, 215.46, 37.47] | Kim H et al (2016a) Highly stable iron- and manganese-based cathodes for long-lasting sodium rechargeable batteries. Chem Mater 28:7241 -7249. https://doi.org/10.1021/acs. chemmater.6b01766 | Kim H et al (2016a) Highly stable iron- and manganese-based cathodes for long-lasting sodium rechargeable batteries. Chem Mater 28:7241 -7249. | ||
| 33 | 350 | list_item | unknown_text | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p33:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 635.65, 215.49, 27.36] | Kim M-S et al (2016b) Synthesis of reduced graphene oxidemodified LiMn0.75Fe0.25PO4 microspheres by saltassisted spray drying for high-performance lithium-ion | Kim M-S et al (2016b) Synthesis of reduced graphene oxidemodified LiMn0.75Fe0.25PO4 microspheres by saltassisted spray drying for high-performance lithium-ion | ||
| 34 | 351 | page_header | page_header | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p34:top_margin:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 34.25, 12.51, 7.44] | 160 | 160 | ||
| 34 | 352 | page_header | page_header | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p34:top_margin:column_1_of_2:white | [255, 255, 255] white | False | [67.64, 34.25, 46.28, 7.35] | Page 34 of 40 | Page 34 of 40 | ||
| 34 | 353 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p34:page_body:column_1_of_2:white | [255, 255, 255] white | False | [63.72, 55.45, 198.46, 27.36] | batteries. Sci Rep 6:26686. https://doi.org/10.1038 /srep26686 https://www.nature.com/articles/srep26686 #supplementary-information | batteries. Sci Rep 6:26686. /srep26686 #supplementary-information | ||
| 34 | 354 | list_item | body_candidate_excluded | False | medium | after_back_matter_stop | after_back_matter_stop | after_stop | p34:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 85.44, 215.5, 37.4] | Ko JS et al (2017) High-rate capability of Na2FePO4F nanoparticles by enhancing surface carbon functionality for Na-ion batteries. J Mater Chem A 5:18707 -18715. https://doi. org/10.1039/C7TA05680J | Ko JS et al (2017) High-rate capability of Na2FePO4F nanoparticles by enhancing surface carbon functionality for Na-ion batteries. J Mater Chem A 5:18707 -18715. org/10.1039/C7TA05680J | ||
| 34 | 355 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p34:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 125.46, 215.53, 47.37] | KogaHetal (2012) Li1.20Mn0.54Co0.13Ni0.13O2 with different particle sizes as attractive positive electrode materials for lithium-ion batteries: insights into their structure. J Phys Chem C 116:13497 -13506. https://doi.… | KogaHetal (2012) Li1.20Mn0.54Co0.13Ni0.13O2 with different particle sizes as attractive positive electrode materials for lithium-ion batteries: insights into their structure. J Phys Chem C 116:13497 -13506. | ||
| 34 | 356 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p34:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 175.46, 215.45, 37.4] | Kokalj A, Dominko R, Mali G, Meden A, Gaberscek M, Jamnik J (2007) Beyond one-electron reaction in Li cathode materials: designing Li2MnxFe1-xSiO4. Chem Mater 19:3633 -3640. https://doi.org/10.1021/cm063011l | Kokalj A, Dominko R, Mali G, Meden A, Gaberscek M, Jamnik J (2007) Beyond one-electron reaction in Li cathode materials: designing Li2MnxFe1-xSiO4. Chem Mater 19:3633 -3640. | ||
| 34 | 357 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p34:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 215.48, 215.48, 37.4] | Komaba S, Takei C, Nakayama T, Ogata A, Yabuuchi N (2010) Electrochemical intercalation activity of layered NaCrO2 vs. LiCrO2. Electrochem Commun 12:355 -358. https://doi. org/10.1016/j.elecom.2009.12.033 | Komaba S, Takei C, Nakayama T, Ogata A, Yabuuchi N (2010) Electrochemical intercalation activity of layered NaCrO2 vs. LiCrO2. Electrochem Commun 12:355 -358. org/10.1016/j.elecom.2009.12.033 | ||
| 34 | 358 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p34:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 255.5, 215.52, 37.34] | Kumakura S, Tahara Y, Kubota K, Chihara K, Komaba S (2016) Sodium and manganese stoichiometry of P2-Type Na2/ 3MnO2. Angew Chem Int Ed 55:12760 -12763. https://doi. org/10.1002/anie.201606415 | Kumakura S, Tahara Y, Kubota K, Chihara K, Komaba S (2016) Sodium and manganese stoichiometry of P2-Type Na2/ 3MnO2. Angew Chem Int Ed 55:12760 -12763. org/10.1002/anie.201606415 | ||
| 34 | 359 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p34:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 293.98, 215.54, 48.9] | Kumakura S, Tahara Y, Sato S, Kubota K, Komaba S (2017) P ′ 2Na2/3Mn0.9Me0.1O2 (Me = Mg, Ti, Co, Ni, Cu, and Zn): correlation between orthorhombic distortion and electrochemical property. Chem Mater 29:8958 -8962. https… | Kumakura S, Tahara Y, Sato S, Kubota K, Komaba S (2017) P ′ 2Na2/3Mn0.9Me0.1O2 (Me = Mg, Ti, Co, Ni, Cu, and Zn): correlation between orthorhombic distortion and electrochemical property. Chem Mater 29:8958 -8962. org/1… | ||
| 34 | 360 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p34:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.78, 345.51, 215.43, 47.37] | Kwon M-S, Lim SG, Park Y, Lee S-M, Chung KY, Shin TJ, Lee KT (2017) P2 Orthorhombic Na0.7[Mn1 -xLix]O2+y as cathode materials for Na-Ion batteries. ACS Appl Mater Interfaces 9:14758 -14768. https://doi.org/10.1021/acsam… | Kwon M-S, Lim SG, Park Y, Lee S-M, Chung KY, Shin TJ, Lee KT (2017) P2 Orthorhombic Na0.7[Mn1 -xLix]O2+y as cathode materials for Na-Ion batteries. ACS Appl Mater Interfaces 9:14758 -14768. | ||
| 34 | 361 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p34:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.78, 395.51, 215.53, 27.46] | Larcher D, Tarascon JM (2015) Towards greener and more sustainable batteries for electrical energy storage. Nat Chem 7: 19 -29. https://doi.org/10.1038/nchem.2085 | Larcher D, Tarascon JM (2015) Towards greener and more sustainable batteries for electrical energy storage. Nat Chem 7: 19 -29. | ||
| 34 | 362 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p34:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.78, 425.56, 215.5, 37.34] | Law M, Ramar V, Balaya P (2015) Synthesis, characterisation and enhanced electrochemical performance of nanostructured Na2FePO4F for sodium batteries. RSC Adv 5:50155 -50164. https://doi.org/10.1039/C5RA07583A | Law M, Ramar V, Balaya P (2015) Synthesis, characterisation and enhanced electrochemical performance of nanostructured Na2FePO4F for sodium batteries. RSC Adv 5:50155 -50164. | ||
| 34 | 363 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p34:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.79, 465.58, 215.45, 37.34] | Lee KT, Ramesh TN, Nan F, Botton G, Nazar LF (2011) Topochemical synthesis of sodium metal phosphate olivines for sodium-ion batteries. Chem Mater 23:3593 -3600. https://doi.org/10.1021/cm200450y | Lee KT, Ramesh TN, Nan F, Botton G, Nazar LF (2011) Topochemical synthesis of sodium metal phosphate olivines for sodium-ion batteries. Chem Mater 23:3593 -3600. | ||
| 34 | 364 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p34:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.79, 505.54, 215.51, 57.41] | Lee H-W, Wang RY, Pasta M, Woo Lee S, Liu N, Cui Y (2014) Manganese hexacyanomanganate open framework as a highcapacity positive electrode material for sodium-ion batteries. Nat Commun 5:5280. https://doi.org/10.1038/nc… | Lee H-W, Wang RY, Pasta M, Woo Lee S, Liu N, Cui Y (2014) Manganese hexacyanomanganate open framework as a highcapacity positive electrode material for sodium-ion batteries. Nat Commun 5:5280. | ||
| 34 | 365 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p34:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.79, 565.57, 215.53, 47.37] | Lee E, Brown DE, Alp EE, Ren Y, Lu J, Woo J-J, Johnson CS (2015) New insights into the performance degradation of FeBased layered oxides in sodium-ion batteries: instability of Fe3+/Fe4+ redox in α -NaFeO2. Chem Mater 2… | Lee E, Brown DE, Alp EE, Ren Y, Lu J, Woo J-J, Johnson CS (2015) New insights into the performance degradation of FeBased layered oxides in sodium-ion batteries: instability of Fe3+/Fe4+ redox in α -NaFeO2. Chem Mater 2… | ||
| 34 | 366 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p34:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.79, 615.56, 215.47, 47.37] | Lee M-J, Lho E, Bai P, Chae S, Li J, Cho J (2017) Lowt e m p e r a t u r e c a r b o n c o a t i n g o f n a n o s i z e d Li1.015Al0.06Mn1.925O4 and high-density electrode for high-power Li-Ion batteries. Nano Lett 17:… | Lee M-J, Lho E, Bai P, Chae S, Li J, Cho J (2017) Lowt e m p e r a t u r e c a r b o n c o a t i n g o f n a n o s i z e d Li1.015Al0.06Mn1.925O4 and high-density electrode for high-power Li-Ion batteries. Nano Lett 17:… | ||
| 34 | 367 | page_header | page_header | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p34:top_margin:column_2_of_2:white | [255, 255, 255] white | False | [398.16, 34.25, 102.12, 7.35] | J Nanopart Res (2018) 20: 160 | J Nanopart Res (2018) 20: 160 | ||
| 34 | 368 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p34:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.9, 55.38, 215.52, 37.42] | Legagneur V et al (2001) LiMBO3 (M=Mn, Fe, Co):: synthesis, crystal structure and lithium deinsertion/insertion properties. Solid State Ionics 139:37 -46. https://doi.org/10.1016/S01672738(00)00813-4 | Legagneur V et al (2001) LiMBO3 (M=Mn, Fe, Co):: synthesis, crystal structure and lithium deinsertion/insertion properties. Solid State Ionics 139:37 -46. | ||
| 34 | 369 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p34:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 96.15, 215.51, 27.4] | Lei Y, Li X, Liu L, Ceder G (2014) Synthesis and stoichiometry of different layered sodium cobalt oxides. Chem Mater 26: 5288 -5296. https://doi.org/10.1021/cm5021788 | Lei Y, Li X, Liu L, Ceder G (2014) Synthesis and stoichiometry of different layered sodium cobalt oxides. Chem Mater 26: 5288 -5296. | ||
| 34 | 370 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p34:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.89, 126.82, 215.41, 27.36] | Li G, Azuma H, Tohda M (2002) LiMnPO4 as the cathode for lithium batteries. Electrochem Solid-State Lett 5:A135 -A137. https://doi.org/10.1149/1.1475195 | Li G, Azuma H, Tohda M (2002) LiMnPO4 as the cathode for lithium batteries. Electrochem Solid-State Lett 5:A135 -A137. | ||
| 34 | 371 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p34:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.89, 157.49, 215.46, 27.46] | Li J, Li J, Luo J, Wang L, He X (2011) Recent advances in the LiFeO2-based materials for Li-ion batteries. Int J Electrochem Sci 6:1550 -1561 | Li J, Li J, Luo J, Wang L, He X (2011) Recent advances in the LiFeO2-based materials for Li-ion batteries. Int J Electrochem Sci 6:1550 -1561 | ||
| 34 | 372 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p34:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.9, 188.16, 215.54, 37.34] | Li BZ, Wang Y, Xue L, Li XP, Li WS (2013) Acetylene blackembedded LiMn0.8Fe0.2PO4/C composite as cathode for lithium ion battery. J Power Sources 232:12 -16. https://doi. org/10.1016/j.jpowsour.2013.01.019 | Li BZ, Wang Y, Xue L, Li XP, Li WS (2013) Acetylene blackembedded LiMn0.8Fe0.2PO4/C composite as cathode for lithium ion battery. J Power Sources 232:12 -16. org/10.1016/j.jpowsour.2013.01.019 | ||
| 34 | 373 | list_item | body_candidate_excluded | False | medium | after_back_matter_stop | after_back_matter_stop | after_stop | p34:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.9, 228.86, 215.46, 37.34] | Li C, Miao X, Chu W, Wu P, Tong DG (2015a) Hollow amorphous NaFePO4 nanospheres as a high-capacity and high-rate cathode for sodium-ion batteries. J Mater Chem A 3:8265 -8271. https://doi.org/10.1039/C5TA01191D | Li C, Miao X, Chu W, Wu P, Tong DG (2015a) Hollow amorphous NaFePO4 nanospheres as a high-capacity and high-rate cathode for sodium-ion batteries. J Mater Chem A 3:8265 -8271. | ||
| 34 | 374 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p34:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.9, 269.51, 215.51, 27.36] | Li J, Ma C, Chi M, Liang C, Dudney NJ (2015b) Solid Electrolyte: the Key for High-Voltage Lithium Batteries. Adv Energy Mater 5:1401408. https://doi.org/10.1002/aenm.201401408 | Li J, Ma C, Chi M, Liang C, Dudney NJ (2015b) Solid Electrolyte: the Key for High-Voltage Lithium Batteries. Adv Energy Mater 5:1401408. | ||
| 34 | 375 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p34:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.9, 300.18, 215.44, 37.4] | Li Y et al (2015c) Air-Stable Copper-Based P2-Na7/9Cu2/9Fe1/ 9Mn2/3O2 as a New Positive Electrode Material for SodiumIon Batteries. Adv Sci 2:1500031. https://doi.org/10.1002 /advs.201500031 | Li Y et al (2015c) Air-Stable Copper-Based P2-Na7/9Cu2/9Fe1/ 9Mn2/3O2 as a New Positive Electrode Material for SodiumIon Batteries. Adv Sci 2:1500031. | ||
| 34 | 376 | list_item | body_candidate_excluded | False | medium | after_back_matter_stop | after_back_matter_stop | after_stop | p34:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.9, 340.88, 215.5, 47.37] | Li D et al (2016) Soft-template construction of threedimensionally ordered inverse opal structure from Li2FeSiO4/C composite nanofibers for high-rate lithiumion batteries. Nanoscale 8:12202 -12214. https://doi. org/10.1… | Li D et al (2016) Soft-template construction of threedimensionally ordered inverse opal structure from Li2FeSiO4/C composite nanofibers for high-rate lithiumion batteries. Nanoscale 8:12202 -12214. org/10.1039/C5NR07783D | ||
| 34 | 377 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p34:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.91, 391.57, 215.47, 37.34] | Lin X, Hou X, Wu X, Wang S, Gao M, Yang Y (2014) Exploiting Na2MnPO4F as a high-capacity and well-reversible cathode material for Na-ion batteries. RSC Adv 4:40985 -40993. https://doi.org/10.1039/C4RA05336B | Lin X, Hou X, Wu X, Wang S, Gao M, Yang Y (2014) Exploiting Na2MnPO4F as a high-capacity and well-reversible cathode material for Na-ion batteries. RSC Adv 4:40985 -40993. | ||
| 34 | 378 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p34:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.91, 432.21, 215.5, 47.37] | Liu Q, Mao D, Chang C, Huang F (2007) Phase conversion and morphology evolution during hydrothermal preparation of orthorhombic LiMnO2 nanorods for lithium ion battery application. J Power Sources 173:538 -544. https://… | Liu Q, Mao D, Chang C, Huang F (2007) Phase conversion and morphology evolution during hydrothermal preparation of orthorhombic LiMnO2 nanorods for lithium ion battery application. J Power Sources 173:538 -544. org/10.1… | ||
| 34 | 379 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p34:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.91, 482.9, 215.45, 37.4] | Liu D et al (2012a) Synthesis of pure phase disordered LiMn1.45Cr0.1Ni0.45O4 by a post-annealing method. J Power Sources 217:400 -406. https://doi.org/10.1016/j. jpowsour.2012.06.063 | Liu D et al (2012a) Synthesis of pure phase disordered LiMn1.45Cr0.1Ni0.45O4 by a post-annealing method. J Power Sources 217:400 -406. | ||
| 34 | 380 | list_item | body_candidate_excluded | False | medium | after_back_matter_stop | after_back_matter_stop | after_stop | p34:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.92, 523.6, 215.5, 37.34] | Liu Y et al (2012b) Porous amorphous FePO4 nanoparticles connected by single-wall carbon nanotubes for sodium ion battery cathodes. Nano Lett 12:5664 -5668. https://doi. org/10.1021/nl302819f | Liu Y et al (2012b) Porous amorphous FePO4 nanoparticles connected by single-wall carbon nanotubes for sodium ion battery cathodes. Nano Lett 12:5664 -5668. org/10.1021/nl302819f | ||
| 34 | 381 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p34:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.92, 564.25, 215.51, 37.4] | Liu X, Wang X, Iyo A, Yu H, Li D, Zhou H (2014) High stable post-spinel NaMn2O4 cathode of sodium ion battery. J Mater Chem A 2:14822 -14826. https://doi.org/10.1039/C4 TA03349C | Liu X, Wang X, Iyo A, Yu H, Li D, Zhou H (2014) High stable post-spinel NaMn2O4 cathode of sodium ion battery. J Mater Chem A 2:14822 -14826. | ||
| 34 | 382 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p34:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.91, 604.96, 215.44, 37.34] | Liu L et al (2015a) High-Performance P2-Type Na2/3(Mn1/2Fe1/ 4Co1/4)O2 Cathode Material with Superior Rate Capability for Na-Ion Batteries. Adv Energy Mater 5:1500944. https://doi.org/10.1002/aenm.201500944 | Liu L et al (2015a) High-Performance P2-Type Na2/3(Mn1/2Fe1/ 4Co1/4)O2 Cathode Material with Superior Rate Capability for Na-Ion Batteries. Adv Energy Mater 5:1500944. | ||
| 34 | 383 | list_item | unknown_text | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p34:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.91, 645.65, 215.44, 17.33] | Liu Y, Xu S, Zhang S, Zhang J, Fan J, Zhou Y (2015b) Direct growth of FePO4/reduced graphene oxide nanosheet | Liu Y, Xu S, Zhang S, Zhang J, Fan J, Zhou Y (2015b) Direct growth of FePO4/reduced graphene oxide nanosheet | ||
| 35 | 384 | page_header | page_header | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p35:top_margin:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 34.25, 102.17, 7.35] | J Nanopart Res (2018) 20: 160 | J Nanopart Res (2018) 20: 160 | ||
| 35 | 385 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p35:page_body:column_1_of_2:white | [255, 255, 255] white | False | [63.72, 55.45, 198.6, 17.43] | composites for the sodium-ion battery. J Mater Chem A 3: 5501 -5508. https://doi.org/10.1039/C5TA00199D | composites for the sodium-ion battery. J Mater Chem A 3: 5501 -5508. | ||
| 35 | 386 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p35:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.78, 75.46, 215.49, 37.34] | Liu C, Neale ZG, Cao G (2016a) Understanding electrochemical potentials of cathode materials in rechargeable batteries. Mater Today 19:109 -123. https://doi.org/10.1016/j. mattod.2015.10.009 | Liu C, Neale ZG, Cao G (2016a) Understanding electrochemical potentials of cathode materials in rechargeable batteries. Mater Today 19:109 -123. | ||
| 35 | 387 | list_item | body_candidate_excluded | False | medium | after_back_matter_stop | after_back_matter_stop | after_stop | p35:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.79, 115.48, 215.53, 47.37] | Liu H, Ji P, Han X (2016b) Rheological phase synthesis of nanosized α -LiFeO2 with higher crystallinity degree for cathode material of lithium-ion batteries. Mater Chem Phys 1 8 3 : 1 5 2 -1 5 7 . h t t p s : / / d o i … | Liu H, Ji P, Han X (2016b) Rheological phase synthesis of nanosized α -LiFeO2 with higher crystallinity degree for cathode material of lithium-ion batteries. Mater Chem Phys 1 8 3 : 1 5 2 -1 5 7 . h t t p s : / / d o i … | ||
| 35 | 388 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p35:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.79, 165.48, 215.45, 37.34] | Liu Q et al (2017a) Multiangular rod-shaped Na0.44MnO2 as cathode materials with high rate and long life for sodiumion batteries. ACS Appl Mater Interfaces 9:3644 -3652. https://doi.org/10.1021/acsami.6b13830 | Liu Q et al (2017a) Multiangular rod-shaped Na0.44MnO2 as cathode materials with high rate and long life for sodiumion batteries. ACS Appl Mater Interfaces 9:3644 -3652. | ||
| 35 | 389 | list_item | body_candidate_excluded | False | medium | after_back_matter_stop | after_back_matter_stop | after_stop | p35:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.79, 205.5, 215.47, 47.37] | Liu Y, Zhou Y, Zhang J, Xia Y, Chen T, Zhang S (2017b) Monoclinic phase Na3Fe2(PO4)3: synthesis, structure, and electrochemical performance as cathode material in sodiumion batteries. ACS Sustain Chem Eng 5:1306 -1314. … | Liu Y, Zhou Y, Zhang J, Xia Y, Chen T, Zhang S (2017b) Monoclinic phase Na3Fe2(PO4)3: synthesis, structure, and electrochemical performance as cathode material in sodiumion batteries. ACS Sustain Chem Eng 5:1306 -1314. | ||
| 35 | 390 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p35:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.79, 255.5, 215.45, 27.36] | Lu J, Yamada A (2016) Ionic and electronic transport in alluaudite Na2+2xFe2 -x(SO4)3. ChemElectroChem 3:902 -905. https://doi.org/10.1002/celc.201500535 | Lu J, Yamada A (2016) Ionic and electronic transport in alluaudite Na2+2xFe2 -x(SO4)3. ChemElectroChem 3:902 -905. | ||
| 35 | 391 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p35:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.79, 285.48, 215.51, 37.4] | Lu Y, Wang L, Cheng J, Goodenough JB (2012) Prussian blue: a new framework of electrode materials for sodium batteries. Chem Commun 48:6544 -6546. https://doi.org/10.1039/C2 CC31777J | Lu Y, Wang L, Cheng J, Goodenough JB (2012) Prussian blue: a new framework of electrode materials for sodium batteries. Chem Commun 48:6544 -6546. | ||
| 35 | 392 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p35:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.79, 325.5, 215.46, 37.34] | Lu J, Chen Z, Ma Z, Pan F, Curtiss LA, Amine K (2016) The role of nanotechnology in the development of battery materials for electric vehicles. Nat Nanotechnol 11:1031. https://doi. org/10.1038/nnano.2016.207 | Lu J, Chen Z, Ma Z, Pan F, Curtiss LA, Amine K (2016) The role of nanotechnology in the development of battery materials for electric vehicles. Nat Nanotechnol 11:1031. org/10.1038/nnano.2016.207 | ||
| 35 | 393 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p35:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.79, 365.52, 215.54, 37.34] | Luo C, Langrock A, Fan X, Liang Y, Wang C (2017) P2-type transition metal oxides for high performance Na-ion battery cathodes. J Mater Chem A 5:18214 -18220. https://doi. org/10.1039/C7TA04515H | Luo C, Langrock A, Fan X, Liang Y, Wang C (2017) P2-type transition metal oxides for high performance Na-ion battery cathodes. J Mater Chem A 5:18214 -18220. org/10.1039/C7TA04515H | ||
| 35 | 394 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p35:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.79, 405.54, 215.45, 27.36] | Ma X, Kang B, Ceder G (2010) High rate micron-sized ordered LiNi0.5Mn1.5O4. J Electrochem Soc 157:A925 -A931. https://doi.org/10.1149/1.3439678 | Ma X, Kang B, Ceder G (2010) High rate micron-sized ordered LiNi0.5Mn1.5O4. J Electrochem Soc 157:A925 -A931. | ||
| 35 | 395 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p35:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.79, 435.53, 215.52, 27.36] | Ma X, Chen H, Ceder G (2011) Electrochemical properties of monoclinic NaMnO2. J Electrochem Soc 158:A1307 -A1312. https://doi.org/10.1149/2.035112jes | Ma X, Chen H, Ceder G (2011) Electrochemical properties of monoclinic NaMnO2. J Electrochem Soc 158:A1307 -A1312. | ||
| 35 | 396 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p35:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.8, 465.52, 215.49, 37.4] | MacNeil DD, Lu Z, Chen Z, Dahn JR (2002) A comparison of the electrode/electrolyte reaction at elevated temperatures for various Li-ion battery cathodes. J Power Sources 108:8 -14. https://doi.org/10.1016/S0378-7753(01)… | MacNeil DD, Lu Z, Chen Z, Dahn JR (2002) A comparison of the electrode/electrolyte reaction at elevated temperatures for various Li-ion battery cathodes. J Power Sources 108:8 -14. | ||
| 35 | 397 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p35:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.81, 505.54, 215.49, 27.36] | Mahmood N, Hou Y (2014) Electrode nanostructures in lithiumbased Batteries. Adv Sci 1:1400012. https://doi.org/10.1002 /advs.201400012 | Mahmood N, Hou Y (2014) Electrode nanostructures in lithiumbased Batteries. Adv Sci 1:1400012. | ||
| 35 | 398 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p35:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.81, 535.58, 215.51, 37.34] | Manthiram A, Knight JC, Myung S-T, Oh S-M, Sun Y-K (2016) Nickel-Rich and lithium-rich layered oxide cathodes: progress and perspectives. Adv Energy Mater 6:1501010. https://doi.org/10.1002/aenm.201501010 | Manthiram A, Knight JC, Myung S-T, Oh S-M, Sun Y-K (2016) Nickel-Rich and lithium-rich layered oxide cathodes: progress and perspectives. Adv Energy Mater 6:1501010. | ||
| 35 | 399 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p35:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.81, 575.54, 215.43, 27.46] | Martha SK et al (2009a) LiMn0.8Fe0.2PO4: an advanced cathode material for rechargeable lithium batteries. Angew Chem Int Ed 48:8559 -8563. https://doi.org/10.1002/anie.200903587 | Martha SK et al (2009a) LiMn0.8Fe0.2PO4: an advanced cathode material for rechargeable lithium batteries. Angew Chem Int Ed 48:8559 -8563. | ||
| 35 | 400 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p35:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.82, 605.59, 215.44, 27.46] | Martha SK et al (2009b) LiMnPO4 as an advanced cathode material for rechargeable lithium batteries. J Electrochem Soc 156:A541 -A552. https://doi.org/10.1149/1.3125765 | Martha SK et al (2009b) LiMnPO4 as an advanced cathode material for rechargeable lithium batteries. J Electrochem Soc 156:A541 -A552. | ||
| 35 | 401 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p35:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.83, 635.57, 215.46, 27.45] | Masquelier C, Croguennec L (2013) Polyanionic (Phosphates, Silicates, Sulfates) frameworks as electrode materials for rechargeable Li (or Na) batteries. Chem Rev 113:6552 -6591 | Masquelier C, Croguennec L (2013) Polyanionic (Phosphates, Silicates, Sulfates) frameworks as electrode materials for rechargeable Li (or Na) batteries. Chem Rev 113:6552 -6591 | ||
| 35 | 402 | page_header | page_header | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p35:top_margin:column_2_of_2:white | [255, 255, 255] white | True | [433.24, 34.25, 67.04, 7.44] | Page 35 of 40 160 | Page 35 of 40 160 | ||
| 35 | 403 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p35:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 55.45, 215.45, 47.37] | Matsumura T, Kanno R, Inaba Y, Kawamoto Y, Takano M (2002) Synthesis, structure, and electrochemical properties of a new cathode material, LiFeO2 , with a tunnel structure. J Electrochem Soc 149:A1509 -A1513. https://do… | Matsumura T, Kanno R, Inaba Y, Kawamoto Y, Takano M (2002) Synthesis, structure, and electrochemical properties of a new cathode material, LiFeO2 , with a tunnel structure. J Electrochem Soc 149:A1509 -A1513. org/10.114… | ||
| 35 | 404 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p35:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 106.18, 215.5, 37.44] | Meethong N, Kao Y-H, Tang M, Huang H-Y, Carter WC, Chiang Y-M (2008) Electrochemically induced phase transformation in nanoscale olivines Li1 -xMPO4 (M = Fe, Mn). Chem Mater 20:6189 -6198. https://doi.org/10.1021/cm8017… | Meethong N, Kao Y-H, Tang M, Huang H-Y, Carter WC, Chiang Y-M (2008) Electrochemically induced phase transformation in nanoscale olivines Li1 -xMPO4 (M = Fe, Mn). Chem Mater 20:6189 -6198. | ||
| 35 | 405 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p35:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.89, 146.88, 215.51, 47.37] | Meng Y, Yu T, Zhang S, Deng C (2016) Top-down synthesis of muscle-inspired alluaudite Na2+2xFe2-x(SO4)3/SWNT spindle as a high-rate and high-potential cathode for sodium-ion batteries. J Mater Chem A 4:1624 -1631. https… | Meng Y, Yu T, Zhang S, Deng C (2016) Top-down synthesis of muscle-inspired alluaudite Na2+2xFe2-x(SO4)3/SWNT spindle as a high-rate and high-potential cathode for sodium-ion batteries. J Mater Chem A 4:1624 -1631. | ||
| 35 | 406 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p35:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.9, 197.62, 215.55, 37.44] | Mizushima K, Jones PC, Wiseman PJ, Goodenough JB (1980) Lixcoo2 (oless-thanxless-than-or-equal-to1) -a new cathode material for batteries of high-energy density. Mater Res Bull 15:783 -789. https://doi.org/10.1016/0025-… | Mizushima K, Jones PC, Wiseman PJ, Goodenough JB (1980) Lixcoo2 (oless-thanxless-than-or-equal-to1) -a new cathode material for batteries of high-energy density. Mater Res Bull 15:783 -789. | ||
| 35 | 407 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p35:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.9, 238.37, 215.48, 47.31] | Mohanty D et al (2013) Structural transformation of a lithium-rich Li1.2Co0.1Mn0.55Ni0.15O2 cathode during high voltage cycling resolved by in situ X-ray diffraction. J Power Sources 229:239 -248. https://doi.org/10.101… | Mohanty D et al (2013) Structural transformation of a lithium-rich Li1.2Co0.1Mn0.55Ni0.15O2 cathode during high voltage cycling resolved by in situ X-ray diffraction. J Power Sources 229:239 -248. | ||
| 35 | 408 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p35:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.9, 287.16, 215.44, 29.25] | Morales J, Santos-Peña J (2007) Highly electroactive nanosized α -LiFeO2. Electrochem Commun 9:2116 -2120. https://doi. org/10.1016/j.elecom.2007.06.013 | Morales J, Santos-Peña J (2007) Highly electroactive nanosized α -LiFeO2. Electrochem Commun 9:2116 -2120. org/10.1016/j.elecom.2007.06.013 | ||
| 35 | 409 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p35:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.9, 319.77, 215.53, 37.4] | Moreau P, Guyomard D, Gaubicher J, Boucher F (2010) Structure and stability of sodium intercalated phases in olivine FePO4. Chem Mater 22:4126 -4128. https://doi.org/10.1021 /cm101377h | Moreau P, Guyomard D, Gaubicher J, Boucher F (2010) Structure and stability of sodium intercalated phases in olivine FePO4. Chem Mater 22:4126 -4128. | ||
| 35 | 410 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p35:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.9, 360.53, 215.52, 47.41] | Mortemard de Boisse B, Carlier D, Guignard M, Bourgeois L, Delmas C (2014) P2-NaxMn1/2Fe1/2O2 phase used as positive electrode in na batteries: structural changes induced by the electrochemical (De)intercalation process… | Mortemard de Boisse B, Carlier D, Guignard M, Bourgeois L, Delmas C (2014) P2-NaxMn1/2Fe1/2O2 phase used as positive electrode in na batteries: structural changes induced by the electrochemical (De)intercalation process… | ||
| 35 | 411 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p35:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.9, 411.26, 215.44, 37.44] | Muraliganth T, Stroukoff KR, Manthiram A (2010) Microwavesolvothermal synthesis of nanostructured Li2MSiO4/C (M = Mn and Fe) cathodes for lithium-ion batteries. Chem Mater 22:5754 -5761. https://doi.org/10.1021/cm102058n | Muraliganth T, Stroukoff KR, Manthiram A (2010) Microwavesolvothermal synthesis of nanostructured Li2MSiO4/C (M = Mn and Fe) cathodes for lithium-ion batteries. Chem Mater 22:5754 -5761. | ||
| 35 | 412 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p35:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.9, 451.96, 215.53, 37.34] | Myung S-T, Amine K, Sun Y-K (2015) Nanostructured cathode materials for rechargeable lithium batteries. J Power Sources 2 8 3 : 2 1 9 -2 3 6 . h t t p s : / / d o i . o r g / 1 0 . 1 0 1 6 / j . jpowsour.2015.02.119 | Myung S-T, Amine K, Sun Y-K (2015) Nanostructured cathode materials for rechargeable lithium batteries. J Power Sources 2 8 3 : 2 1 9 -2 3 6 . h t t p s : / / d o i . o r g / 1 0 . 1 0 1 6 / j . jpowsour.2015.02.119 | ||
| 35 | 413 | list_item | unknown_text | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p35:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.9, 492.66, 215.48, 27.36] | Naoaki Y, Shinichi K (2014) Recent research progress on iron- and manganese-based positive electrode materials for rechargeable sodium batteries. Sci Technol Adv Mater 15:043501 | Naoaki Y, Shinichi K (2014) Recent research progress on iron- and manganese-based positive electrode materials for rechargeable sodium batteries. Sci Technol Adv Mater 15:043501 | ||
| 35 | 414 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p35:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.9, 523.38, 215.42, 37.4] | Naoi K et al (2016) Ultrafast charge-discharge characteristics of a nanosized core-shell structured LiFePO4 material for hybrid supercapacitor applications. Energy Environ Sci 9:2143 -2151. https://doi.org/10.1039/C6EE0… | Naoi K et al (2016) Ultrafast charge-discharge characteristics of a nanosized core-shell structured LiFePO4 material for hybrid supercapacitor applications. Energy Environ Sci 9:2143 -2151. | ||
| 35 | 415 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p35:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.9, 564.14, 215.45, 27.46] | Ni J, Jiang Y , Bi X, Li L, Lu J (2017) Lithium iron orthosilicate cathode: progress and perspectives. ACS Energy Lett 2: 1771 -1781. https://doi.org/10.1021/acsenergylett.7b00452 | Ni J, Jiang Y , Bi X, Li L, Lu J (2017) Lithium iron orthosilicate cathode: progress and perspectives. ACS Energy Lett 2: 1771 -1781. | ||
| 35 | 416 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p35:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.91, 593.33, 215.46, 28.89] | Nie ZX et al (2010) First principles study of Jahn -Teller effects in LixMnPO4. Solid State Commun 150:40 -44. https://doi. org/10.1016/j.ssc.2009.10.010 | Nie ZX et al (2010) First principles study of Jahn -Teller effects in LixMnPO4. Solid State Commun 150:40 -44. org/10.1016/j.ssc.2009.10.010 | ||
| 35 | 417 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p35:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.91, 625.58, 215.51, 37.43] | Nishimura S-i, Nakamura M, Natsui R, Yamada A (2010) New lithium iron pyrophosphate as 3.5 V class cathode material for lithium ion battery. J Am Chem Soc 132:13596 -13597. https://doi.org/10.1021/ja106297a | Nishimura S-i, Nakamura M, Natsui R, Yamada A (2010) New lithium iron pyrophosphate as 3.5 V class cathode material for lithium ion battery. J Am Chem Soc 132:13596 -13597. | ||
| 36 | 418 | page_header | page_header | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p36:top_margin:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 34.25, 12.51, 7.44] | 160 | 160 | ||
| 36 | 419 | page_header | page_header | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p36:top_margin:column_1_of_2:white | [255, 255, 255] white | False | [67.64, 34.25, 46.28, 7.35] | Page 36 of 40 | Page 36 of 40 | ||
| 36 | 420 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p36:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 55.45, 215.41, 27.46] | Nitta Y, Okamura K, Haraguchi K, Kobayashi S, Ohata A (1995) Crystal structure study of LiNi1 -xMnxO2. J Power Sources 54:511 -515. https://doi.org/10.1016/0378-7753(94)02137-R | Nitta Y, Okamura K, Haraguchi K, Kobayashi S, Ohata A (1995) Crystal structure study of LiNi1 -xMnxO2. J Power Sources 54:511 -515. | ||
| 36 | 421 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p36:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 86.12, 215.54, 27.36] | Nitta N, Wu F, Lee JT, Yushin G (2015) Li-ion battery materials: present and future. Mater Today 18:252 -264. https://doi. org/10.1016/j.mattod.2014.10.040 | Nitta N, Wu F, Lee JT, Yushin G (2015) Li-ion battery materials: present and future. Mater Today 18:252 -264. org/10.1016/j.mattod.2014.10.040 | ||
| 36 | 422 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p36:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 116.8, 215.42, 27.46] | Norberg NS, Kostecki R (2012) The degradation mechanism of a composite LiMnPO4 cathode. J Electrochem Soc 159: A1431 -A1434. https://doi.org/10.1149/2.018209jes | Norberg NS, Kostecki R (2012) The degradation mechanism of a composite LiMnPO4 cathode. J Electrochem Soc 159: A1431 -A1434. | ||
| 36 | 423 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p36:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.78, 147.47, 215.49, 37.4] | Nytén A, Abouimrane A, Armand M, Gustafsson T, Thomas JO (2005) Electrochemical performance of Li2FeSiO4 as a new Li-battery cathode material. Electrochem Commun 7:156 -160. https://doi.org/10.1016/j.elecom.2004.11.008 | Nytén A, Abouimrane A, Armand M, Gustafsson T, Thomas JO (2005) Electrochemical performance of Li2FeSiO4 as a new Li-battery cathode material. Electrochem Commun 7:156 -160. | ||
| 36 | 424 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p36:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.78, 188.17, 215.5, 37.34] | Oh S-M, Oh S-W, Yoon C-S, Scrosati B, Amine K, Sun Y-K (2010) High-performance carbon-LiMnPO4 nanocomposite cathode for lithium batteries. Adv Funct Mater 20:3260 -3265. https://doi.org/10.1002/adfm.201000469 | Oh S-M, Oh S-W, Yoon C-S, Scrosati B, Amine K, Sun Y-K (2010) High-performance carbon-LiMnPO4 nanocomposite cathode for lithium batteries. Adv Funct Mater 20:3260 -3265. | ||
| 36 | 425 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p36:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.78, 228.87, 215.5, 37.34] | Oh S-M, Myung S-T, Hassoun J, Scrosati B, Sun Y-K (2012) Reversible NaFePO4 electrode for sodium secondary batteries. Electrochem Commun 22:149 -152. https://doi. org/10.1016/j.elecom.2012.06.014 | Oh S-M, Myung S-T, Hassoun J, Scrosati B, Sun Y-K (2012) Reversible NaFePO4 electrode for sodium secondary batteries. Electrochem Commun 22:149 -152. org/10.1016/j.elecom.2012.06.014 | ||
| 36 | 426 | list_item | body_candidate_excluded | False | medium | after_back_matter_stop | after_back_matter_stop | after_stop | p36:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.78, 269.52, 215.48, 37.34] | Ohzuku T, Ueda A, Nagayama M (1993) Electrochemistry and structural chemistry of LiNiO2 (R3 ̅ m) for 4 volt secondary lithium cells. J Electrochem Soc 140:1862 -1870. https://doi. org/10.1149/1.2220730 | Ohzuku T, Ueda A, Nagayama M (1993) Electrochemistry and structural chemistry of LiNiO2 (R3 ̅ m) for 4 volt secondary lithium cells. J Electrochem Soc 140:1862 -1870. org/10.1149/1.2220730 | ||
| 36 | 427 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p36:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 310.22, 215.52, 47.31] | Ohzuku T, Takeda S, Iwanaga M (1999) Solid-state redox potentials for Li [Me1/2Mn3/2] O4 (Me: 3d-transition metal) having spinel-framework structures: a series of 5 volt materials for advanced lithium-ion batteries. J P… | Ohzuku T, Takeda S, Iwanaga M (1999) Solid-state redox potentials for Li [Me1/2Mn3/2] O4 (Me: 3d-transition metal) having spinel-framework structures: a series of 5 volt materials for advanced lithium-ion batteries. J P… | ||
| 36 | 428 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p36:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 360.89, 215.43, 27.36] | Okada S, Takahashi Y, Kiyabu T, Doi T, Yamaki J-I, Nishida T (2006) Layered transition metal oxides as cathodes for sodium secondary battery meeting abstracts MA2006-02:201 | Okada S, Takahashi Y, Kiyabu T, Doi T, Yamaki J-I, Nishida T (2006) Layered transition metal oxides as cathodes for sodium secondary battery meeting abstracts MA2006-02:201 | ||
| 36 | 429 | list_item | body_candidate_excluded | False | medium | after_back_matter_stop | after_back_matter_stop | after_stop | p36:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 391.56, 215.52, 37.34] | Ong SP, Chevrier VL, Ceder G (2011) Comparison of small polaron migration and phase separation in olivine LiMnPO${}_{4}$ and LiFePO${}_{4}$ using hybrid density functional theory. Phys Rev B 83:075112 | Ong SP, Chevrier VL, Ceder G (2011) Comparison of small polaron migration and phase separation in olivine LiMnPO${}_{4}$ and LiFePO${}_{4}$ using hybrid density functional theory. Phys Rev B 83:075112 | ||
| 36 | 430 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p36:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 432.21, 215.52, 37.5] | Oyama G, Pecher O, Griffith KJ, Nishimura S-i, Pigliapochi R, Grey CP, Yamada A (2016) Sodium intercalation mechanism of 3.8 V class alluaudite sodium iron sulfate. Chem Mater 28: 5321 -5328. https://doi.org/10.1021/acs… | Oyama G, Pecher O, Griffith KJ, Nishimura S-i, Pigliapochi R, Grey CP, Yamada A (2016) Sodium intercalation mechanism of 3.8 V class alluaudite sodium iron sulfate. Chem Mater 28: 5321 -5328. | ||
| 36 | 431 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p36:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.78, 472.92, 215.43, 47.37] | Palomares V, Serras P, Villaluenga I, Hueso KB, CarreteroGonzalez J, Rojo T (2012) Na-ion batteries, recent advances and present challenges to become low cost energy storage systems. Energy Environ Sci 5:5884 -5901. htt… | Palomares V, Serras P, Villaluenga I, Hueso KB, CarreteroGonzalez J, Rojo T (2012) Na-ion batteries, recent advances and present challenges to become low cost energy storage systems. Energy Environ Sci 5:5884 -5901. org… | ||
| 36 | 432 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p36:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.78, 523.6, 215.43, 27.46] | Paolella A et al (2014) Etched colloidal LiFePO4 nanoplatelets toward high-rate capable Li-Ion battery electrodes. Nano Lett 14:6828 -6835. https://doi.org/10.1021/nl504093w | Paolella A et al (2014) Etched colloidal LiFePO4 nanoplatelets toward high-rate capable Li-Ion battery electrodes. Nano Lett 14:6828 -6835. | ||
| 36 | 433 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p36:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.79, 554.27, 215.46, 37.34] | Parant J-P, Olazcuaga R, Devalette M, Fouassier C, Hagenmuller P (1971) Sur quelques nouvelles phases de formule NaxMnO2 (x ⩽ 1). J Solid State Chem 3:1 -11. https://doi. org/10.1016/0022-4596(71)90001-6 | Parant J-P, Olazcuaga R, Devalette M, Fouassier C, Hagenmuller P (1971) Sur quelques nouvelles phases de formule NaxMnO2 (x ⩽ 1). J Solid State Chem 3:1 -11. org/10.1016/0022-4596(71)90001-6 | ||
| 36 | 434 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p36:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.79, 594.97, 215.42, 37.34] | Park CS et al (2013) Anomalous manganese activation of a pyrophosphate cathode in sodium ion batteries: a combined experimental and theoretical study. J Am Chem Soc 135:2787 -2792. https://doi.org/10.1021/ja312044k | Park CS et al (2013) Anomalous manganese activation of a pyrophosphate cathode in sodium ion batteries: a combined experimental and theoretical study. J Am Chem Soc 135:2787 -2792. | ||
| 36 | 435 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p36:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.79, 635.62, 215.54, 27.9] | Paulsen JM, Dahn JR (1999) Studies of the layered manganese bronzes, Na2/3[Mn1 -xMx]O2 with M=Co, Ni, Li, and Li2/ 3[Mn1 -xMx]O2 prepared by ion-exchange. Solid State | Paulsen JM, Dahn JR (1999) Studies of the layered manganese bronzes, Na2/3[Mn1 -xMx]O2 with M=Co, Ni, Li, and Li2/ 3[Mn1 -xMx]O2 prepared by ion-exchange. Solid State | ||
| 36 | 436 | page_header | page_header | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p36:top_margin:column_2_of_2:white | [255, 255, 255] white | False | [398.16, 34.25, 102.12, 7.35] | J Nanopart Res (2018) 20: 160 | J Nanopart Res (2018) 20: 160 | ||
| 36 | 437 | list_item | page_margin_header | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p36:top_margin:column_2_of_2:white | [255, 255, 255] white | False | [301.83, 53.92, 198.45, 18.86] | Ionics 126:3 -24. https://doi.org/10.1016/S0167-2738(99 )00147-2 | Ionics 126:3 -24. )00147-2 | ||
| 36 | 438 | list_item | body_candidate_excluded | False | medium | after_back_matter_stop | after_back_matter_stop | after_stop | p36:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.87, 75.46, 215.46, 37.34] | Pei Y et al (2016) Chelate-induced formation of Li2MnSiO4 nanorods as a high capacity cathode material for Li-ion batteries. J Mater Chem A 4:9447 -9454. https://doi. org/10.1039/C6TA01269H | Pei Y et al (2016) Chelate-induced formation of Li2MnSiO4 nanorods as a high capacity cathode material for Li-ion batteries. J Mater Chem A 4:9447 -9454. org/10.1039/C6TA01269H | ||
| 36 | 439 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p36:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 115.48, 215.45, 37.34] | Pivko M, Bele M, Tchernychova E, Logar NZ, Dominko R, Gaberscek M (2012) Synthesis of nanometric LiMnPO4 via a two-step technique. Chem Mater 24:1041 -1047. https://doi.org/10.1021/cm203095d | Pivko M, Bele M, Tchernychova E, Logar NZ, Dominko R, Gaberscek M (2012) Synthesis of nanometric LiMnPO4 via a two-step technique. Chem Mater 24:1041 -1047. | ||
| 36 | 440 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p36:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 155.5, 215.52, 47.31] | Qin Z, Zhou X, Xia Y, Tang C, Liu Z (2012) Morphology controlled synthesis and modification of high-performance LiMnPO4 cathode materials for Li-ion batteries. J Mater Chem 22:21144 -21153. https://doi.org/10.1039/C2 JM… | Qin Z, Zhou X, Xia Y, Tang C, Liu Z (2012) Morphology controlled synthesis and modification of high-performance LiMnPO4 cathode materials for Li-ion batteries. J Mater Chem 22:21144 -21153. | ||
| 36 | 441 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p36:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 205.5, 215.52, 47.37] | Rahman MM, Wang J-Z, Hassan MF, Chou S, Chen Z, Liu HK (2011) Nanocrystalline porous α -LiFeO2-C composite-an environmentally friendly cathode for the lithium-ion battery. Energ Environ Sci 4:952 -957. https://doi.org/1… | Rahman MM, Wang J-Z, Hassan MF, Chou S, Chen Z, Liu HK (2011) Nanocrystalline porous α -LiFeO2-C composite-an environmentally friendly cathode for the lithium-ion battery. Energ Environ Sci 4:952 -957. | ||
| 36 | 442 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p36:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.87, 255.5, 215.42, 37.34] | Ramar V, Balaya P (2016) The effect of polymorphism on the lithium storage performance of Li2MnSiO4. J Power Sources 3 0 6 : 5 5 2 -5 5 8 . h t t p s : / / d o i . o r g / 1 0 . 1 0 1 6 / j . jpowsour.2015.12.033 | Ramar V, Balaya P (2016) The effect of polymorphism on the lithium storage performance of Li2MnSiO4. J Power Sources 3 0 6 : 5 5 2 -5 5 8 . h t t p s : / / d o i . o r g / 1 0 . 1 0 1 6 / j . jpowsour.2015.12.033 | ||
| 36 | 443 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p36:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.87, 295.52, 215.41, 37.34] | Rangappa D, Murukanahally KD, Tomai T, Unemoto A, Honma I (2012) Ultrathin nanosheets of Li2MSiO4 (M = Fe, Mn) as high-capacity Li-Ion battery electrode. Nano Lett 12:1146 -1151. https://doi.org/10.1021/nl202681b | Rangappa D, Murukanahally KD, Tomai T, Unemoto A, Honma I (2012) Ultrathin nanosheets of Li2MSiO4 (M = Fe, Mn) as high-capacity Li-Ion battery electrode. Nano Lett 12:1146 -1151. | ||
| 36 | 444 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p36:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.87, 335.54, 215.44, 27.46] | Ravnsbæk DB et al (2014) Extended solid solutions and coherent transformations in nanoscale olivine cathodes. Nano Lett 14: 1484 -1491. https://doi.org/10.1021/nl404679t | Ravnsbæk DB et al (2014) Extended solid solutions and coherent transformations in nanoscale olivine cathodes. Nano Lett 14: 1484 -1491. | ||
| 36 | 445 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p36:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 365.52, 215.44, 37.34] | Ravnsbæk DB et al (2016) Engineering the transformation strain in LiMnyFe1 -yPO4 olivines for ultrahigh rate battery cathodes. Nano Lett 16:2375 -2380. https://doi.org/10.1021/acs. nanolett.5b05146 | Ravnsbæk DB et al (2016) Engineering the transformation strain in LiMnyFe1 -yPO4 olivines for ultrahigh rate battery cathodes. Nano Lett 16:2375 -2380. | ||
| 36 | 446 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p36:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 405.54, 215.42, 27.36] | Rossen E, Jones CDW, Dahn JR (1992) Structure and electrochemistry of LixMnyNi1 -yO2. Solid State Ionics 57:311 -318. https://doi.org/10.1016/0167-2738(92)90164-K | Rossen E, Jones CDW, Dahn JR (1992) Structure and electrochemistry of LixMnyNi1 -yO2. Solid State Ionics 57:311 -318. | ||
| 36 | 447 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p36:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.89, 435.53, 215.51, 47.37] | Rossouw MH, Liles DC, Thackeray MM (1993) Synthesis and structural characterization of a novel layered lithium manganese oxide, Li0.36Mn0.91O2, and its lithiated derivative, Li1.09Mn0.91O2. J Solid State Chem 104:464 -4… | Rossouw MH, Liles DC, Thackeray MM (1993) Synthesis and structural characterization of a novel layered lithium manganese oxide, Li0.36Mn0.91O2, and its lithiated derivative, Li1.09Mn0.91O2. J Solid State Chem 104:464 -4… | ||
| 36 | 448 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p36:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.9, 485.53, 215.5, 37.4] | Sakurai Y, Arai H, Okada S, Yamaki J-i (1997) Low temperature synthesis and electrochemical characteristics of LiFeO2 cathodes. J Power Sources 68:711 -715. https://doi.org/10.1016 /S0378-7753(96)02579-7 | Sakurai Y, Arai H, Okada S, Yamaki J-i (1997) Low temperature synthesis and electrochemical characteristics of LiFeO2 cathodes. J Power Sources 68:711 -715. | ||
| 36 | 449 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p36:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.91, 525.55, 215.45, 37.4] | Sauvage F, Laffont L, Tarascon JM, Baudrin E (2007) Study of the insertion/deinsertion mechanism of sodium into Na0.44MnO2. Inorg Chem 46:3289 -3294. https://doi. org/10.1021/ic0700250 | Sauvage F, Laffont L, Tarascon JM, Baudrin E (2007) Study of the insertion/deinsertion mechanism of sodium into Na0.44MnO2. Inorg Chem 46:3289 -3294. org/10.1021/ic0700250 | ||
| 36 | 450 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p36:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.91, 565.57, 215.53, 37.34] | Seo D-H, Park Y-U, Kim S-W, Park I, Shakoor RA, Kang K (2011) First-principles study on lithium metal borate cathodes for lithium rechargeable batteries. Phys Rev B 83: 205127 | Seo D-H, Park Y-U, Kim S-W, Park I, Shakoor RA, Kang K (2011) First-principles study on lithium metal borate cathodes for lithium rechargeable batteries. Phys Rev B 83: 205127 | ||
| 36 | 451 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p36:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.91, 605.59, 215.51, 37.33] | Shaju KM, Subba Rao GV, Chowdari BVR (2002) Performance of layered Li(Ni1/3Co1/3Mn1/3)O2 as cathode for Li-ion batteries. Electrochim Acta 48:145 -151. https://doi.org/10.1016 /S0013-4686(02)00593-5 | Shaju KM, Subba Rao GV, Chowdari BVR (2002) Performance of layered Li(Ni1/3Co1/3Mn1/3)O2 as cathode for Li-ion batteries. Electrochim Acta 48:145 -151. | ||
| 36 | 452 | list_item | unknown_text | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p36:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.91, 645.6, 215.43, 17.41] | Sharma N et al (2015) Rate dependent performance related to crystal structure evolution of Na0.67Mn0.8Mg0.2O2 in a | Sharma N et al (2015) Rate dependent performance related to crystal structure evolution of Na0.67Mn0.8Mg0.2O2 in a | ||
| 37 | 453 | page_header | page_header | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p37:top_margin:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 34.25, 102.19, 7.35] | J Nanopart Res (2018) 20: 160 | J Nanopart Res (2018) 20: 160 | ||
| 37 | 454 | list_item | page_margin_header | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p37:top_margin:column_1_of_2:white | [255, 255, 255] white | False | [63.72, 53.92, 198.5, 18.86] | sodium-ion battery. Chem Mater 27:6976 -6986. https://doi. org/10.1021/acs.chemmater.5b02142 | sodium-ion battery. Chem Mater 27:6976 -6986. org/10.1021/acs.chemmater.5b02142 | ||
| 37 | 455 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p37:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 75.46, 215.5, 47.37] | Sharma N, Bahri OKA, Han MH, Gonzalo E, Pramudita JC, Rojo T (2016) Comparison of the structural evolution of the O3 and P2 phases of Na2/3Fe2/3Mn1/3O2 during electrochemical cycling. Electrochim Acta 203:189 -197. http… | Sharma N, Bahri OKA, Han MH, Gonzalo E, Pramudita JC, Rojo T (2016) Comparison of the structural evolution of the O3 and P2 phases of Na2/3Fe2/3Mn1/3O2 during electrochemical cycling. Electrochim Acta 203:189 -197. org/… | ||
| 37 | 456 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p37:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 125.46, 215.45, 47.37] | Shirane T, Kanno R, Kawamoto Y, Takeda Y, Takano M, Kamiyama T, Izumi F (1995) Structure and physical properties of lithium iron oxide, LiFeO2, synthesized by ionic exchange reaction. Solid State Ionics 79:227 -233. htt… | Shirane T, Kanno R, Kawamoto Y, Takeda Y, Takano M, Kamiyama T, Izumi F (1995) Structure and physical properties of lithium iron oxide, LiFeO2, synthesized by ionic exchange reaction. Solid State Ionics 79:227 -233. | ||
| 37 | 457 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p37:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 175.46, 215.47, 57.41] | Shukla AK, Ramasse QM, Ophus C, Duncan H, Hage F, Chen G (2015) Unravelling structural ambiguities in lithium- and manganese-rich transition metal oxides. Nat Commun 6: 8711. https://doi.org/10.1038/ncomms9711 https://w… | Shukla AK, Ramasse QM, Ophus C, Duncan H, Hage F, Chen G (2015) Unravelling structural ambiguities in lithium- and manganese-rich transition metal oxides. Nat Commun 6: 8711. | ||
| 37 | 458 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p37:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 235.49, 215.44, 47.37] | Sigala C, Guyomard D, Verbaere A, Piffard Y , Tournoux M (1995) Positive electrode materials with high operating voltage for lithium batteries: LiCryMn2 -yO4 (0 ≤ y ≤ 1). Solid State Ionics 81:167 -170. https://doi.org/… | Sigala C, Guyomard D, Verbaere A, Piffard Y , Tournoux M (1995) Positive electrode materials with high operating voltage for lithium batteries: LiCryMn2 -yO4 (0 ≤ y ≤ 1). Solid State Ionics 81:167 -170. | ||
| 37 | 459 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p37:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.75, 285.48, 215.52, 37.4] | Singh P, Shiva K, Celio H, Goodenough JB (2015) Eldfellite, NaFe(SO4)2: an intercalation cathode host for low-cost Naion batteries. Energ Environ Sci 8:3000 -3005. https://doi. org/10.1039/C5EE02274F | Singh P, Shiva K, Celio H, Goodenough JB (2015) Eldfellite, NaFe(SO4)2: an intercalation cathode host for low-cost Naion batteries. Energ Environ Sci 8:3000 -3005. org/10.1039/C5EE02274F | ||
| 37 | 460 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p37:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.75, 325.5, 215.5, 27.36] | Slater MD, Kim D, Lee E, Johnson CS (2013) Sodium-ion batteries. Adv Funct Mater 23:947 -958. https://doi.org/10.1002 /adfm.201200691 | Slater MD, Kim D, Lee E, Johnson CS (2013) Sodium-ion batteries. Adv Funct Mater 23:947 -958. | ||
| 37 | 461 | list_item | body_candidate_excluded | False | medium | after_back_matter_stop | after_back_matter_stop | after_stop | p37:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.76, 355.55, 215.51, 37.34] | Song J et al (2015) Removal of interstitial H2O in hexacyanometallates for a superior cathode of a sodium-ion battery. J Am Chem Soc 137:2658 -2664. https://doi. org/10.1021/ja512383b | Song J et al (2015) Removal of interstitial H2O in hexacyanometallates for a superior cathode of a sodium-ion battery. J Am Chem Soc 137:2658 -2664. org/10.1021/ja512383b | ||
| 37 | 462 | list_item | body_candidate_excluded | False | medium | after_back_matter_stop | after_back_matter_stop | after_stop | p37:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.76, 395.51, 215.44, 47.37] | Song HJ, Kim D-S, Kim J-C, Hong S-H, Kim D-W (2017a) An approach to flexible Na-ion batteries with exceptional rate capability and long lifespan using Na2FeP2O7 nanoparticles on porous carbon cloth. J Mater Chem A 5:550… | Song HJ, Kim D-S, Kim J-C, Hong S-H, Kim D-W (2017a) An approach to flexible Na-ion batteries with exceptional rate capability and long lifespan using Na2FeP2O7 nanoparticles on porous carbon cloth. J Mater Chem A 5:550… | ||
| 37 | 463 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p37:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.76, 445.57, 215.51, 47.31] | Song HJ, Kim K-H, Kim J-C, Hong S-H, Kim D-W (2017b) Superior sodium storage performance of reduced graphene oxide-supported Na3.12Fe2.44(P2O7)2/C nanocomposites. Chem Commun 53:9316 -9319. https://doi.org/10.1039/C7 CC… | Song HJ, Kim K-H, Kim J-C, Hong S-H, Kim D-W (2017b) Superior sodium storage performance of reduced graphene oxide-supported Na3.12Fe2.44(P2O7)2/C nanocomposites. Chem Commun 53:9316 -9319. | ||
| 37 | 464 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p37:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.76, 495.56, 215.45, 37.44] | Sun Y, Lu X, Xiao R, Li H, Huang X (2012) Kinetically controlled lithium-staging in delithiated LiFePO4 driven by the Fe center mediated interlayer Li -Li interactions. Chem Mater 24:4693 -4703. https://doi.org/10.1021/… | Sun Y, Lu X, Xiao R, Li H, Huang X (2012) Kinetically controlled lithium-staging in delithiated LiFePO4 driven by the Fe center mediated interlayer Li -Li interactions. Chem Mater 24:4693 -4703. | ||
| 37 | 465 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p37:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.78, 535.58, 215.49, 37.34] | Tabuchi M, Ado K, Sakaebe H, Masquelier C, Kageyama H, Nakamura O (1995) Preparation of AFeO2 (A = Li, Na) by hydrothermal method. Solid State Ionics 79:220 -226. https://doi.org/10.1016/0167-2738(95)00065-E | Tabuchi M, Ado K, Sakaebe H, Masquelier C, Kageyama H, Nakamura O (1995) Preparation of AFeO2 (A = Li, Na) by hydrothermal method. Solid State Ionics 79:220 -226. | ||
| 37 | 466 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p37:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.79, 575.6, 215.54, 47.31] | Tabuchi M, Nabeshima Y, Takeuchi T, Tatsumi K, Imaizumi J, Nitta Y (2010) Fe content effects on electrochemical properties of Fe-substituted Li2MnO3 positive electrode material. J Power Sources 195:834 -844. https://doi… | Tabuchi M, Nabeshima Y, Takeuchi T, Tatsumi K, Imaizumi J, Nitta Y (2010) Fe content effects on electrochemical properties of Fe-substituted Li2MnO3 positive electrode material. J Power Sources 195:834 -844. | ||
| 37 | 467 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p37:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.79, 625.6, 215.52, 37.41] | Takeda Y, Nakahara K, Nishijima M, Imanishi N, Yamamoto O, Takano M, Kanno R (1994) Sodium deintercalation from sodium iron oxide. Mater Res Bull 29:659 -666. https://doi. org/10.1016/0025-5408(94)90122-8 | Takeda Y, Nakahara K, Nishijima M, Imanishi N, Yamamoto O, Takano M, Kanno R (1994) Sodium deintercalation from sodium iron oxide. Mater Res Bull 29:659 -666. org/10.1016/0025-5408(94)90122-8 | ||
| 37 | 468 | page_header | page_header | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p37:top_margin:column_2_of_2:white | [255, 255, 255] white | True | [433.24, 34.25, 67.04, 7.44] | Page 37 of 40 160 | Page 37 of 40 160 | ||
| 37 | 469 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p37:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.89, 55.45, 215.46, 47.37] | Talaie E, Duffort V , Smith HL, Fultz B, Nazar LF (2015) Structure of the high voltage phase of layered P2-Na2/3-z[Mn1/2Fe1/ 2]O2 and the positive effect of Ni substitution on its stability. Energy Environ Sci 8:2512 -2… | Talaie E, Duffort V , Smith HL, Fultz B, Nazar LF (2015) Structure of the high voltage phase of layered P2-Na2/3-z[Mn1/2Fe1/ 2]O2 and the positive effect of Ni substitution on its stability. Energy Environ Sci 8:2512 -2… | ||
| 37 | 470 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p37:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.89, 106.18, 215.5, 37.34] | Talyosef Y, Markovsky B, Salitra G, Aurbach D, Kim HJ, Choi S (2005) The study of LiNi0.5Mn1.5O4 5-V cathodes for Liion batteries. J Power Sources 146:664 -669. https://doi. org/10.1016/j.jpowsour.2005.03.064 | Talyosef Y, Markovsky B, Salitra G, Aurbach D, Kim HJ, Choi S (2005) The study of LiNi0.5Mn1.5O4 5-V cathodes for Liion batteries. J Power Sources 146:664 -669. org/10.1016/j.jpowsour.2005.03.064 | ||
| 37 | 471 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p37:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.89, 146.88, 215.42, 27.46] | Tao L et al (2014) Preparation, structure and electrochemistry of LiFeBO3: a cathode material for Li-ion batteries. J Mater Chem A 2:2060 -2070. https://doi.org/10.1039/C3TA13021E | Tao L et al (2014) Preparation, structure and electrochemistry of LiFeBO3: a cathode material for Li-ion batteries. J Mater Chem A 2:2060 -2070. | ||
| 37 | 472 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p37:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.89, 177.6, 215.51, 27.46] | Thackeray MM, David WIF, Bruce PG, Goodenough JB (1983) Lithium insertion into manganese spinels. Mater Res Bull 18: 461 -472. https://doi.org/10.1016/0025-5408(83)90138-1 | Thackeray MM, David WIF, Bruce PG, Goodenough JB (1983) Lithium insertion into manganese spinels. Mater Res Bull 18: 461 -472. | ||
| 37 | 473 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p37:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.89, 208.33, 215.5, 37.4] | Thackeray MM, Johnson PJ, de Picciotto LA, Bruce PG, Goodenough JB (1984) Electrochemical extraction of lithium from LiMn2O4. Mater Res Bull 19:179 -187. https://doi. org/10.1016/0025-5408(84)90088-6 | Thackeray MM, Johnson PJ, de Picciotto LA, Bruce PG, Goodenough JB (1984) Electrochemical extraction of lithium from LiMn2O4. Mater Res Bull 19:179 -187. org/10.1016/0025-5408(84)90088-6 | ||
| 37 | 474 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p37:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.89, 249.08, 215.51, 37.44] | Thackeray MM, Kang S-H, Johnson CS, Vaughey JT, Benedek R, Hackney SA (2007) Li2MnO3-stabilized LiMO2 (M = Mn, Ni, Co) electrodes for lithium-ion batteries. J Mater Chem 17: 3112 -3125. https://doi.org/10.1039/B702425H | Thackeray MM, Kang S-H, Johnson CS, Vaughey JT, Benedek R, Hackney SA (2007) Li2MnO3-stabilized LiMO2 (M = Mn, Ni, Co) electrodes for lithium-ion batteries. J Mater Chem 17: 3112 -3125. | ||
| 37 | 475 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p37:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.89, 289.78, 215.49, 37.34] | Thackeray MM, Wolverton C, Isaacs ED (2012) Electrical energy storage for transportation-approaching the limits of, and going beyond, lithium-ion batteries. Energ Environ Sci 5:7854 -7863. https://doi.org/10.1039/C2EE21… | Thackeray MM, Wolverton C, Isaacs ED (2012) Electrical energy storage for transportation-approaching the limits of, and going beyond, lithium-ion batteries. Energ Environ Sci 5:7854 -7863. | ||
| 37 | 476 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p37:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.89, 330.48, 215.51, 37.4] | Thorne JS, Dunlap RA, Obrovac MN (2013) Structure and electrochemistry of NaxFexMn1-xO2 (1.0 ≤ x ≤ 0.5) for Na-Ion battery positive electrodes. J Electrochem Soc 160:A361 -A367. https://doi.org/10.1149/2.058302jes | Thorne JS, Dunlap RA, Obrovac MN (2013) Structure and electrochemistry of NaxFexMn1-xO2 (1.0 ≤ x ≤ 0.5) for Na-Ion battery positive electrodes. J Electrochem Soc 160:A361 -A367. | ||
| 37 | 477 | list_item | body_candidate_excluded | False | medium | after_back_matter_stop | after_back_matter_stop | after_stop | p37:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.89, 371.24, 215.54, 47.47] | Trad K, Carlier D, Croguennec L, Wattiaux A, Ben Amara M, Delmas C (2010a) NaMnFe2(PO4)3 alluaudite phase: synthesis, structure, and electrochemical properties as positive electrode in lithium and sodium batteries. Chem… | Trad K, Carlier D, Croguennec L, Wattiaux A, Ben Amara M, Delmas C (2010a) NaMnFe2(PO4)3 alluaudite phase: synthesis, structure, and electrochemical properties as positive electrode in lithium and sodium batteries. Chem… | ||
| 37 | 478 | list_item | body_candidate_excluded | False | medium | after_back_matter_stop | after_back_matter_stop | after_stop | p37:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.9, 421.97, 215.49, 57.35] | Trad K, Carlier D, Croguennec L, Wattiaux A, Lajmi B, Ben Amara M, Delmas C (2010b) A layered iron(III) phosphate phase, Na3Fe3(PO4)4: synthesis, structure, and electrochemical properties as positive electrode in sodium… | Trad K, Carlier D, Croguennec L, Wattiaux A, Lajmi B, Ben Amara M, Delmas C (2010b) A layered iron(III) phosphate phase, Na3Fe3(PO4)4: synthesis, structure, and electrochemical properties as positive electrode in sodium… | ||
| 37 | 479 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p37:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.9, 482.68, 215.52, 37.34] | Tripathi R, Wood SM, Islam MS, Nazar LF (2013) Na-ion mobility in layered Na2FePO4F and olivine Na[Fe,Mn]PO4. Energy Environ Sci 6:2257 -2264. https://doi.org/10.1039 /C3EE40914G | Tripathi R, Wood SM, Islam MS, Nazar LF (2013) Na-ion mobility in layered Na2FePO4F and olivine Na[Fe,Mn]PO4. Energy Environ Sci 6:2257 -2264. | ||
| 37 | 480 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p37:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.9, 523.38, 215.49, 27.46] | Tsutomu O, Yoshinari M (2001) Layered lithium insertion material of LiCo1/3Ni1/3Mn1/3O2 for lithium-ion batteries. Chem Lett 30:642 -643. https://doi.org/10.1246/cl.2001.642 | Tsutomu O, Yoshinari M (2001) Layered lithium insertion material of LiCo1/3Ni1/3Mn1/3O2 for lithium-ion batteries. Chem Lett 30:642 -643. | ||
| 37 | 481 | list_item | body_candidate_excluded | False | medium | after_back_matter_stop | after_back_matter_stop | after_stop | p37:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.9, 551.07, 215.51, 40.43] | Wang H et al (2011a) LiMn1 -xFexPO4 nanorods grown on graphene sheets for ultrahigh-rate-performance lithium ion batteries. Angew Chem Int Ed 50:7364 -7368. https://doi. org/10.1002/anie.201103163 | Wang H et al (2011a) LiMn1 -xFexPO4 nanorods grown on graphene sheets for ultrahigh-rate-performance lithium ion batteries. Angew Chem Int Ed 50:7364 -7368. org/10.1002/anie.201103163 | ||
| 37 | 482 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p37:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.91, 594.86, 215.38, 27.55] | Wang L, Li H, Huang X, Baudrin E (2011b) A comparative study of Fd-3m and P4332 B LiNi0.5Mn1.5O4 ^ . Solid State Ionics 193:32 -38. https://doi.org/10.1016/j.ssi.2011.04.007 | Wang L, Li H, Huang X, Baudrin E (2011b) A comparative study of Fd-3m and P4332 B LiNi0.5Mn1.5O4 ^ . Solid State Ionics 193:32 -38. | ||
| 37 | 483 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p37:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 625.66, 215.5, 37.34] | Wang L, Lu Y, Liu J, Xu M, Cheng J, Zhang D, Goodenough JB (2013) A superior low-cost cathode for a Na-Ion battery. Angew Chem Int Ed 52:1964 -1967. https://doi.org/10.1002 /anie.201206854 | Wang L, Lu Y, Liu J, Xu M, Cheng J, Zhang D, Goodenough JB (2013) A superior low-cost cathode for a Na-Ion battery. Angew Chem Int Ed 52:1964 -1967. | ||
| 38 | 484 | page_header | page_header | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p38:top_margin:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 34.25, 12.51, 7.44] | 160 | 160 | ||
| 38 | 485 | page_header | page_header | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p38:top_margin:column_1_of_2:white | [255, 255, 255] white | False | [67.64, 34.25, 46.28, 7.35] | Page 38 of 40 | Page 38 of 40 | ||
| 38 | 486 | list_item | body_candidate_excluded | False | medium | after_back_matter_stop | after_back_matter_stop | after_stop | p38:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 55.45, 215.49, 47.37] | Wang B, Al Abdulla W, Wang D, Zhao XS (2015a) A threedimensional porous LiFePO4 cathode material modified with a nitrogen-doped graphene aerogel for high-power lithium ion batteries. Energy Environ Sci 8:869 -875. https… | Wang B, Al Abdulla W, Wang D, Zhao XS (2015a) A threedimensional porous LiFePO4 cathode material modified with a nitrogen-doped graphene aerogel for high-power lithium ion batteries. Energy Environ Sci 8:869 -875. org/1… | ||
| 38 | 487 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p38:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 106.24, 215.51, 47.37] | Wang X, Kurono R, Nishimura S-i, Okubo M, Yamada A (2015b) Iron -oxalato framework with one-dimensional open channels for electrochemical sodium-ion intercalation. Chem Eur J 21:1096 -1101. https://doi.org/10.1002 /chem… | Wang X, Kurono R, Nishimura S-i, Okubo M, Yamada A (2015b) Iron -oxalato framework with one-dimensional open channels for electrochemical sodium-ion intercalation. Chem Eur J 21:1096 -1101. | ||
| 38 | 488 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p38:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.78, 157.04, 215.51, 37.34] | Wang F, Wu X, Li C, Zhu Y, Fu L, Wu Y, Liu X (2016) Nanostructured positive electrode materials for post-lithium ion batteries. Energy Environ Sci 9:3570 -3611. https://doi. org/10.1039/C6EE02070D | Wang F, Wu X, Li C, Zhu Y, Fu L, Wu Y, Liu X (2016) Nanostructured positive electrode materials for post-lithium ion batteries. Energy Environ Sci 9:3570 -3611. org/10.1039/C6EE02070D | ||
| 38 | 489 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p38:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.78, 197.79, 215.45, 37.44] | Wang C, Li S, Han Y, Lu Z (2017) Assembly of LiMnPO4 Nanoplates into microclusters as a high-performance cathode in lithium-ion batteries. ACS Appl Mater Interfaces 9: 27618 -27624. https://doi.org/10.1021/acsami.7b05868 | Wang C, Li S, Han Y, Lu Z (2017) Assembly of LiMnPO4 Nanoplates into microclusters as a high-performance cathode in lithium-ion batteries. ACS Appl Mater Interfaces 9: 27618 -27624. | ||
| 38 | 490 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p38:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.78, 238.55, 215.45, 47.37] | Wei S, Mortemard de Boisse B, Oyama G, Nishimura S-i, Yamada A (2016) Synthesis and electrochemistry of Na2.5(Fe1 -yMny)1.75(SO4)3 Solid solutions for Na-Ion batteries. ChemElectroChem 3:209 -213. https://doi.org/10.100… | Wei S, Mortemard de Boisse B, Oyama G, Nishimura S-i, Yamada A (2016) Synthesis and electrochemistry of Na2.5(Fe1 -yMny)1.75(SO4)3 Solid solutions for Na-Ion batteries. ChemElectroChem 3:209 -213. | ||
| 38 | 491 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p38:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.78, 289.34, 215.5, 37.4] | Wi S et al (2017a) Synchrotron-based x-ray absorption spectroscopy for the electronic structure of LixMn0.8Fe0.2PO4 mesocrystal in Li+ batteries. Nano Energy 31:495 -503. https://doi.org/10.1016/j.nanoen.2016.11.044 | Wi S et al (2017a) Synchrotron-based x-ray absorption spectroscopy for the electronic structure of LixMn0.8Fe0.2PO4 mesocrystal in Li+ batteries. Nano Energy 31:495 -503. | ||
| 38 | 492 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p38:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.78, 330.16, 215.45, 37.34] | Wi S et al (2017b) Insights on the delithiation/lithiation reactions of LixMn0.8Fe0.2PO4 mesocrystals in Li+ batteries by in situ techniques. Nano Energy 39:371 -379. https://doi. org/10.1016/j.nanoen.2017.07.016 | Wi S et al (2017b) Insights on the delithiation/lithiation reactions of LixMn0.8Fe0.2PO4 mesocrystals in Li+ batteries by in situ techniques. Nano Energy 39:371 -379. org/10.1016/j.nanoen.2017.07.016 | ||
| 38 | 493 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p38:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.78, 370.92, 215.51, 47.37] | Wood SM, Eames C, Kendrick E, Islam MS (2015) Sodium ion diffusion a n d voltage t r e n d s i n phosphates Na4M3(PO4)2P2O7 (M = Fe, Mn, Co, Ni) for possible high-rate cathodes. J Phys Chem C 119:15935 -15941. https://d… | Wood SM, Eames C, Kendrick E, Islam MS (2015) Sodium ion diffusion a n d voltage t r e n d s i n phosphates Na4M3(PO4)2P2O7 (M = Fe, Mn, Co, Ni) for possible high-rate cathodes. J Phys Chem C 119:15935 -15941. | ||
| 38 | 494 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p38:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.78, 421.71, 215.54, 47.37] | Wu X, Zheng J, Gong Z, Yang Y (2011) Sol-gel synthesis and electrochemical properties of fluorophosphates Na2Fe1xMnxPO4F/C (x = 0, 0.1, 0.3, 0.7, 1) composite as cathode materials for lithium ion battery. J Mater Chem 2… | Wu X, Zheng J, Gong Z, Yang Y (2011) Sol-gel synthesis and electrochemical properties of fluorophosphates Na2Fe1xMnxPO4F/C (x = 0, 0.1, 0.3, 0.7, 1) composite as cathode materials for lithium ion battery. J Mater Chem 2… | ||
| 38 | 495 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p38:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.79, 472.5, 215.52, 37.44] | Wu X, Guo J, Wang D, Zhong G, McDonald MJ, Yang Y (2015) P2-type Na0.66Ni0.33 -xZnxMn0.67O2 as new high-voltage cathode materials for sodium-ion batteries. J Power Sources 281:18 -26. https://doi.org/10.1016/j.jpowsour.… | Wu X, Guo J, Wang D, Zhong G, McDonald MJ, Yang Y (2015) P2-type Na0.66Ni0.33 -xZnxMn0.67O2 as new high-voltage cathode materials for sodium-ion batteries. J Power Sources 281:18 -26. | ||
| 38 | 496 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p38:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.79, 513.26, 215.51, 47.37] | Wu X, Zhong G, Yang Y (2016) Sol-gel synthesis of Na4Fe3(PO4)2(P2O7)/C nanocomposite for sodium ion batteries and new insights into microstructural evolution during sodium extraction. J Power Sources 327:666 -674. https… | Wu X, Zhong G, Yang Y (2016) Sol-gel synthesis of Na4Fe3(PO4)2(P2O7)/C nanocomposite for sodium ion batteries and new insights into microstructural evolution during sodium extraction. J Power Sources 327:666 -674. | ||
| 38 | 497 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p38:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.79, 564.05, 215.49, 27.36] | Xia Y, Zhou Y, Yoshio M (1997) Capacity fading on cycling of 4 V Li / LiMn2 O 4 Cells. J Electrochem Soc 144:2593 -2600. https://doi.org/10.1149/1.1837870 | Xia Y, Zhou Y, Yoshio M (1997) Capacity fading on cycling of 4 V Li / LiMn2 O 4 Cells. J Electrochem Soc 144:2593 -2600. | ||
| 38 | 498 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p38:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.79, 594.83, 215.51, 37.44] | Xia H, Lu L, Meng YS, Ceder G (2007) Phase transitions and high-voltage electrochemical behavior of LiCoO2 thin films grown by pulsed laser deposition. J Electrochem Soc 154: A337 -A342. https://doi.org/10.1149/1.2509021 | Xia H, Lu L, Meng YS, Ceder G (2007) Phase transitions and high-voltage electrochemical behavior of LiCoO2 thin films grown by pulsed laser deposition. J Electrochem Soc 154: A337 -A342. | ||
| 38 | 499 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p38:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.8, 635.59, 215.52, 27.36] | Xiao X, Wang L, Wang D, He X, Peng Q, Li Y (2009) Hydrothermal synthesis of orthorhombic LiMnO2 nanoparticles and LiMnO2 nanorods and comparison of their | Xiao X, Wang L, Wang D, He X, Peng Q, Li Y (2009) Hydrothermal synthesis of orthorhombic LiMnO2 nanoparticles and LiMnO2 nanorods and comparison of their | ||
| 38 | 500 | page_header | page_header | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p38:top_margin:column_2_of_2:white | [255, 255, 255] white | False | [398.16, 34.25, 102.12, 7.35] | J Nanopart Res (2018) 20: 160 | J Nanopart Res (2018) 20: 160 | ||
| 38 | 501 | list_item | body_heading | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p38:top_margin:column_2_of_2:white | [255, 255, 255] white | False | [301.84, 53.85, 198.44, 18.93] | electrochemical performances. Nano Res 2:923 -930. https://doi.org/10.1007/s12274-009-9094-8 | electrochemical performances. Nano Res 2:923 -930. | ||
| 38 | 502 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p38:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 75.46, 215.42, 37.34] | Xiao J et al (2012) High-performance LiNi0.5Mn1.5O4 spinel controlled by Mn3+concentration and site disorder. Adv Mater 24:2109 -2116. https://doi.org/10.1002 /adma.201104767 | Xiao J et al (2012) High-performance LiNi0.5Mn1.5O4 spinel controlled by Mn3+concentration and site disorder. Adv Mater 24:2109 -2116. | ||
| 38 | 503 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p38:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 115.48, 215.46, 37.44] | Xu M et al (2017a) Tailoring anisotropic Li-Ion transport tunnels on orthogonally arranged Li-rich layered oxide nanoplates toward high-performance Li-Ion batteries. Nano Lett 17: 1670 -1677. https://doi.org/10.1021/acs… | Xu M et al (2017a) Tailoring anisotropic Li-Ion transport tunnels on orthogonally arranged Li-rich layered oxide nanoplates toward high-performance Li-Ion batteries. Nano Lett 17: 1670 -1677. | ||
| 38 | 504 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p38:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.89, 155.5, 215.55, 37.34] | Xu X, Deng S, Wang H, Liu J, Yan H (2017b) Research progress in improving the cycling stability of high-voltage LiNi0.5Mn1.5O4 cathode in lithium-ion battery. NanoMicro Lett 9:22. https://doi.org/10.1007/s40820-016-0123… | Xu X, Deng S, Wang H, Liu J, Yan H (2017b) Research progress in improving the cycling stability of high-voltage LiNi0.5Mn1.5O4 cathode in lithium-ion battery. NanoMicro Lett 9:22. | ||
| 38 | 505 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p38:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.89, 195.47, 215.55, 47.37] | Yabuuchi N, Yoshii K, Myung S-T, Nakai I, Komaba S (2011) Detailed studies of a high-capacity electrode material for rechargeable batteries, Li2MnO3 -LiCo1/3Ni1/3Mn1/3O2. J Am Chem Soc 133:4404 -4419. https://doi.org/10… | Yabuuchi N, Yoshii K, Myung S-T, Nakai I, Komaba S (2011) Detailed studies of a high-capacity electrode material for rechargeable batteries, Li2MnO3 -LiCo1/3Ni1/3Mn1/3O2. J Am Chem Soc 133:4404 -4419. | ||
| 38 | 506 | list_item | body_candidate_excluded | False | medium | after_back_matter_stop | after_back_matter_stop | after_stop | p38:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 245.52, 215.52, 47.31] | Yabuuchi N et al (2012a) P2-type Nax[Fe1/2Mn1/2]O2 made from earth-abundant elements for rechargeable Na batteries. Nat Mater 11:512 -517 ht t p : / / w w w. n a t u r e . c o m / n m a t / j o u r n a l / v 1 1 / n 6 /… | Yabuuchi N et al (2012a) P2-type Nax[Fe1/2Mn1/2]O2 made from earth-abundant elements for rechargeable Na batteries. Nat Mater 11:512 -517 ht t p : / / w w w. n a t u r e . c o m / n m a t / j o u r n a l / v 1 1 / n 6 /… | ||
| 38 | 507 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p38:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 295.52, 215.53, 37.34] | Yabuuchi N, Yoshida H, Komaba S (2012b) Crystal Structures and Electrode Performance of Alpha-NaFeO<sub>2</sub> for Rechargeable Sodium Batteries. Electrochemistry 80:716 -719. https://doi.org/10.5796/electrochemistry.8… | Yabuuchi N, Yoshida H, Komaba S (2012b) Crystal Structures and Electrode Performance of Alpha-NaFeO<sub>2</sub> for Rechargeable Sodium Batteries. Electrochemistry 80:716 -719. | ||
| 38 | 508 | list_item | body_candidate_excluded | False | medium | after_back_matter_stop | after_back_matter_stop | after_stop | p38:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 335.54, 215.45, 47.31] | Yabuuchi N, Hara R, Kubota K, Paulsen J, Kumakura S, Komaba S (2014a) A new electrode material for rechargeable sodium batteries: P2-type Na2/3[Mg0.28Mn0.72]O2 with anomalously high reversible capacity. J Mater Chem A 2… | Yabuuchi N, Hara R, Kubota K, Paulsen J, Kumakura S, Komaba S (2014a) A new electrode material for rechargeable sodium batteries: P2-type Na2/3[Mg0.28Mn0.72]O2 with anomalously high reversible capacity. J Mater Chem A 2… | ||
| 38 | 509 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p38:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.89, 385.53, 215.37, 27.46] | Yabuuchi N, Kubota K, Dahbi M, Komaba S (2014b) Research development on sodium-ion batteries. Chem Rev 114: 11636 -11682. https://doi.org/10.1021/cr500192f | Yabuuchi N, Kubota K, Dahbi M, Komaba S (2014b) Research development on sodium-ion batteries. Chem Rev 114: 11636 -11682. | ||
| 38 | 510 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p38:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.9, 415.52, 215.44, 37.4] | Yakubovich OV, Karimova OV, Mel'nikov OK (1997) The mixed anionic framework in the structure of Na2{MnF[PO4]}. Acta Crystallogr C 53:395 -397. https://doi.org/10.1107 /S0108270196014102 | Yakubovich OV, Karimova OV, Mel'nikov OK (1997) The mixed anionic framework in the structure of Na2{MnF[PO4]}. Acta Crystallogr C 53:395 -397. | ||
| 38 | 511 | list_item | body_candidate_excluded | False | medium | after_back_matter_stop | after_back_matter_stop | after_stop | p38:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.91, 455.54, 215.43, 37.34] | Yamada A, Kudo Y, Liu K-Y (2001) Reaction mechanism of the olivine-type Li x ( Mn0.6Fe0.4 ) PO 4 ( 0 ⩽ x ⩽ 1 ). J Electrochem Soc 148:A747 -A754. https://doi.org/10.1149 /1.1375167 | Yamada A, Kudo Y, Liu K-Y (2001) Reaction mechanism of the olivine-type Li x ( Mn0.6Fe0.4 ) PO 4 ( 0 ⩽ x ⩽ 1 ). J Electrochem Soc 148:A747 -A754. | ||
| 38 | 512 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p38:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.92, 495.56, 215.52, 37.34] | Yamada A, Iwane N, Harada Y, Nishimura S-i, Koyama Y, Tanaka I (2010) Lithium iron borates as high-capacity battery electrodes. Adv Mater 22:3583 -3587. https://doi.org/10.1002 /adma.201001039 | Yamada A, Iwane N, Harada Y, Nishimura S-i, Koyama Y, Tanaka I (2010) Lithium iron borates as high-capacity battery electrodes. Adv Mater 22:3583 -3587. | ||
| 38 | 513 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p38:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.93, 535.58, 215.52, 37.44] | Yan S-Y, Wang C-Y, Gu R-M, Li M-W (2015) Enhanced kinetic behaviors of LiMn0.5Fe0.5PO4/C cathode material by Fe substitution and carbon coating. J Solid State Electrochem 19:2943 -2950. https://doi.org/10.1007/s10008-01… | Yan S-Y, Wang C-Y, Gu R-M, Li M-W (2015) Enhanced kinetic behaviors of LiMn0.5Fe0.5PO4/C cathode material by Fe substitution and carbon coating. J Solid State Electrochem 19:2943 -2950. | ||
| 38 | 514 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p38:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.93, 575.6, 215.47, 47.31] | Yang J, Han X, Zhang X, Cheng F, Chen J (2013) Spinel LiNi0.5Mn1.5O4 cathode for rechargeable lithiumion batteries: nano vs micro, ordered phase (P4332) vs disordered phase (Fd $\bar 3$ m). Nano Res. https://doi.org/10.… | Yang J, Han X, Zhang X, Cheng F, Chen J (2013) Spinel LiNi0.5Mn1.5O4 cathode for rechargeable lithiumion batteries: nano vs micro, ordered phase (P4332) vs disordered phase (Fd $\bar 3$ m). Nano Res. | ||
| 38 | 515 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p38:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.93, 625.6, 215.53, 37.34] | Yang D, Xu J, Liao X-Z, Wang H, He Y-S, Ma Z-F (2015a) Prussian blue without coordinated water as a superior cathode for sodium-ion batteries. Chem Commun 51:8181 -8184. https://doi.org/10.1039/C5CC01180A | Yang D, Xu J, Liao X-Z, Wang H, He Y-S, Ma Z-F (2015a) Prussian blue without coordinated water as a superior cathode for sodium-ion batteries. Chem Commun 51:8181 -8184. | ||
| 39 | 516 | page_header | page_header | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p39:top_margin:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 34.25, 102.17, 7.35] | J Nanopart Res (2018) 20: 160 | J Nanopart Res (2018) 20: 160 | ||
| 39 | 517 | list_item | body_candidate_excluded | False | medium | after_back_matter_stop | after_back_matter_stop | after_stop | p39:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 55.45, 215.46, 37.34] | Yang J, Hu L, Zheng J, He D, Tian L, Mu S, Pan F (2015b) Li2FeSiO4 nanorods bonded with graphene for high performance batteries. J Mater Chem A 3:9601 -9608. https://doi. org/10.1039/C5TA01529D | Yang J, Hu L, Zheng J, He D, Tian L, Mu S, Pan F (2015b) Li2FeSiO4 nanorods bonded with graphene for high performance batteries. J Mater Chem A 3:9601 -9608. org/10.1039/C5TA01529D | ||
| 39 | 518 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p39:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 96.21, 215.53, 47.37] | Yang W et al (2015c) LiMn0.8Fe0.2PO4/C cathode material synthesized via co-precipitation method with superior high-rate and low-temperature performances for lithium-ion batteries. J Power Sources 275:785 -791. https://d… | Yang W et al (2015c) LiMn0.8Fe0.2PO4/C cathode material synthesized via co-precipitation method with superior high-rate and low-temperature performances for lithium-ion batteries. J Power Sources 275:785 -791. | ||
| 39 | 519 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p39:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.78, 147.0, 215.55, 37.4] | Yang J et al (2016) Tuning structural stability and lithium-storage properties by d-orbital hybridization substitution in full tetrahedron Li2FeSiO4 nanocrystal. Nano Energy 20:117 -125. https://doi.org/10.1016/j.nanoen… | Yang J et al (2016) Tuning structural stability and lithium-storage properties by d-orbital hybridization substitution in full tetrahedron Li2FeSiO4 nanocrystal. Nano Energy 20:117 -125. | ||
| 39 | 520 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p39:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.78, 187.82, 215.47, 37.34] | Yao W, Sougrati M-T, Hoang K, Hui J, Lightfoot P, Armstrong AR (2017a) Na2Fe(C2O4)F2: a new iron-based polyoxyanion cathode for Li/Na ion batteries. Chem Mater 29:2167 -2172. https://doi.org/10.1021/acs.chemmater.6b04859 | Yao W, Sougrati M-T, Hoang K, Hui J, Lightfoot P, Armstrong AR (2017a) Na2Fe(C2O4)F2: a new iron-based polyoxyanion cathode for Li/Na ion batteries. Chem Mater 29:2167 -2172. | ||
| 39 | 521 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p39:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.78, 228.58, 215.5, 47.37] | Yao W, Sougrati M-T, Hoang K, Hui J, Lightfoot P, Armstrong AR (2017b) Reinvestigation of Na2Fe2(C2O4)3·2H2O: an ironbased positive electrode for secondary batteries. Chem Mater 29:9095 -9101. https://doi.org/10.1021/ac… | Yao W, Sougrati M-T, Hoang K, Hui J, Lightfoot P, Armstrong AR (2017b) Reinvestigation of Na2Fe2(C2O4)3·2H2O: an ironbased positive electrode for secondary batteries. Chem Mater 29:9095 -9101. | ||
| 39 | 522 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p39:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.78, 279.37, 215.55, 37.34] | Ye DL, Ozawa K, Wang B, Hulicova-Jurcakova D, Zou J, Sun CH, Wang LZ (2014a) Capacity-controllable Li-rich cathode materials for lithium-ion batteries. Nano Energy 6:92 -102. https://doi.org/10.1016/j.nanoen.2014.03.013 | Ye DL, Ozawa K, Wang B, Hulicova-Jurcakova D, Zou J, Sun CH, Wang LZ (2014a) Capacity-controllable Li-rich cathode materials for lithium-ion batteries. Nano Energy 6:92 -102. | ||
| 39 | 523 | list_item | body_candidate_excluded | False | medium | after_back_matter_stop | after_back_matter_stop | after_stop | p39:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.78, 320.13, 215.53, 37.4] | Ye DL et al (2014b) Understanding the stepwise capacity increase of high energy low-Co Li-rich cathode materials for lithium ion batteries. J Mater Chem A 2:18767 -18774. https://doi. org/10.1039/c4ta03692a | Ye DL et al (2014b) Understanding the stepwise capacity increase of high energy low-Co Li-rich cathode materials for lithium ion batteries. J Mater Chem A 2:18767 -18774. org/10.1039/c4ta03692a | ||
| 39 | 524 | list_item | body_candidate_excluded | False | medium | after_back_matter_stop | after_back_matter_stop | after_stop | p39:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.78, 360.94, 215.5, 47.31] | Ye D, Zeng G, Nogita K, Ozawa K, Hankel M, Searles DJ, Wang L (2015a) Understanding the origin of Li2MnO3 activation in Li-rich cathode materials for lithium-ion batteries. Adv Funct Mater 25:7488 -7496. https://doi.org… | Ye D, Zeng G, Nogita K, Ozawa K, Hankel M, Searles DJ, Wang L (2015a) Understanding the origin of Li2MnO3 activation in Li-rich cathode materials for lithium-ion batteries. Adv Funct Mater 25:7488 -7496. | ||
| 39 | 525 | list_item | body_candidate_excluded | False | medium | after_back_matter_stop | after_back_matter_stop | after_stop | p39:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.78, 411.68, 215.54, 47.37] | Ye DL, Sun CH, Chen Y, Ozawa K, Hulicova-Jurcakova D, Zou J, Wang LZ (2015b) Ni-induced stepwise capacity increase in Ni-poor Li-rich cathode materials for high performance lithium ion batteries. Nano Res 8:808 -820. ht… | Ye DL, Sun CH, Chen Y, Ozawa K, Hulicova-Jurcakova D, Zou J, Wang LZ (2015b) Ni-induced stepwise capacity increase in Ni-poor Li-rich cathode materials for high performance lithium ion batteries. Nano Res 8:808 -820. or… | ||
| 39 | 526 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p39:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 462.47, 215.53, 37.4] | Yi T-F, Xie Y , Ye M-F, Jiang L-J, Zhu R-S, Zhu Y-R (2011) Recent developments in the doping of LiNi0.5Mn1.5O4 cathode material for 5 V lithium-ion batteries. Ionics 17:383 -389. https://doi.org/10.1007/s11581-011-0550-6 | Yi T-F, Xie Y , Ye M-F, Jiang L-J, Zhu R-S, Zhu Y-R (2011) Recent developments in the doping of LiNi0.5Mn1.5O4 cathode material for 5 V lithium-ion batteries. Ionics 17:383 -389. | ||
| 39 | 527 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p39:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 503.28, 215.5, 47.31] | Yi T-F, Mei J, Zhu Y-R (2016) Key strategies for enhancing the cycling stability and rate capacity of LiNi0.5Mn1.5O4 as high-voltage cathode materials for high power lithium-ion batteries. J Power Sources 316:85 -105. h… | Yi T-F, Mei J, Zhu Y-R (2016) Key strategies for enhancing the cycling stability and rate capacity of LiNi0.5Mn1.5O4 as high-voltage cathode materials for high power lithium-ion batteries. J Power Sources 316:85 -105. o… | ||
| 39 | 528 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p39:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.78, 554.02, 215.52, 37.5] | Yoo H, Jo M, Jin B-S, Kim H-S, Cho J (2011) Flexible morphology design of 3D-macroporous LiMnPO4 cathode materials for Li secondary batteries: ball to flake. Adv Energy Mater 1: 347 -351. https://doi.org/10.1002/aenm.20… | Yoo H, Jo M, Jin B-S, Kim H-S, Cho J (2011) Flexible morphology design of 3D-macroporous LiMnPO4 cathode materials for Li secondary batteries: ball to flake. Adv Energy Mater 1: 347 -351. | ||
| 39 | 529 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p39:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.78, 594.83, 215.46, 37.44] | You Y, Wu X-L, Yin Y-X, Guo Y-G (2014) High-quality Prussian blue crystals as superior cathode materials for roomtemperature sodium-ion batteries. Energ Environ Sci 7: 1643 -1647. https://doi.org/10.1039/C3EE44004D | You Y, Wu X-L, Yin Y-X, Guo Y-G (2014) High-quality Prussian blue crystals as superior cathode materials for roomtemperature sodium-ion batteries. Energ Environ Sci 7: 1643 -1647. | ||
| 39 | 530 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p39:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.79, 635.59, 215.45, 27.36] | Yu H, Ishikawa R, So Y-G, Shibata N, Kudo T, Zhou H, Ikuhara Y (2013) Direct atomic-resolution observation of two phases in the Li1.2Mn0.567Ni0.166Co0.067O2 cathode material for | Yu H, Ishikawa R, So Y-G, Shibata N, Kudo T, Zhou H, Ikuhara Y (2013) Direct atomic-resolution observation of two phases in the Li1.2Mn0.567Ni0.166Co0.067O2 cathode material for | ||
| 39 | 531 | page_header | page_header | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p39:top_margin:column_2_of_2:white | [255, 255, 255] white | True | [433.24, 34.25, 67.04, 7.44] | Page 39 of 40 160 | Page 39 of 40 160 | ||
| 39 | 532 | list_item | page_margin_header | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p39:top_margin:column_2_of_2:white | [255, 255, 255] white | False | [301.85, 53.86, 198.49, 18.86] | lithium-ion batteries. Angew Chem Int Ed 52:5969 -5973. https://doi.org/10.1002/anie.201301236 | lithium-ion batteries. Angew Chem Int Ed 52:5969 -5973. | ||
| 39 | 533 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p39:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.9, 75.4, 215.47, 47.54] | Yu T, Lin B, Li Q, Wang X, Qu W, Zhang S, Deng C (2016) First exploration of freestanding and flexible Na2+2xFe2x(SO4)3@porous carbon nanofiber hybrid films with superior sodium intercalation for sodium ion batteries. P… | Yu T, Lin B, Li Q, Wang X, Qu W, Zhang S, Deng C (2016) First exploration of freestanding and flexible Na2+2xFe2x(SO4)3@porous carbon nanofiber hybrid films with superior sodium intercalation for sodium ion batteries. P… | ||
| 39 | 534 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p39:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.87, 125.47, 215.52, 47.37] | Zaghib K, Trottier J, Hovington P, Brochu F, Guerfi A, Mauger A, Julien CM (2011) Characterization of Na-based phosphate as electrode materials for electrochemical cells. J Power Sources 196:9612 -9617. h t t p s : / / … | Zaghib K, Trottier J, Hovington P, Brochu F, Guerfi A, Mauger A, Julien CM (2011) Characterization of Na-based phosphate as electrode materials for electrochemical cells. J Power Sources 196:9612 -9617. h t t p s : / / … | ||
| 39 | 535 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p39:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 175.46, 215.53, 47.37] | Zhang L, Wu HB, Madhavi S, Hng HH, Lou XW (2012) Formation of Fe2O3 microboxes with hierarchical shell structures from metal -organic frameworks and their lithium storage properties. J Am Chem Soc 134:17388 -17391. http… | Zhang L, Wu HB, Madhavi S, Hng HH, Lou XW (2012) Formation of Fe2O3 microboxes with hierarchical shell structures from metal -organic frameworks and their lithium storage properties. J Am Chem Soc 134:17388 -17391. | ||
| 39 | 536 | list_item | body_candidate_excluded | False | medium | after_back_matter_stop | after_back_matter_stop | after_stop | p39:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.9, 225.52, 215.49, 37.34] | Zhang X, Cheng F, Yang J, Chen J (2013a) LiNi0.5Mn1.5O4 porous nanorods as high-rate and long-life cathodes for Liion batteries. Nano Lett 13:2822 -2825. https://doi. org/10.1021/nl401072x | Zhang X, Cheng F, Yang J, Chen J (2013a) LiNi0.5Mn1.5O4 porous nanorods as high-rate and long-life cathodes for Liion batteries. Nano Lett 13:2822 -2825. org/10.1021/nl401072x | ||
| 39 | 537 | list_item | body_candidate_excluded | False | medium | after_back_matter_stop | after_back_matter_stop | after_stop | p39:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.9, 265.48, 215.49, 37.4] | Zhang X, Cheng F, Yang J, Chen J (2013b) LiNi(0.5)Mn(1.5)O4 porous nanorods as high-rate and long-life cathodes for Liion batteries. Nano Lett 13:2822 -2825. https://doi. org/10.1021/nl401072x | Zhang X, Cheng F, Yang J, Chen J (2013b) LiNi(0.5)Mn(1.5)O4 porous nanorods as high-rate and long-life cathodes for Liion batteries. Nano Lett 13:2822 -2825. org/10.1021/nl401072x | ||
| 39 | 538 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p39:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.9, 305.5, 215.49, 37.4] | Zhang K, Han X, Hu Z, Zhang X, Tao Z, Chen J (2015a) Nanostructured Mn-based oxides for electrochemical energy storage and conversion. Chem Soc Rev 44:699 -728. https://doi.org/10.1039/C4CS00218K | Zhang K, Han X, Hu Z, Zhang X, Tao Z, Chen J (2015a) Nanostructured Mn-based oxides for electrochemical energy storage and conversion. Chem Soc Rev 44:699 -728. | ||
| 39 | 539 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p39:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.9, 345.52, 215.48, 37.34] | Zhang L, Ni J, Wang W, Guo J, Li L (2015b) 3D porous hierarchical Li2FeSiO4/C for rechargeable lithium batteries. J Mater Chem A 3:11782 -11786. https://doi.org/10.1039/C5 TA02433A | Zhang L, Ni J, Wang W, Guo J, Li L (2015b) 3D porous hierarchical Li2FeSiO4/C for rechargeable lithium batteries. J Mater Chem A 3:11782 -11786. | ||
| 39 | 540 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p39:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.9, 385.54, 215.52, 37.34] | Zhang Z et al (2017) First-principles computational studies on layered Na2Mn3O7 as a high-rate cathode material for sodium ion batteries. J Mater Chem A 5:12752 -12756. https://doi.org/10.1039/C7TA02609A | Zhang Z et al (2017) First-principles computational studies on layered Na2Mn3O7 as a high-rate cathode material for sodium ion batteries. J Mater Chem A 5:12752 -12756. | ||
| 39 | 541 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p39:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.9, 425.56, 215.54, 37.34] | Zhao J, Zhao L, Dimov N, Okada S, Nishida T (2013) Electrochemical and thermal properties of α -NaFeO2 cathode for Na-ion batteries. J Electrochem Soc 160:A3077 -A3081. https://doi.org/10.1149/2.007305jes | Zhao J, Zhao L, Dimov N, Okada S, Nishida T (2013) Electrochemical and thermal properties of α -NaFeO2 cathode for Na-ion batteries. J Electrochem Soc 160:A3077 -A3081. | ||
| 39 | 542 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p39:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.91, 465.52, 215.41, 27.36] | Zhao Y, Peng L, Liu B, Yu G (2014) Single-crystalline LiFePO4 nanosheets for high-rate Li-Ion batteries. Nano Lett 14:2849 -2853. https://doi.org/10.1021/nl5008568 | Zhao Y, Peng L, Liu B, Yu G (2014) Single-crystalline LiFePO4 nanosheets for high-rate Li-Ion batteries. Nano Lett 14:2849 -2853. | ||
| 39 | 543 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p39:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.91, 495.57, 215.38, 27.36] | Zheng J et al (2017) Liand Mn-Rich Cathode Materials: Challenges to Commercialization. Adv Energy Mater 7: 1601284. https://doi.org/10.1002/aenm.201601284 | Zheng J et al (2017) Liand Mn-Rich Cathode Materials: Challenges to Commercialization. Adv Energy Mater 7: 1601284. | ||
| 39 | 544 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p39:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.91, 525.55, 215.43, 37.4] | Zhong QM, Bonakdarpour A, Zhang MJ, Gao Y, Dahn JR (1997) Synthesis and electrochemistry of LiNixMn2-xO4. J Electrochem Soc 144:205 -213. https://doi.org/10.1149 /1.1837386 | Zhong QM, Bonakdarpour A, Zhang MJ, Gao Y, Dahn JR (1997) Synthesis and electrochemistry of LiNixMn2-xO4. J Electrochem Soc 144:205 -213. | ||
| 39 | 545 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p39:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.91, 565.58, 215.44, 37.34] | Zhou F, Kang K, Maxisch T, Ceder G, Morgan D (2004) The electronic structure and band gap of LiFePO4 and LiMnPO4. Solid State Commun 132:181 -186. https://doi.org/10.1016/j. ssc.2004.07.055 | Zhou F, Kang K, Maxisch T, Ceder G, Morgan D (2004) The electronic structure and band gap of LiFePO4 and LiMnPO4. Solid State Commun 132:181 -186. | ||
| 39 | 546 | list_item | metadata | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p39:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.91, 605.6, 215.48, 37.34] | Zhou L, Zhao D, Lou X (2012) LiNi0.5Mn1.5O4 hollow structures as high-performance cathodes for lithium-ion batteries. Angew Chem Int Ed 51:239 -241. https://doi.org/10.1002 /anie.201106998 | Zhou L, Zhao D, Lou X (2012) LiNi0.5Mn1.5O4 hollow structures as high-performance cathodes for lithium-ion batteries. Angew Chem Int Ed 51:239 -241. | ||
| 39 | 547 | list_item | unknown_text | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p39:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.9, 645.62, 215.42, 17.33] | Zhou L et al (2017) Recent Developments on and prospects for electrode materials with hierarchical structures for lithium- | Zhou L et al (2017) Recent Developments on and prospects for electrode materials with hierarchical structures for lithium- | ||

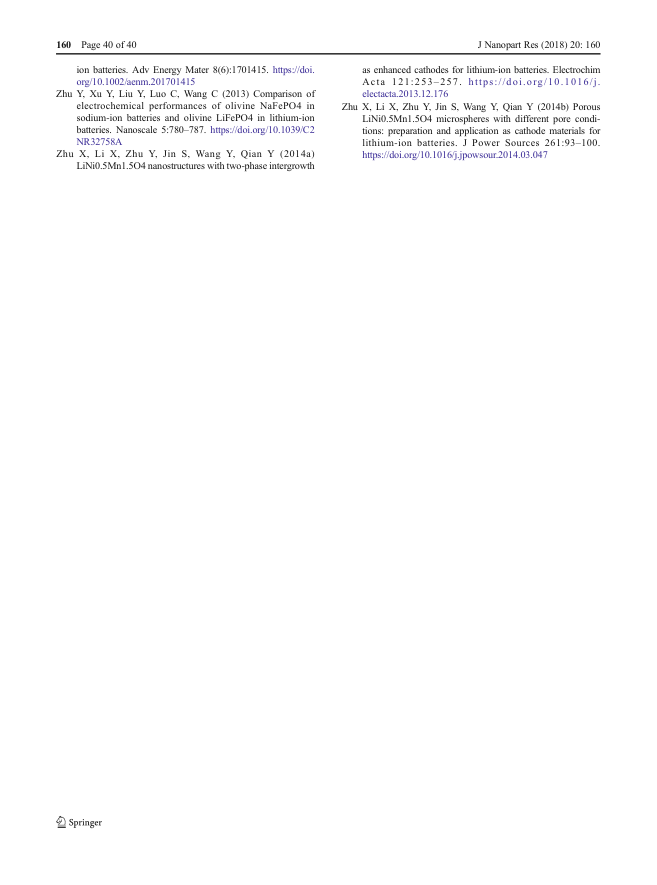

| 40 | 548 | page_header | page_header | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p40:top_margin:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 34.25, 12.51, 7.44] | 160 | 160 | ||
| 40 | 549 | page_header | page_header | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p40:top_margin:column_1_of_2:white | [255, 255, 255] white | False | [67.64, 34.25, 46.28, 7.35] | Page 40 of 40 | Page 40 of 40 | ||
| 40 | 550 | list_item | unknown_text | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p40:page_body:column_1_of_2:white | [255, 255, 255] white | False | [63.72, 55.45, 198.5, 17.33] | ion batteries. Adv Energy Mater 8(6):1701415. https://doi. org/10.1002/aenm.201701415 | ion batteries. Adv Energy Mater 8(6):1701415. org/10.1002/aenm.201701415 | ||
| 40 | 551 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p40:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.77, 75.46, 215.5, 47.37] | Zhu Y, Xu Y, Liu Y, Luo C, Wang C (2013) Comparison of electrochemical performances of olivine NaFePO4 in sodium-ion batteries and olivine LiFePO4 in lithium-ion batteries. Nanoscale 5:780 -787. https://doi.org/10.1039/… | Zhu Y, Xu Y, Liu Y, Luo C, Wang C (2013) Comparison of electrochemical performances of olivine NaFePO4 in sodium-ion batteries and olivine LiFePO4 in lithium-ion batteries. Nanoscale 5:780 -787. | ||
| 40 | 552 | list_item | affiliation | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p40:page_body:column_1_of_2:white | [255, 255, 255] white | False | [46.78, 125.46, 215.43, 17.39] | Zhu X, Li X, Zhu Y, Jin S, Wang Y, Qian Y (2014a) LiNi0.5Mn1.5O4 nanostructures with two-phase intergrowth | Zhu X, Li X, Zhu Y, Jin S, Wang Y, Qian Y (2014a) LiNi0.5Mn1.5O4 nanostructures with two-phase intergrowth | ||
| 40 | 553 | page_header | page_header | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p40:top_margin:column_2_of_2:white | [255, 255, 255] white | False | [398.16, 34.25, 102.12, 7.35] | J Nanopart Res (2018) 20: 160 | J Nanopart Res (2018) 20: 160 | ||
| 40 | 554 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p40:page_body:column_2_of_2:white | [255, 255, 255] white | False | [301.83, 55.44, 198.49, 27.36] | as enhanced cathodes for lithium-ion batteries. Electrochim Acta 121:253 -257. https://doi.org/10.1016/j. electacta.2013.12.176 | as enhanced cathodes for lithium-ion batteries. Electrochim Acta 121:253 -257. electacta.2013.12.176 | ||
| 40 | 555 | list_item | reference | False | low | after_back_matter_stop | after_back_matter_stop | after_stop | p40:page_body:column_2_of_2:white | [255, 255, 255] white | False | [284.88, 86.45, 215.46, 47.37] | Zhu X, Li X, Zhu Y, Jin S, Wang Y, Qian Y (2014b) Porous LiNi0.5Mn1.5O4 microspheres with different pore conditions: preparation and application as cathode materials for lithium-ion batteries. J Power Sources 261:93 -10… | Zhu X, Li X, Zhu Y, Jin S, Wang Y, Qian Y (2014b) Porous LiNi0.5Mn1.5O4 microspheres with different pore conditions: preparation and application as cathode materials for lithium-ion batteries. J Power Sources 261:93 -10… |
