Docling layout block audit

original.pdf docling.json layout_blocks.json layout_blocks.tsv layout_blocks.jsonl excluded_blocks.html excluded_blocks.tsv final_body_blocks.tsv visual_assets.tsv visual_assets.json

Summary

{
  "blocks": 105,
  "included_in_body": 1,
  "gray_background_blocks": 4,
  "framed_blocks": 0,
  "by_role_guess": {
    "page_header": 13,
    "front_matter_heading": 3,
    "title_candidate": 2,
    "unknown_text": 3,
    "metadata": 1,
    "body_candidate_excluded": 2,
    "body": 1,
    "abstract_heading": 1,
    "abstract_candidate": 20,
    "reference": 39,
    "footnote": 2,
    "page_footer": 8,
    "caption": 5,
    "back_matter_heading": 4,
    "back_matter_text": 1
  },
  "by_docling_label": {
    "page_header": 13,
    "text": 32,
    "section_header": 8,
    "footnote": 2,
    "page_footer": 8,
    "caption": 5,
    "list_item": 37
  },
  "by_body_decision_reason": {
    "docling_page_header": 11,
    "first_page_metadata": 7,
    "non_body_heading": 2,
    "outside_body_flow": 3,
    "before_body_started": 1,
    "body_before_non_intro_heading": 1,
    "front_matter_heading": 2,
    "abstract_heading": 1,
    "inside_abstract": 20,
    "outside_body_flow_caption": 5,
    "docling_page_footer": 4,
    "back_matter_heading": 1,
    "after_back_matter_stop": 47
  },
  "visual_assets": {
    "count": 5,
    "indexable_count": 5,
    "suppressed_count": 0,
    "by_type": {
      "figure": 5
    },
    "by_caption_source": {
      "direct_caption_ref": 5
    },
    "by_duplicate_reason": {
      "": 5
    },
    "missing_caption_count": 0
  }
}

Diff Summary

{
  "parsed_text_blocks": 105,
  "final_body_blocks": 1,
  "excluded_blocks": {
    "count": 104,
    "by_reason": {
      "after_back_matter_stop": 47,
      "inside_abstract": 20,
      "docling_page_header": 11,
      "first_page_metadata": 7,
      "outside_body_flow_caption": 5,
      "docling_page_footer": 4,
      "outside_body_flow": 3,
      "front_matter_heading": 2,
      "non_body_heading": 2,
      "abstract_heading": 1,
      "back_matter_heading": 1,
      "before_body_started": 1
    },
    "by_role_guess": {
      "reference": 39,
      "abstract_candidate": 20,
      "page_header": 13,
      "page_footer": 8,
      "caption": 5,
      "back_matter_heading": 4,
      "front_matter_heading": 3,
      "unknown_text": 3,
      "body_candidate_excluded": 2,
      "footnote": 2,
      "title_candidate": 2,
      "abstract_heading": 1,
      "back_matter_text": 1,
      "metadata": 1
    },
    "by_risk_level": {
      "low": 79,
      "medium": 24,
      "high": 1
    },
    "high_risk_count": 1,
    "medium_risk_count": 24
  },
  "char_counts": {
    "parsed_text_chars": 26099,
    "final_body_chars": 401,
    "excluded_chars": 25698
  }
}

Truncation

{
  "truncated": true,
  "message": "Body extraction stopped at page 6 block #/texts/53: Declaration of Competing Interest. 47 following text blocks were excluded as after_back_matter_stop.",
  "stop_trigger": {
    "ref": "#/texts/53",
    "page": 6,
    "layout_order": 57,
    "role_guess": "back_matter_heading",
    "body_decision_reason": "back_matter_heading",
    "text_preview": "Declaration of Competing Interest"
  },
  "first_truncated_block": {
    "ref": "#/texts/54",
    "page": 6,
    "layout_order": 58,
    "role_guess": "body_candidate_excluded",
    "body_decision_reason": "after_back_matter_stop",
    "text_preview": "The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper."
  },
  "truncated_block_count": 47,
  "truncated_pages": [
    6,
    7
  ],
  "by_role_guess": {
    "reference": 38,
    "back_matter_heading": 3,
    "page_footer": 2,
    "page_header": 2,
    "back_matter_text": 1,
    "body_candidate_excluded": 1
  }
}

Page Overlays

Green = final body chunks. Orange/purple asset boxes = actual figure/table assets used by ingestion. Cyan dashed text boxes = text blocks consumed by those assets as caption continuations. Red STOP = truncation trigger. Red boxes = blocks after truncation.

Page 1

Page 2

Page 3

Page 4

Page 5

Page 6

Page 7

Visual Assets

这里对齐真实图表资产提取链路。caption_source=embedded_table_cell 表示表注来自 Docling table cell,不会出现在 text block 审计差集里;caption_continuation_used_by_asset 表示某个 text block 已被图表 caption 吸收,不应按普通 metadata 解读。

#typelabelpagecaption sourcesuppressedduplicate reasonrescue reasongroupconfidencebboxcaption
1figureFig. 12direct_caption_ref0.82[107.21, 75.21, 380.04, 625.13]Fig. 1. Powder XRD patterns (a) and the (003) peaks (b) of LLNCMO and LTO@LLNCMO. SEM images of LLNCMO (c) and LTO@LLNCMO (d). TEM images of LLNCMO (e) and LTO@LLNCMO (f). HRTEM images of LLNCMO (g) and LTO@LLNCMO (h)
2figureFig. 23direct_caption_ref0.82[39.22, 58.99, 247.87, 331.03]Fig. 2. HADDF-STEM images of LLNCMO (a) and LTO@LLNCMO (f) particles and the corresponding element mapping: (b, g) Ni, (c, h) Co, (d, i) Mn, (e, j) O, (k) Ti.
3figureFig. 33direct_caption_ref0.82[146.34, 435.6, 301.87, 276.16]Fig. 3. (a) Atomic scale HAADF-STEM images of LLNCMO particles and the corresponding FFT pattern (the inset image). (b) Atomic scale HAADF-STEM image of LTO@LLNCMO sample; (c,d) the enlarged view of red region from (b) and the corresponding FFT pattern, which show the layered structure of LLNCMO; (e,f) the enlarged view of the coating layer (blue region from (b)) and the corresponding FFT pattern, which show the spinel structure of LTO. (g) The scheme of lithium ions through ultrathin LTO coating.
4figureFig. 44direct_caption_ref0.82[308.03, 56.76, 243.7, 583.81]Fig. 4. XPS peaks of (a) Mn3s; (b) O1s; (c) Ti2p in LLNCMO and LTO@LLNCMO.
5figureFig. 55direct_caption_ref0.82[51.68, 57.56, 490.53, 376.52]Fig. 5. The electrochemical performances of LLNCMO and LTO@LLNCMO cathodes: (a) the charge and discharge curves in the first three cycles at 0.1 C (1 C = 200 mA g -1 ); (b) the cycle life at 0.1 C; (c) the long term cycling at 2 C and the voltage fading, each point represents the average value of ten cycles; (d) the rate capability at different current densities.

Blocks

pageorderlabelroleincludedriskreasonparser reasonproduction usage truncbody regionregionbgframebboxraw textcleaned text
10page_headerpage_headerFalselowdocling_page_headerdocling_page_header
p1:body_region:1p1:top_margin:column_2_of_2:white[255, 255, 255]
white
False[242.54, 37.5, 110.26, 6.03]Scripta Materialia 204 (2021) 114133Scripta Materialia 204 (2021) 114133
11textfront_matter_headingFalselowfirst_page_metadatafirst_page_metadata
p1:body_region:1p1:page_body:column_2_of_2:gray[229, 229, 229]
gray
False[225.12, 64.96, 149.64, 7.47]Contents lists available at ScienceDirectContents lists available at ScienceDirect
12section_headertitle_candidateFalselownon_body_headingnon_body_heading
p1:body_region:1p1:page_body:column_2_of_2:gray[229, 229, 229]
gray
False[242.4, 90.62, 115.01, 13.2]Scripta MaterialiaScripta Materialia
13textunknown_textFalsemediumoutside_body_flowoutside_body_flow
p1:body_region:0p1:page_body:column_2_of_2:gray[229, 229, 229]
gray
False[195.01, 119.94, 26.56, 7.47]journaljournal
14textmetadataFalselowfirst_page_metadatafirst_page_metadata
p1:body_region:1p1:page_body:column_2_of_2:gray[229, 229, 229]
gray
False[223.83, 119.94, 180.97, 7.47]homepage: www.elsevier.com/locate/scriptamathomepage:
15section_headertitle_candidateFalselownon_body_headingnon_body_heading
p1:body_region:0p1:page_body:column_1_of_2:white[255, 255, 255]
white
False[37.6, 168.82, 414.99, 47.21]Stabilizing voltage and prolonge d cycling life of Li-rich Mn-base d oxides through spinel 'lithium ion pump' heteroepitaxial coating strategyStabilizing voltage and prolonge d cycling life of Li-rich Mn-base d oxides through spinel 'lithium ion pump' heteroepitaxial coating strategy
16textbody_candidate_excludedFalsemediumbefore_body_startedbefore_body_started
p1:body_region:0p1:page_body:column_1_of_2:white[255, 255, 255]
white
False[37.6, 226.09, 411.98, 24.77]Jili Li a , ∗ , Tiekun Jia a , ∗ , Chunjuan Tang a , Dongsheng Yu a , ∗ , Jie Sun a , Wanzhen Zhang a , Yujiang Wang a , Joong Hee Lee b , Nam Hoon Kim bJili Li a , ∗ , Tiekun Jia a , ∗ , Chunjuan Tang a , Dongsheng Yu a , ∗ , Jie Sun a , Wanzhen Zhang a , Yujiang Wang a , Joong Hee Lee b , Nam Hoon Kim b
17textbodyTruebody_before_non_intro_headingbody_before_non_intro_heading
p1:body_region:0p1:page_body:column_1_of_2:white[255, 255, 255]
white
False[37.6, 258.41, 434.75, 24.05]a Material Science and Engineering School, Henan Province International Joint Laboratory of Materials for Solar Energy Conversion and Lithium Sodium based Battery & Henan Key Laboratory of Special Protective Materials, …a Material Science and Engineering School, Henan Province International Joint Laboratory of Materials for Solar Energy Conversion and Lithium Sodium based Battery & Henan Key Laboratory of Special Protective Materials, …
18section_headerfront_matter_headingFalselowfront_matter_headingfront_matter_heading
p1:body_region:0p1:page_body:column_1_of_2:white[255, 255, 255]
white
False[37.6, 310.15, 96.38, 5.22]a r t i c l e i n f oa r t i c l e i n f o
19section_headerabstract_headingFalselowabstract_headingabstract_heading
p1:body_region:0p1:page_body:column_2_of_2:white[255, 255, 255]
white
False[202.01, 310.15, 65.32, 5.22]a b s t r a c ta b s t r a c t
110textfront_matter_headingFalselowfront_matter_headingfront_matter_heading
p1:body_region:0p1:page_body:column_1_of_2:white[255, 255, 255]
white
False[37.6, 378.69, 82.25, 31.74]Keywords: Heteroepitaxial coating Lithium-rich layered oxides Voltage fadingKeywords: Heteroepitaxial coating Lithium-rich layered oxides Voltage fading
111textunknown_textFalsehighoutside_body_flowoutside_body_flow
p1:body_region:0p1:page_body:column_1_of_2:white[255, 255, 255]
white
False[37.6, 328.62, 70.32, 40.31]Article history: Received 8 April 2021 Revised 15 June 2021 Accepted 30 June 2021 Available online 17 JulyArticle history: Received 8 April 2021 Revised 15 June 2021 Accepted 30 June 2021 Available online 17 July
112textabstract_candidateFalsemediuminside_abstractinside_abstract
p1:body_region:0p1:page_body:column_1_of_2:white[253, 253, 253]
white
False[37.6, 412.97, 24.14, 6.03]CathodeCathode
113textunknown_textFalsemediumoutside_body_flowoutside_body_flow
p1:body_region:0p1:page_body:column_1_of_2:white[255, 255, 255]
white
False[110.33, 362.89, 14.46, 6.03]20212021
114textabstract_candidateFalsemediuminside_abstractinside_abstract
p1:body_region:1p1:page_body:column_2_of_2:white[255, 255, 255]
white
False[202.01, 329.43, 356.22, 102.43]The practical application of Li-rich layered oxides is impeded by its cycle instability, poor rate capability and serious voltage decay. Here, nano-sized spinel Li 4 Ti 5 O 12 (LTO) is constructed on Li 1.2 Ni 0.13 Co 0…The practical application of Li-rich layered oxides is impeded by its cycle instability, poor rate capability and serious voltage decay. Here, nano-sized spinel Li 4 Ti 5 O 12 (LTO) is constructed on Li 1.2 Ni 0.13 Co 0…
115textreferenceFalselowfirst_page_metadatafirst_page_metadata
p1:body_region:1p1:page_body:column_2_of_2:white[255, 255, 255]
white
False[309.72, 438.62, 248.3, 6.79]© 2021 Acta Materialia Inc. Published by Elsevier Ltd. All rights reserved.© 2021 Acta Materialia Inc. Published by Elsevier Ltd. All rights reserved.
116textabstract_candidateFalsemediuminside_abstractinside_abstract
p1:body_region:0p1:page_body:column_1_of_2:white[255, 255, 255]
white
False[37.6, 476.5, 251.41, 164.46]With the rapid expansion of portable electronics, electric vehicles and power grid, the existing lithium-ion batteries (LIBs) as an important power source urgently need to be ameliorated. [ 1 , 2 ] Especially, the insuf…With the rapid expansion of portable electronics, electric vehicles and power grid, the existing lithium-ion batteries (LIBs) as an important power source urgently need to be ameliorated. [ 1 , 2 ] Especially, the insuf…
117textabstract_candidateFalsemediuminside_abstractinside_abstract
p1:body_region:0p1:page_body:column_1_of_2:white[255, 255, 255]
white
False[37.6, 643.88, 251.34, 18.0]It has been proved that surface coating is a simple and efficient remedy to reform the interfacial stability. [18-27] Although inertIt has been proved that surface coating is a simple and efficient remedy to reform the interfacial stability. [18-27] Although inert
118footnotefootnoteFalselowfirst_page_metadatafirst_page_metadata
p1:body_region:0p1:page_body:column_1_of_2:white[255, 255, 255]
white
False[43.74, 684.84, 75.35, 7.81]∗ Corresponding authors.∗ Corresponding authors.
119footnotefootnoteFalselowfirst_page_metadatafirst_page_metadata
p1:body_region:0p1:page_body:column_1_of_2:white[255, 255, 255]
white
False[37.61, 695.14, 251.24, 14.6]E-mail addresses: lijili328@126.com (J. Li), tiekunjia@126.com (T. Jia), dongsh_yu@163.com (D. Yu).E-mail addresses: lijili328@126.com (J. Li), tiekunjia@126.com (T. Jia), dongsh_yu@163.com (D. Yu).
120page_footerpage_footerFalselowfirst_page_metadatafirst_page_metadata
p1:body_region:0p1:bottom_margin:column_1_of_2:white[255, 255, 255]
white
False[37.6, 729.66, 139.89, 6.03]https://doi.org/10.1016/j.scriptamat.2021.114133
121page_footerpage_footerFalselowfirst_page_metadatafirst_page_metadata
p1:body_region:0p1:bottom_margin:column_1_of_2:white[255, 255, 255]
white
False[37.6, 738.23, 254.47, 6.03]1359-6462/© 2021 Acta Materialia Inc. Published by Elsevier Ltd. All rights reserved.1359-6462/© 2021 Acta Materialia Inc. Published by Elsevier Ltd. All rights reserved.
122textabstract_candidateFalsemediuminside_abstractinside_abstract
p1:body_region:1p1:page_body:column_2_of_2:white[255, 255, 255]
white
False[306.6, 476.5, 251.4, 227.21]surface coatings, including some oxides, [18] fluorides [19] and phosphates [ 20 , 21 ] etc. can enhance the cyclic stability and power performance of LLOs partly, the lattice structures mismatch with the host LLO mater…surface coatings, including some oxides, [18] fluorides [19] and phosphates [ 20 , 21 ] etc. can enhance the cyclic stability and power performance of LLOs partly, the lattice structures mismatch with the host LLO mater…
223page_headerpage_headerFalselowdocling_page_headerdocling_page_header
p2:top_margin:left:white[255, 255, 255]
white
False[37.6, 37.29, 69.91, 6.03]J. Li, T. Jia, C. Tang et al.J. Li, T. Jia, C. Tang et al.
224page_headerpage_headerFalselowdocling_page_headerdocling_page_header
p2:top_margin:right:white[255, 255, 255]
white
False[451.4, 37.29, 106.57, 6.03]Scripta Materialia 204 (2021) 114133Scripta Materialia 204 (2021) 114133
225captioncaptionFalselowoutside_body_flow_captionoutside_body_flow_caption
p2:page_body:full:white[255, 255, 255]
white

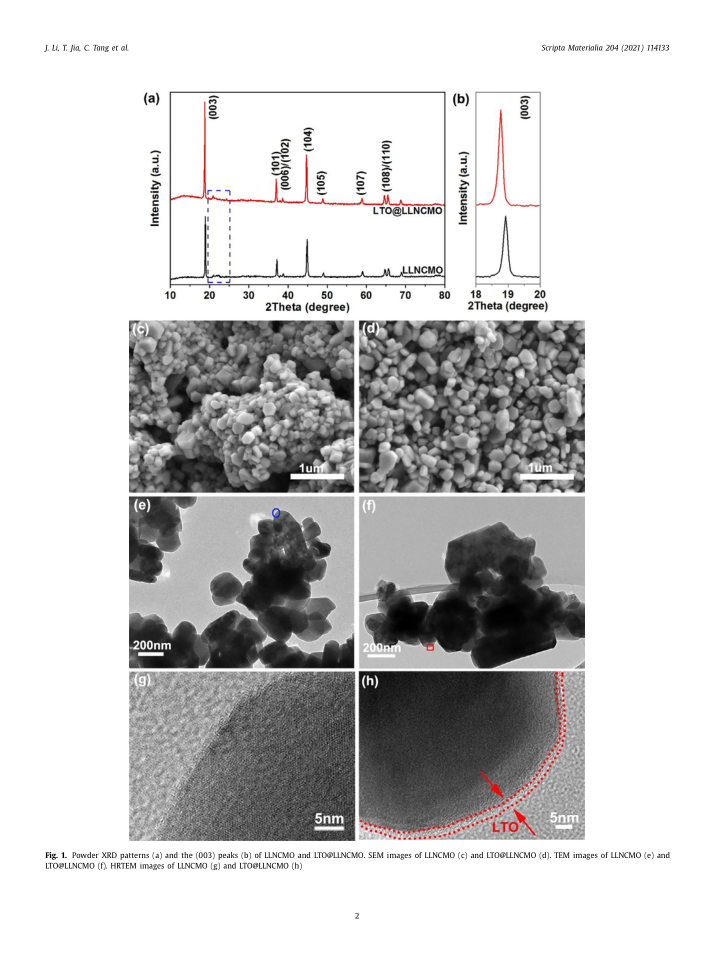

False[37.6, 710.33, 520.77, 14.6]Fig. 1. Powder XRD patterns (a) and the (003) peaks (b) of LLNCMO and LTO@LLNCMO. SEM images of LLNCMO (c) and LTO@LLNCMO (d). TEM images of LLNCMO (e) and LTO@LLNCMO (f). HRTEM images of LLNCMO (g) and LTO@LLNCMO (h)Fig. 1. Powder XRD patterns (a) and the (003) peaks (b) of LLNCMO and LTO@LLNCMO. SEM images of LLNCMO (c) and LTO@LLNCMO (d). TEM images of LLNCMO (e) and LTO@LLNCMO (f). HRTEM images of LLNCMO (g) and LTO@LLNCMO (h)
226page_footerpage_footerFalselowdocling_page_footerdocling_page_footer
p2:bottom_margin:right_crossing:white[255, 255, 255]
white
False[295.78, 760.5, 3.69, 6.03]22
327page_headerpage_headerFalselowdocling_page_headerdocling_page_header
p3:top_margin:left:white[255, 255, 255]
white
False[37.6, 37.29, 69.91, 6.03]J. Li, T. Jia, C. Tang et al.J. Li, T. Jia, C. Tang et al.
328page_headerpage_headerFalselowdocling_page_headerdocling_page_header
p3:body_region:0p3:top_margin:right:white[255, 255, 255]
white
False[451.4, 37.29, 106.57, 6.03]Scripta Materialia 204 (2021) 114133Scripta Materialia 204 (2021) 114133
329textabstract_candidateFalsemediuminside_abstractinside_abstract
p3:body_region:0p3:top_margin:right_crossing:white[255, 255, 255]
white
False[306.6, 57.94, 251.38, 112.15]In animals and plants, there are some special carrier proteins called 'Ion pump' which can drive specific ions such as Na + , K + , Ca 2 + and H + across plasmolemma. Spinel Li 4 Ti 5 O 12 (LTO) with high Li + diffusion…In animals and plants, there are some special carrier proteins called 'Ion pump' which can drive specific ions such as Na + , K + , Ca 2 + and H + across plasmolemma. Spinel Li 4 Ti 5 O 12 (LTO) with high Li + diffusion…
330textabstract_candidateFalsemediuminside_abstractinside_abstract
p3:body_region:0p3:page_body:right_crossing:white[255, 255, 255]
white
False[306.6, 173.01, 251.38, 143.53]In this paper, a heteroepitaxial composite of 'lithium ion pump' LTO coated on Li 1.2 Ni 0.13 Co 0.13 Mn 0.54 O 2 (LLNCMO) was designed and synthesized. It is demonstrated that the nanoscale LTO coating with the integra…In this paper, a heteroepitaxial composite of 'lithium ion pump' LTO coated on Li 1.2 Ni 0.13 Co 0.13 Mn 0.54 O 2 (LLNCMO) was designed and synthesized. It is demonstrated that the nanoscale LTO coating with the integra…
331captioncaptionFalselowoutside_body_flow_captionoutside_body_flow_caption
p3:page_body:left_crossing:white[255, 255, 255]
white
False[37.6, 399.35, 251.36, 14.6]Fig. 2. HADDF-STEM images of LLNCMO (a) and LTO@LLNCMO (f) particles and the corresponding element mapping: (b, g) Ni, (c, h) Co, (d, i) Mn, (e, j) O, (k) Ti.Fig. 2. HADDF-STEM images of LLNCMO (a) and LTO@LLNCMO (f) particles and the corresponding element mapping: (b, g) Ni, (c, h) Co, (d, i) Mn, (e, j) O, (k) Ti.
332textabstract_candidateFalsemediuminside_abstractinside_abstract
p3:body_region:0p3:page_body:right_crossing:white[255, 255, 255]
white
False[306.6, 319.45, 251.42, 91.23]X-ray diffraction (XRD) was carried out to investigate the structure of bare LLNCMO and LTO-coated LLNCMO materials, results are shown in Fig. 1 a and b. All sharp reflections in the XRD patterns can be assigned to the …X-ray diffraction (XRD) was carried out to investigate the structure of bare LLNCMO and LTO-coated LLNCMO materials, results are shown in Fig. 1 a and b. All sharp reflections in the XRD patterns can be assigned to the …
333captioncaptionFalselowoutside_body_flow_captionoutside_body_flow_caption
p3:bottom_margin:full:white[255, 255, 255]
white
False[37.6, 721.09, 520.77, 23.17]Fig. 3. (a) Atomic scale HAADF-STEM images of LLNCMO particles and the corresponding FFT pattern (the inset image). (b) Atomic scale HAADF-STEM image of LTO@LLNCMO sample; (c,d) the enlarged view of red region from (b) …Fig. 3. (a) Atomic scale HAADF-STEM images of LLNCMO particles and the corresponding FFT pattern (the inset image). (b) Atomic scale HAADF-STEM image of LTO@LLNCMO sample; (c,d) the enlarged view of red region from (b) …
334page_footerpage_footerFalselowdocling_page_footerdocling_page_footer
p3:bottom_margin:right_crossing:white[253, 253, 253]
white
False[295.78, 760.5, 3.69, 6.03]33
435page_headerpage_headerFalselowdocling_page_headerdocling_page_header
p4:body_region:0p4:top_margin:left:white[255, 255, 255]
white
False[37.6, 37.29, 69.91, 6.03]J. Li, T. Jia, C. Tang et al.J. Li, T. Jia, C. Tang et al.
436page_headerpage_headerFalselowdocling_page_headerdocling_page_header
p4:top_margin:right:white[255, 255, 255]
white
False[451.4, 37.29, 106.57, 6.03]Scripta Materialia 204 (2021) 114133Scripta Materialia 204 (2021) 114133
437textabstract_candidateFalsemediuminside_abstractinside_abstract
p4:body_region:0p4:top_margin:left_crossing:white[255, 255, 255]
white
False[37.6, 57.94, 251.34, 38.92]LLNCMO material. In the enlarged display of the (003) peaks ( Fig. 1 b), the peaks of the coated LTO@LLNCMO material obviously shifts to lower values illustrating the increase of c axis, which is beneficial for the Li-i…LLNCMO material. In the enlarged display of the (003) peaks ( Fig. 1 b), the peaks of the coated LTO@LLNCMO material obviously shifts to lower values illustrating the increase of c axis, which is beneficial for the Li-i…
438textabstract_candidateFalsemediuminside_abstractinside_abstract
p4:body_region:0p4:page_body:left_crossing:white[255, 255, 255]
white
False[37.6, 99.78, 251.42, 206.3]The morphologies and microstructures of as-prepared materials were observed in SEM and TEM images to confirm the influence of LTO surface modification on the morphology, they are shown in Fig. 1 c-h. SEM images demonstr…The morphologies and microstructures of as-prepared materials were observed in SEM and TEM images to confirm the influence of LTO surface modification on the morphology, they are shown in Fig. 1 c-h. SEM images demonstr…
439textabstract_candidateFalsemediuminside_abstractinside_abstract
p4:body_region:0p4:page_body:left_crossing:white[255, 255, 255]
white

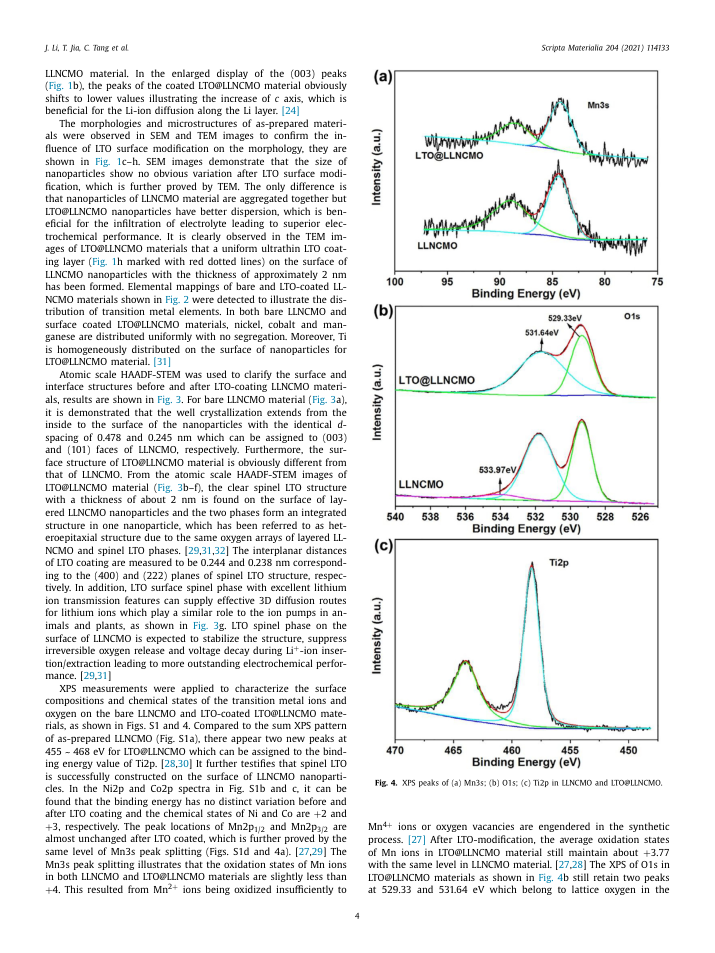

False[37.6, 309.0, 251.46, 258.6]Atomic scale HAADF-STEM was used to clarify the surface and interface structures before and after LTO-coating LLNCMO materials, results are shown in Fig. 3 . For bare LLNCMO material ( Fig. 3 a), it is demonstrated that…Atomic scale HAADF-STEM was used to clarify the surface and interface structures before and after LTO-coating LLNCMO materials, results are shown in Fig. 3 . For bare LLNCMO material ( Fig. 3 a), it is demonstrated that…
440textabstract_candidateFalsemediuminside_abstractinside_abstract
p4:body_region:0p4:bottom_margin:left_crossing:white[255, 255, 255]
white
False[37.6, 570.52, 251.46, 180.93]XPS measurements were applied to characterize the surface compositions and chemical states of the transition metal ions and oxygen on the bare LLNCMO and LTO-coated LTO@LLNCMO materials, as shown in Figs. S1 and 4. Comp…XPS measurements were applied to characterize the surface compositions and chemical states of the transition metal ions and oxygen on the bare LLNCMO and LTO-coated LTO@LLNCMO materials, as shown in Figs. S1 and 4. Comp…
441textabstract_candidateFalsemediuminside_abstractinside_abstract
p4:bottom_margin:right_crossing:white[255, 255, 255]
white
False[306.6, 684.38, 251.49, 61.54]Mn 4 + ions or oxygen vacancies are engendered in the synthetic process. [27] After LTO-modification, the average oxidation states of Mn ions in LTO@LLNCMO material still maintain about + 3.77 with the same level in LLN…Mn 4 + ions or oxygen vacancies are engendered in the synthetic process. [27] After LTO-modification, the average oxidation states of Mn ions in LTO@LLNCMO material still maintain about + 3.77 with the same level in LLN…
442captioncaptionFalselowoutside_body_flow_captionoutside_body_flow_caption
p4:page_body:right:white[255, 255, 255]
white
False[312.58, 650.0, 239.45, 6.03]Fig. 4. XPS peaks of (a) Mn3s; (b) O1s; (c) Ti2p in LLNCMO and LTO@LLNCMO.Fig. 4. XPS peaks of (a) Mn3s; (b) O1s; (c) Ti2p in LLNCMO and LTO@LLNCMO.
443page_footerpage_footerFalselowdocling_page_footerdocling_page_footer
p4:bottom_margin:right_crossing:white[251, 251, 251]
white
False[295.78, 760.5, 3.69, 6.03]44
544page_headerpage_headerFalselowdocling_page_headerdocling_page_header
p5:body_region:0p5:top_margin:column_1_of_2:white[255, 255, 255]
white
False[37.6, 37.29, 69.91, 6.03]J. Li, T. Jia, C. Tang et al.J. Li, T. Jia, C. Tang et al.
545page_headerpage_headerFalselowdocling_page_headerdocling_page_header
p5:body_region:1p5:top_margin:column_2_of_2:white[255, 255, 255]
white
False[451.4, 37.29, 106.57, 6.03]Scripta Materialia 204 (2021) 114133Scripta Materialia 204 (2021) 114133
546captioncaptionFalselowoutside_body_flow_captionoutside_body_flow_caption
p5:page_body:column_1_of_2:white[255, 255, 255]
white

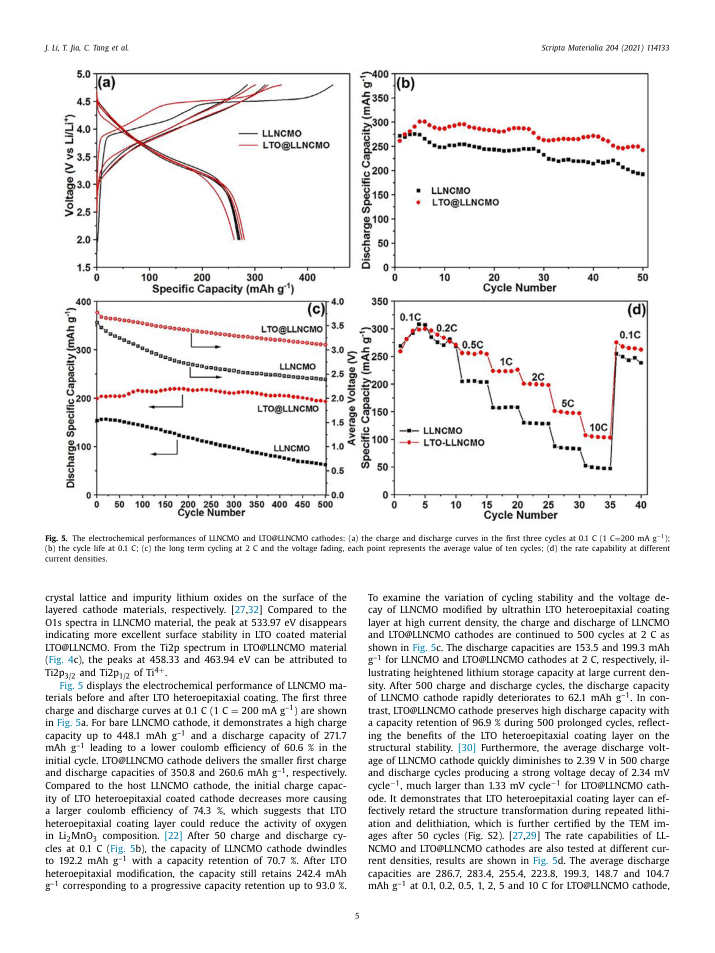

False[37.6, 444.89, 520.91, 24.27]Fig. 5. The electrochemical performances of LLNCMO and LTO@LLNCMO cathodes: (a) the charge and discharge curves in the first three cycles at 0.1 C (1 C = 200 mA g -1 ); (b) the cycle life at 0.1 C; (c) the long term cyc…Fig. 5. The electrochemical performances of LLNCMO and LTO@LLNCMO cathodes: (a) the charge and discharge curves in the first three cycles at 0.1 C (1 C = 200 mA g -1 ); (b) the cycle life at 0.1 C; (c) the long term cyc…
547textabstract_candidateFalsemediuminside_abstractinside_abstract
p5:body_region:0p5:page_body:column_1_of_2:white[255, 255, 255]
white
False[37.6, 494.63, 251.42, 71.87]crystal lattice and impurity lithium oxides on the surface of the layered cathode materials, respectively. [ 27 , 32 ] Compared to the O1s spectra in LLNCMO material, the peak at 533.97 eV disappears indicating more exc…crystal lattice and impurity lithium oxides on the surface of the layered cathode materials, respectively. [ 27 , 32 ] Compared to the O1s spectra in LLNCMO material, the peak at 533.97 eV disappears indicating more exc…
548textabstract_candidateFalsemediuminside_abstractinside_abstract
p5:body_region:0p5:bottom_margin:column_1_of_2:white[255, 255, 255]
white
False[37.6, 567.85, 251.46, 174.92]Fig. 5 displays the electrochemical performance of LLNCMO materials before and after LTO heteroepitaxial coating. The first three charge and discharge curves at 0.1 C (1 C = 200 mA g -1 ) are shown in Fig. 5 a. For bare…Fig. 5 displays the electrochemical performance of LLNCMO materials before and after LTO heteroepitaxial coating. The first three charge and discharge curves at 0.1 C (1 C = 200 mA g -1 ) are shown in Fig. 5 a. For bare…
549textabstract_candidateFalsemediuminside_abstractinside_abstract
p5:body_region:1p5:bottom_margin:column_2_of_2:white[255, 255, 255]
white
False[306.6, 494.63, 251.45, 248.14]To examine the variation of cycling stability and the voltage decay of LLNCMO modified by ultrathin LTO heteroepitaxial coating layer at high current density, the charge and discharge of LLNCMO and LTO@LLNCMO cathodes a…To examine the variation of cycling stability and the voltage decay of LLNCMO modified by ultrathin LTO heteroepitaxial coating layer at high current density, the charge and discharge of LLNCMO and LTO@LLNCMO cathodes a…
550page_footerpage_footerFalselowdocling_page_footerdocling_page_footer
p5:bottom_margin:column_2_of_2:white[250, 250, 250]
white
False[295.78, 760.5, 3.69, 6.03]55
651page_headerpage_headerFalselowdocling_page_headerdocling_page_header
p6:body_region:0p6:top_margin:column_1_of_2:white[255, 255, 255]
white
False[37.6, 37.29, 69.91, 6.03]J. Li, T. Jia, C. Tang et al.J. Li, T. Jia, C. Tang et al.
652textabstract_candidateFalsemediuminside_abstractinside_abstract
p6:body_region:0p6:top_margin:column_1_of_2:white[255, 255, 255]
white
False[37.6, 57.94, 251.37, 143.53]respectively. Except for at 0.1 C, the average discharge capacities of the LTO-coated cathode are all enhanced at every current density. Specifically, the average discharge capacity of LTO@LLNCMO cathode is 104.7 mAh g …respectively. Except for at 0.1 C, the average discharge capacities of the LTO-coated cathode are all enhanced at every current density. Specifically, the average discharge capacity of LTO@LLNCMO cathode is 104.7 mAh g …
653textabstract_candidateFalsemediuminside_abstractinside_abstract
p6:body_region:0p6:page_body:column_1_of_2:white[255, 255, 255]
white
False[37.6, 204.39, 251.41, 143.53]To further understand the redox process, cyclic voltammetry (CV) was done between 2.0 and 4.8 V with 0.1 mV s -1 (Fig. S3). The redox peaks of LLNCMO and LTO@LLNCMO cathodes both are consistent with the reported Li 1.2 …To further understand the redox process, cyclic voltammetry (CV) was done between 2.0 and 4.8 V with 0.1 mV s -1 (Fig. S3). The redox peaks of LLNCMO and LTO@LLNCMO cathodes both are consistent with the reported Li 1.2 …
654textabstract_candidateFalsemediuminside_abstractinside_abstract
p6:body_region:0p6:page_body:column_1_of_2:white[255, 255, 255]
white
False[37.6, 350.84, 251.4, 174.92]The kinetics of electrochemical reaction in LLNCMO and LTO@LLNCMO cathodes can be surveyed by electrochemical impedance spectroscopy. The Nyquist plots before and after 50 cycles at 0.1 C fitted with equivalent circuit …The kinetics of electrochemical reaction in LLNCMO and LTO@LLNCMO cathodes can be surveyed by electrochemical impedance spectroscopy. The Nyquist plots before and after 50 cycles at 0.1 C fitted with equivalent circuit …
655textabstract_candidateFalsemediuminside_abstractinside_abstract
p6:body_region:0p6:bottom_margin:column_1_of_2:white[255, 255, 255]
white
False[37.6, 528.67, 251.38, 206.3]In summary, we designed a spinel Li 4 Ti 5 O 12 nano-sized coating on the surface of Li 1.2 Ni 0.13 Co 0.13 Mn 0.54 O 2 material to alleviate the inferior electrochemical performances, especially serious voltage loss. T…In summary, we designed a spinel Li 4 Ti 5 O 12 nano-sized coating on the surface of Li 1.2 Ni 0.13 Co 0.13 Mn 0.54 O 2 material to alleviate the inferior electrochemical performances, especially serious voltage loss. T…
656page_headerpage_headerFalselowdocling_page_headerdocling_page_header
p6:body_region:1p6:top_margin:column_2_of_2:white[255, 255, 255]
white
False[451.4, 37.29, 106.57, 6.03]Scripta Materialia 204 (2021) 114133Scripta Materialia 204 (2021) 114133
657section_headerback_matter_headingFalselowback_matter_headingback_matter_heading
stop_triggerp6:body_region:1p6:top_margin:column_2_of_2:white[255, 255, 255]
white
False[306.6, 57.94, 133.49, 7.54]Declaration of Competing InterestDeclaration of Competing Interest
658textbody_candidate_excludedFalsemediumafter_back_matter_stopafter_back_matter_stop
after_stopp6:body_region:1p6:page_body:column_2_of_2:white[255, 255, 255]
white
False[306.6, 78.86, 251.29, 28.47]The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.
659section_headerback_matter_headingFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp6:body_region:1p6:page_body:column_2_of_2:white[255, 255, 255]
white
False[306.6, 121.03, 71.83, 7.54]AcknowledgementAcknowledgement
660textback_matter_textFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp6:body_region:1p6:page_body:column_2_of_2:white[255, 255, 255]
white
False[306.6, 141.96, 251.35, 49.38]This work was supported by the National Natural Science Foundation of China ( 51702148 , 51802139 ), Henan Science and Technology Research Program ( 182102410074 , 172102410047 ) and the Training Plan of Young Backbone …This work was supported by the National Natural Science Foundation of China ( 51702148 , 51802139 ), Henan Science and Technology Research Program ( 182102410074 , 172102410047 ) and the Training Plan of Young Backbone …
661section_headerback_matter_headingFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp6:body_region:1p6:page_body:column_2_of_2:white[255, 255, 255]
white
False[306.6, 205.05, 98.28, 7.54]Supplementary materialsSupplementary materials
662textreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp6:body_region:1p6:page_body:column_2_of_2:white[255, 255, 255]
white
False[306.6, 225.97, 251.28, 28.47]Supplementary material associated with this article can be found, in the online version, at doi: 10.1016/j.scriptamat.2021. 114133 .Supplementary material associated with this article can be found, in the online version, at
663section_headerback_matter_headingFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp6:body_region:1p6:page_body:column_2_of_2:white[255, 255, 255]
white
False[306.6, 265.66, 41.64, 7.54]ReferencesReferences
664list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp6:body_region:1p6:page_body:column_2_of_2:white[255, 255, 255]
white
False[310.29, 285.28, 170.95, 6.03]D. Larcher , J.M. Tarascon , Nat. Chem. 7 (2014) 19-29 .D. Larcher , J.M. Tarascon , Nat. Chem. 7 (2014) 19-29 .
665list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp6:body_region:1p6:page_body:column_2_of_2:white[255, 255, 255]
white
False[310.29, 293.25, 198.95, 6.03]M. Li , J. Lu , Z. Chen , K. Amine , Adv. Mater. 30 (2018) 1800561 .M. Li , J. Lu , Z. Chen , K. Amine , Adv. Mater. 30 (2018) 1800561 .
666list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp6:body_region:1p6:page_body:column_2_of_2:white[255, 255, 255]
white
False[310.29, 301.22, 220.02, 6.03]J. Wu , Y. Cao , H. Zhao , J. Mao , Z. Guo , Carbon Energy 1 (2019) 57-76 .J. Wu , Y. Cao , H. Zhao , J. Mao , Z. Guo , Carbon Energy 1 (2019) 57-76 .
667list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp6:body_region:1p6:page_body:column_2_of_2:white[255, 255, 255]
white
False[310.29, 309.19, 248.0, 14.01]H. Liu , H. Guo , B. Liu , M. Liang , Z. Lv , K.R. Adair , X. Sun , Adv. Funct. Mater. 28 (2018) 1707480 .H. Liu , H. Guo , B. Liu , M. Liang , Z. Lv , K.R. Adair , X. Sun , Adv. Funct. Mater. 28 (2018) 1707480 .
668list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp6:body_region:1p6:page_body:column_2_of_2:white[255, 255, 255]
white
False[310.29, 325.13, 247.71, 14.01]Z. Lu , D.D. MacNeil , J.R. Dahn , Electrochem. Solid-State Lett. 4 (2001) A191-A194 .Z. Lu , D.D. MacNeil , J.R. Dahn , Electrochem. Solid-State Lett. 4 (2001) A191-A194 .
669list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp6:body_region:1p6:page_body:column_2_of_2:white[255, 255, 255]
white
False[310.29, 341.07, 176.49, 6.03]G. Assat , J.-M. Tarascon , Nat. Energy 3 (2018) 373-386 .G. Assat , J.-M. Tarascon , Nat. Energy 3 (2018) 373-386 .
670list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp6:body_region:1p6:page_body:column_2_of_2:white[255, 255, 255]
white
False[310.29, 349.04, 247.99, 29.95]W.E. Gent , K. Lim , Y. Liang , Q. Li , T. Barnes , S.J. Ahn , K.H. Stone , M. McIntire , J. Hong , J.H. Song , Y. Li , A. Mehta , S. Ermon , T. Tyliszczak , D. Kilcoyne , D. Vine , J.H. Park , S.K. Doo , M.F. Toney , W…W.E. Gent , K. Lim , Y. Liang , Q. Li , T. Barnes , S.J. Ahn , K.H. Stone , M. McIntire , J. Hong , J.H. Song , Y. Li , A. Mehta , S. Ermon , T. Tyliszczak , D. Kilcoyne , D. Vine , J.H. Park , S.K. Doo , M.F. Toney , W…
671list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp6:body_region:1p6:page_body:column_2_of_2:white[255, 255, 255]
white
False[310.29, 380.92, 247.98, 14.01]J.L. Shi , D.D. Xiao , M. Ge , X. Yu , Y. Chu , X. Huang , X.D. Zhang , Y.X. Yin , X.Q. Yang , Y.G. Guo , L. Gu , L.J. Wan , Adv. Mater. 30 (2018) 1705575 .J.L. Shi , D.D. Xiao , M. Ge , X. Yu , Y. Chu , X. Huang , X.D. Zhang , Y.X. Yin , X.Q. Yang , Y.G. Guo , L. Gu , L.J. Wan , Adv. Mater. 30 (2018) 1705575 .
672list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp6:body_region:1p6:page_body:column_2_of_2:white[255, 255, 255]
white
False[310.29, 396.86, 248.0, 14.01]Y. Shen , H. Xue , S. Wang , D. Zhang , D. Yin , L. Wang , Y. Cheng , Chem. Eng. J. 411 (2021) 128487 .Y. Shen , H. Xue , S. Wang , D. Zhang , D. Yin , L. Wang , Y. Cheng , Chem. Eng. J. 411 (2021) 128487 .
673list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp6:body_region:1p6:page_body:column_2_of_2:white[255, 255, 255]
white
False[307.03, 412.8, 251.25, 14.0]J.C. Zhang , F.Y. Cheng , S.L. Chou , J.L. Wang , L. Gu , H. Wang , H. Yoshikawa , Y. Lu , J. Chen , Adv. Mater. 31 (2019) 1901808 .J.C. Zhang , F.Y. Cheng , S.L. Chou , J.L. Wang , L. Gu , H. Wang , H. Yoshikawa , Y. Lu , J. Chen , Adv. Mater. 31 (2019) 1901808 .
674list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp6:body_region:1p6:page_body:column_2_of_2:white[255, 255, 255]
white
False[307.3, 428.74, 250.82, 21.97]M. Sathiya , A.M. Abakumov , D. Foix , G. Rousse , K. Ramesha , M. Saubanère , M.L. Doublet , H. Vezin , C.P. Laisa , A.S. Prakash1 , D. Gonbeau , G. VanTendeloo , J.-M. Tarascon , Nat. Mater. 14 (2014) 230-238 .M. Sathiya , A.M. Abakumov , D. Foix , G. Rousse , K. Ramesha , M. Saubanère , M.L. Doublet , H. Vezin , C.P. Laisa , A.S. Prakash1 , D. Gonbeau , G. VanTendeloo , J.-M. Tarascon , Nat. Mater. 14 (2014) 230-238 .
675list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp6:body_region:1p6:page_body:column_2_of_2:white[255, 255, 255]
white
False[306.93, 452.65, 251.34, 14.01]J. Lee , Q. Zhang , J. Kim , N. Dupre , M. Avdeev , M. Jeong , W.-S. Yoon , L. Gu , B. Kang , Adv. Energy Mater. 9 (2019) 1902231 .J. Lee , Q. Zhang , J. Kim , N. Dupre , M. Avdeev , M. Jeong , W.-S. Yoon , L. Gu , B. Kang , Adv. Energy Mater. 9 (2019) 1902231 .
676list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp6:body_region:1p6:page_body:column_2_of_2:white[255, 255, 255]
white
False[307.0, 468.59, 251.32, 14.0]T. Lin , T.U. Schulli , Y. Hu , X. Zhu , Q. Gu , B. Luo , B. Cowie , L. Wang , Adv. Funct. Mater. 30 (2020) 1909192 .T. Lin , T.U. Schulli , Y. Hu , X. Zhu , Q. Gu , B. Luo , B. Cowie , L. Wang , Adv. Funct. Mater. 30 (2020) 1909192 .
677list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp6:body_region:1p6:page_body:column_2_of_2:white[255, 255, 255]
white
False[307.06, 484.53, 213.96, 6.03]J. Lee , Y. Gong , L. Gu , B. Kang , ACS Energy Lett. 6 (2021) 789-798 .J. Lee , Y. Gong , L. Gu , B. Kang , ACS Energy Lett. 6 (2021) 789-798 .
678list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp6:body_region:1p6:page_body:column_2_of_2:white[255, 255, 255]
white
False[307.02, 492.5, 251.25, 14.01]N. Li , S. Hwang , M. Sun , Y. Fu , V.S. Battaglia , D. Su , W. Tong , Adv. Energy Mater. 9 (2019) 1902258 .N. Li , S. Hwang , M. Sun , Y. Fu , V.S. Battaglia , D. Su , W. Tong , Adv. Energy Mater. 9 (2019) 1902258 .
679list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp6:body_region:1p6:page_body:column_2_of_2:white[255, 255, 255]
white
False[307.05, 508.44, 250.98, 14.01]S. Sharifi-Asl , V. Yurkiv , A. Gutierrez , M. Cheng , M. Balasubramanian , F. Mashayek , J.R Croy , R. Shahbazian-Yassar , Nano Lett. 20 (2020) 1208-1217 .S. Sharifi-Asl , V. Yurkiv , A. Gutierrez , M. Cheng , M. Balasubramanian , F. Mashayek , J.R Croy , R. Shahbazian-Yassar , Nano Lett. 20 (2020) 1208-1217 .
680list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp6:body_region:1p6:page_body:column_2_of_2:white[255, 255, 255]
white
False[307.2, 524.39, 251.0, 21.97]W. Hua , S. Wang , M. Knapp , S.J. Leake , A. Senyshyn , C. Richter , M. Yavu , J.R. Binder , C.P. Grey , H. Ehrenberg , S. Indris , B. Schwarz , Nat. Commun. 10 (2019) 5365 .W. Hua , S. Wang , M. Knapp , S.J. Leake , A. Senyshyn , C. Richter , M. Yavu , J.R. Binder , C.P. Grey , H. Ehrenberg , S. Indris , B. Schwarz , Nat. Commun. 10 (2019) 5365 .
681list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp6:body_region:1p6:page_body:column_2_of_2:white[255, 255, 255]
white
False[307.09, 548.29, 251.34, 14.01]B. Qiu , M. Zhang , L. Wu , J. Wang , Y. Xia , D. Qian , H. Liu , S. Hy , Y. Chen , K. An , Y. Zhu , Z. Liu , Y.S. Meng , Nat. Commun. 7 (2016) 12108 .B. Qiu , M. Zhang , L. Wu , J. Wang , Y. Xia , D. Qian , H. Liu , S. Hy , Y. Chen , K. An , Y. Zhu , Z. Liu , Y.S. Meng , Nat. Commun. 7 (2016) 12108 .
682list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp6:body_region:1p6:page_body:column_2_of_2:white[255, 255, 255]
white
False[307.05, 564.23, 251.23, 14.01]X. Zhang , I. Belharouak , L. Li , Y. Lei , J.W. Elam , A. Nie , X. Chen , R.S. Yassar , R.L. Axelbaum , Adv. Energy Mater. 3 (2013) 1299-1307 .X. Zhang , I. Belharouak , L. Li , Y. Lei , J.W. Elam , A. Nie , X. Chen , R.S. Yassar , R.L. Axelbaum , Adv. Energy Mater. 3 (2013) 1299-1307 .
683list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp6:body_region:1p6:page_body:column_2_of_2:white[255, 255, 255]
white
False[306.61, 580.18, 251.84, 14.0]T. Zhao , L. Li , R. Chen , H. Wu , X. Zhang , S. Chen , M. Xie , F. Wu , J. Lu , K. Amine , Nano Energy 15 (2015) 164-176 .T. Zhao , L. Li , R. Chen , H. Wu , X. Zhang , S. Chen , M. Xie , F. Wu , J. Lu , K. Amine , Nano Energy 15 (2015) 164-176 .
684list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp6:body_region:1p6:page_body:column_2_of_2:white[255, 255, 255]
white
False[306.89, 596.12, 251.54, 21.97]R. Yu , M.N. Banis , C. Wang , B. Wu , Y. Huang , S. Cao , J. Li , S. Jamil , X. Lin , F. Zhao , W. Lin , B. Chang , X. Yang , H. Huang , X. Wang , X. Sun , Energy Storage Mater. 37 (2021) 509-520 .R. Yu , M.N. Banis , C. Wang , B. Wu , Y. Huang , S. Cao , J. Li , S. Jamil , X. Lin , F. Zhao , W. Lin , B. Chang , X. Yang , H. Huang , X. Wang , X. Sun , Energy Storage Mater. 37 (2021) 509-520 .
685list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp6:body_region:1p6:page_body:column_2_of_2:white[255, 255, 255]
white
False[306.59, 620.02, 251.8, 14.01]J. Yang , P. Li , F. Zhong , X. Feng , W. Chen , X. Ai , H. Yang , D. Xia , Y. Cao , Adv. Energy Mater. 10 (2020) 1904264 .J. Yang , P. Li , F. Zhong , X. Feng , W. Chen , X. Ai , H. Yang , D. Xia , Y. Cao , Adv. Energy Mater. 10 (2020) 1904264 .
686list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp6:body_region:1p6:page_body:column_2_of_2:white[255, 255, 255]
white
False[306.6, 635.97, 251.67, 14.0]F. Zheng , C. Yang , X. Xiong , J. Xiong , R. Hu , Y. Chen , M. Liu , Angew. Chem. Int. Ed. 54 (2015) 13058-13062 .F. Zheng , C. Yang , X. Xiong , J. Xiong , R. Hu , Y. Chen , M. Liu , Angew. Chem. Int. Ed. 54 (2015) 13058-13062 .
687list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp6:body_region:1p6:page_body:column_2_of_2:white[255, 255, 255]
white
False[306.68, 651.91, 251.66, 14.0]Y. Wang , L. Wang , X. Guo , T. Wu , Y. Yang , B. Wang , E. Wang , H. Yu , ACS Appl. Mater. Interfaces 12 (2020) 8306-8315 .Y. Wang , L. Wang , X. Guo , T. Wu , Y. Yang , B. Wang , E. Wang , H. Yu , ACS Appl. Mater. Interfaces 12 (2020) 8306-8315 .
688list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp6:body_region:1p6:page_body:column_2_of_2:white[255, 255, 255]
white
False[306.6, 667.85, 251.72, 14.0]D. Luo , G. Li , C. Fu , J. Zheng , J. Fan , Q. Li , L. Li , Adv. Energy Mater. 4 (2014) 140 0 062 .D. Luo , G. Li , C. Fu , J. Zheng , J. Fan , Q. Li , L. Li , Adv. Energy Mater. 4 (2014) 140 0 062 .
689list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp6:body_region:1p6:page_body:column_2_of_2:white[255, 255, 255]
white
False[306.6, 683.79, 251.78, 14.0]H. Liu , C. Du , G. Yin , B. Song , P. Zuo , X. Cheng , Y. Ma , Y. Gao , J. Mater. Chem. A 2 (2014) 15640-15646 .H. Liu , C. Du , G. Yin , B. Song , P. Zuo , X. Cheng , Y. Ma , Y. Gao , J. Mater. Chem. A 2 (2014) 15640-15646 .
690list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp6:body_region:1p6:page_body:column_2_of_2:white[255, 255, 255]
white
False[306.79, 699.72, 251.44, 14.01]X.K. Ding , D. Luo , J.X. Cui , H.X. Xie , Q.Q. Ren , Z. Lin , Angew. Chem. Int. Ed. 59 (2020) 7778-7782 .X.K. Ding , D. Luo , J.X. Cui , H.X. Xie , Q.Q. Ren , Z. Lin , Angew. Chem. Int. Ed. 59 (2020) 7778-7782 .
691list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp6:body_region:1p6:page_body:column_2_of_2:white[255, 255, 255]
white
False[306.6, 715.66, 251.84, 14.01]D. Luo , J. Cui , B. Zhang , J. Fan , P. Liu , X. Ding , H. Xie , Z. Zhang , J. Guo , F. Pan , Z. Lin , Adv. Funct. Mater. 31 (2021) 2009310 .D. Luo , J. Cui , B. Zhang , J. Fan , P. Liu , X. Ding , H. Xie , Z. Zhang , J. Guo , F. Pan , Z. Lin , Adv. Funct. Mater. 31 (2021) 2009310 .
692list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp6:body_region:1p6:bottom_margin:column_2_of_2:white[255, 255, 255]
white
False[306.6, 731.6, 251.64, 14.01]X.-D. Zhang , J.-L. Shi , J.-Y. Liang , Y.-X. Yin , J.-N. Zhang , X.-Q. Yu , Y.-G. Guo , Adv. Mater. 30 (2018) 1801751 .X.-D. Zhang , J.-L. Shi , J.-Y. Liang , Y.-X. Yin , J.-N. Zhang , X.-Q. Yu , Y.-G. Guo , Adv. Mater. 30 (2018) 1801751 .
693page_footerpage_footerFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp6:bottom_margin:column_2_of_2:off_white[247, 247, 247]
off_white
False[295.78, 760.5, 3.69, 6.03]66

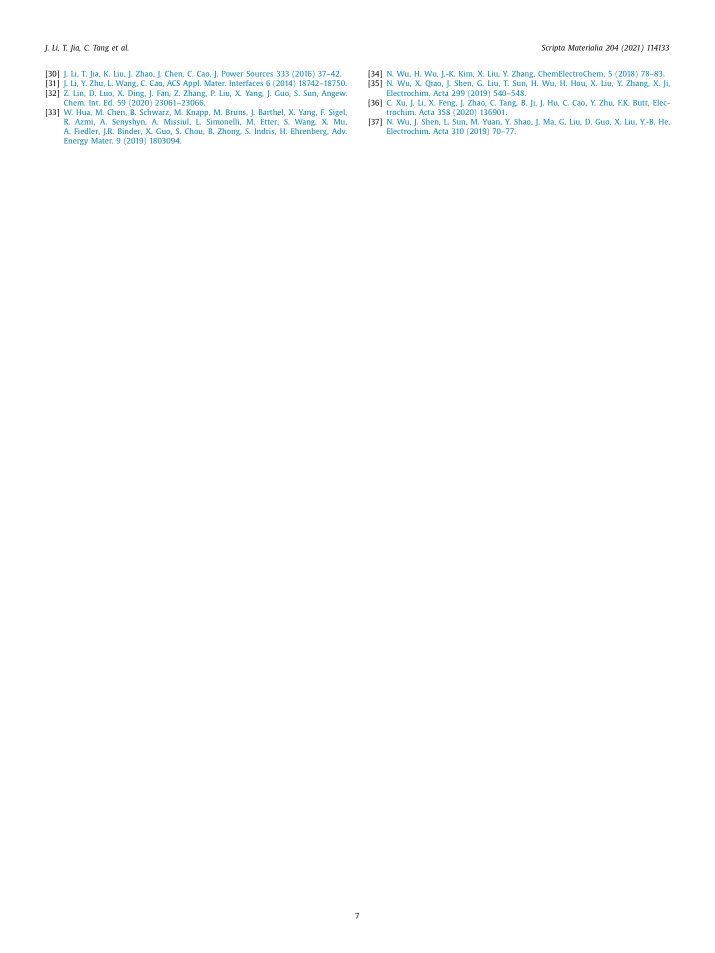

794page_headerpage_headerFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp7:top_margin:left:white[255, 255, 255]
white
False[37.6, 37.29, 69.91, 6.03]J. Li, T. Jia, C. Tang et al.J. Li, T. Jia, C. Tang et al.
795page_headerpage_headerFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp7:top_margin:right:white[255, 255, 255]
white
False[451.4, 37.29, 106.57, 6.03]Scripta Materialia 204 (2021) 114133Scripta Materialia 204 (2021) 114133
796list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp7:top_margin:left:white[255, 255, 255]
white
False[37.61, 59.13, 246.91, 6.03]J. Li , T. Jia , K. Liu , J. Zhao , J. Chen , C. Cao , J. Power Sources 333 (2016) 37-42 .J. Li , T. Jia , K. Liu , J. Zhao , J. Chen , C. Cao , J. Power Sources 333 (2016) 37-42 .
797list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp7:page_body:left_crossing:off_white[247, 251, 252]
off_white
False[37.94, 67.1, 251.22, 6.03]J. Li , Y. Zhu , L. Wang , C. Cao , ACS Appl. Mater. Interfaces 6 (2014) 18742-18750 .J. Li , Y. Zhu , L. Wang , C. Cao , ACS Appl. Mater. Interfaces 6 (2014) 18742-18750 .
798list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp7:top_margin:right_crossing:white[255, 255, 255]
white
False[306.61, 59.13, 247.34, 6.03]N. Wu , H. Wu , J.-K. Kim , X. Liu , Y. Zhang , ChemElectroChem, 5 (2018) 78-83 .N. Wu , H. Wu , J.-K. Kim , X. Liu , Y. Zhang , ChemElectroChem, 5 (2018) 78-83 .
799list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp7:page_body:right_crossing:white[255, 255, 255]
white
False[306.7, 67.1, 251.74, 14.01]N. Wu , X. Qiao , J. Shen , G. Liu , T. Sun , H. Wu , H. Hou , X. Liu , Y. Zhang , X. Ji , Electrochim. Acta 299 (2019) 540-548 .N. Wu , X. Qiao , J. Shen , G. Liu , T. Sun , H. Wu , H. Hou , X. Liu , Y. Zhang , X. Ji , Electrochim. Acta 299 (2019) 540-548 .
7100list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp7:page_body:left_crossing:white[255, 255, 255]
white
False[37.61, 75.07, 251.78, 14.0]Z. Lin , D. Luo , X. Ding , J. Fan , Z. Zhang , P. Liu , X. Yang , J. Guo , S. Sun , Angew. Chem. Int. Ed. 59 (2020) 23061-23066 .Z. Lin , D. Luo , X. Ding , J. Fan , Z. Zhang , P. Liu , X. Yang , J. Guo , S. Sun , Angew. Chem. Int. Ed. 59 (2020) 23061-23066 .
7101list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp7:page_body:left_crossing:white[255, 255, 255]
white
False[37.7, 91.01, 251.58, 29.94]W. Hua , M. Chen , B. Schwarz , M. Knapp , M. Bruns , J. Barthel , X. Yang , F. Sigel , R. Azmi , A. Senyshyn , A. Missiul , L. Simonelli , M. Etter , S. Wang , X. Mu , A. Fiedler , J.R. Binder , X. Guo , S. Chou , B. Z…W. Hua , M. Chen , B. Schwarz , M. Knapp , M. Bruns , J. Barthel , X. Yang , F. Sigel , R. Azmi , A. Senyshyn , A. Missiul , L. Simonelli , M. Etter , S. Wang , X. Mu , A. Fiedler , J.R. Binder , X. Guo , S. Chou , B. Z…
7102list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp7:page_body:right_crossing:white[255, 255, 255]
white
False[306.6, 83.04, 251.86, 14.01]C. Xu , J. Li , X. Feng , J. Zhao , C. Tang , B. Ji , J. Hu , C. Cao , Y. Zhu , F.K. Butt , Electrochim. Acta 358 (2020) 136901 .C. Xu , J. Li , X. Feng , J. Zhao , C. Tang , B. Ji , J. Hu , C. Cao , Y. Zhu , F.K. Butt , Electrochim. Acta 358 (2020) 136901 .
7103list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp7:page_body:right_crossing:white[255, 255, 255]
white
False[306.83, 98.97, 251.62, 14.01]N. Wu , J. Shen , L. Sun , M. Yuan , Y. Shao , J. Ma , G. Liu , D. Guo , X. Liu , Y.-B. He , Electrochim. Acta 310 (2019) 70-77 .N. Wu , J. Shen , L. Sun , M. Yuan , Y. Shao , J. Ma , G. Liu , D. Guo , X. Liu , Y.-B. He , Electrochim. Acta 310 (2019) 70-77 .
7104page_footerpage_footerFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp7:bottom_margin:right_crossing:white[255, 255, 255]
white
False[295.78, 760.5, 3.69, 6.03]77
