Docling layout block audit

original.pdf docling.json layout_blocks.json layout_blocks.tsv layout_blocks.jsonl excluded_blocks.html excluded_blocks.tsv final_body_blocks.tsv visual_assets.tsv visual_assets.json

Summary

{
  "blocks": 140,
  "included_in_body": 23,
  "gray_background_blocks": 3,
  "framed_blocks": 0,
  "by_role_guess": {
    "page_header": 8,
    "front_matter_heading": 5,
    "title_candidate": 2,
    "affiliation": 4,
    "unknown_text": 7,
    "front_matter_candidate": 3,
    "abstract_heading": 1,
    "body_heading": 12,
    "body": 23,
    "footnote": 1,
    "page_footer": 10,
    "page_margin_header": 8,
    "caption": 8,
    "back_matter_heading": 6,
    "body_candidate_excluded": 8,
    "back_matter_text": 1,
    "reference": 33
  },
  "by_docling_label": {
    "page_header": 8,
    "section_header": 23,
    "text": 52,
    "list_item": 37,
    "footnote": 1,
    "page_footer": 10,
    "caption": 9
  },
  "by_body_decision_reason": {
    "docling_page_header": 7,
    "first_page_metadata": 6,
    "first_page_front_matter_heading": 2,
    "first_page_author_or_affiliation": 2,
    "before_body_started": 1,
    "front_matter_heading": 3,
    "outside_body_flow_list_item": 3,
    "abstract_heading": 1,
    "inside_front_matter": 1,
    "first_page_summary": 1,
    "body_heading": 11,
    "body": 22,
    "empty_after_cleaning": 1,
    "page_margin_header": 6,
    "docling_caption": 1,
    "early_back_matter_heading": 1,
    "docling_page_footer": 5,
    "outside_body_flow_caption": 6,
    "inside_back_matter": 9,
    "recovered_unbound_docling_caption": 1,
    "back_matter_heading": 1,
    "after_back_matter_stop": 49
  },
  "visual_assets": {
    "count": 9,
    "indexable_count": 9,
    "suppressed_count": 0,
    "by_type": {
      "figure": 8,
      "table": 1
    },
    "by_caption_source": {
      "direct_caption_ref": 7,
      "missing_caption": 1,
      "nearby_text_caption": 1
    },
    "by_duplicate_reason": {
      "": 9
    },
    "missing_caption_count": 1
  }
}

Diff Summary

{
  "parsed_text_blocks": 140,
  "final_body_blocks": 23,
  "excluded_blocks": {
    "count": 117,
    "by_reason": {
      "after_back_matter_stop": 49,
      "body_heading": 11,
      "inside_back_matter": 9,
      "docling_page_header": 7,
      "first_page_metadata": 6,
      "outside_body_flow_caption": 6,
      "page_margin_header": 6,
      "docling_page_footer": 5,
      "front_matter_heading": 3,
      "outside_body_flow_list_item": 3,
      "first_page_author_or_affiliation": 2,
      "first_page_front_matter_heading": 2,
      "abstract_heading": 1,
      "back_matter_heading": 1,
      "before_body_started": 1,
      "docling_caption": 1,
      "early_back_matter_heading": 1,
      "empty_after_cleaning": 1,
      "first_page_summary": 1,
      "inside_front_matter": 1
    },
    "by_role_guess": {
      "reference": 33,
      "body_heading": 12,
      "page_footer": 10,
      "body_candidate_excluded": 8,
      "caption": 8,
      "page_header": 8,
      "page_margin_header": 8,
      "unknown_text": 7,
      "back_matter_heading": 6,
      "front_matter_heading": 5,
      "affiliation": 4,
      "front_matter_candidate": 3,
      "title_candidate": 2,
      "abstract_heading": 1,
      "back_matter_text": 1,
      "footnote": 1
    },
    "by_risk_level": {
      "low": 106,
      "high": 8,
      "medium": 3
    },
    "high_risk_count": 8,
    "medium_risk_count": 3
  },
  "char_counts": {
    "parsed_text_chars": 29730,
    "final_body_chars": 10841,
    "excluded_chars": 18889
  }
}

Truncation

{
  "truncated": true,
  "message": "Body extraction stopped at page 7 block #/texts/84: CRediT authorship contribution statement. 49 following text blocks were excluded as after_back_matter_stop.",
  "stop_trigger": {
    "ref": "#/texts/84",
    "page": 7,
    "layout_order": 90,
    "role_guess": "back_matter_heading",
    "body_decision_reason": "back_matter_heading",
    "text_preview": "CRediT authorship contribution statement"
  },
  "first_truncated_block": {
    "ref": "#/texts/85",
    "page": 7,
    "layout_order": 91,
    "role_guess": "affiliation",
    "body_decision_reason": "after_back_matter_stop",
    "text_preview": "Tao Huang: Investigation, Methodology, Writing -original draft. Xiangzhen Zheng: Investigation. Chunfeng Yan: Validation. Ying Pan: Software. Maoxiang Wu: Conceptualization, Writing -review & editing."
  },
  "truncated_block_count": 49,
  "truncated_pages": [
    7,
    8
  ],
  "by_role_guess": {
    "reference": 33,
    "back_matter_heading": 4,
    "unknown_text": 3,
    "affiliation": 2,
    "page_footer": 2,
    "page_margin_header": 2,
    "back_matter_text": 1,
    "caption": 1,
    "page_header": 1
  }
}

Page Overlays

Green = final body chunks. Orange/purple asset boxes = actual figure/table assets used by ingestion. Cyan dashed text boxes = text blocks consumed by those assets as caption continuations. Red STOP = truncation trigger. Red boxes = blocks after truncation.

Page 1

Page 2

Page 3

Page 4

Page 5

Page 6

Page 7

Page 8

Visual Assets

这里对齐真实图表资产提取链路。caption_source=embedded_table_cell 表示表注来自 Docling table cell，不会出现在 text block 审计差集里；caption_continuation_used_by_asset 表示某个 text block 已被图表 caption 吸收，不应按普通 metadata 解读。

#typelabelpagecaption sourcesuppressedduplicate reasonrescue reasongroupconfidencebboxcaption
1figureFig. 13direct_caption_ref0.82[134.62, 56.55, 333.87, 121.09]Fig. 1. Optimized structures and Eb values of solvents-Li + and DTMS-Li + .
2figureFig. 23direct_caption_ref0.82[126.51, 219.03, 339.8, 241.36]Fig. 2. (a) Cycling performance and (b) rate capability of LRM/Li cell. (c) (d) 1st, 20th, 50th, and 100th charge -discharge curves of LRM/Li cell during cycling.
3figureFig. 34direct_caption_ref0.82[127.57, 56.82, 339.17, 237.05]Fig. 3. EIS results of LRM/Li cell in BE and 2 vol% DTMS electrolyte after (a) pre-cycling and (b) cycling. (c) Values of Rf and Rct.
4figureFig. 44direct_caption_ref0.82[126.02, 335.06, 341.65, 242.9]Fig. 4. TEM and SEM images of LRM cathodes after cycling (a), (c) with BE and (b), (d) 2 vol% DTMS electrolyte.
5figureFig. 55direct_caption_ref0.82[77.13, 57.01, 440.24, 486.67]Fig. 5. (a)XPS spectra of LRM cathodes after cycling with BE and 2 vol% DTMS electrolytes. (b) XRD patterns of LRM cathodes and (c) dissolution of transition metal on Li electrode taken from cell after cycling.
6figureFig. 66direct_caption_ref0.82[126.82, 57.22, 340.55, 172.57]Fig. 6. (a) Discharge profiles of cell during cycling with BE + 1000 ppm HF and 2 vol% DTMS-containing + 1000 ppm HF; F 1s XPS spectra of LRM cathodes after cycling with (b) BE + 1000 ppm HF and (c) 2 vol% DTMS-containing + 1000 ppm HF electrolyte.
7figureDocling Figure 76missing_caption0.55[127.42, 421.93, 340.9, 242.33]
8figureFig. 87direct_caption_ref0.82[128.27, 57.42, 337.83, 98.38]Fig. 8. Possible mechanism of DTMS.
9tableTable 12nearby_text_caption0.82[364.83, 83.37, 133.46, 53.61]Table 1 Calculated Eox (V vs. Li +

Blocks

pageorderlabelroleincludedriskreasonparser reasonproduction usage truncbody regionregionbgframebboxraw textcleaned text
10page_headerpage_headerFalselowdocling_page_headerdocling_page_header
p1:body_region:1p1:top_margin:column_2_of_2:white[255, 255, 255]
white		False[224.72, 33.45, 145.08, 11.73]Journal of Power Sources 580 (2023) 233437Journal of Power Sources 580 (2023) 233437
11section_headerfront_matter_headingFalselowfirst_page_metadatafirst_page_metadata
p1:body_region:1p1:front_matter:front_panel:gray[230, 230, 230]
gray		False[228.42, 63.48, 142.99, 7.31]Contents lists available at ScienceDirectContents lists available at ScienceDirect
12section_headertitle_candidateFalselowfirst_page_front_matter_headingfirst_page_front_matter_heading
p1:body_region:1p1:front_matter:front_panel:gray[230, 230, 230]
gray		False[219.29, 87.36, 163.01, 12.79]Journal of Power SourcesJournal of Power Sources
13textfront_matter_headingFalselowfirst_page_metadatafirst_page_metadata
p1:body_region:1p1:front_matter:front_panel:gray[230, 230, 230]
gray		False[195.48, 119.22, 208.78, 6.67]journal homepage: www.elsevier.com/locate/jpowsourjournal homepage:
14section_headertitle_candidateFalselowfirst_page_front_matter_headingfirst_page_front_matter_heading
p1:body_region:0p1:front_matter:column_1_of_2:white[255, 255, 255]
white		False[37.59, 168.03, 450.29, 46.81]Efficient improvement in electrochemical properties of high-voltage Li-rich Mn-based layered oxide cathode by addition of 1,3-divinyltetramethyldisiloxane to electrolyteEfficient improvement in electrochemical properties of high-voltage Li-rich Mn-based layered oxide cathode by addition of 1,3-divinyltetramethyldisiloxane to electrolyte
15textaffiliationFalselowfirst_page_author_or_affiliationfirst_page_author_or_affiliation
p1:body_region:0p1:front_matter:column_1_of_2:white[255, 255, 255]
white		False[37.59, 229.44, 339.84, 9.69]Tao Huang, Xiangzhen Zheng, Chunfeng Yan, Ying Pan , Maoxiang WuTao Huang, Xiangzhen Zheng, Chunfeng Yan, Ying Pan , Maoxiang Wu
16textaffiliationFalselowfirst_page_author_or_affiliationfirst_page_author_or_affiliation
p1:body_region:0p1:front_matter:column_1_of_2:white[255, 255, 255]
white		False[37.59, 248.69, 437.99, 5.85]Key Laboratory of Optoelectronic Materials Chemistry and Physics, Fujian Institute of Research on the Structure of Matter, Chinese Academy of Sciences, Fuzhou,Key Laboratory of Optoelectronic Materials Chemistry and Physics, Fujian Institute of Research on the Structure of Matter, Chinese Academy of Sciences, Fuzhou,
17textunknown_textFalselowbefore_body_startedbefore_body_started
p1:body_region:0p1:front_matter:column_1_of_2:white[255, 255, 255]
white		False[37.59, 257.25, 56.39, 5.85]350002, PR China350002, PR China
18section_headerfront_matter_headingFalselowfront_matter_headingfront_matter_heading
p1:body_region:0p1:front_matter:column_1_of_2:white[255, 255, 255]
white		False[37.59, 289.44, 75.13, 6.4]H I G H L I G H T SH I G H L I G H T S
19list_itemfront_matter_candidateFalselowoutside_body_flow_list_itemoutside_body_flow_list_item
p1:body_region:0p1:front_matter:column_1_of_2:white[255, 255, 255]
white		False[37.59, 308.87, 231.27, 6.58]DTMS improved cyclic stability of LRM cathode lithium-ion batteries.DTMS improved cyclic stability of LRM cathode lithium-ion batteries.
110list_itemunknown_textFalsemediumoutside_body_flow_list_itemoutside_body_flow_list_item
p1:body_region:0p1:front_matter:column_1_of_2:white[255, 255, 255]
white		False[37.59, 318.9, 179.65, 6.58]The DTMS-derived layer maintains interface stability.The DTMS-derived layer maintains interface stability.
111list_itemfront_matter_candidateFalselowoutside_body_flow_list_itemoutside_body_flow_list_item
p1:body_region:0p1:front_matter:column_1_of_2:white[255, 255, 255]
white		False[37.59, 328.99, 170.36, 6.58]DTMS reacts with the HF/F from the electrolyte.DTMS reacts with the HF/F from the electrolyte.
112section_headerfront_matter_headingFalselowfront_matter_headingfront_matter_heading
p1:body_region:0p1:front_matter:column_1_of_2:white[255, 255, 255]
white		False[37.59, 363.31, 88.53, 6.4]A R T I C L E I N F OA R T I C L E I N F O
113section_headerabstract_headingFalselowabstract_headingabstract_heading
p1:body_region:0p1:front_matter:column_2_of_2:white[255, 255, 255]
white		False[202.0, 363.31, 67.15, 6.4]A B S T R A C TA B S T R A C T
114textfront_matter_headingFalselowfront_matter_headingfront_matter_heading
p1:body_region:0p1:front_matter:column_1_of_2:white[255, 255, 255]
white		False[37.59, 382.2, 93.07, 40.15]Keywords: Lithium-ion battery Li-rich layered oxide cathode Solid electrolyte interphase film Interfacial stabilityKeywords: Lithium-ion battery Li-rich layered oxide cathode Solid electrolyte interphase film Interfacial stability
115textunknown_textFalsemediuminside_front_matterinside_front_matter
p1:body_region:0p1:front_matter:column_1_of_2:white[255, 255, 255]
white		False[37.59, 425.06, 94.03, 5.85]1,3-divinyltetramethyldisiloxane1,3-divinyltetramethyldisiloxane
116textfront_matter_candidateFalselowfirst_page_summaryfirst_page_summary
p1:body_region:1p1:front_matter:column_2_of_2:white[255, 255, 255]
white		False[202.0, 382.68, 357.8, 73.53]1,3-Divinyltetramethyldisiloxane (DTMS) is a multifunctional additive that is used to improves the cycling stability and capacity retention of Li-rich Mn-based layered oxide cathodes (LRMs). Cycling performance evaluati…1,3-Divinyltetramethyldisiloxane (DTMS) is a multifunctional additive that is used to improves the cycling stability and capacity retention of Li-rich Mn-based layered oxide cathodes (LRMs). Cycling performance evaluati…
117section_headerbody_headingFalselowbody_headingbody_heading
p1:body_region:0p1:body_zone:column_1_of_2:white[255, 255, 255]
white		False[37.59, 488.79, 62.58, 7.31]1. Introduction1. Introduction
118textbodyTruebodybody
p1:body_region:0p1:body_zone:column_1_of_2:white[255, 255, 255]
white		False[37.59, 509.71, 253.44, 132.83]Lithium ion batteries (LIBs) have been used in electric vehicles because of their high energy density, safety, and low price; however, these qualities need to be further enhanced to extend the maximum distance that elec…Lithium ion batteries (LIBs) have been used in electric vehicles because of their high energy density, safety, and low price; however, these qualities need to be further enhanced to extend the maximum distance that elec…
119footnotefootnoteFalselowfirst_page_metadatafirst_page_metadata
p1:body_region:0p1:body_zone:column_1_of_2:white[255, 255, 255]
white		False[42.63, 672.84, 153.92, 16.16]* Corresponding author. E-mail address: mxwu@fjirsm.ac.cn (M. Wu).* Corresponding author. E-mail address: mxwu@fjirsm.ac.cn (M. Wu).
120page_footerpage_footerFalselowfirst_page_metadatafirst_page_metadata
p1:body_region:0p1:body_zone:column_1_of_2:white[254, 254, 254]
white		False[37.59, 699.43, 160.64, 6.58]https://doi.org/10.1016/j.jpowsour.2023.233437
121page_footerpage_footerFalselowfirst_page_metadatafirst_page_metadata
p1:body_region:0p1:body_zone:column_1_of_2:white[255, 255, 255]
white		False[37.52, 708.95, 299.92, 17.48]Available online 26 July 2023 Received 28 February 2023; Received in revised form 7 June 2023; Accepted 17 July 2023Available online 26 July 2023 Received 28 February 2023; Received in revised form 7 June 2023; Accepted 17 July 2023
122page_footerpage_footerFalselowfirst_page_metadatafirst_page_metadata
p1:body_region:0p1:bottom_margin:column_1_of_2:white[255, 255, 255]
white		False[37.52, 724.32, 167.09, 11.73]0378-7753/© 2023 Elsevier B.V. All rights reserved.0378-7753/© 2023 Elsevier B.V. All rights reserved.
123textunknown_textFalsemediumempty_after_cleaningempty_after_cleaning
p1:body_region:1p1:front_matter:column_2_of_2:white[255, 255, 255]
white		False[379.16, 226.86, 6.28, 6.78]*
124textbodyTruebodybody
p1:body_region:1p1:body_zone:column_2_of_2:white[255, 255, 255]
white		False[306.59, 488.79, 125.16, 7.31]electrode/electrolyte interface [9].electrode/electrolyte interface [9].
125textbodyTruebodybody
p1:body_region:1p1:body_zone:column_2_of_2:white[255, 255, 255]
white		False[306.59, 499.22, 253.42, 143.32]To overcome these problems, several approaches have been explored in the past decade, including doping and coating [10 -13]. Recently, a simple and economical strategy has been developed: the formation of a protective i…To overcome these problems, several approaches have been explored in the past decade, including doping and coating [10 -13]. Recently, a simple and economical strategy has been developed: the formation of a protective i…
226page_headerpage_headerFalselowdocling_page_headerdocling_page_header
p2:body_region:1p2:top_margin:column_2_of_2:white[255, 255, 255]
white		False[433.38, 33.65, 124.91, 10.42]Journal of Power Sources 580 (2023) 233437Journal of Power Sources 580 (2023) 233437
227textpage_margin_headerFalselowpage_margin_headerpage_margin_header
p2:body_region:0p2:top_margin:column_1_of_2:white[255, 255, 255]
white		False[37.59, 37.0, 463.07, 5.85]T. Huang et al.T. Huang et al.
228textbodyTruebodybody
p2:body_region:0p2:top_margin:column_1_of_2:white[255, 255, 255]
white		False[37.59, 55.48, 253.45, 289.75]O2/Li cell from 81% to 26% after 200 cycles [16]. Lan et al. reported [17] that the electrode capacity retention in an electrolyte without any additive was 40%, which is much lower than the 72% observed in an electrolyt…O2/Li cell from 81% to 26% after 200 cycles [16]. Lan et al. reported [17] that the electrode capacity retention in an electrolyte without any additive was 40%, which is much lower than the 72% observed in an electrolyt…
229textbodyTruebodybody
p2:body_region:0p2:body_zone:column_1_of_2:white[255, 255, 255]
white		False[37.59, 348.41, 253.44, 90.99]Some studies have reported that the improvement of the electrochemical behavior of NCM622-based cells and LNMO-based cells are a result of silicon-based electrolyte additives [26 -28]. In this paper, 1, 3-divinyltetrame…Some studies have reported that the improvement of the electrochemical behavior of NCM622-based cells and LNMO-based cells are a result of silicon-based electrolyte additives [26 -28]. In this paper, 1, 3-divinyltetrame…
230section_headerbody_headingFalselowbody_headingbody_heading
p2:body_region:0p2:body_zone:column_1_of_2:white[255, 255, 255]
white		False[37.59, 453.13, 58.23, 7.31]2. Experiment2. Experiment
231section_headerbody_headingFalselowbody_headingbody_heading
p2:body_region:0p2:body_zone:column_1_of_2:white[255, 255, 255]
white		False[37.59, 474.05, 158.65, 7.31]2.1. Preparation of electrolytes and electrodes2.1. Preparation of electrolytes and electrodes
232textbodyTruebodybody
p2:body_region:0p2:body_zone:column_1_of_2:white[255, 255, 255]
white		False[37.59, 494.97, 253.43, 101.48]The LRM cathode was composed of 80 wt% LRM (LRM300, Ningbo Li-rich Battery Material Technology Co., Ltd., China), 10 wt% polyvinylidene fluoride (PVDF) binder, and 10 wt% acetylene black in N -methyl-2-pyrrolidone. The …The LRM cathode was composed of 80 wt% LRM (LRM300, Ningbo Li-rich Battery Material Technology Co., Ltd., China), 10 wt% polyvinylidene fluoride (PVDF) binder, and 10 wt% acetylene black in N -methyl-2-pyrrolidone. The …
233textbodyTruebodybody
p2:body_region:0p2:body_zone:column_1_of_2:white[255, 255, 255]
white		False[37.59, 599.57, 253.44, 38.72]A total of 1000 ppm of hydrofluoric acid (HF) was then added into the BE and BE + 2 vol%DTMS electrolytes to prepare HF-containing electrolytes using a 40 wt% HF aqueous solution [25]. All electrolytes were prepared in …A total of 1000 ppm of hydrofluoric acid (HF) was then added into the BE and BE + 2 vol%DTMS electrolytes to prepare HF-containing electrolytes using a 40 wt% HF aqueous solution [25]. All electrolytes were prepared in …
234section_headerbody_headingFalselowbody_headingbody_heading
p2:body_region:0p2:body_zone:column_1_of_2:white[255, 255, 255]
white		False[37.59, 652.4, 96.4, 7.31]2.2. Electrochemical testing2.2. Electrochemical testing
235textbodyTruebodybody
p2:body_region:0p2:bottom_margin:column_1_of_2:white[255, 255, 255]
white		False[37.59, 673.32, 253.45, 70.07]The charge -discharge performance of the cells was evaluated using a computer-controlled test system (CT2001A, China). The LRM/Li cells were pre-cycled in the following schedule: 0.1C (1C = 300 mA g 1 ) for three cycles…The charge -discharge performance of the cells was evaluated using a computer-controlled test system (CT2001A, China). The LRM/Li cells were pre-cycled in the following schedule: 0.1C (1C = 300 mA g 1 ) for three cycles…
236captioncaptionFalselowdocling_captiondocling_caption
p2:body_region:1p2:top_margin:column_2_of_2:white[255, 255, 255]
white		False[366.12, 56.3, 79.26, 16.16]Table 1 Calculated Eox (V vs. Li +Table 1 Calculated Eox (V vs. Li +
237textbodyTruebodybody
p2:body_region:1p2:front_matter:column_2_of_2:white[255, 255, 255]
white		False[366.12, 65.88, 134.12, 16.16]/Li) of EC, DMC, EMC, and DTMS./Li) of EC, DMC, EMC, and DTMS.
238textbodyTruebodybody
p2:body_region:1p2:front_matter:column_2_of_2:white[255, 255, 255]
white		False[306.59, 153.91, 253.39, 28.23]impedance spectroscopy (EIS) was employed in the frequency range of 10 5 to 0.1 Hz with an amplitude of 5 mV, using a frequency response analyzer (VSP, Bio-logic).impedance spectroscopy (EIS) was employed in the frequency range of 10 5 to 0.1 Hz with an amplitude of 5 mV, using a frequency response analyzer (VSP, Bio-logic).
239section_headerbody_headingFalselowbody_headingbody_heading
p2:body_region:1p2:body_zone:column_2_of_2:white[255, 255, 255]
white		False[306.6, 197.1, 104.56, 7.31]2.3. Physical characterization2.3. Physical characterization
240textbodyTruebodybody
p2:body_region:1p2:body_zone:column_2_of_2:white[255, 255, 255]
white		False[306.6, 218.02, 253.4, 80.56]To understand the influence of DTMS on the cycling performance of LRM/Li cells, scanning electron microscopy (SEM; S-4800, Hitachi), transmission electron microscopy (TEM; JEM-2010, JELO), XRD analysis (XRD; Bruker D8 A…To understand the influence of DTMS on the cycling performance of LRM/Li cells, scanning electron microscopy (SEM; S-4800, Hitachi), transmission electron microscopy (TEM; JEM-2010, JELO), XRD analysis (XRD; Bruker D8 A…
241section_headerbody_headingFalselowbody_headingbody_heading
p2:body_region:1p2:body_zone:column_2_of_2:white[255, 255, 255]
white		False[306.6, 313.49, 61.58, 7.31]2.4. Calculations2.4. Calculations
242textbodyTruebodybody
p2:body_region:1p2:body_zone:column_2_of_2:white[255, 255, 255]
white		False[306.6, 334.41, 253.4, 38.72]The Gaussian 09 software package was used for theoretical calculations. The equilibrium structures were determined using the B3LYP/6311G(d,p) level [28]. The oxidation potential (Eox) was obtained as follows[28]:The Gaussian 09 software package was used for theoretical calculations. The equilibrium structures were determined using the B3LYP/6311G(d,p) level [28]. The oxidation potential (Eox) was obtained as follows[28]:
243textbodyTruebodybody
p2:body_region:1p2:body_zone:column_2_of_2:white[255, 255, 255]
white		False[306.6, 380.54, 236.56, 9.34]Eox (Li + /Li) = [G(M + ) - G(M)]/F - 1.4 VEox (Li + /Li) = [G(M + ) - G(M)]/F - 1.4 V
244section_headerbody_headingFalselowbody_headingbody_heading
p2:body_region:1p2:body_zone:column_2_of_2:white[255, 255, 255]
white		False[306.6, 420.93, 100.96, 7.31]3. Results and discussion3. Results and discussion
245section_headerbody_headingFalselowbody_headingbody_heading
p2:body_region:1p2:body_zone:column_2_of_2:white[255, 255, 255]
white		False[306.6, 441.84, 114.37, 7.31]3.1. Oxidative stability of DTMS3.1. Oxidative stability of DTMS
246textbodyTruebodybody
p2:body_region:1p2:body_zone:column_2_of_2:white[255, 255, 255]
white		False[306.6, 460.54, 253.42, 166.47]The as-calculated oxidation potential and Li + binding affinity (Eb) are often used to forecast the oxidation tendency of an additive on the cathode surface [29,30]. The film-forming electrolyte additives have a lower o…The as-calculated oxidation potential and Li + binding affinity (Eb) are often used to forecast the oxidation tendency of an additive on the cathode surface [29,30]. The film-forming electrolyte additives have a lower o…
247section_headerbody_headingFalselowbody_headingbody_heading
p2:body_region:1p2:body_zone:column_2_of_2:white[255, 255, 255]
white		False[306.6, 641.91, 167.94, 7.31]3.2. Impact of DTMS at electrochemical perform3.2. Impact of DTMS at electrochemical perform
248textback_matter_headingFalselowearly_back_matter_headingearly_back_matter_heading
p2:body_region:1p2:bottom_margin:column_2_of_2:white[255, 255, 255]
white		False[306.6, 662.83, 253.42, 80.56]Supplementary Material. 2 shows the charge -discharge curve performance of LRM/Li cells with and without 2 vol% DTMS electrolytes during the first pre-cycle process. It can be found that the cells in the 2 vol% DTMS-con…Supplementary Material. 2 shows the charge -discharge curve performance of LRM/Li cells with and without 2 vol% DTMS electrolytes during the first pre-cycle process. It can be found that the cells in the 2 vol% DTMS-con…
249page_footerpage_footerFalselowdocling_page_footerdocling_page_footer
p2:bottom_margin:column_2_of_2:white[255, 255, 255]
white		False[296.21, 754.45, 3.59, 10.42]22
350page_headerpage_headerFalselowdocling_page_headerdocling_page_header
p3:body_region:1p3:top_margin:column_2_of_2:white[255, 255, 255]
white		False[433.38, 33.65, 124.91, 10.42]Journal of Power Sources 580 (2023) 233437Journal of Power Sources 580 (2023) 233437
351textpage_margin_headerFalselowpage_margin_headerpage_margin_header
p3:body_region:0p3:top_margin:column_1_of_2:white[255, 255, 255]
white		False[37.59, 36.99, 463.07, 5.85]T. Huang et al.T. Huang et al.
352captioncaptionFalselowoutside_body_flow_captionoutside_body_flow_caption
p3:page_body:column_2_of_2:white[255, 255, 255]

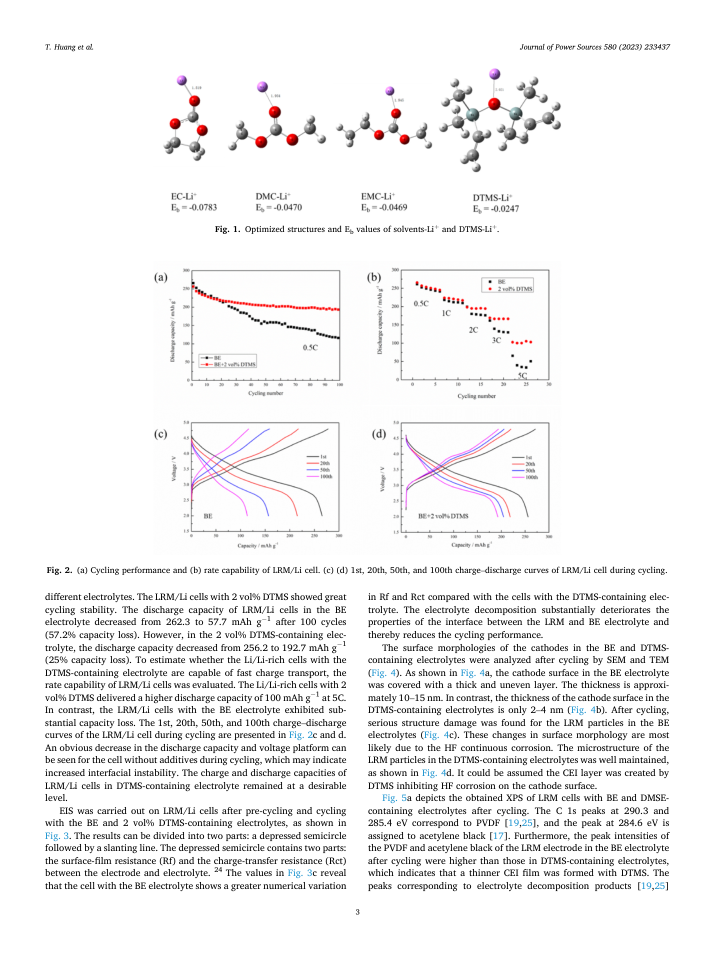

white		False[179.09, 187.18, 241.32, 8.3]Fig. 1. Optimized structures and Eb values of solvents-Li + and DTMS-Li + .Fig. 1. Optimized structures and Eb values of solvents-Li + and DTMS-Li + .
353captioncaptionFalselowoutside_body_flow_captionoutside_body_flow_caption
p3:page_body:column_1_of_2:white[255, 255, 255]
white		False[38.95, 472.99, 521.55, 6.58]Fig. 2. (a) Cycling performance and (b) rate capability of LRM/Li cell. (c) (d) 1st, 20th, 50th, and 100th charge -discharge curves of LRM/Li cell during cycling.Fig. 2. (a) Cycling performance and (b) rate capability of LRM/Li cell. (c) (d) 1st, 20th, 50th, and 100th charge -discharge curves of LRM/Li cell during cycling.
354textbody_candidate_excludedFalsehighinside_back_matterinside_back_matter
p3:body_region:0p3:page_body:column_1_of_2:white[255, 255, 255]
white		False[37.59, 494.91, 253.44, 174.67]different electrolytes. The LRM/Li cells with 2 vol% DTMS showed great cycling stability. The discharge capacity of LRM/Li cells in the BE electrolyte decreased from 262.3 to 57.7 mAh g 1 after 100 cycles (57.2% capacit…different electrolytes. The LRM/Li cells with 2 vol% DTMS showed great cycling stability. The discharge capacity of LRM/Li cells in the BE electrolyte decreased from 262.3 to 57.7 mAh g 1 after 100 cycles (57.2% capacit…
355textbody_candidate_excludedFalsehighinside_back_matterinside_back_matter
p3:body_region:0p3:bottom_margin:column_1_of_2:white[255, 255, 255]
white		False[37.59, 672.7, 253.44, 70.07]EIS was carried out on LRM/Li cells after pre-cycling and cycling with the BE and 2 vol% DTMS-containing electrolytes, as shown in Fig. 3. The results can be divided into two parts: a depressed semicircle followed by a …EIS was carried out on LRM/Li cells after pre-cycling and cycling with the BE and 2 vol% DTMS-containing electrolytes, as shown in Fig. 3. The results can be divided into two parts: a depressed semicircle followed by a …
356textbody_candidate_excludedFalsehighinside_back_matterinside_back_matter
p3:body_region:1p3:page_body:column_2_of_2:white[255, 255, 255]
white		False[306.59, 494.91, 253.4, 38.66]in Rf and Rct compared with the cells with the DTMS-containing electrolyte. The electrolyte decomposition substantially deteriorates the properties of the interface between the LRM and BE electrolyte and thereby reduces…in Rf and Rct compared with the cells with the DTMS-containing electrolyte. The electrolyte decomposition substantially deteriorates the properties of the interface between the LRM and BE electrolyte and thereby reduces…
357textbody_candidate_excludedFalsehighinside_back_matterinside_back_matter
p3:body_region:1p3:page_body:column_2_of_2:white[255, 255, 255]
white		False[306.59, 536.75, 253.43, 122.34]The surface morphologies of the cathodes in the BE and DTMScontaining electrolytes were analyzed after cycling by SEM and TEM (Fig. 4). As shown in Fig. 4a, the cathode surface in the BE electrolyte was covered with a t…The surface morphologies of the cathodes in the BE and DTMScontaining electrolytes were analyzed after cycling by SEM and TEM (Fig. 4). As shown in Fig. 4a, the cathode surface in the BE electrolyte was covered with a t…
358textbody_candidate_excludedFalsehighinside_back_matterinside_back_matter
p3:body_region:1p3:bottom_margin:column_2_of_2:white[255, 255, 255]
white		False[306.59, 662.27, 253.42, 80.5]Fig. 5a depicts the obtained XPS of LRM cells with BE and DMSEcontaining electrolytes after cycling. The C 1s peaks at 290.3 and 285.4 eV correspond to PVDF [19,25], and the peak at 284.6 eV is assigned to acetylene bla…Fig. 5a depicts the obtained XPS of LRM cells with BE and DMSEcontaining electrolytes after cycling. The C 1s peaks at 290.3 and 285.4 eV correspond to PVDF [19,25], and the peak at 284.6 eV is assigned to acetylene bla…
359page_footerpage_footerFalselowdocling_page_footerdocling_page_footer
p3:bottom_margin:column_2_of_2:white[255, 255, 255]
white		False[296.21, 754.45, 3.59, 10.42]33
460page_headerpage_headerFalselowdocling_page_headerdocling_page_header
p4:body_region:1p4:top_margin:column_2_of_2:white[255, 255, 255]
white		False[433.38, 33.65, 124.91, 10.42]Journal of Power Sources 580 (2023) 233437Journal of Power Sources 580 (2023) 233437
461textpage_margin_headerFalselowpage_margin_headerpage_margin_header
p4:body_region:0p4:top_margin:column_1_of_2:white[255, 255, 255]
white		False[37.59, 36.99, 463.07, 5.85]T. Huang et al.T. Huang et al.
462captioncaptionFalselowoutside_body_flow_captionoutside_body_flow_caption
p4:page_body:column_1_of_2:white[255, 255, 255]

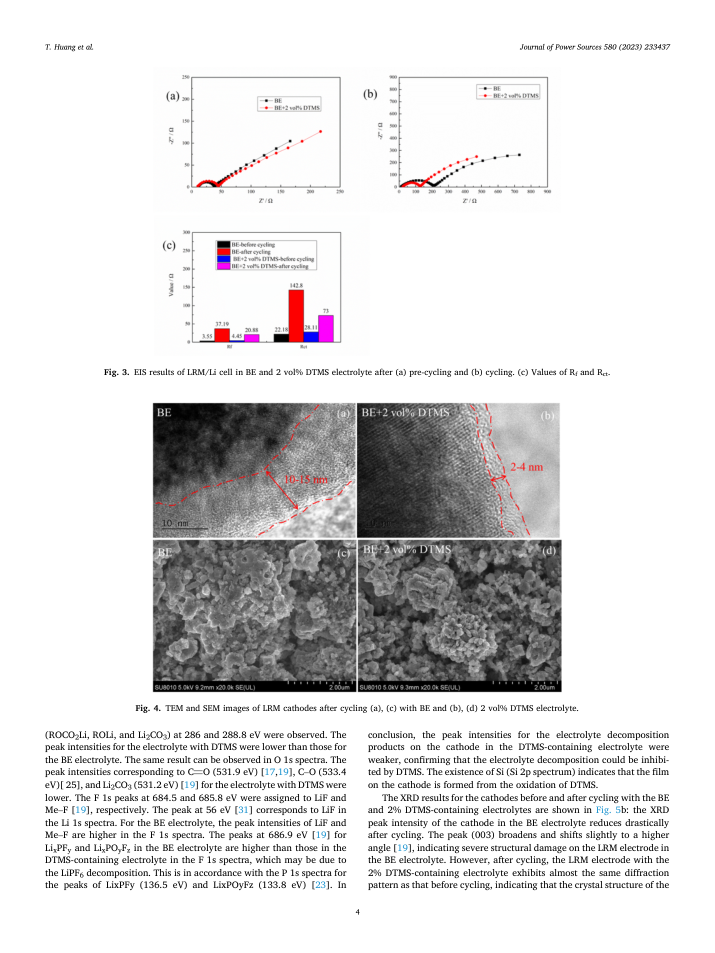

white		False[86.63, 307.39, 426.25, 6.58]Fig. 3. EIS results of LRM/Li cell in BE and 2 vol% DTMS electrolyte after (a) pre-cycling and (b) cycling. (c) Values of Rf and Rct.Fig. 3. EIS results of LRM/Li cell in BE and 2 vol% DTMS electrolyte after (a) pre-cycling and (b) cycling. (c) Values of Rf and Rct.
463captioncaptionFalselowoutside_body_flow_captionoutside_body_flow_caption
p4:page_body:column_1_of_2:white[255, 255, 255]
white		False[112.82, 587.51, 373.83, 6.58]Fig. 4. TEM and SEM images of LRM cathodes after cycling (a), (c) with BE and (b), (d) 2 vol% DTMS electrolyte.Fig. 4. TEM and SEM images of LRM cathodes after cycling (a), (c) with BE and (b), (d) 2 vol% DTMS electrolyte.
464textbody_candidate_excludedFalsehighinside_back_matterinside_back_matter
p4:body_region:0p4:bottom_margin:column_1_of_2:white[255, 255, 255]
white		False[37.59, 609.43, 253.44, 132.83](ROCO2Li, ROLi, and Li2CO3) at 286 and 288.8 eV were observed. The peak intensities for the electrolyte with DTMS were lower than those for the BE electrolyte. The same result can be observed in O 1s spectra. The peak i…(ROCO2Li, ROLi, and Li2CO3) at 286 and 288.8 eV were observed. The peak intensities for the electrolyte with DTMS were lower than those for the BE electrolyte. The same result can be observed in O 1s spectra. The peak i…
465textbody_headingFalselowinside_back_matterinside_back_matter
p4:body_region:1p4:page_body:column_2_of_2:white[255, 255, 255]
white		False[306.59, 609.43, 253.42, 49.15]conclusion, the peak intensities for the electrolyte decomposition products on the cathode in the DTMS-containing electrolyte were weaker, confirming that the electrolyte decomposition could be inhibited by DTMS. The ex…conclusion, the peak intensities for the electrolyte decomposition products on the cathode in the DTMS-containing electrolyte were weaker, confirming that the electrolyte decomposition could be inhibited by DTMS. The ex…
466textbody_candidate_excludedFalsehighinside_back_matterinside_back_matter
p4:body_region:1p4:bottom_margin:column_2_of_2:white[255, 255, 255]
white		False[306.59, 661.76, 253.43, 80.5]The XRD results for the cathodes before and after cycling with the BE and 2% DTMS-containing electrolytes are shown in Fig. 5b: the XRD peak intensity of the cathode in the BE electrolyte reduces drastically after cycli…The XRD results for the cathodes before and after cycling with the BE and 2% DTMS-containing electrolytes are shown in Fig. 5b: the XRD peak intensity of the cathode in the BE electrolyte reduces drastically after cycli…
467page_footerpage_footerFalselowdocling_page_footerdocling_page_footer
p4:bottom_margin:column_2_of_2:white[255, 255, 255]
white		False[296.21, 754.45, 3.59, 10.42]44
568page_headerpage_headerFalselowdocling_page_headerdocling_page_header
p5:body_region:1p5:top_margin:column_2_of_2:white[255, 255, 255]
white		False[433.38, 33.65, 124.91, 10.42]Journal of Power Sources 580 (2023) 233437Journal of Power Sources 580 (2023) 233437
569textpage_margin_headerFalselowpage_margin_headerpage_margin_header
p5:body_region:0p5:top_margin:column_1_of_2:white[255, 255, 255]
white		False[37.59, 36.99, 463.07, 5.85]T. Huang et al.T. Huang et al.
570captioncaptionFalselowoutside_body_flow_captionoutside_body_flow_caption
p5:front_matter:column_1_of_2:white[255, 255, 255]

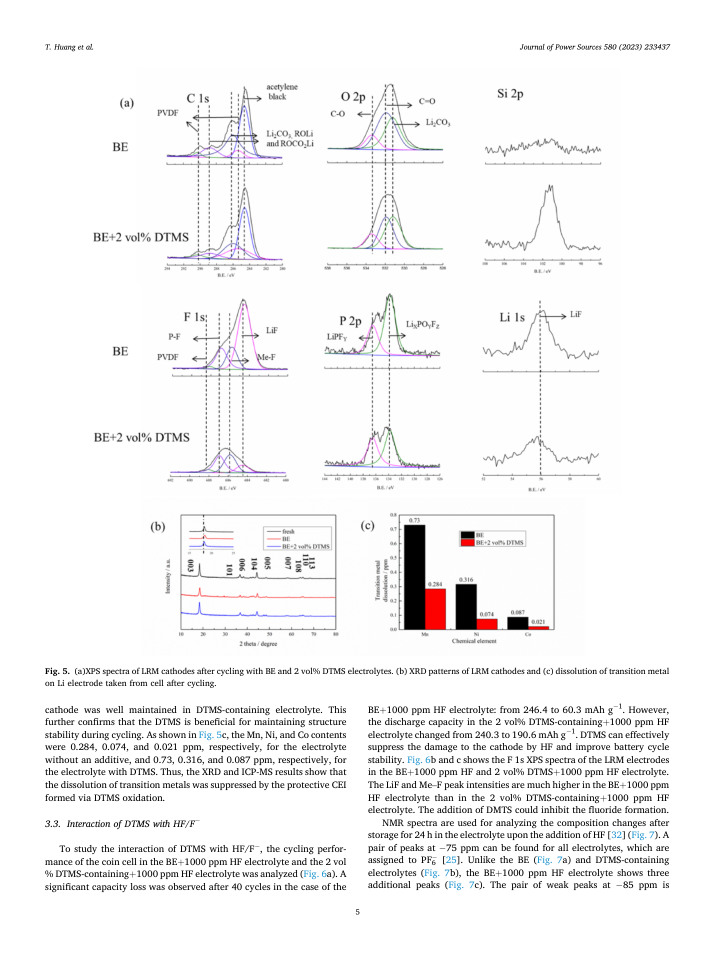

white		False[37.59, 557.13, 522.17, 16.1]Fig. 5. (a)XPS spectra of LRM cathodes after cycling with BE and 2 vol% DTMS electrolytes. (b) XRD patterns of LRM cathodes and (c) dissolution of transition metal on Li electrode taken from cell after cycling.Fig. 5. (a)XPS spectra of LRM cathodes after cycling with BE and 2 vol% DTMS electrolytes. (b) XRD patterns of LRM cathodes and (c) dissolution of transition metal on Li electrode taken from cell after cycling.
571textbody_candidate_excludedFalsehighinside_back_matterinside_back_matter
p5:body_region:0p5:front_matter:column_1_of_2:white[255, 255, 255]
white		False[37.59, 588.57, 253.44, 80.56]cathode was well maintained in DTMS-containing electrolyte. This further confirms that the DTMS is beneficial for maintaining structure stability during cycling. As shown in Fig. 5c, the Mn, Ni, and Co contents were 0.2…cathode was well maintained in DTMS-containing electrolyte. This further confirms that the DTMS is beneficial for maintaining structure stability during cycling. As shown in Fig. 5c, the Mn, Ni, and Co contents were 0.2…
572section_headerbody_headingFalselowbody_headingbody_heading
p5:body_region:0p5:body_zone:column_1_of_2:white[255, 255, 255]
white		False[37.59, 683.75, 124.69, 7.31]3.3. Interaction of DTMS with HF/F3.3. Interaction of DTMS with HF/F
573textbodyTruebodybody
p5:body_region:0p5:bottom_margin:column_1_of_2:white[255, 255, 255]
white		False[37.59, 704.67, 253.41, 38.72]To study the interaction of DTMS with HF/F , the cycling performance of the coin cell in the BE + 1000 ppm HF electrolyte and the 2 vol % DTMS-containing + 1000 ppm HF electrolyte was analyzed (Fig. 6a). A significant c…To study the interaction of DTMS with HF/F , the cycling performance of the coin cell in the BE + 1000 ppm HF electrolyte and the 2 vol % DTMS-containing + 1000 ppm HF electrolyte was analyzed (Fig. 6a). A significant c…
574textbodyTruebodybody
p5:body_region:1p5:front_matter:column_2_of_2:white[255, 255, 255]
white		False[306.59, 586.33, 253.42, 93.22]BE + 1000 ppm HF electrolyte: from 246.4 to 60.3 mAh g 1 . However, the discharge capacity in the 2 vol% DTMS-containing + 1000 ppm HF electrolyte changed from 240.3 to 190.6 mAh g 1 . DTMS can effectively suppress the …BE + 1000 ppm HF electrolyte: from 246.4 to 60.3 mAh g 1 . However, the discharge capacity in the 2 vol% DTMS-containing + 1000 ppm HF electrolyte changed from 240.3 to 190.6 mAh g 1 . DTMS can effectively suppress the …
575textbodyTruebodybody
p5:body_region:1p5:bottom_margin:column_2_of_2:white[255, 255, 255]
white		False[306.6, 682.73, 253.42, 59.58]NMR spectra are used for analyzing the composition changes after storage for 24 h in the electrolyte upon the addition of HF [32] (Fig. 7). A pair of peaks at 75 ppm can be found for all electrolytes, which are assigned…NMR spectra are used for analyzing the composition changes after storage for 24 h in the electrolyte upon the addition of HF [32] (Fig. 7). A pair of peaks at 75 ppm can be found for all electrolytes, which are assigned…
576page_footerpage_footerFalselowdocling_page_footerdocling_page_footer
p5:bottom_margin:column_2_of_2:white[255, 255, 255]
white		False[296.21, 754.45, 3.59, 10.42]55
677page_headerpage_headerFalselowdocling_page_headerdocling_page_header
p6:top_margin:column_2_of_2:white[255, 255, 255]
white		False[433.38, 33.65, 124.91, 10.42]Journal of Power Sources 580 (2023) 233437Journal of Power Sources 580 (2023) 233437
678textpage_margin_headerFalselowpage_margin_headerpage_margin_header
p6:top_margin:column_1_of_2:white[255, 255, 255]
white		False[37.59, 36.99, 463.07, 5.85]T. Huang et al.T. Huang et al.
679captioncaptionFalselowoutside_body_flow_captionoutside_body_flow_caption
p6:page_body:column_1_of_2:white[255, 255, 255]

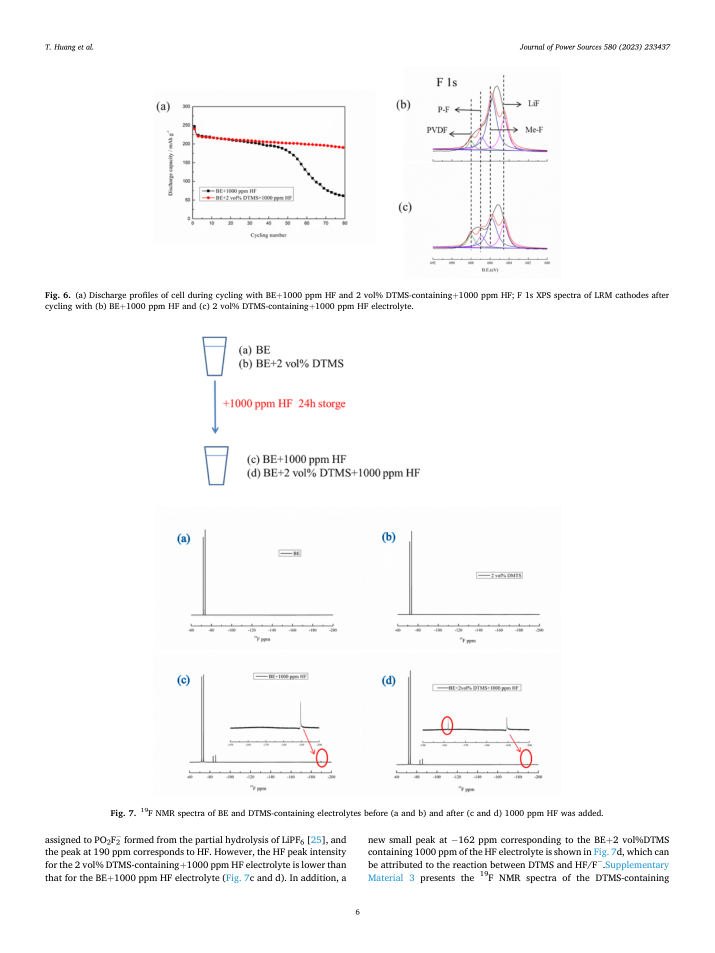

white		False[37.59, 243.16, 522.15, 16.16]Fig. 6. (a) Discharge profiles of cell during cycling with BE + 1000 ppm HF and 2 vol% DTMS-containing + 1000 ppm HF; F 1s XPS spectra of LRM cathodes after cycling with (b) BE + 1000 ppm HF and (c) 2 vol% DTMS-containi…Fig. 6. (a) Discharge profiles of cell during cycling with BE + 1000 ppm HF and 2 vol% DTMS-containing + 1000 ppm HF; F 1s XPS spectra of LRM cathodes after cycling with (b) BE + 1000 ppm HF and (c) 2 vol% DTMS-containi…
680captionbodyTruerecovered_unbound_docling_captionrecovered_unbound_docling_caption
p6:page_body:column_1_of_2:white[255, 255, 255]
white		False[92.13, 673.38, 415.22, 8.36]Fig. 7. 19 F NMR spectra of BE and DTMS-containing electrolytes before (a and b) and after (c and d) 1000 ppm HF was added.Fig. 7. 19 F NMR spectra of BE and DTMS-containing electrolytes before (a and b) and after (c and d) 1000 ppm HF was added.
681textbodyTruebodybody
p6:bottom_margin:column_1_of_2:white[255, 255, 255]
white		False[37.59, 697.02, 253.41, 38.72]assigned to PO2F2 formed from the partial hydrolysis of LiPF6 [25], and the peak at 190 ppm corresponds to HF. However, the HF peak intensity for the 2 vol% DTMS-containing + 1000 ppm HF electrolyte is lower than that f…assigned to PO2F2 formed from the partial hydrolysis of LiPF6 [25], and the peak at 190 ppm corresponds to HF. However, the HF peak intensity for the 2 vol% DTMS-containing + 1000 ppm HF electrolyte is lower than that f…
682textbodyTruebodybody
p6:bottom_margin:column_2_of_2:white[255, 255, 255]
white		False[306.59, 697.02, 253.42, 38.72]new small peak at 162 ppm corresponding to the BE + 2 vol%DTMS containing 1000 ppm of the HF electrolyte is shown in Fig. 7d, which can be attributed to the reaction between DTMS and HF/F .Supplementary Material 3 prese…new small peak at 162 ppm corresponding to the BE + 2 vol%DTMS containing 1000 ppm of the HF electrolyte is shown in Fig. 7d, which can be attributed to the reaction between DTMS and HF/F .Supplementary Material 3 prese…
683page_footerpage_footerFalselowdocling_page_footerdocling_page_footer
p6:bottom_margin:column_2_of_2:white[255, 255, 255]
white		False[296.21, 754.45, 3.59, 10.42]66
784page_headerpage_headerFalselowdocling_page_headerdocling_page_header
p7:top_margin:column_2_of_2:white[255, 255, 255]
white		False[433.38, 33.65, 124.91, 10.42]Journal of Power Sources 580 (2023) 233437Journal of Power Sources 580 (2023) 233437
785textpage_margin_headerFalselowpage_margin_headerpage_margin_header
p7:body_region:0p7:top_margin:column_1_of_2:white[255, 255, 255]
white		False[37.59, 36.99, 463.07, 5.85]T. Huang et al.T. Huang et al.
786textbodyTruebodybody
p7:body_region:0p7:front_matter:column_1_of_2:white[255, 255, 255]
white		False[37.59, 189.96, 253.44, 49.15]electrolytes collected from the LRM/Li cells after evaluating their cycling performance. In them, the peak at 162 ppm corresponding to the products of the reaction of DTMS with HF/F disappears. Combined with the Si 2p X…electrolytes collected from the LRM/Li cells after evaluating their cycling performance. In them, the peak at 162 ppm corresponding to the products of the reaction of DTMS with HF/F disappears. Combined with the Si 2p X…
787textbodyTruebodybody
p7:body_region:0p7:front_matter:column_1_of_2:white[255, 255, 255]
white		False[37.59, 242.23, 253.43, 28.23]The possible DTMS reaction on the interface of the cathode is shown in Fig. 8. We hypothesize that the Si -O bond can react with HF, Lewis acids, and EC [28,33].The possible DTMS reaction on the interface of the cathode is shown in Fig. 8. We hypothesize that the Si -O bond can react with HF, Lewis acids, and EC [28,33].
788section_headerbody_headingFalselowbody_headingbody_heading
p7:body_region:0p7:body_zone:column_1_of_2:white[255, 255, 255]
white		False[37.59, 284.81, 60.27, 7.31]4. Conclusions4. Conclusions
789textbodyTruebodybody
p7:body_region:0p7:body_zone:column_1_of_2:white[255, 255, 255]
white		False[37.59, 305.72, 253.42, 80.56]In conclusion, the cycling performance of the LRM cathode can be greatly improved by adding DTMS. The capacity loss decreased from 57.2% to 25% at 0.5C after 100 cycles. Experimental results show that DTMS is preferenti…In conclusion, the cycling performance of the LRM cathode can be greatly improved by adding DTMS. The capacity loss decreased from 57.2% to 25% at 0.5C after 100 cycles. Experimental results show that DTMS is preferenti…
790section_headerback_matter_headingFalselowback_matter_headingback_matter_heading
stop_triggerp7:body_region:0p7:body_zone:column_1_of_2:white[255, 255, 255]
white		False[37.59, 400.63, 164.27, 7.31]CRediT authorship contribution statementCRediT authorship contribution statement
791textaffiliationFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp7:body_region:0p7:body_zone:column_1_of_2:white[255, 255, 255]
white		False[37.59, 421.55, 253.42, 38.66]Tao Huang: Investigation, Methodology, Writing -original draft. Xiangzhen Zheng: Investigation. Chunfeng Yan: Validation. Ying Pan: Software. Maoxiang Wu: Conceptualization, Writing -review & editing.Tao Huang: Investigation, Methodology, Writing -original draft. Xiangzhen Zheng: Investigation. Chunfeng Yan: Validation. Ying Pan: Software. Maoxiang Wu: Conceptualization, Writing -review & editing.
792section_headerback_matter_headingFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp7:body_region:0p7:body_zone:column_1_of_2:white[255, 255, 255]
white		False[37.59, 476.94, 130.92, 7.31]Declaration of competing interestDeclaration of competing interest
793textunknown_textFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp7:body_region:0p7:body_zone:column_1_of_2:white[255, 255, 255]
white		False[49.55, 497.86, 187.21, 7.31]The authors declare no competing financial interest.The authors declare no competing financial interest.
794section_headerback_matter_headingFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp7:body_region:0p7:body_zone:column_1_of_2:white[255, 255, 255]
white		False[37.59, 518.78, 65.84, 7.31]Data availabilityData availability
795textunknown_textFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp7:body_region:0p7:body_zone:column_1_of_2:white[255, 255, 255]
white		False[49.55, 539.7, 142.71, 7.31]Data will be made available on request.Data will be made available on request.
796section_headerback_matter_headingFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp7:body_region:0p7:body_zone:column_1_of_2:white[255, 255, 255]
white		False[37.59, 561.35, 72.63, 7.31]AcknowledgementAcknowledgement
797textback_matter_textFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp7:body_region:0p7:body_zone:column_1_of_2:white[255, 255, 255]
white		False[37.59, 582.27, 253.44, 28.23]This work was supported by the Science and Technology Planning Project of Fujian Province (Grant No. 2022H0038, 2020H0037, 2022T3001).This work was supported by the Science and Technology Planning Project of Fujian Province (Grant No. 2022H0038, 2020H0037, 2022T3001).
798section_headerunknown_textFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp7:body_region:0p7:body_zone:column_1_of_2:white[255, 255, 255]
white		False[37.59, 624.85, 130.96, 7.31]Appendix A. Supplementary dataAppendix A. Supplementary data
799textreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp7:body_region:0p7:body_zone:column_1_of_2:white[255, 255, 255]
white		False[37.59, 645.77, 253.41, 17.74]Supplementary data to this article can be found online at https://doi. org/10.1016/j.jpowsour.2023.233437.Supplementary data to this article can be found online at org/10.1016/j.jpowsour.2023.233437.
7100section_headerback_matter_headingFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp7:body_region:0p7:body_zone:column_1_of_2:white[255, 255, 255]
white		False[37.59, 677.86, 43.55, 7.31]ReferencesReferences
7101list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp7:body_region:0p7:body_zone:column_1_of_2:white[255, 255, 255]
white		False[40.99, 697.3, 240.3, 21.78]M. Hu, X. Pang, Z. Zhou, Recent progress in high-voltage lithium ion batteries, J. Power Sources 68 (1997) 604 -608, https://doi.org/10.1016/j. jpowsour.2013.03.024.M. Hu, X. Pang, Z. Zhou, Recent progress in high-voltage lithium ion batteries, J. Power Sources 68 (1997) 604 -608,
7102list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp7:body_region:0p7:bottom_margin:column_1_of_2:white[255, 255, 255]
white		False[40.99, 721.22, 230.83, 21.78]Q. Zhong, A. Bonakclarpour, M. Zhang, Y. Gao, J.R. Da, Synthesis and electrochemistry of LiNiMn2-xO4, J. Electrochem. Soc. 144 (1997) 205 -213, https://doi.org/10.1021/ja3091438.Q. Zhong, A. Bonakclarpour, M. Zhang, Y. Gao, J.R. Da, Synthesis and electrochemistry of LiNiMn2-xO4, J. Electrochem. Soc. 144 (1997) 205 -213,
7103captioncaptionFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp7:front_matter:column_2_of_2:white[255, 255, 255]
white		False[236.98, 168.04, 125.53, 6.58]Fig. 8. Possible mechanism of DTMS.Fig. 8. Possible mechanism of DTMS.
7104list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp7:front_matter:column_2_of_2:white[255, 255, 255]
white		False[309.99, 189.96, 247.56, 29.71]F. Zhou, X. Zhao, A. Bommel, X. Xia, J.R. Dahn, Comparison of Li {Li1O9Ni1O3Mn5O9}O2, Li{Li1O5Ni1O5Mn3O5}O2, LiNi0.5Mn1.5O4, and LiNi2O3Mn1O3O2 as high voltage positive electrode materials, J. Electrochem. Soc. 158 (201…F. Zhou, X. Zhao, A. Bommel, X. Xia, J.R. Dahn, Comparison of Li {Li1O9Ni1O3Mn5O9}O2, Li{Li1O5Ni1O5Mn3O5}O2, LiNi0.5Mn1.5O4, and LiNi2O3Mn1O3O2 as high voltage positive electrode materials, J. Electrochem. Soc. 158 (201…
7105list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp7:front_matter:column_2_of_2:white[255, 255, 255]
white		False[310.0, 221.81, 247.56, 21.78]L. Yang, B. Ravdel, B.L. Lucht, Electrolyte reactions with the surface of high voltage LiNi0.5Mn1.5O4 cathodes for lithium-ion batteries, J. Electrochem. Soc. 13 (2010) A95 -A97, https://doi.org/10.1039/c0jm04225k.L. Yang, B. Ravdel, B.L. Lucht, Electrolyte reactions with the surface of high voltage LiNi0.5Mn1.5O4 cathodes for lithium-ion batteries, J. Electrochem. Soc. 13 (2010) A95 -A97,
7106list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp7:front_matter:column_2_of_2:white[255, 255, 255]
white		False[310.0, 245.74, 232.46, 13.79]K. Xu, A. Cresce, Interfacing electrolytes with electrodes in Li ion batteries, J. Mater. Chem. 21 (2011) 9849 -9864, https://doi.org/10.1021/ja108588y.K. Xu, A. Cresce, Interfacing electrolytes with electrodes in Li ion batteries, J. Mater. Chem. 21 (2011) 9849 -9864,
7107list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp7:front_matter:column_2_of_2:white[255, 255, 255]
white		False[310.0, 261.67, 235.46, 21.78]J. Liu, A. Manthiram, Kinetics study of the 5 V spinel cathode LiMn1.5Ni0.5O4 before and after surface modifications, J. Electrochem. Soc. 156 (2009) A833 -A838, https://doi.org/10.1021/cm801245r.J. Liu, A. Manthiram, Kinetics study of the 5 V spinel cathode LiMn1.5Ni0.5O4 before and after surface modifications, J. Electrochem. Soc. 156 (2009) A833 -A838,
7108list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp7:body_zone:column_2_of_2:white[255, 255, 255]
white		False[310.0, 285.59, 247.56, 21.78]L. Yang, M. Takahashi, B. Wang, A study on capacity fading of lithium-ion battery with manganese spinel positive electrode during cycling, Electrochim. Acta 51 (2006) 3228 -3234, https://doi.org/10.1039/c4ra12454e.L. Yang, M. Takahashi, B. Wang, A study on capacity fading of lithium-ion battery with manganese spinel positive electrode during cycling, Electrochim. Acta 51 (2006) 3228 -3234,
7109list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp7:body_zone:column_2_of_2:white[255, 255, 255]
white		False[310.0, 309.46, 247.55, 21.78]D.P. Abraham, T. Spila, M. Furczon, E. Sammann, Evidence of transition-metal accumulation on aged graphite anodes by SIMS, Electrochem. Solid State Lett. 12 (2008) A226 -A228, https://doi.org/10.1149/2.0111514jes.D.P. Abraham, T. Spila, M. Furczon, E. Sammann, Evidence of transition-metal accumulation on aged graphite anodes by SIMS, Electrochem. Solid State Lett. 12 (2008) A226 -A228,
7110list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp7:body_zone:column_2_of_2:white[255, 255, 255]
white		False[310.0, 333.38, 247.56, 29.77]Y. Zhu, X. Luo, M. Xu, L. Zhang, L. Yu, W. Fan, W. Li, Failure mechanism of layered lithium-rich oxide/graphite cell and its solution by using electrolyte additive, J. Power Sources 317 (2016) 65 -73, https://doi.org/10…Y. Zhu, X. Luo, M. Xu, L. Zhang, L. Yu, W. Fan, W. Li, Failure mechanism of layered lithium-rich oxide/graphite cell and its solution by using electrolyte additive, J. Power Sources 317 (2016) 65 -73,
7111list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp7:body_zone:column_2_of_2:white[255, 255, 255]
white		False[306.6, 365.25, 249.07, 29.77]H. Liu, C. Du, G. Yin, B. Song, P. Zuo, X. Cheng, Y. Ma, Y. Gao, An Li-rich oxide cathode material with mosaic spinel grain and a surface coating for high performance Li-ion batteries, J. Mater. Chem. A 2 (2014) 15640 -…H. Liu, C. Du, G. Yin, B. Song, P. Zuo, X. Cheng, Y. Ma, Y. Gao, An Li-rich oxide cathode material with mosaic spinel grain and a surface coating for high performance Li-ion batteries, J. Mater. Chem. A 2 (2014) 15640 -…
7112list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp7:body_zone:column_2_of_2:white[255, 255, 255]
white		False[306.6, 397.16, 250.96, 21.78]D. Xie, G. Li, Q. Li, C. Fu, J. Fan, L. Li, Improved cycling stability of cobalt-free Lirich oxides with a stable interface by dual doping, Electrochim. Acta 196 (2016) 505 -516, https://doi.org/10.1016/j.electacta.2016…D. Xie, G. Li, Q. Li, C. Fu, J. Fan, L. Li, Improved cycling stability of cobalt-free Lirich oxides with a stable interface by dual doping, Electrochim. Acta 196 (2016) 505 -516,
7113list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp7:body_zone:column_2_of_2:white[255, 255, 255]
white		False[306.6, 421.03, 250.96, 29.77]L. Li, B.H. Song, Y.L. Chang, H. Xia, J.R. Yang, K.S. Lee, L. Lu, Retarded phase transition by fluorine doping in Li-rich layered Li1.2Mn0.54Ni0.13Co0.13O2 cathode, Mater. J. Power Sources 283 (2015) 162 -170, https://d…L. Li, B.H. Song, Y.L. Chang, H. Xia, J.R. Yang, K.S. Lee, L. Lu, Retarded phase transition by fluorine doping in Li-rich layered Li1.2Mn0.54Ni0.13Co0.13O2 cathode, Mater. J. Power Sources 283 (2015) 162 -170,
7114list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp7:body_zone:column_2_of_2:white[255, 255, 255]
white		False[306.6, 452.95, 246.33, 37.71]H. Liu, C. Chen, C. Du, X. He, G. Yin, B. Song, P. Zuo, X. Cheng, Y. Ma, Y. Gao, Lithium-rich Li1.2Ni0.13Co0.13Mn0.54O2 oxide coated by Li3PO4 and carbon nanocomposite layers as high performance cathode materials for li…H. Liu, C. Chen, C. Du, X. He, G. Yin, B. Song, P. Zuo, X. Cheng, Y. Ma, Y. Gao, Lithium-rich Li1.2Ni0.13Co0.13Mn0.54O2 oxide coated by Li3PO4 and carbon nanocomposite layers as high performance cathode materials for li…
7115list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp7:body_zone:column_2_of_2:white[255, 255, 255]
white		False[306.6, 492.81, 250.92, 21.78]J. Han, S. Lee, J. Lee, J. Kim, K. Lee, N. Choi, Tunable and robust phosphite-derived surface film to protect lithium-rich cathodes in lithium-ion batteries, ACS Appl. Mater. Interfaces 7 (2015) 8319 -8329, https://doi.…J. Han, S. Lee, J. Lee, J. Kim, K. Lee, N. Choi, Tunable and robust phosphite-derived surface film to protect lithium-rich cathodes in lithium-ion batteries, ACS Appl. Mater. Interfaces 7 (2015) 8319 -8329,
7116list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp7:body_zone:column_2_of_2:white[255, 255, 255]
white		False[306.6, 516.73, 247.47, 29.72]J. Zhang, J. Wang, J. Yang, Y. NuLi, Artificial interface deriving from Sacrificial Tris(trimethylsilyl)phosphate additive for lithium rich cathode materials, Electrochim. Acta 117 (2014) 99 -104, https://doi.org/10.101…J. Zhang, J. Wang, J. Yang, Y. NuLi, Artificial interface deriving from Sacrificial Tris(trimethylsilyl)phosphate additive for lithium rich cathode materials, Electrochim. Acta 117 (2014) 99 -104,
7117list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp7:body_zone:column_2_of_2:white[255, 255, 255]
white		False[306.6, 548.59, 250.97, 29.77]J. Li, L. Xing, R. Zhang, M. Chen, Z. Wang, M. Xu, W. Li, Tris(trimethylsilyl)borate as an electrolyte additive for improving interfacial stability of high voltage layered lithium-rich oxide cathode/carbonate-based elec…J. Li, L. Xing, R. Zhang, M. Chen, Z. Wang, M. Xu, W. Li, Tris(trimethylsilyl)borate as an electrolyte additive for improving interfacial stability of high voltage layered lithium-rich oxide cathode/carbonate-based elec…
7118list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp7:body_zone:column_2_of_2:white[255, 255, 255]
white		False[306.6, 580.45, 250.95, 29.77]J. Lan, Q. Zheng, H. Zhou, J. Li, L. Xing, K. Xu, W. Fan, L. Yu, W. Li, Stabilizing a high-voltage lithium-rich layered oxide cathode with a novel electrolyte additive, ACS Appl. Mater. Interfaces 11 (2019) 28841 -28850…J. Lan, Q. Zheng, H. Zhou, J. Li, L. Xing, K. Xu, W. Fan, L. Yu, W. Li, Stabilizing a high-voltage lithium-rich layered oxide cathode with a novel electrolyte additive, ACS Appl. Mater. Interfaces 11 (2019) 28841 -28850,
7119list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp7:body_zone:column_2_of_2:white[255, 255, 255]
white		False[306.6, 612.37, 250.93, 29.72]X. Zuo, M. Zhao, X. Ma, X. Xiao, J. Liu, J. Nan, Effect of diphenyl disulfide as an additive on the electrochemical performance of Li1.2Mn0.54Ni0.13Co0.13O2/graphite batteries at elevated temperature, Electrochim. Acta …X. Zuo, M. Zhao, X. Ma, X. Xiao, J. Liu, J. Nan, Effect of diphenyl disulfide as an additive on the electrochemical performance of Li1.2Mn0.54Ni0.13Co0.13O2/graphite batteries at elevated temperature, Electrochim. Acta …
7120list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp7:body_zone:column_2_of_2:white[255, 255, 255]
white		False[306.6, 644.23, 249.78, 29.77]L. Wang, Y. Ma, Q. Li, Z. Zhou, X. Cheng, P. Zuo, C. Du, Y. Gao, G. Yin, 1,3,6hexanetricarbonitrile as electrolyte additive for enhancing electrochemical performance of high voltage Li-rich layered oxide cathode, J. Pow…L. Wang, Y. Ma, Q. Li, Z. Zhou, X. Cheng, P. Zuo, C. Du, Y. Gao, G. Yin, 1,3,6hexanetricarbonitrile as electrolyte additive for enhancing electrochemical performance of high voltage Li-rich layered oxide cathode, J. Pow…
7121list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp7:body_zone:column_2_of_2:white[255, 255, 255]
white		False[306.6, 676.09, 250.92, 29.77]H. Pham, K. Nam, E. Hwang, Y. Kwon, H. Jung, S. Song, Performance Enhancement of 4.8 V Li1.2Mn0.525Ni0.175Co0.1O2 battery cathode using Fluorinated linear carbonate as a high-voltage additive, J. Electrochem. Soc. 161 (…H. Pham, K. Nam, E. Hwang, Y. Kwon, H. Jung, S. Song, Performance Enhancement of 4.8 V Li1.2Mn0.525Ni0.175Co0.1O2 battery cathode using Fluorinated linear carbonate as a high-voltage additive, J. Electrochem. Soc. 161 (…
7122list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp7:bottom_margin:column_2_of_2:white[255, 255, 255]
white		False[306.6, 708.01, 250.96, 29.72]J. Cha, J. Han, J. Hwang, J. Cho, N. Choi, Mechanisms for electrochemical performance enhancement by the salt-type electrolyte additive, lithium difluoro (oxalato)borate, in high-voltage lithium-ion batteries, J. Power …J. Cha, J. Han, J. Hwang, J. Cho, N. Choi, Mechanisms for electrochemical performance enhancement by the salt-type electrolyte additive, lithium difluoro (oxalato)borate, in high-voltage lithium-ion batteries, J. Power …
7123page_footerpage_footerFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp7:bottom_margin:column_2_of_2:white[255, 255, 255]
white		False[296.21, 754.45, 3.59, 10.42]77
8124page_headerpage_headerFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp8:top_margin:column_2_of_2:white[255, 255, 255]
white		False[433.38, 33.65, 124.91, 10.42]Journal of Power Sources 580 (2023) 233437Journal of Power Sources 580 (2023) 233437
8125textpage_margin_headerFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp8:top_margin:column_1_of_2:white[255, 255, 255]
white		False[37.59, 37.0, 463.07, 5.85]T. Huang et al.T. Huang et al.
8126list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp8:top_margin:column_1_of_2:white[255, 255, 255]
white		False[37.59, 55.48, 249.05, 29.77]S. Tan, Z. Zhang, Y. Li, Y. Li, J. Zheng, Z. Zhou, Y. Yang, Tris(hexafluoro-isopropyl)phosphate as an CEI-forming additive on improving the electrochemical performance of the Li[Li0.2Mn0.56Ni0.16Co0.08]O2 cathode, Mater…S. Tan, Z. Zhang, Y. Li, Y. Li, J. Zheng, Z. Zhou, Y. Yang, Tris(hexafluoro-isopropyl)phosphate as an CEI-forming additive on improving the electrochemical performance of the Li[Li0.2Mn0.56Ni0.16Co0.08]O2 cathode, Mater…
8127list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp8:page_body:column_1_of_2:white[255, 255, 255]
white		False[37.59, 87.34, 250.97, 29.77]Z. Zhou, Y. Ma, L. Wang, P. Zuo, X. Cheng, C. Du, G. Yin, Y. Gao, Triphenyl phosphite as an electrolyte additive to improve the cyclic stability of lithium-rich layered oxide cathode for lithium-ion batteries, Electroch…Z. Zhou, Y. Ma, L. Wang, P. Zuo, X. Cheng, C. Du, G. Yin, Y. Gao, Triphenyl phosphite as an electrolyte additive to improve the cyclic stability of lithium-rich layered oxide cathode for lithium-ion batteries, Electroch…
8128list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp8:page_body:column_1_of_2:white[255, 255, 255]
white		False[37.59, 119.25, 250.96, 21.78]W. Tu, P. Xia, X. Zheng, C. Ye, M. Xu, W. Li, Insight into the interaction between layered lithium-rich oxide and additive-containing electrolyte, J. Power Sources 341 (2017) 348 -356, https://doi.org/10.1016/j.jpowsour…W. Tu, P. Xia, X. Zheng, C. Ye, M. Xu, W. Li, Insight into the interaction between layered lithium-rich oxide and additive-containing electrolyte, J. Power Sources 341 (2017) 348 -356,
8129list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp8:page_body:column_1_of_2:white[255, 255, 255]
white		False[37.59, 143.18, 250.97, 29.72]J. Li, Z. Wang, Triethyl borate and tripropyl borate as electrolyte additives for 4.8 V high voltage layered lithium-rich oxide cathode with enhanced self-discharge suppression performance: a comparative study, J. Power…J. Li, Z. Wang, Triethyl borate and tripropyl borate as electrolyte additives for 4.8 V high voltage layered lithium-rich oxide cathode with enhanced self-discharge suppression performance: a comparative study, J. Power…
8130list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp8:page_body:column_1_of_2:white[255, 255, 255]
white		False[37.59, 175.04, 250.94, 29.77]S. Wang, S. Chen, W. Gao, L. Liua, S. Zhang, A new additive 3-isocyanatopropyltriethoxysilane to improve electrochemical performance of Li/NCM622 half-cell at high voltage, J. Power Sources 423 (2019) 90 -97, https://do…S. Wang, S. Chen, W. Gao, L. Liua, S. Zhang, A new additive 3-isocyanatopropyltriethoxysilane to improve electrochemical performance of Li/NCM622 half-cell at high voltage, J. Power Sources 423 (2019) 90 -97,
8131list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp8:page_body:column_1_of_2:white[255, 255, 255]
white		False[37.59, 206.9, 250.96, 21.78]T.J. Lee, J. Soon, S. Chae, J.H. Ryu, S.M. Oh, A bifunctional electrolyte additive for high-voltage LiNi0.5Mn1.5O4 positive electrodes, ACS Appl. Mater. Interfaces 11 (2019) 11306 -11316, https://doi.org/10.1021/acsami.…T.J. Lee, J. Soon, S. Chae, J.H. Ryu, S.M. Oh, A bifunctional electrolyte additive for high-voltage LiNi0.5Mn1.5O4 positive electrodes, ACS Appl. Mater. Interfaces 11 (2019) 11306 -11316,
8132list_itemaffiliationFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp8:page_body:column_1_of_2:white[255, 255, 255]
white		False[37.59, 230.83, 250.97, 13.84]T. Huang, Y. Pan, C. Yan, M. Wu, Electrochemical property enhancement of LiNi0.5Mn1.5O4 cathodes at high temperatures using 1,1,3,3-tetramethyldisiloxane,T. Huang, Y. Pan, C. Yan, M. Wu, Electrochemical property enhancement of LiNi0.5Mn1.5O4 cathodes at high temperatures using 1,1,3,3-tetramethyldisiloxane,
8133list_itempage_margin_headerFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp8:top_margin:column_2_of_2:white[255, 255, 255]
white		False[323.15, 55.48, 228.32, 13.84]ACS Appl. Mater. Interfaces 13 (2021) 48881 -48888, https://doi.org/10.1021/ acsami.1c15137.ACS Appl. Mater. Interfaces 13 (2021) 48881 -48888, acsami.1c15137.
8134list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp8:page_body:column_2_of_2:white[255, 255, 255]
white		False[306.59, 71.41, 250.94, 29.77]J. Chen, H. Zhang, M. Wang, J. Liu, C. Li, P. Zhang, Improving the electrochemical performance of high voltage spinel cathode at elevated temperature by a novel electrolyte additive, J. Power Sources 303 (2016) 41 -48, …J. Chen, H. Zhang, M. Wang, J. Liu, C. Li, P. Zhang, Improving the electrochemical performance of high voltage spinel cathode at elevated temperature by a novel electrolyte additive, J. Power Sources 303 (2016) 41 -48,
8135list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp8:page_body:column_2_of_2:white[255, 255, 255]
white		False[306.59, 103.33, 250.96, 29.72]L. Xing, C. Wang, M. Xu, W. Li, Z. Cai, Theoretical study on reduction mechanism of 1,3-benzodioxol-2-one for the formation of solid electrolyte interface on anode of lithium ion battery, J. Power Sources 189 (2009) 689…L. Xing, C. Wang, M. Xu, W. Li, Z. Cai, Theoretical study on reduction mechanism of 1,3-benzodioxol-2-one for the formation of solid electrolyte interface on anode of lithium ion battery, J. Power Sources 189 (2009) 689…
8136list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp8:page_body:column_2_of_2:white[255, 255, 255]
white		False[306.59, 135.19, 250.95, 29.77]Y. Zhu, X. Luo, H. Zhi, Y. Liao, L. Xing, M. Xu, X. Liu, K. Xu, W. Li, Diethyl (thiophen-2-ylmethyl)phosphonate: a novel multifunctional electrolyte additive for high voltage batteries, J. Mater. Chem. A 6 (2018) 10990 …Y. Zhu, X. Luo, H. Zhi, Y. Liao, L. Xing, M. Xu, X. Liu, K. Xu, W. Li, Diethyl (thiophen-2-ylmethyl)phosphonate: a novel multifunctional electrolyte additive for high voltage batteries, J. Mater. Chem. A 6 (2018) 10990 …
8137list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp8:page_body:column_2_of_2:white[255, 255, 255]
white		False[306.59, 167.05, 250.95, 29.77]Y. Zhu, X. Luo, H. Zhi, Y. Liao, L. Xing, M. Xu, X. Liu, K. Xu, W. Li, Diethyl (thiophen-2-ylmethyl)phosphonate: a novel multifunctional electrolyte additive for high voltage batteries, J. Mater. Chem. A 6 (2018) 10990 …Y. Zhu, X. Luo, H. Zhi, Y. Liao, L. Xing, M. Xu, X. Liu, K. Xu, W. Li, Diethyl (thiophen-2-ylmethyl)phosphonate: a novel multifunctional electrolyte additive for high voltage batteries, J. Mater. Chem. A 6 (2018) 10990 …
8138list_itemreferenceFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp8:page_body:column_2_of_2:white[255, 255, 255]
white		False[306.59, 198.97, 250.92, 29.72]H. Wang, D. Sun, X. Li, W. Ge, B. Deng, M. Qu, G. Peng, Alternative multifunctional cyclic organosilicon as an efficient electrolyte additive for high performance lithium-ion batteries, Electrochim. Acta 254 (2017) 112 …H. Wang, D. Sun, X. Li, W. Ge, B. Deng, M. Qu, G. Peng, Alternative multifunctional cyclic organosilicon as an efficient electrolyte additive for high performance lithium-ion batteries, Electrochim. Acta 254 (2017) 112 …
8139page_footerpage_footerFalselowafter_back_matter_stopafter_back_matter_stop
after_stopp8:bottom_margin:column_2_of_2:white[255, 255, 255]
white		False[296.21, 754.45, 3.59, 10.42]88
